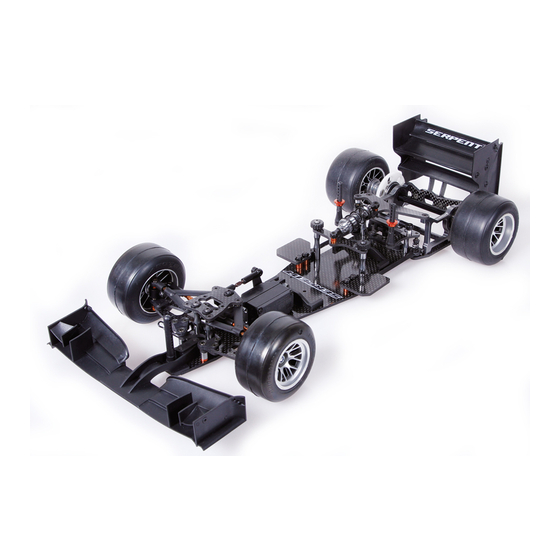

Serpent F110 SF2 Instruction Manual & Reference Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
& REFERENCE GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the F110 SF2 and is the answer not in the manual?

Questions and answers

Related Manuals for Serpent F110 SF2

Summary of Contents for Serpent F110 SF2

  • Page 1 INSTRUCTION MANUAL & REFERENCE GUIDE...
  • Page 2 INTRODUCTION The Serpent Facebook, Twitter and Youtube pages give Serpent developed the Serpent F110 SF2 model car for additional means of support and communications. demanding racers in the highly competitive electric SAfeTy 1/10th scale F1 class, which like all our previous cars, Read and take note of the ‘Read this First section’...
  • Page 3 USING THE MANUAL Each step contains a variety of numbers, lines, and symbols. The numbers represent the order in which the parts should be assembled. The lines and symbols are described below. Step number; the order in which you should assemble the indicated parts Length after assembly Assembly path of one item into another...

  • Page 4: Front Assembly

    CA Glue STEP To prevent the risk of the carbon fibre splitting in the event of a crash you should apply CA Glue around the chassis’ edge and the power pod plate external and internal edge as shown in red below. FRONT ASSEMBLY A) FRONT RIGID SUSPENSION ASSEMBLY STEP...
  • Page 5 M2.5x8 M2.5x8 STEP M2.5x6 M3x8 A) FRONT RIGID SUSPENSION ASSEMBLY STEP A) Detail view Front Rigid suspension assembly Page...
  • Page 6 B) FRONT FLEX SUSPENSION ASSEMBLY STEP B) Detail view Front Flex suspension assembly STEP M3x5 M3x5 Page...
  • Page 7 STEP M3x6 M3x6 M3x8 Detail view M3x8 Caster Inserts: For insert number please check the default setup sheet. 5x8x2.5 5x8x2.5 STEP 4 mm Page...
  • Page 8 NOTES: STEP 1) Note orientation of the king pin insert 2) King pin angle adjustable from 0 to Nylock Nut 4 degrees. Default 2 degrees. M3x5 A) FRONT RIGID SUSPENSION ASSEMBLY 8.2A R2.3 Detail view Steeringblock assembly for rigid front suspension 3x5x1 3x5x2...
  • Page 9 B) FRONT FLEX SUSPENSION ASSEMBLY 8.2B R2.3 Detail view Steeringblock assembly for flex front suspension 3x5x0.3 3x5x0.3 3x5x1 3x5x2 3x5x1 3x5x2 3x5x2 R2.3 STEP 16 mm Page...

  • Page 10: Rear Assembly

    REAR ASSEMBLY STEP Nylock Nut Note corrrect ball type to use here NOTE Do no overtight to ensure free rotation of the pivot ball. M3x8 STEP M3x6 M3x6 M3x6 M3x6 Page...
  • Page 11 M2.2x6 STEP M2.2x6 M2.2x6 M2.2x6 M2.2x6 M2.2x6 STEP Nylock Nut M3x6 3x6x6 M3x6 M3x16 Page...
  • Page 12 M2x6 STEP M2x6 M2x6 M2x6 Note corrrect ball type to use here M3x5 NOTE: M3x5 The links should move free without play. Adjust movement and play with these screws. M3x5 M3x5 M2.5x6 STEP M2.5x6 3x5x4 Note corrrect ball type to use here M3x10 M3x3 4 mm...
  • Page 13 STEP M3x6 M3x6 M3x10 M3x10 STEP 3x5x0.3 M3x6 M3x6 Page...
  • Page 14 STEP M3x6 3x6x0.5 3x6x0.5 M3x6 Nylock Nut M3x8 3x5x4 Note corrrect ball type to use here 19.1 STEP M3x10 Apply the silicone oil on the inner tube, see CST value in the setup sheet 19.2 Page...
  • Page 15 BALL DIFF ASSEMBLY Note spring washer orientation STEP Apply 1/4x3/8 threadlock Apply silicone grease HOW TO ADJUST THE BALL-DIFF: In order to tighten 1/4x3/8 or loosen the ball-diff, you should follow the next two steps: Push a pin or a Allen tool through the Diff Hub slot into the hole of the...
  • Page 16 ELECTRONICS AND SERVO ASSEMBLY A) REARWARD SERVO CONFIGURATION STEP INCLUDeD M3X6 Flanged M3X6 Flanged M3X6 M3X6 B) FORWARD SERVO CONFIGURATION STEP INCLUDeD M3X6 Flanged M3X6 Flanged M3X6 M3X6 Page...
  • Page 17 A) SERVO LEVER ASSEMBLING STEP M3X5 Check how many teeth your servo spline has M3X6 (23, 24 or 25) and use the right inserts. B) SERVO SAVER ASSEMBLING STEP M3X5 Check how many teeth your servo spline has M3X8 (23, 24 or 25) and use the right inserts. 24.1 14 mm with Rearward servo configuration STEP...
  • Page 18 A) REARWARD BATTERY CONFIGURATION (DEFAULT) STEP NOTE Use glass-tape (not included) to fix the battery to the chassis. NOT INCLUDeD M3X6 M2.5X5 M3X6 M2.5X5 B) FORWARD BATTERY CONFIGURATION STEP NOTE Use glass-tape (not included) to fix the battery to the chassis. NOT INCLUDeD M2.5X5 M3X6...
  • Page 19 Detail view rearward battery and servo configuration (default) Detail view forward battery and servo configuration Detail view forward servo and rearward battery configuration Page...
  • Page 20 M3X12 STEP STEP 3x5x2 M3X12 M3X10 Nylock Nut STEP Nylock Nut 3X6X6 3X6X6 M3X14 M3X14 Page...
  • Page 21 STEP NOT INCLUDeD Tip: Use double sided tape to mount the ESC and RX to the chassisplate. NOT INCLUDeD M3X5 STEP Pinion is NOT INCLUDeD in the NOT INCLUDeD kit. Assemble the proper pinion for your set-up M3X10 Page...

  • Page 22: Shock Assembly

    SHOCK ASSEMBLY 30.1 30.2 30.3 STEP Use some silicone oil NOTe during assembly For the correct piston check the set-up sheet. 30.4 30.5 M3X10 M3X3 30.7 30.6 Close the shock slowly. Important: crossthread! will overflow through Filling: built-in bleed channel. Fill the shock body with shock absorber oil.

  • Page 23: Final Assembly

    FINAL ASSEMBLY STEP M2.2X4 M2X5 M2X5 M2.2X4 STEP M3X10 M3X10 M4X10 M3X10 Page...
  • Page 24 STEP M3X3 STEP Body, wheels and tyres are NOT included 5x10x4 Nylock Nut M4 Flanged 5x8x0.3 Nylock Nut M4 Page...
  • Page 25 REFERENCE GUIDE Page...
  • Page 26 FRONT ASSEMBLY 411349 110124 401025 1312 411337 411335 110108 411347 411345 411163 110157 411042 1312 411338 401025 110408 401042 401025 401043 110411 110108 110130 411336 110108 411351 110124 411023 110109 411324 411339 411206 411358 See table 110206 411323 411358 411042 below 401025 110402...
  • Page 27 REAR ASSEMBLY 110156 110122 411187 110415 411354 411354 411061 110122 110122 110104 110402 110402 411289 411344 411074 110411 110428 401025 411303 110448 110122 411303 110132 411346 411307 110408 411354 110448 411207 411304 110402 110154 411303 411326 110156 411074 INCLUDeD 411259 411199 411048 110172...
  • Page 28 FINAL I ASSEMBLY 401025 110109 401043 500360 110109 500360 411291 411350 411183 411291 1606 110402 411308 411310 110448 401413 110402 110166 110122 110184 411310 110166 110448 110157 Please click here to check all the Optional Parts FINAL II ASSEMBLY 411040 Body, wheels and tyres are NOT 411070...
  • Page 29 TEAM SERPENT NETWORK F110 SF2 SPARE PARTS F110 SF2 OPTiONAl PARTS SERPENT TOOlS SERPENT MERCHANdiSiNg WEbSiTE ANd blOg SOCiAl MEdiA Page...
