Related Manuals for Mamas & Papas GO1M-R1 perfect height swing
Summary of Contents for Mamas & Papas GO1M-R1 perfect height swing

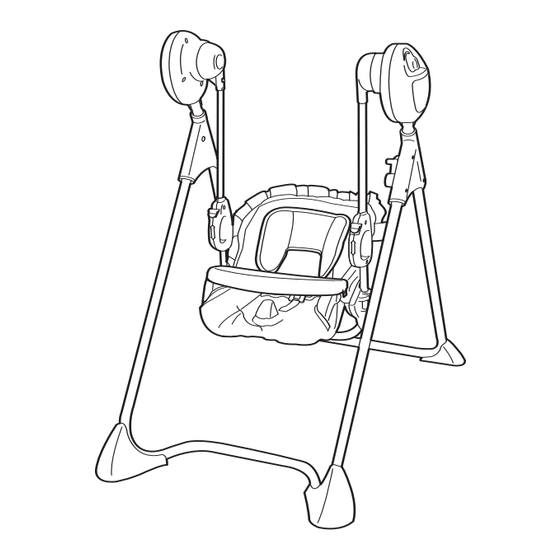

- Page 1 instructions perfect height swing IMPORTANT : Please read instructions carefully and keep for future reference GO1M-R1 – 1 –...
-
Page 2: Instructions For Safe Use
PERFECT HEIGHT SWING IMPORTANT: READ THE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. YOUR CHILD MAY BE HURT IF YOU DO NOT FOLLOW THESE INSTRUCTIONS The correct use and maintenance of your Perfect Height Swing will ensure it gives long and trouble-free use. -
Page 3: Product Information
PRODUCT INFORMATION The Perfect Height Swing is designed to be used by newborn babies and infants. Its unique Newborn & Infant Seat Positions give comfort and enjoyment to your baby. • The seat can be reclined into two positions. • The seat can be set at two different height positions: the raised position for newborns and the lowered position for infants. - Page 4 ASSEMBLING THE SWING FRAME Speed control Frame unit bracket Select front leg A, which has an A printed on the top of the leg, and connect it to rear leg A which has an A stamped on the frame Front bracket at the top of leg.
- Page 5 ASSEMBLING THE SWING FRAME Select the rear feet and position them so that the plastic feet are flat on the floor and the leg ends point upwards at an angle. Slot the rear legs onto the Rear top of the rear feet leg A ensuring that the seat connectors face into the...
-
Page 6: Attaching The Seat
ATTACHING THE SEAT Seat tube Align the two seat tubes with the seat connectors on the frame. Slot the ends of the seat tubes into the seat connectors. Ensure that the front of the seat faces towards the front of the swing. Depress the two spring- loaded buttons in the seat Seat... -
Page 7: Attaching And Removing The Tray
ATTACHING AND REMOVING THE TRAY Align the two plastic lugs on the underside of the tray with the rectangular holes in the armrests of the seat. Lower the tray into position on the armrests. Push down on the tray until the two locking catches on the sides of the tray snap into position. - Page 8 SETTING UP AND OPERATING THE PLAY CENTRE Use a cross-head screwdriver to remove the screw securing the battery cover, located on the underside of the play centre. Insert three size AA Volume batteries. Follow the control polarity instructions inside button the battery compartment AA BATTERY to ensure that the...
- Page 9 USING AND ADJUSTING THE HARNESS IMPORTANT: Every time you place your child in the Perfect Height Swing or whenever you alter the position of the seat always check that the harness is correctly fitted and adjusted using the waist strap buckles. Tighten the harness until it fits snugly Harness around your child.
- Page 10 SETTING UP AND OPERATING THE SPEED CONTROL UNIT Insert a flat-head screwdriver or coin, into the gap at the side of the battery cover and carefully prise it open. Battery cover Insert four D cell batteries in the order shown in the diagram.
- Page 11 SELECTING THE SEAT HEIGHT AND SWING SPEED Lowering and raising the seat: Grip the two handles at the sides of the seat and use your thumbs to flip the button covers open. Press both seat height buttons at the same time and lower or raise the seat until it locks into place.
-
Page 12: Reclining The Seat
RECLINING THE SEAT Push the recline button on the lower left side of seat to unlock the seat. Push seat backwards until it locks into the reclined position. Note: The seat must be reclined when used for newborn babies. To adjust the seat into the upright position, push the recline button and tilt the seat forwards until it locks... -
Page 13: Removing The Seat Cover
REMOVING THE SEAT COVER Before the seat cover can be removed the harness must be disengaged from the seat. Harness Working from the back of buckles the seat, locate the two harness buckles, see diagram. Slot them through the holes in the seat and through the holes in the seat cover. -
Page 14: Troubleshooting
FOLDING THE SWING Stand behind swing and Frame bracket grip the two frame brackets on the rear legs. Depress the two spring- loaded buttons into the frame brackets to unlock the front legs. Keep holding down the spring loaded buttons and tip the swing backwards a few degrees so that the front feet are lifted off the... - Page 15 INSTRUCTIONS FOR SAFE USE & MAINTENANCE WARNING: A child’s safety is your responsibility Never leave your child unattended in the Perfect Height Swing. Before use: • Check that the Perfect Height Swing is correctly assembled. • Ensure that the seat is correctly adjusted. •...
- Page 16 www.mamasandpapas.com Mamas & Papas Colne Bridge Road Huddersfield HD5 0RH customer care helpline: 01484 438222 customer care e-mail: customer.care@mamasandpapas.co.uk – 16 –...
