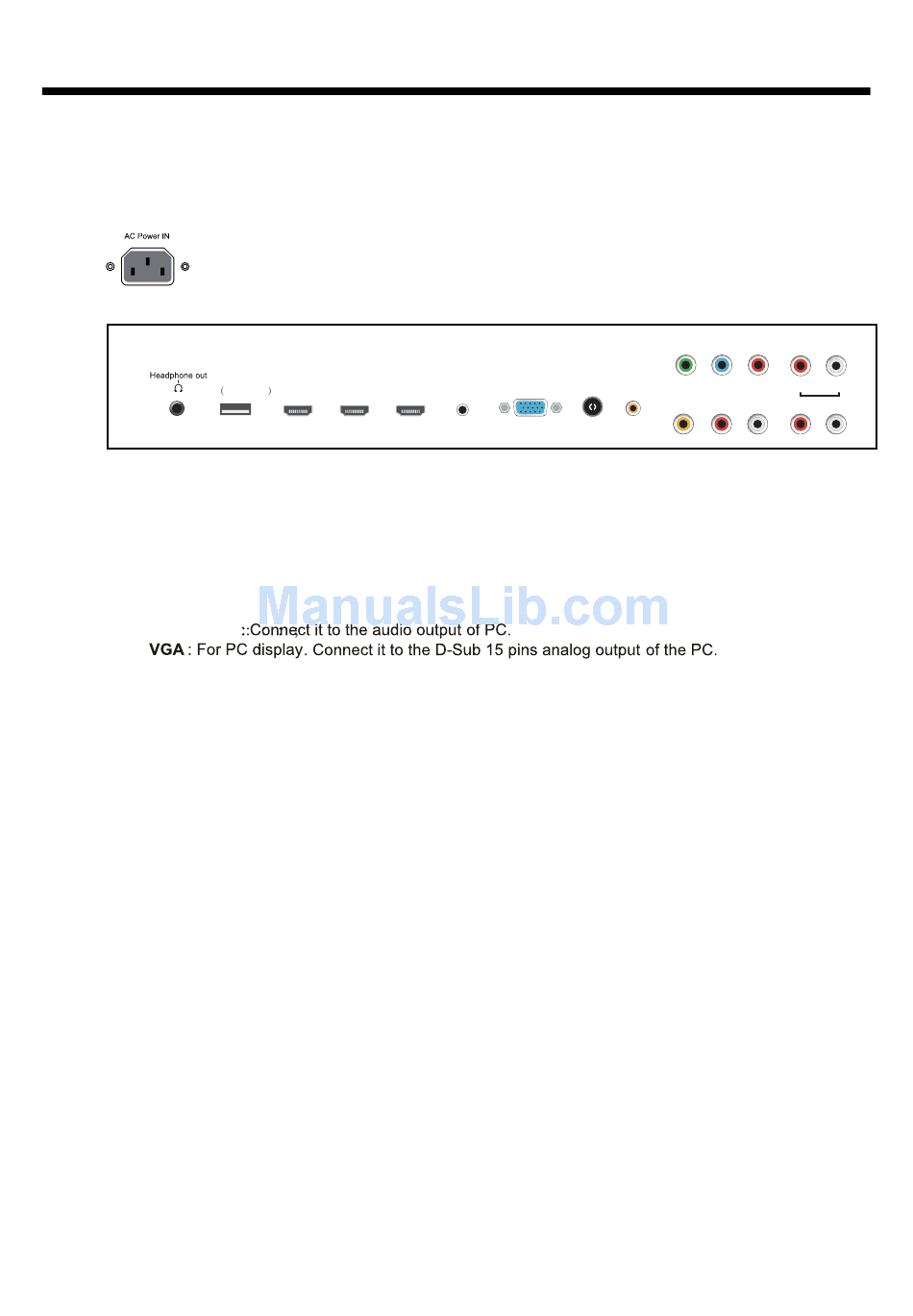

2. Rear View

AC POWER IN:
Headphone out
USB for Service
HDMI1/2/3
PC Audio in
RF : Connect antenna or cable 75 Ohm coaxial to receive TV signal.
COAX : Digital audio output.
YPbPr : Connect them to the video output terminal of DVD.
L/R : Connect them to the audio output terminal of DVD
VIDEO : Connect it to video output of video device.
L/R in : Connect them to audio output of video device.
AUDIO L/R out : Connect them to audio equipments.
USB
for Service
HDMI1 HDMI2
Connect it to AC100-240V~ 50/60Hz power supply with the mains cable.
: Connect it to your headphone or audio equipments.
: For service use only.
: Connect it to the HDMI output of video device.
Introduction
VGA
HDMI3 PC Audio in
6
Y Pb Pr
RF
Coax
Video L i n R in
L R
L R
AUDIO OUT
