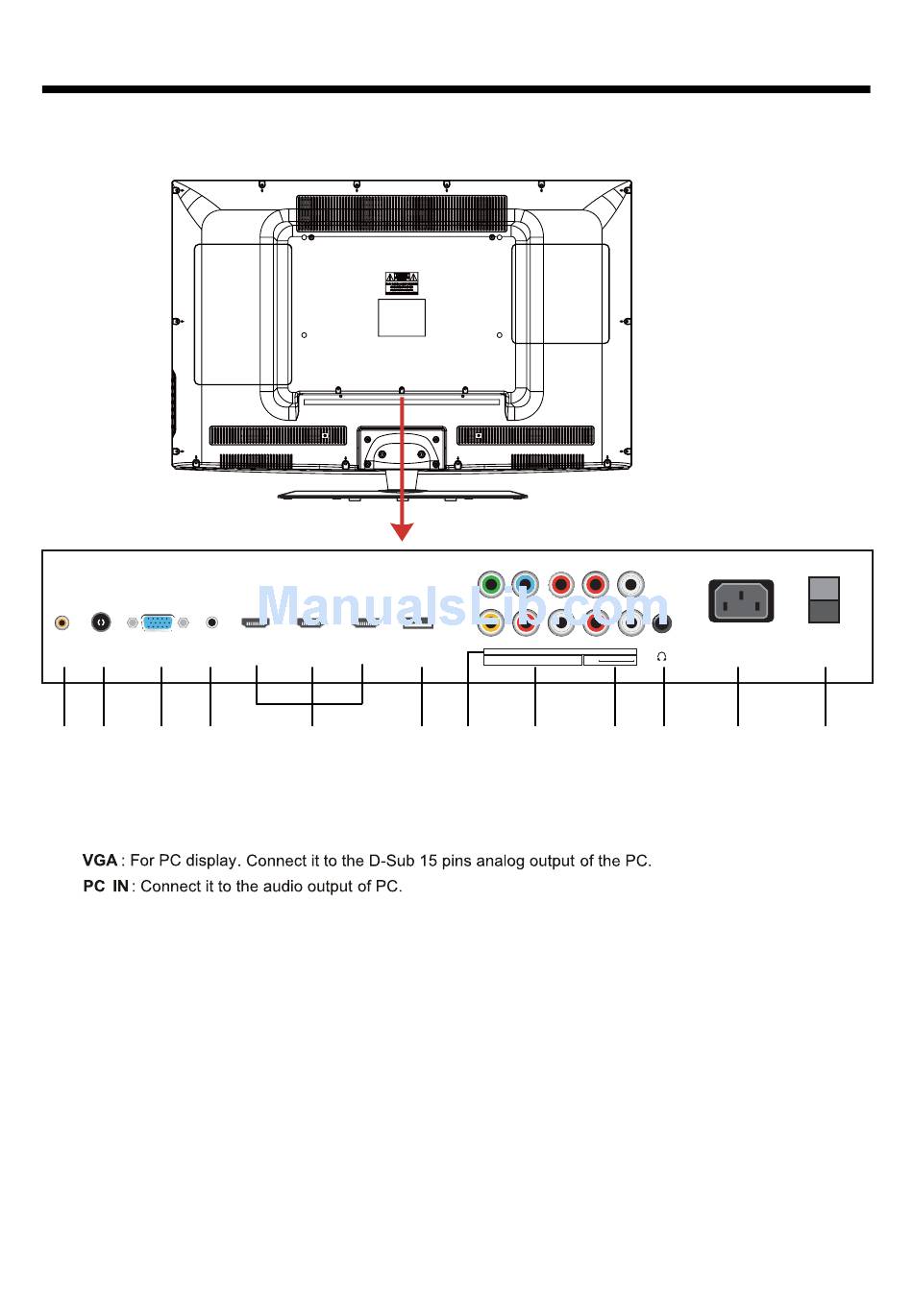

2. Rear View
COAX
RF
VGA
PC-IN
1
2
3
4
1). COAX : Digital audio output.
RF : Connect antenna or cable 75 Ohm coaxial to receive TV signal.
2).
3).
4).
: Connect it to the HDMI output of video device.
5). HDMI1/2/3
: For service use only.
6). Service
7). YPbPr : Connect them to the component video output of video device.
L/R in : Connect them to audio output of video device.
8).
VIDEO : Connect it to video output of video device.
L/R in : Connect them to audio output of video device.
9). L/R out : Connect them to audio equipments.
10). Headphone out
: Connect it to your headphone or audio equipments.
11).
AC POWER IN:
Connect to an earth 100-240V~ 50/60Hz outlet with the power cable.
12).
SWITCH:
Switch on/off the power supply.
Introduction
USB
HDMI 1
HDMI 2
HDMI 3
(SERVICE)
5
6
Y
Pb
Pr
R
R
VIDEO
R in
L in
AUDIO OUT
7
8
9
6
L
AC POWER IN
L
HEADPHONE OUT
10
11
SWITCH
12
