8. Using the CF and SDIO expansion slots
Your unit may contain two CompactFlash (CF) slots and one Secure
Digital Input Output (SDIO) expansion slot. The SDIO slot is
located within the walls of one of the CF slots.
To access the CF and SDIO expansion slots, remove the CF-Cap
Unscrew the screw on the top of the CF-Cap using a coin or a
screwdriver and slide the cap off the main unit.
NOTE: When using smaller CF cards (such as
memory or Bluetooth), it is critical that you attach
a CF Card Pull Tab to the CF card before sliding
the card into the slot. Pull Tabs allow you to easily
remove the CF card from the slot. Pull Tabs are
part of the accessories included with your unit.
To insert a CF or SDIO card, gently insert the card into the slot. Do
not force the card. The pins can be damaged if the card is not
aligned correctly.

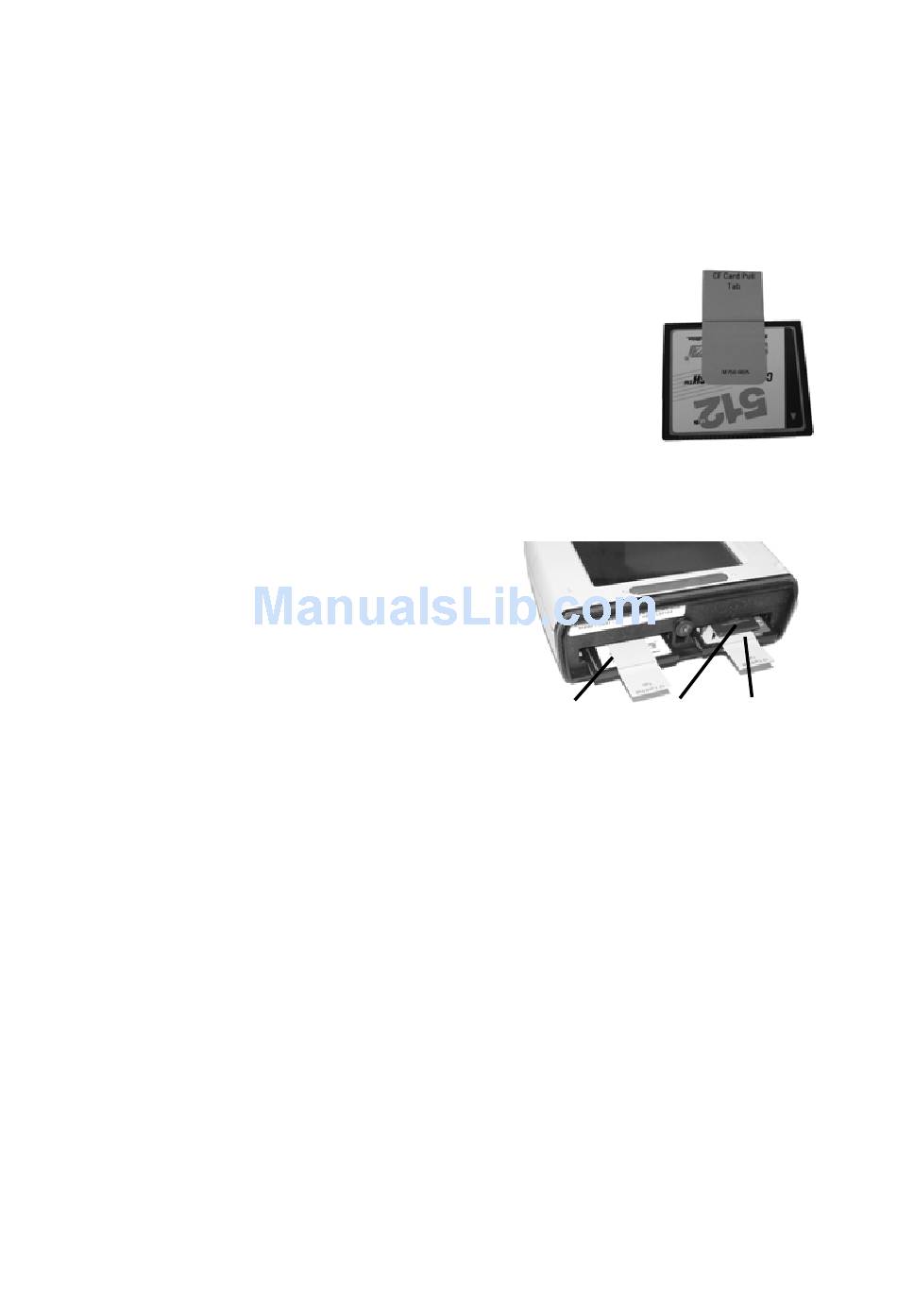

- The CF slots are side by side. CF
cards must be inserted with the
front of the card facing toward
the display side of the unit. CF
slot #2 supports Type I & II
cards. CF slot #1 supports
Type I cards. Again, be sure to attach a Pull Tab to the smaller
CF cards before sliding the cards into the slots.
- The SDIO slot can be seen inside CF slot #1. SDIO cards must
be inserted with the front of the card facing away from the
display.
When replacing the CF-Cap, first be sure it is oriented correctly.
The stylus holder in the CF-Cap is toward the front of the unit.
Replace the CF-Cap and tighten the screw to reseal. The cap should
be securely tightened, but do not over-tighten the screw.
NOTE: Be sure to correctly orient the CF-Cap when you are
reattaching it. The unit is NOT sealed when the cap is off or
attached backwards. Water damage caused by improper installation
of the CF-Cap is not covered by warranty.
CF Slot #2
SDIO
Type I & II
TM
.
CF Slot #1
Type I
