TDS Recon Getting Started Manual

Hide thumbs Also See for Recon:
Table of Contents

Advertisement

Quick Links

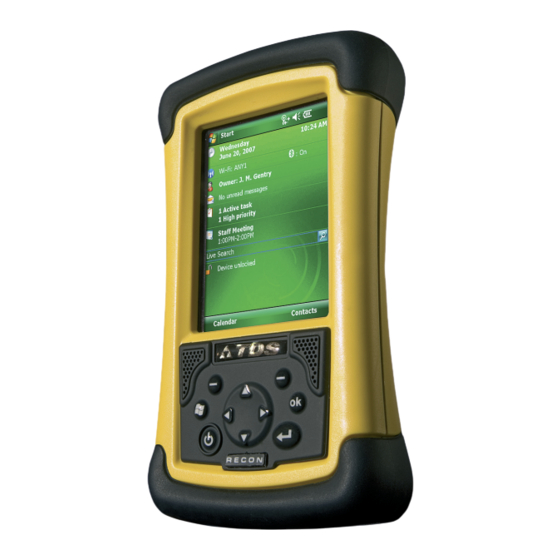

TDS RECON
G e t t i n G S t a r t e d G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Recon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TDS Recon

Summary of Contents for TDS Recon

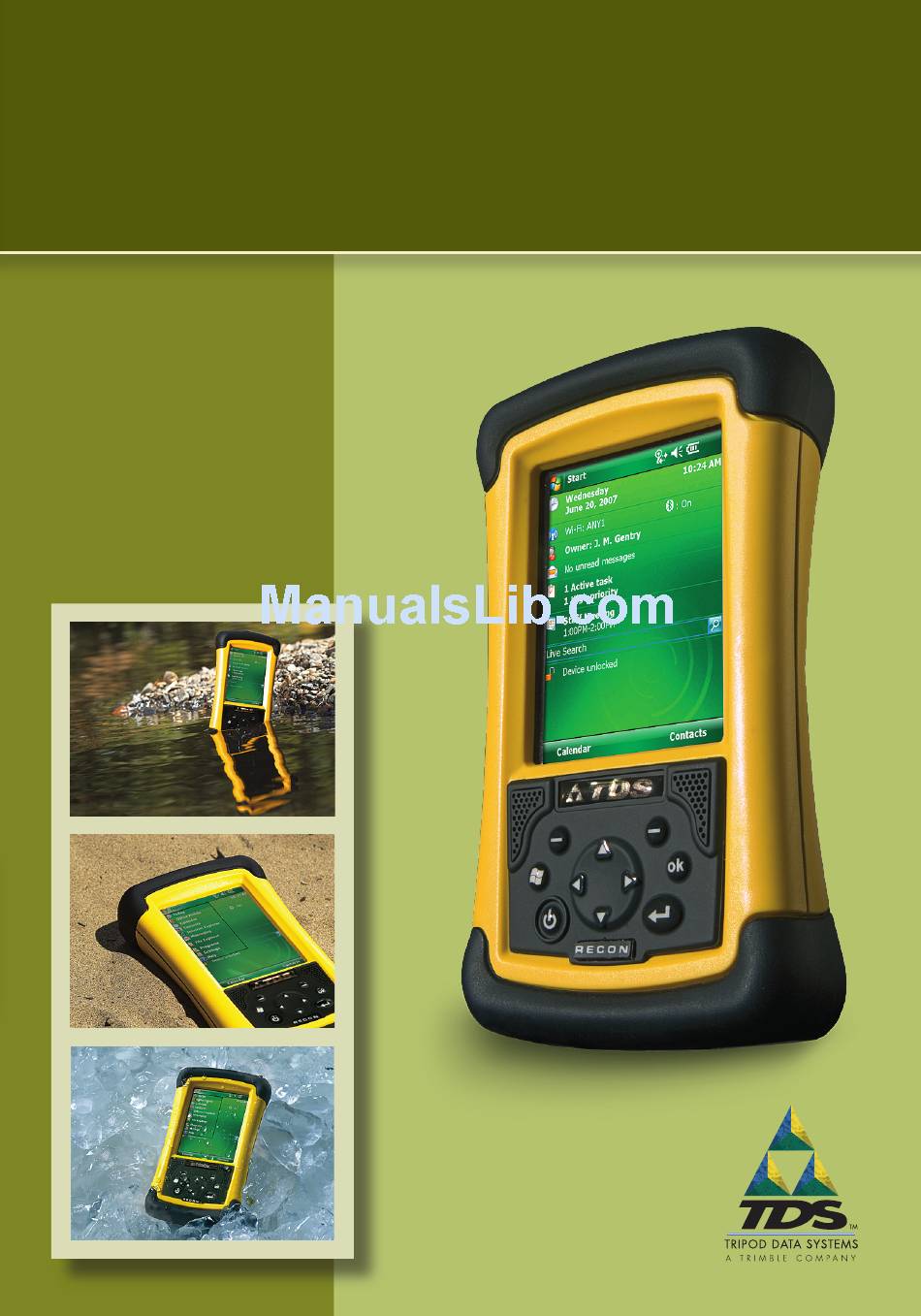

  • Page 1 TDS RECON G e t t i n G S t a r t e d G u i d e...

  • Page 2: Reference Materials

    CF-Cap is not covered by warranty. Removal of the back case voids the limited warranty. There are important seals that will break and the Recon will no longer be waterproof. To the extent allowed by local law, the above limited warranties are exclusive and no other warranty or condition, whether written or oral, is expressed or implied, specifi...

  • Page 3: Table Of Contents

    Contents Welcome ................1 Device Hardware ..............2 Unit Setup .................3 Working with the Unit ............6 Communication...............10 Safe Use of Your Unit.............16 Settings on your Unit ............18 Caring for Your Unit............20 Environmental Considerations........21 Hardware Specifications ..........22 Environmental Specifications .........22 Troubleshooting ..............23 Regulatory Information...........26 Declaration of Conformity..........27 Welcome Congratulations on your purchase of one of the most advanced...

  • Page 4: Device Hardware

    Device Hardware Front View Back View Removable CF-Cap CF-Cap Stylus Application holder Application Soft Keys Soft Keys Latches Start Power Enter Navigation pad PowerBoot Module *Assignable application buttons; see Settings Top View- without Cap Bottom View CF slot #2 CF slot #1 External Serial Type I...

  • Page 5: Unit Setup

    Unit Setup 1. Charge the PowerBoot Module The PowerBoot Module that contains the batteries is shipped detached from the unit. Before you insert the PowerBoot into the unit, you should charge it. If the AC adapter that came with your unit has multi-national plugs, connect the appropriate AC plug for your country to the AC adapter.

  • Page 6: Align Screen

    4. Install the screen protector To keep the touchscreen clean and protected, install the screen protector. Unprotected screens become scratched and scuffed over time. Screen protectors extend the life of the display by providing a protective and replaceable barrier between abrasive grit and the surface of the display.
  • Page 7 WARNING: BE CERTAIN TO REMEMBER THE PASSWORD. The only way to recover from a forgotten password is to perform a Clean Boot and you will LOSE all application software, licenses, settings and data on your unit. See page 9 on how to perform a Clean Boot.

  • Page 8: Working With The Unit

    Working with the Unit PowerBoot Module The PowerBoot includes the batteries to power the unit, the power port used to charge the unit, and the I/O ports that are used to communicate with other devices using a USB or serial cable. Battery Life: Battery life is dependent upon the application and operating environment.
  • Page 9 an electrical outlet and plug the barrel end of the AC adapter into the PowerBoot. If the unit is turned off, it will be fully charged in approximately 12 hours. Swapping the PowerBoot Module: The PowerBoot is designed to be quickly changed (if you purchased additional PowerBoot Modules).

  • Page 10: Using The Stylus

    Using the stylus Use the stylus to navigate and select objects on the screen. Tap: Tap the screen with the stylus to select or open an item. Tapping is the same as clicking the left button on a PC mouse. Drag: Hold the stylus on the screen and drag across the screen to select text and images.
  • Page 11 Power key features The Power key turns the unit on and off and performs a number of additional functions. Turn backlight on/off: To toggle the backlight on or off, hold down the Power key for approximately 1 second. Once toggled off, the backlight will stay off until it is toggled back on.

  • Page 12: Communication

    The Today Screen The Today screen provides information that you need for the day. Tap an item to view or edit details. To customize which items are shown on the Today screen, tap Start / Settings / Today / Items. Tap to view and change connection settings.

  • Page 13: Connecting To A Pc

    Connecting to a PC Connecting your unit to a PC allows you to copy files, synchronize information, send and receive e-mail and install applications on your unit. Connectivity software is pre-installed on your handheld unit. You will need to install connectivity software on your PC using the Getting Started CD that will automatically launch what is needed for your PC depending on the operating system (OS).
  • Page 14 4. If you have more than one unit, PC and/or cable, testing different combinations of equipment can help isolate the cause of the problem. 5. If you suspect the unit may have been connected to the PC USB port before the connectivity software was installed, then uninstall, reboot the PC, and reinstall.
  • Page 15 If you choose to create an Internet connection, open Internet Explorer Mobile on the unit (Start / Internet Explorer) to browse the Internet. Some features supported by PC browsers are not supported by Internet Explorer Mobile. For instance, there are no pop-up windows and some sites may not be accessible.
  • Page 16 Bluetooth If your unit comes with embedded Bluetooth capability—a short- range radio technology—your unit can exchange information (beam) with other Bluetooth-enabled devices over a distance of up to 30 feet (10 meters), without requiring a physical connection. To find out if you have built-in Bluetooth available in your unit, tap Start / Settings / System / System Information / Wireless.
  • Page 17 2. Tap Start / Settings / Connections / Bluetooth / Devices / Add new device… Wait a few moments while your unit searches for Bluetooth devices in the vicinity. 3. Tap the name of the other Bluetooth device and tap Next. For enhanced security, use passcodes.

  • Page 18: Safe Use Of Your Unit

    Additional connectivity Your unit supports several additional kinds of connections. If you do not have embedded Bluetooth or WLAN, you can purchase CF cards to add the functionality. The following types of additional connectivity are also possible: Modem: The unit supports dial-up connections to an Internet Service Provider and sending and receiving e-mail with file attachments.
  • Page 19 • Do not expose the PowerBoot to storage temperatures above +95 °F (+35 °C) for extended periods. • Do not charge the PowerBoot if the ambient temperature exceeds +95 °F (+35 °C) or is below +32 °F (0 °C). • Contact your local waste disposal provider regarding the disposal or recycling of the PowerBoot.

  • Page 20: Settings On Your Unit

    Settings on your Unit Tap Start / Settings. Tap any of the icons on the Personal, System or Connections tabs to customize the unit settings to your own preferences. Tap OK to exit the settings. Some of the more useful settings are described below.

  • Page 21: System Information

    or even from a PC. Files saved on storage cards before enabling encryption will not be encrypted. NOTE: if you perform a Clean Boot on your unit, previously encrypted files on storage cards will no longer be readable by that unit or by any other device, including PCs.

  • Page 22: Caring For Your Unit

    Caring for Your Unit Mechanical shock The unit is designed to resist damage for drops up to 4 ft (1.22 meters). However, you should protect the display from impact, pressure, or abrasive substances that can scratch it or crack it. The unit should not be dropped unnecessarily Cleaning the unit Clean the unit with a soft cloth dampened with either water or a...

  • Page 23: Environmental Considerations

    Environmental Considerations The unit’s rugged design allows you to run your applications in harsh outdoor environments. Here are some considerations that will help you get the most out of your unit when working in very wet, hot or cold conditions. Water This unit is designed to withstand accidental immersion.

  • Page 24: Hardware Specifications

    Hardware Specifications Windows Mobile 6.0 200 MHz or 400 MHz Intel PXA255 XScale® processor RAM ( 64 MB SDRAM VOLATILE LASH TORAGE 128 or 256 MB of nonvolatile Flash storage EMORY NONVOLATILE 240 x 320 pixel (¼ VGA) color TFT with LED front light ISPLAY 15 hours continuous room temperature operation with ATTERY...

  • Page 25: Troubleshooting

    Troubleshooting How do I delete files? Open File Explorer and browse to the file to be deleted. Touch and hold on the file and tap Delete from the menu that appears. Unlike PCs, Windows Mobile does not support a Recycle Bin. Once you delete a file, it cannot be recovered.
  • Page 26 It is critically important that my battery doesn’t fail during a job. Do you have any suggestions? Consider carrying a fully charged spare battery in the field. The unit is designed so that battery replacement can be easily done. I connected my unit to external power and nothing happened. Is something wrong with my battery? Turn the unit off while charging.
  • Page 27 When I insert or remove the external AC adapter, the remaining power level jumps. What's going on? The battery driver constantly gathers information about the battery voltage and history, and uses this information to report the charge level. Inserting or removing the external AC adapter changes the battery state, and resets the battery history information.

  • Page 28: Regulatory Information

    Regulatory Information U.S.A. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 29: Declaration Of Conformity

    Corvallis, OR 97333 USA Declares, under our sole responsibility, that the product: Product Name: Handheld Data Collector Model Number: Recon Product Options: conforms to the following Product Specifications: Safety: EN60950-1:2001 EMC: EN 55022: 1994 +A1, A2: 1997 EN 55022: 1998 +A1:2000...

  • Page 30: Environmental Hazards

    Environmental Hazards The product complies with international RoHS regulations. 有毒有害物质和元素 Toxic and Hazardous Substances and Elements 部件名称 铅 汞 镉 六价铬 聚溴联苯 聚溴二苯醚 Part Name Lead Mercury Cadmium (Cd) Hexavalent Poly-brominated Poly-brominated (Pb) (Hg) Chromium biphenyls diphenyl ethers (Cr6+) (PBB) (PBDE) 印制电路组件...
  • Page 31 We endeavor to meet your needs, not only when you purchase and use our products, but also when you are ready to dispose of them. That is why TDS and our parent company, Trimble Navigation, are actively pursuing the expanded use of environmentally friendly materials in all our products and why we have established a convenient recycling program.
  • Page 32 Tripod daTa SySTemS a trimBle comPanY 345 sW avery avenue corvallis, or 97333 For more inFormation, visit: tdsway.com or call 541-753-9322 ® ®...
