6.1 Appliance Pack

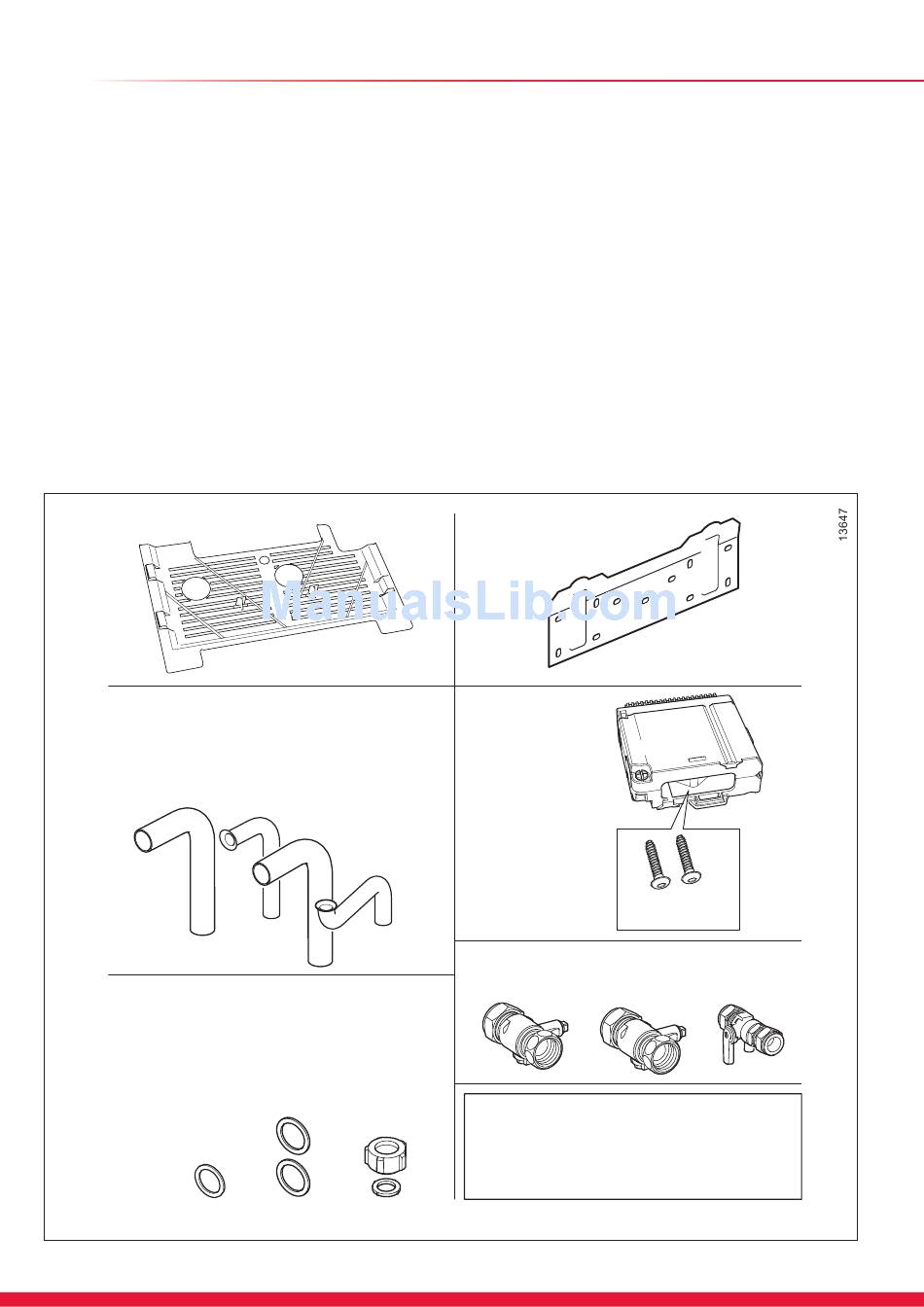

Please check the contents of packs as shown in diagram 6.1.
The packs are located in the top polystyrene packing.
Remove the carton sleeve and top pack then lift the boiler and
its polystyrene base support out of the lower pack.
6.2 Site Requirements
The boiler mounting wall should be suitable for the weight of
the appliance and be true and flat.
NOTE: Due to the varied site conditions we do not supply
fixings and advise that the installer should supply those which
are suitable.
Base Coverplate
Pipe Pack 0020029672
A - Central Heating x 2
B - Gas
C - Saftey Discharge
Loose Items Pack
(discard addtional items
within this pack)
A - Large Sealing Washers
B - Union Nut and Sealing Washer
C - Gas
C
14

6 Installation Preparation

A
B
A
A
B
6.3 Wall Template
Take the wall template from the document pack located within
the top polystyrene packing
on the wall, giving due consideration to the required boiler
clearances, see section
Mark the position of the flue centre, if fitting a side flue, extend
the flue centre line into the corner then 176mm along the
adjacent wall, see diagram 6.2.
For extended side flues, the flue hole centre should be
determined by extending the dashed inclined line on the
template to the side wall. This dashed line is drawn at 44mm/
metre (2.5°) rise from the boiler. Where this line reaches the
side wall, a horizontal line should be marked. The vertical
centre line of the flue should then be marked at 156mm from
the back wall.
To allow for the flue passing through the wall at this angle
a 125mm hole should be drilled irrespective of internal or
external installation.
Remove the wall template whilst drilling the flue hole.
Hanging Bracket
Electrical
Cartridge
C
Gas and Water Isolating Valves
0020036801
Documentation Pack
(not illustrated)
Wall Template, User Instructions,
Installation and Servicing Instructions.
and place in the desired position
3, and the flue you are fitting.
Retaining Screws
Stored in cartridge
Diagram 6.1
