9 Safety Discharge Valve and Condensate Connections

9.1 Safety Discharge Valve
Take the safety discharge pipe, supplied in the pipe pack and
the union nut and seal, supplied in the loose items pack and
fit as shown in diagram 9.1.
This must be extended, using not less than 15mm o.d. pipe,
to discharge, in a visible position, outside the building, facing
downwards, preferably over a drain.
The pipe must have a continuous fall and be routed to a
position so that any discharge of water, possibly boiling,
or steam cannot create any danger to persons, damage to
property or external electrical components and wiring.
To ease future servicing it is advisable to use a compression
type fitting to extend the safety discharge valve tube.
9.2 Condensate Trap and Siphonic Drain
Connection
The condensate drain connection is behind the pump at the
rear of the boiler, see diagram 9.2. A flexible condensate
outlet pipe is fitted and should be used to couple the
condensate trap and siphonic drain to a 22mm to 25mm O.D.
non corrosive plastic pipe (overflow pipe), see diagram 9.2.
IMPORTANT: Please remove the bung from the flexible pipe
before fitting to a drain outlet pipe.
NOTE: the pipe should have a fall of a least 2.5
away from the boiler.
Condensate should, if possible be discharged into the
household internal drainage system. If this is not practicable,
discharge can be allowed into the external household drains
or a purpose designed soak away, refer to diagram 9.3.
It is recommended that any external condensate drain pipe is
protected and also preferably of 32mm diameter, to prevent
freezing in adverse weather conditions.
The condensate is discharged periodically in 'slugs' by
siphonic action.
It is not necessary to provide air breaks or extra traps in the
discharge pipe as there is already a 75mm high trap inside
the boiler. Fitting an extra trap may cause the boiler siphon to
work incorrectly.
Refer to BS5546 or BS6798 for advice on disposal of boiler
condensate.
44mm/metre
o
SAFETY
DISCHARGE
VALVE
UNION NUT
AND SEAL
VIEW ON UNDERSIDE OF BOILER
CONDENSATE
TRAP AND
SYPHONIC DRAIN
FLEXIBLE
CONDENSATE
OUTLET PIPE
FLEXIBLE
CONDENSATE
OUTLET PIPE
VIEW ON UNDERSIDE OF BOILER

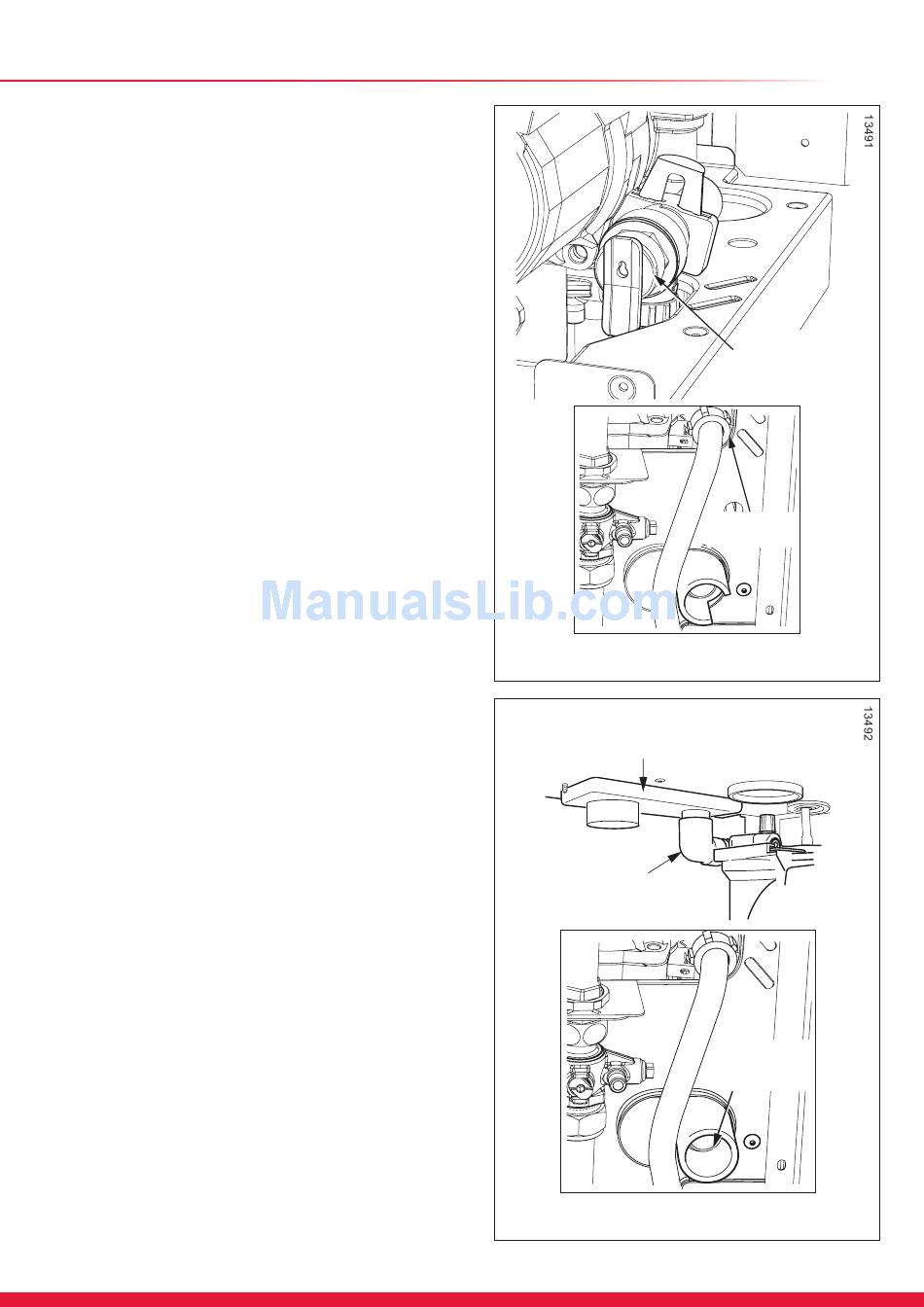

Diagram 9.1
Diagram 9.2
17
