Installation Preparation - Glow-worm Ultracom 38cxi Installation And Servicing

6 Installation Preparation

Base Coverplate
Gas and Water
Isolating Valves
0020036801
Pipe Pack 0020029671
A - Central Heating x 2
B - Domestic Hot Water Outlet
C - Gas
D - Domestic Cold Water Inlet
E - Saftey Discharge
A
B
C
Documentation Pack (not illustrated)
Wall Template, User Instructions, Installation and Servicing Instructions.
Supplied By www.heating spares.co Tel. 0161 620 6677
Hanging Bracket
Electrical Cartridge
Loose Items Pack
A - Wire Retaining Clip
B - Union Nut and Sealing Washer
C - Tap and Securing Screw
D - Sealing Washers
E - Gas Sealing Washer
F - O Ring
G - Union Nut
D
A
A
E
E
G
14
Retaining Screws
stored in cartridge
C
B
F
D

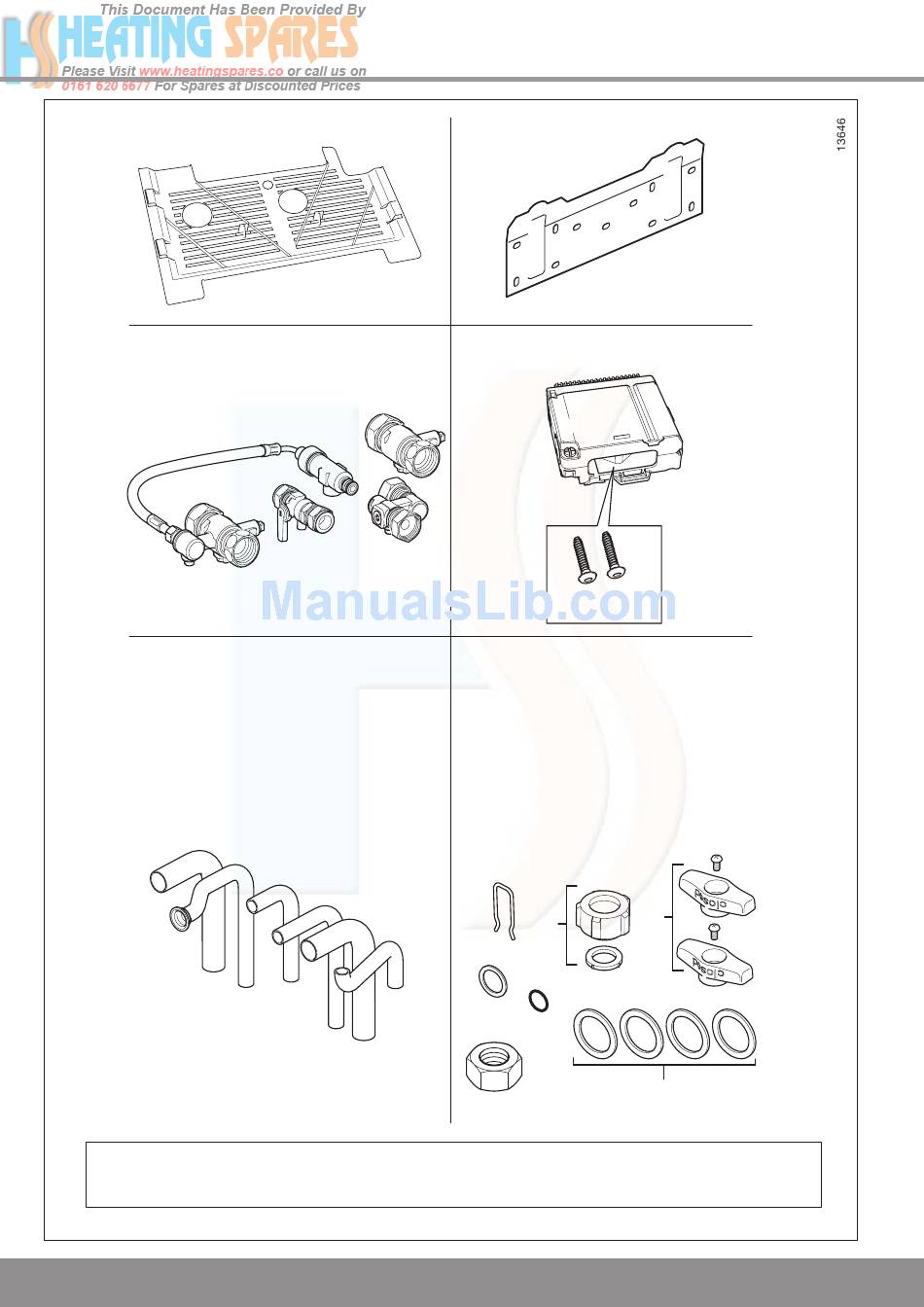

Diagram 6.1
