- Page 1 1000Base-T to 1000Base-SX/LX TP to fiber Gigabit Ethernet Media Converter...
- Page 2 Copyright PLANET Technology Corp. 2002. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. The information in this manual is subject to change without notice. All other trademarks b elong to their respective owners.
-
Page 3: Model List
1. Overview Thank you for purchasing PLANET GT-70X family Gigabit Ethernet Fiber-optic Converter. This converter is used to convert one type media signal to other type equivalent that allows two type segments connect easily, efficiently and inexpensively. This converter can be used as a standalone unit or as a slide-in module to the 10”/19”... -
Page 4: Product Outlook

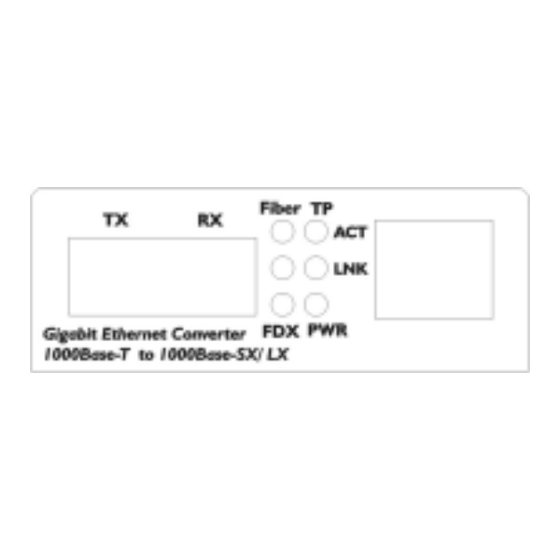

4. Product Outlook Right View (GT-70X) One fiber-optic connectors on the left, One TP connectors on the right and three LED indicators. Rear View (GT-70X) One DC jack for DC power input. -
Page 5: Installing The Converter
5. Installing the Converter Please follow these steps to install the converter: • Turn off the power of the device/station in a network to which the GT-70X will be attached • Ensure that there is no activity in the network •... -
Page 6: Led Indication
1000Base-SX/LX fiber port only allow to work under fixed 1000Mbps full duplex mode. Note: It doesn’t support Auto-negotiation and can not work with 1000Base-SX/LX interface that can not configure to fixed 1000Mbps full duplex. 7.LED indication Color DESCRIPTION Fiber / Green Lit: when the fiber port run in fix 1000Mbps and packet is traveling. - Page 7 Wiring Distances: Standard Fiber Diameter Modal Max. Distance (micron) Bandwidth (meters) (MHz * km) 1000Base-SX MM 62.5 62.5 1000Base-LX 62.5 5000* *Note: The Single-mode port (1000Baes-LX port) of GT-702S is complied with LX 5 kilometers and provides additional margin allowing for a 10 kilometers Gigabit Ethernet link on single mode fiber 9.
-
Page 8: Power Information
The power jack of GT-70X is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC-DC adapter and Planet’s Media Chassis. Should you have the problem to make the power connection, please contact your local sales representative.
