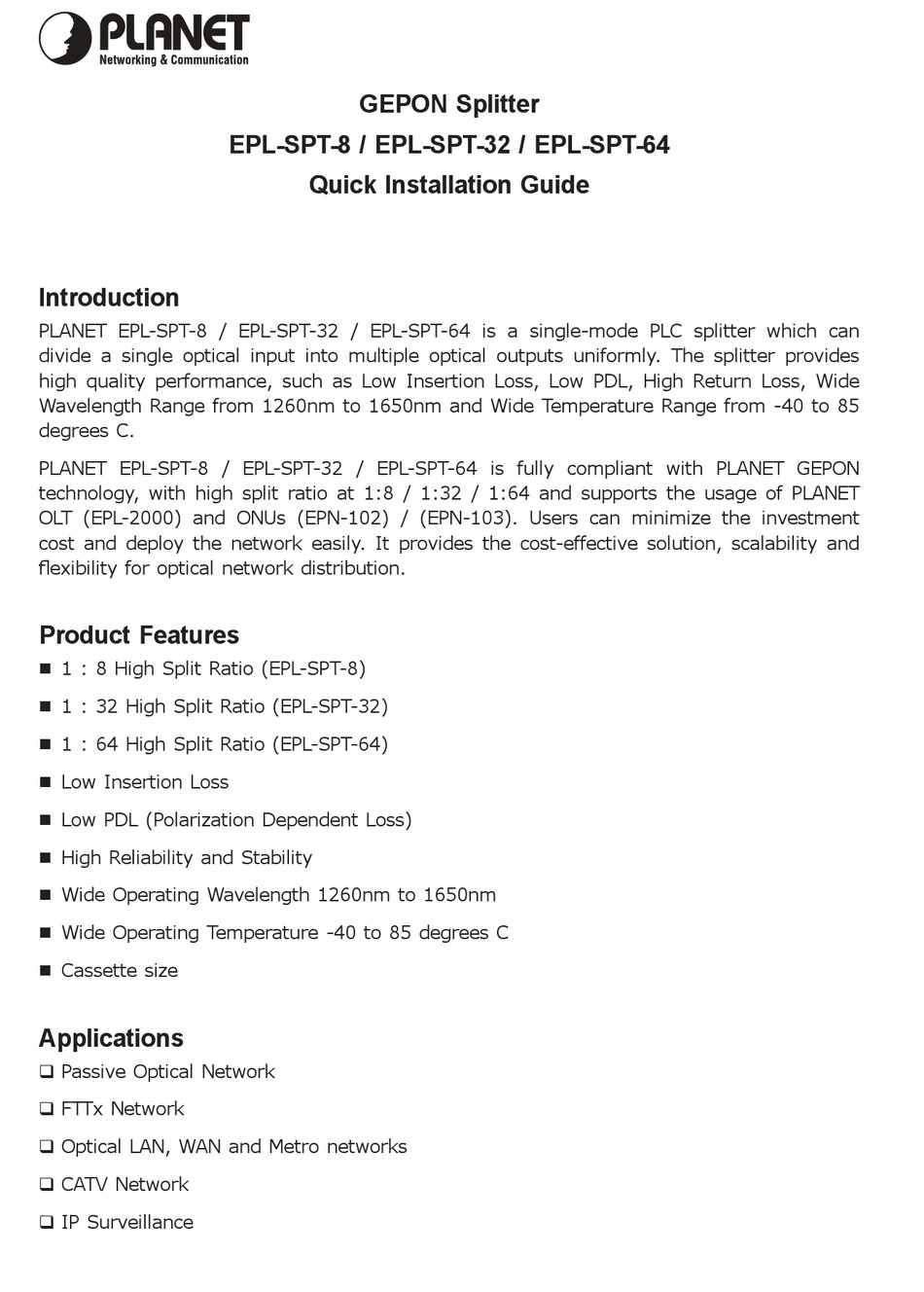

GEPON Splitter
EPL-SPT-8 / EPL-SPT-32 / EPL-SPT-64
Quick Installation Guide

Introduction

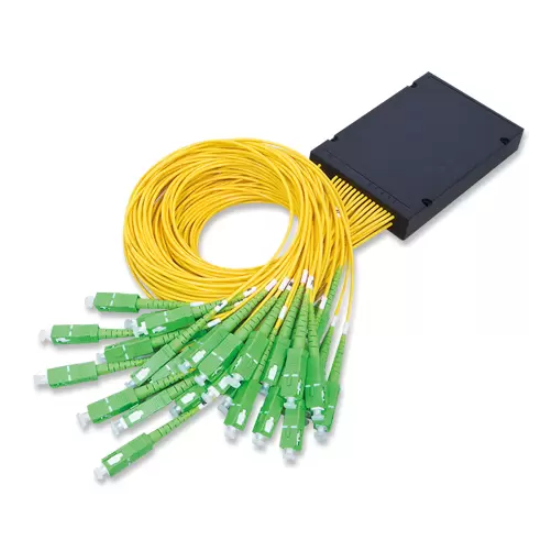

PLANET EPL-SPT-8 / EPL-SPT-32 / EPL-SPT-64 is a single-mode PLC splitter which can
divide a single optical input into multiple optical outputs uniformly. The splitter provides
high quality performance, such as Low Insertion Loss, Low PDL, High Return Loss, Wide
Wavelength Range from 1260nm to 1650nm and Wide Temperature Range from -40 to 85
degrees C.
PLANET EPL-SPT-8 / EPL-SPT-32 / EPL-SPT-64 is fully compliant with PLANET GEPON
technology, with high split ratio at 1:8 / 1:32 / 1:64 and supports the usage of PLANET
OLT (EPL-2000) and ONUs (EPN-102) / (EPN-103). Users can minimize the investment
cost and deploy the network easily. It provides the cost-effective solution, scalability and
flexibility for optical network distribution.

Product Features

 1 : 8 High Split Ratio (EPL-SPT-8)
 1 : 32 High Split Ratio (EPL-SPT-32)
 1 : 64 High Split Ratio (EPL-SPT-64)
 Low Insertion Loss
 Low PDL (Polarization Dependent Loss)
 High Reliability and Stability
 Wide Operating Wavelength 1260nm to 1650nm
 Wide Operating Temperature -40 to 85 degrees C
 Cassette size

Applications

 Passive Optical Network
 FTTx Network
 Optical LAN, WAN and Metro networks
 CATV Network
 IP Surveillance
