Assembly Instructions - Perfect Multi-Gym Pro User Manual

Read and follow all instructions provided before assembling or installing this product. Failure to
properly assemble or install this product could result in damage to property and/or personal
injury. Do not install this product unless you are able to assemble and install it properly. After
installing this product, check to make sure it has been properly installed and can support your
full weight before beginning exercise. This product is designed for installation on up-to-building-
code, wood-frame doorways, 27 to 35 inches (69 - 89 cm) wide and for use by individuals weighing
no more than 300 lbs/136 kg. Any other use or misuse may result in property damage and/or
personal injury. If your anticipated installation location or use does not meet these criteria, you
may return the product for up to 30 days from date of purchase.

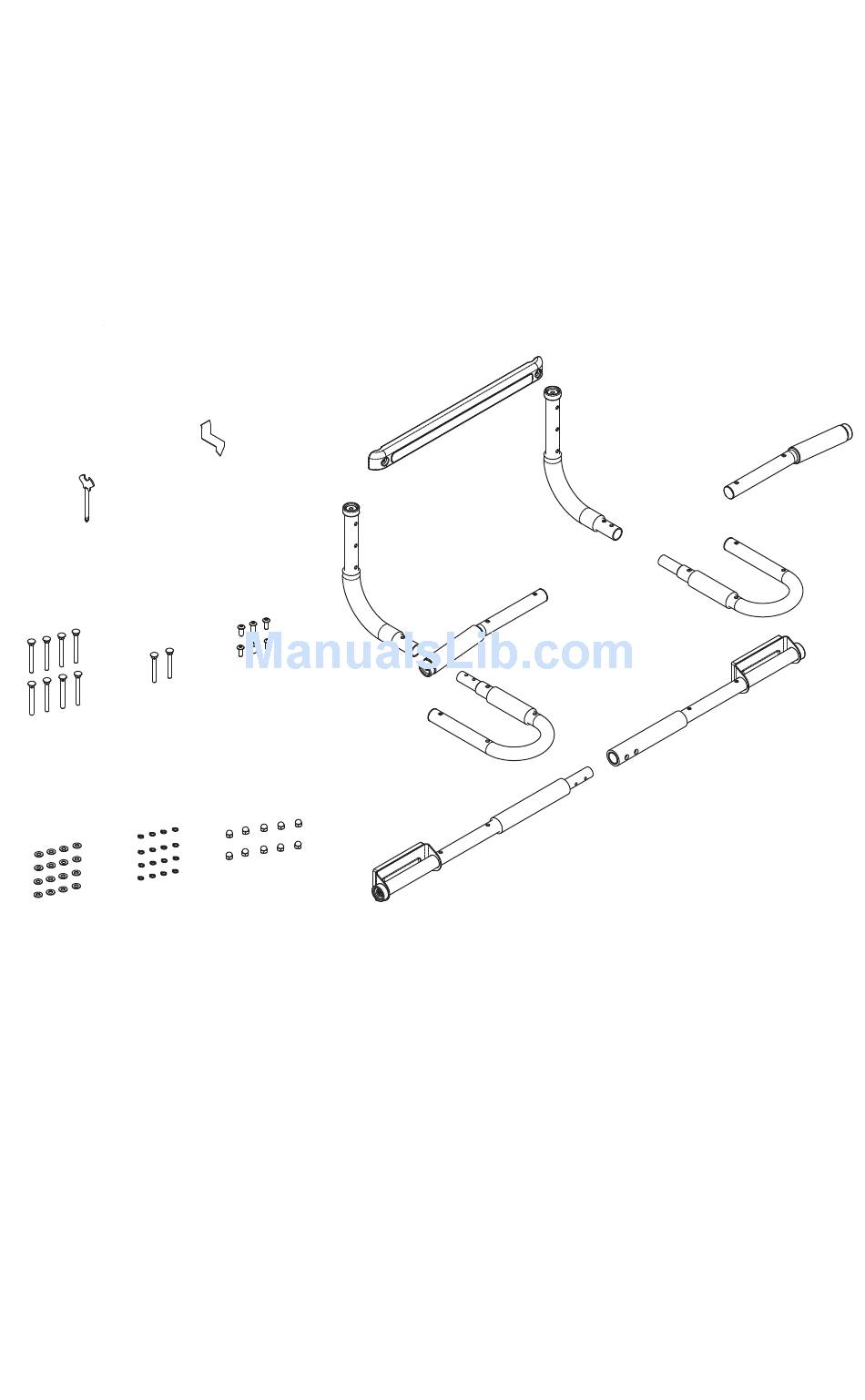

LAY OUT THE PARTS of your Perfect Multi-Gym
yourself with the parts for easier assembly.
Hex Wrench
w/Phillips
Screwdriver
M6 x 45mm
Carriage
M6 x 58mm
Bolts (2)
Carriage
Bolts (8)
Spring
Washers
Washers
(16)
(16)

Assembly Instructions

Safety Clip
M6 x 15mm
Phillips
Bolts
(6)
M6 Acorn
Nuts
(10)
Pro as shown below and familiarize
®
Connecting
Bar
Left Curved Frame
Tube Assembly
Left
Handlebar
Left
U Shaped
Tube
Left Bar
Assembly
6
Right Curved Frame
Tube Assembly
Right
U Shaped
Tube
Right Bar
Assembly
Right
Handlebar
