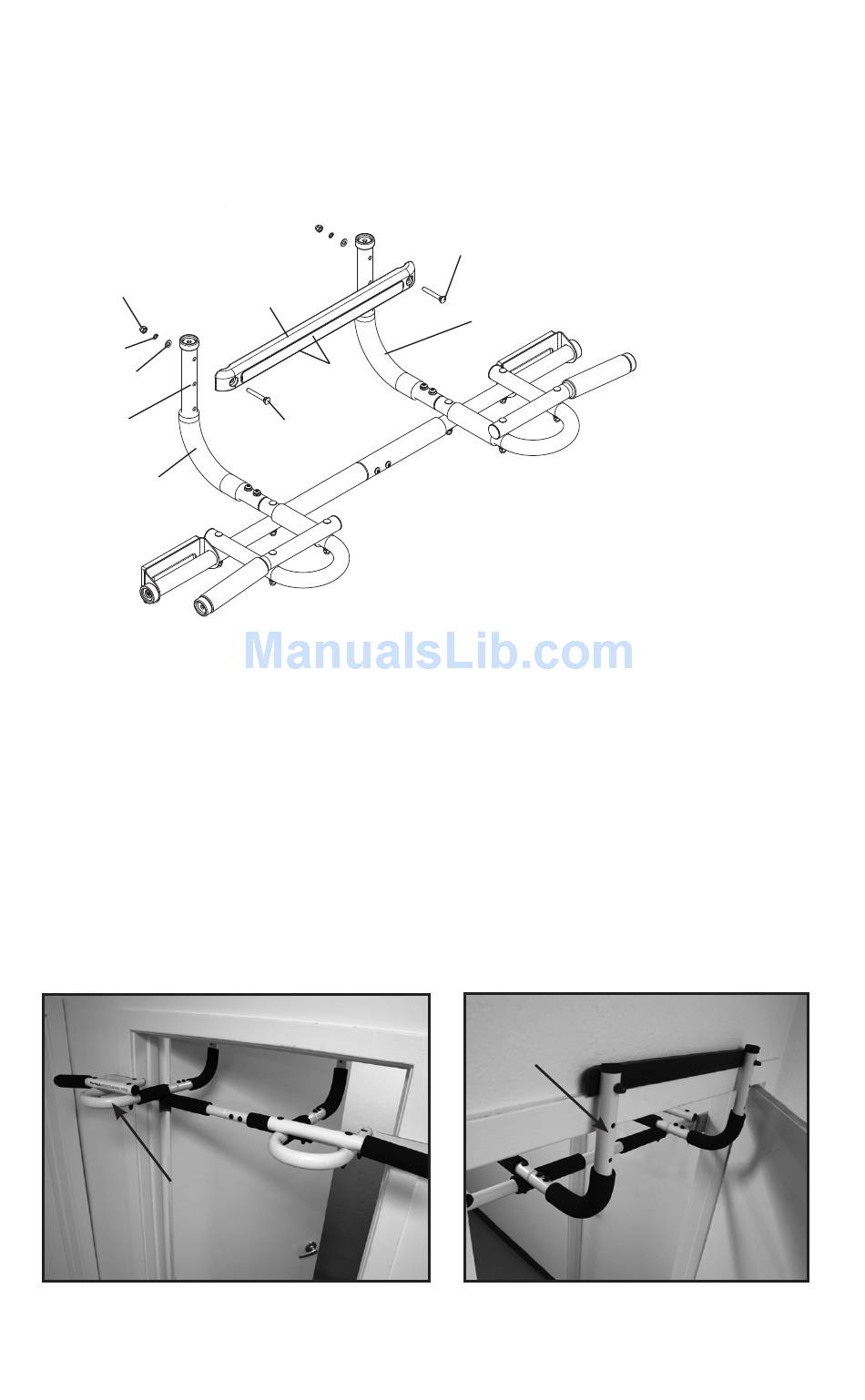

STEP 5
a) While the assembly is in front of you as shown, attach the Connecting Bar with one of the
Grey Foam Pads facing you and one facing downward. Insert the Short Carriage Bolt through
one of the Square Holes in the Connecting Bar and through the second hole from the end of
the Curved Frame Tube Assembly.
b) Hand tighten only at this time with the Washer, Spring Washer and Acorn Nut. Repeat
with other Curved Frame Tube Assembly.
Acorn Nut
Spring Washer
Washer
Second Hole
Left Curved
Frame Tube
Assembly
Installation Of Your Multi-Gym
Before installing in the doorway you will be using, acquaint yourself with the photos and
definitions below. Please remember, this product is designed for installation on up-to- building-
code, wood-frame doorways, 27 to 35 inches (69 - 89 cm) wide and for use by individuals weighing
not more than 300 lbs/136 kg.
1) Identify Front and Back of unit.
Outside of Doorway
Connecting
Bar
Grey
Foam
Short
Carriage Bolt
Front side
of unit
Short
Carriage Bolt
Right Curved
Frame Tube
Assembly
NOTE: Doorway Installation
is necessary before tightening
all Acorn Nut assemblies.
2) Inside and outside of Doorway.
Inside of Doorway
Back side
of unit
8
