SAFETY AND OPERATING mANUAL
12V Li-Ion
WX540
multi-purposed saw
WX540.3 WX540.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trans4mer WX540 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Worx Trans4mer WX540

Summary of Contents for Worx Trans4mer WX540

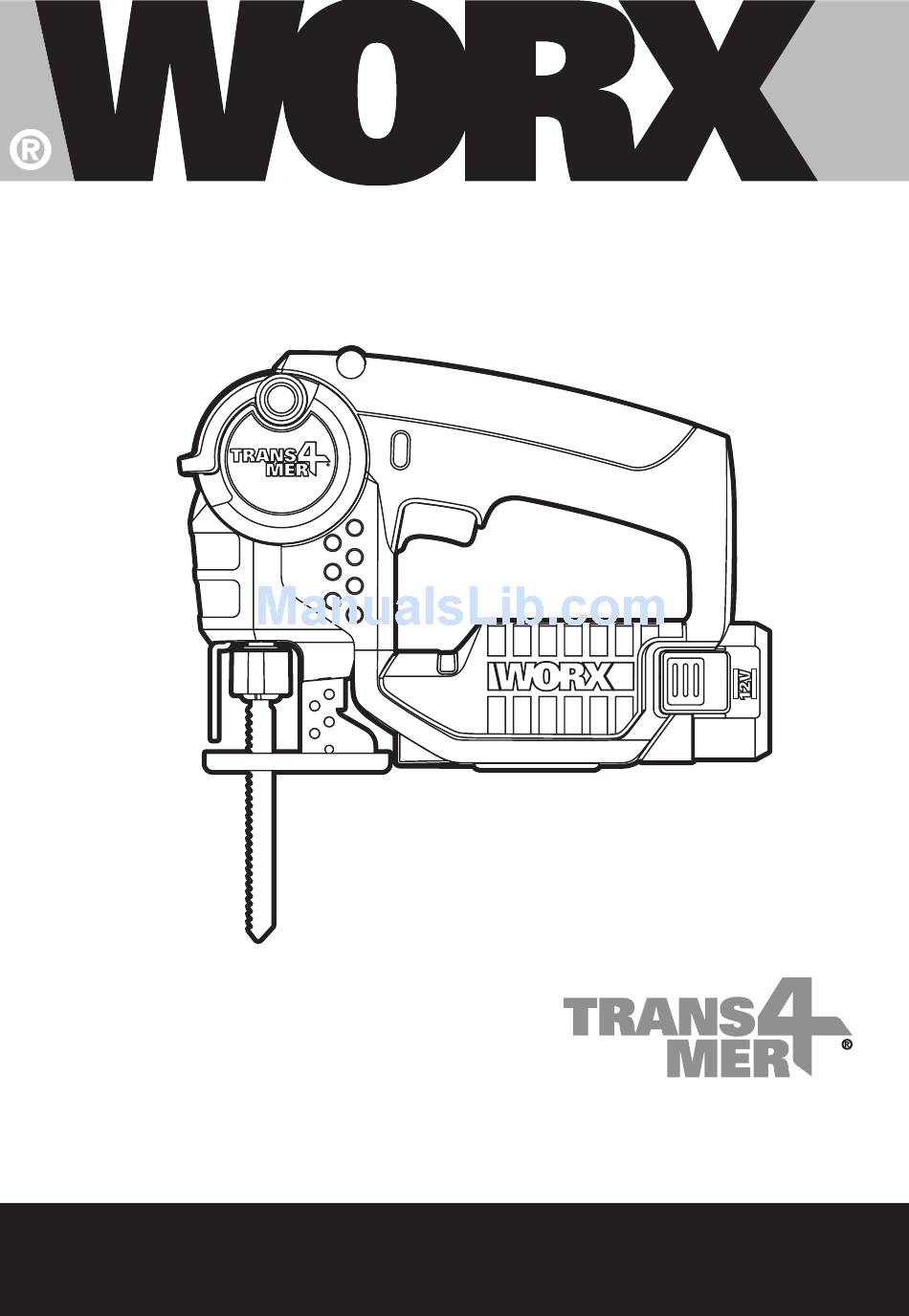

  • Page 1 SAFETY AND OPERATING mANUAL 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...

  • Page 2: Safety Warnings

    General Power Tool electric shock. When operating a power tool SafeTy warninGS outdoors, use an extension cord suitable for outdoor use. Use of a WARNING: Read all safety warnings cord suitable for outdoor use reduces the and instructions. Failure to follow the risk of electric shock.
  • Page 3 connection of dust extraction and be performed. Use of the power tool for collection facilities, ensure these operations different from those intended are connected and properly used. could result in a hazardous situation. Use of dust collection can reduce dust- 5) BAtteRy tool USe AND cARe related hazards.
  • Page 4 the operator an electric shock clamped to prevent movement. 3. Use clamps or another practical way 19. Never stop the cutting blade by applying to secure and support the workpiece side pressure to the blade. to a stable platform. Holding the work by WARNING: Some dust particles hand or against your body leaves it unstable created by power sawing, contain...
  • Page 5 SYmBOLS To reduce the risk of injury, user must read instruction manual. Double insulation Warning Wear ear protection Wear eye protection Wear dust mask Do not expose to rain or water Do not burn Always charge the battery pack between temperatures 0 C to 30 C-Tick approval mark 12V Li-Ion...
  • Page 6 11 12 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...

  • Page 7: Blade Holder

    oN/off SWItcH lock-off BUttoN HAND GRIP AReAS PIvot ReleASe leveR MotoR coveR PRotectIoN fINGeR BlADe HolDeR leD WoRk lIGHt (See fIG. G1) foot PlAte 10. BASe PlAte 11. BAtteRy ReleASe BUttoN 12. BAtteRy PAck 13. cHARGeR (See fig. A) 14. cHARGeD INDIcAtoR lIGHt (See fig. A) 15.

  • Page 8: Technical Data

    TECHNICAL DATA Rated voltage No load speed 2200/min Stroke length 16mm Cutting capacity, Max. thickness Wood 50mm PVC pipe 45mm Steel Machine weight 1.2kg ACCESSORIES WX540 WX540.3 WX540.9 Charger 3-5h 30min Li-Ion battery pack Metal cutting blade Wood cutting blade Aluminum cutting blade you can only use the blade type shown in fig f.

  • Page 9: Intended Use

    (See fig. A2) 1) Plug the charger into an appropriate outlet. The light (WORX LOGO)(a) will be green. 2) Insert the battery pack into the charger, the WORX logo will be red to indicate the charging process has started. 3) On completion of charge, the logo will turn to be green.
  • Page 10 4. to ReMove oR INStAll BAtteRy PAck Position VI (See fig. B) Locate buttons on side of battery pack and depress both sides to release battery pack from your tool. Remove battery pack from your tool. After recharge insert the battery pack into the battery port.

  • Page 11: Removing The Saw Blade

    ——INSeRtING tHe SAW BlADe (See fig. f-H) Wear protective gloves when assembling the saw blade. contact with the saw blade can lead to injuries. you can only use the blade type shown in fig f. The machine is equipped with a tool-free blade holder (7).

  • Page 12: Operation

    oPeRAtIoN WARNING: Always wear eye protection while operating this or any other power tool. WARNING: Burn hazard. Do not touch the blade immediately after use. Contact with the blade may result in personal injury. Before you begin work, ensure the material to be cut is rigid.

  • Page 13: Maintenance

    breakage. GeNeRAl Any cut which puts pressure on the blade, Always use a blade suited to the material and such as angle or scroll cuts, increases potential material thickness to be cut. for vibration, kickback and blade breakage. Always ensure the work–piece is firmly held or WARNING: Shock hazard.
  • Page 16 Copyright © 2013, Positec. All Rights Reserved. 2CSJ04APK11001A2...
