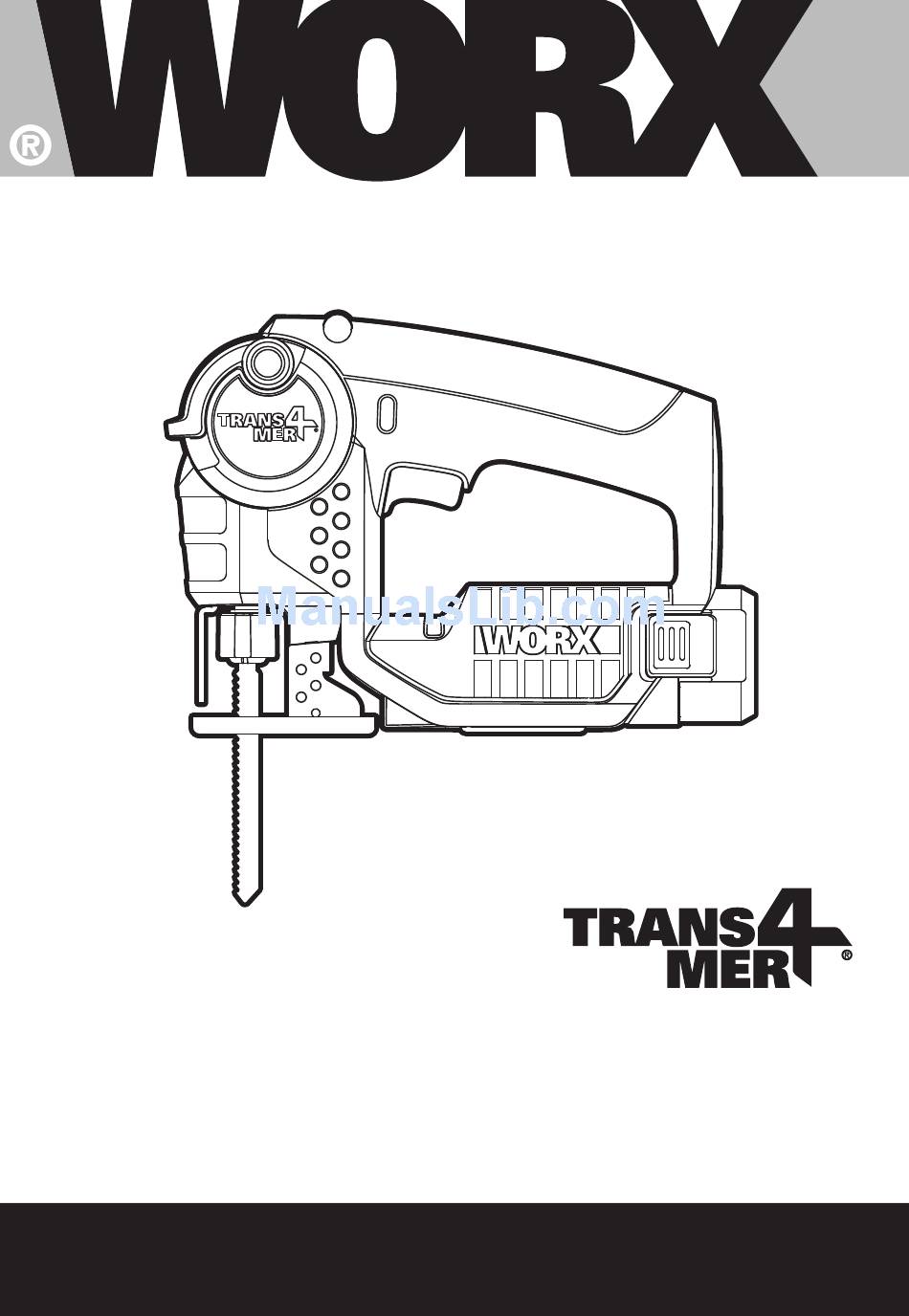

- Page 1 SAFETY AND OPERATING mANUAL ORIGINAL INSTRUcTIONS 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...
-
Page 2: General Power Tool Safety Warnings
When operating a power tool connected and properly used. Use of outdoors, use an extension cord dust collection can reduce dust-related suitable for outdoor use. Use of a cord hazards. 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9... - Page 3 A eye shields when using the multi- charger that is suitable for one type of purposed saw. everyday eyeglasses battery pack may create a risk of fire when have only impact-resistant lenses; 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...
- Page 4 20. Always remove the battery pack from the charger immediately after re-charging is completed. 21. Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point. 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...
- Page 5 0 C to 30 Do not burn Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...
- Page 6 11 12 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...
- Page 7 11. BAtteRy ReleASe BUttoN 12. BAtteRy PAck 13. cHARGeR (See fig. A) 14. cHARGeD INDIcAtoR lIGHt (See fig. A) 15. BlADe (See fig. f) Not all the accessories illustrated or described are included in standard delivery. 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...
-
Page 8: Technical Data
TEcHNIcAL DATA Type WX540 WX540.3 WX540.9 (5-designation of machinery, representative of saw) Rated voltage No load speed 2200/min Stroke length 16mm Cutting capacity Wood 50mm PVC pipe 45mm Steel Machine weight 1.2kg NOISE AND VIBRATION DATA A weighted sound pressure... - Page 9 Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...
-
Page 10: Intended Use
(See fig. A2) 1) Plug the charger into an appropriate outlet. The light (WORX LOGO)(a) will be green. 2) Insert the battery pack into the charger, the WORX logo will be red to indicate the charging process has started. 3) On completion of charge, the logo will turn to be green. - Page 11 Keep your hands away from the lock-off button to prevent switch actuation before making any adjustments or removing or installing attachments or accessories. 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9...
-
Page 12: Removing The Saw Blade
WARNING: The blade may be spring ejected so protect your eyes. Note: When using JIGSAW MODE (90 deg), the blade teeth face forward as shown in Fig. H. 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9... -
Page 13: Operation
• Whenever possible, the saw foot plate must be held firmly against the material being cut. This will prevent the saw from jumping or vibrating and 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9... -
Page 14: Environmental Protection
Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool. 12V Li-Ion WX540 multi-purposed saw WX540.3 WX540.9... -
Page 15: Plug Replacement
The wires in the mains lead are colored in Declare that the product, accordance with the following code: Description BlUe=NeUtRAl WoRX 12v li-Ion Multi-purposed saw BRoWN=lIve Type WX540 WX540.3 WX540.9 As the colors of the wires in the mains lead of (5-designation of machinery,... - Page 16 Copyright © 2013, Positec. All Rights Reserved. 2CSJ04APK11002A2...
