Life Fitness 9500HRT Upgrade Installation Manual

Life Fitness Model 9500HRT(Rev 1 & 2) & 9500HR Treadmill
How To... INSTALL THE LIFELINK UPGRADE KIT

TOOLS REQUIRED:

Standard Screwdriver, Phillips Screwdriver, Hex Key Wrench Set, Pliers, Wire Cutters,
Anti-Static Strap, Small Adjustable Wrench
WARNING: FAILURE TO OBSERVE SAFETY PROCEDURES WHEN SERVICING THIS UNIT
(9500HR ONLY)

STEP 1:

Enter into the service menu by pressing manual-9-1-9, enter. Press the fit test program key ( 0001 ) and record the
total number of times the wax pump has discharged while the unit has been in operation.

STEP 2:

Turn the power off at the ON/OFF switch and unplug the unit at the wall outlet.

STEP 3:

Ground yourself by positioning an anti-static strap around your wrist and attaching the other end (alligator clip or
adhesive end) to a bare metal surface on the machine frame.
(9500HRT REV 2 ONLY)
STEP 3:

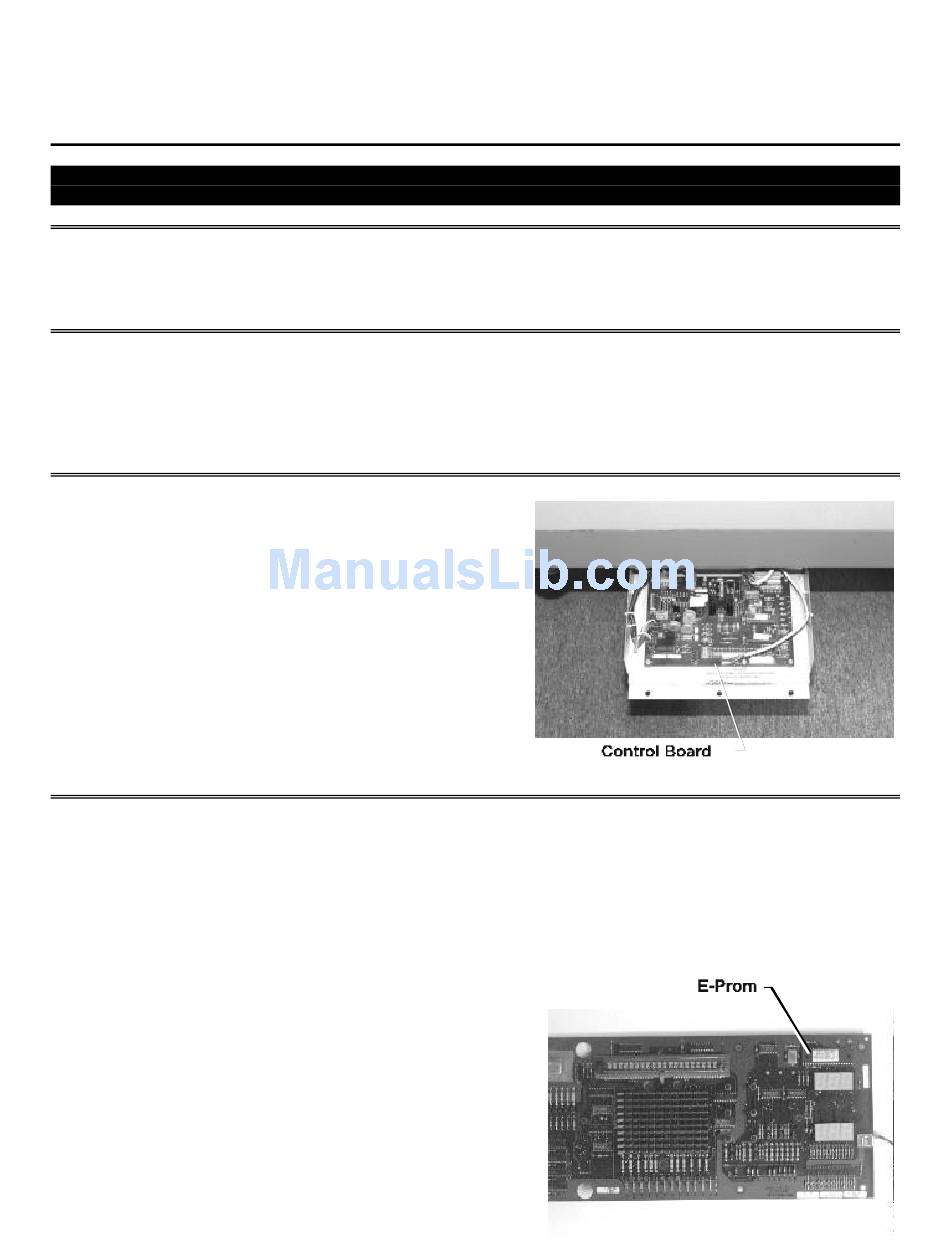

With the help of another person, tip the treadmill onto its user
right side. Follow the left side of the frame to the middle. Using a
standard screwdriver, pop open the three plastic rivets securing
the control board shelf to the frame. Pull the shelf downward and
towards you to lower the CONTROL BOARD SHELF on its
hinges.

STEP 4:

Plug the NETWORK HARNESS supplied in the upgrade kit to
the additional plug connector on the CONTROL BOARD marked
P7. Route the NETWORK HARNESS along the frame towards
the front of the unit to the POWER MODULE. Replace the
CONTROL BOARD SHELF back into its original position.
(9500HRT REV 1 AND 9500HR ONLY)
STEP 4:
Using a Phillips screwdriver, remove the four screws securing the connector cover located under the user left side of
the DISPLAY CONSOLE. Unplug the 4-PIN and 10-PIN connectors to the DISPLAY CONSOLE.

STEP 5:

Using a Phillips screwdriver, remove the eight screws that hold the CONSOLE PAN to the faceplate. Remove the four
screws securing the Lifepulse assembly and unplug the 7-PIN CONNECTOR and the ground strap. Remove the eight
screws securing the ELECTRONIC BOARD to the faceplate. Unplug the ribbon and stop switch cables.

STEP 6:

NOTE THE ORIENTATION OF E-PROM BY THE U-NOTCH.
Remove and replace the E-PROM (U1) with the E-PROM supplied
in the upgrade kit. Return the DISPLAY CONSOLE to its proper
position by reversing Steps 4 and 5.

STEP 7:

With the help of another person, tip the treadmill onto its user right
side. Follow the left side of the frame to the middle. Using a
standard screwdriver, pop open the three plastic rivets securing the
control board shelf to the frame. Pull the shelf downward and
towards you to lower the CONTROL BOARD SHELF on its hinges
COULD RESULT IN INJURY FROM ELECTRICAL SHOCK
