Life Fitness Models 9100 / 9500HR / 9700HR Treadmills
How To... Remove and Replace the Wax Bag
Tools required: Phillips screwdriver, Side Cutters or Utility Knife
Step 1
Turn the power OFF at the ON/OFF switch and then unplug the unit from the electrical outlet.
Step 2
Remove the two SCREWS securing the WAX BAG ACCESS PANEL located on the user left side of the unit. Remove
the WAX BAG ACCESS PANEL and set it aside.
Step 3
Engage the HOSE CLAMP onto the WAX BAG HOSE.
Step 4
Slide the WAX BAG HOSE off the BARBED NOZZLE on the WAX PUMP INLET HOSE.
Step 5
Remove the two WINGNUTS located just inside the access hole.
Step 6
Lift the WAX BAG from the two WINGNUT STUDS. Slide the WAX BAG out of its PROTECTIVE LINER. Discard the
used WAX BAG.
Wax Bag
Wax Bag
Access Panel
Screw
Step 7
Verify that the WAX BAG PROTECTIVE LINER is open and ready to receive the WAX BAG. Remove the new WAX
BAG from its packaging and carefully insert the WAX BAG into the access hole as shown with the WAX BAG HOSE
facing the rear of the unit.
Step 8
For first time installations, remove the two WINGNUTS located just inside the access hole.
Step 9
Align the mounting holes located in the WAX BAG FLANGE with the two WINGNUT STUDS. Secure the WAX BAG
with the two WINGNUTS.
CAUTION: BE CAREFUL NOT TO RIP OR OTHERWISE DAMAGE THE WAX BAG ON THE WINGNUT STUDS
AND WINGNUTS WHEN INSERTING THE WAX BAG INTO THE FRAME.
FOR A FIRST TIME INSTALLATION, SKIP TO STEP 7.

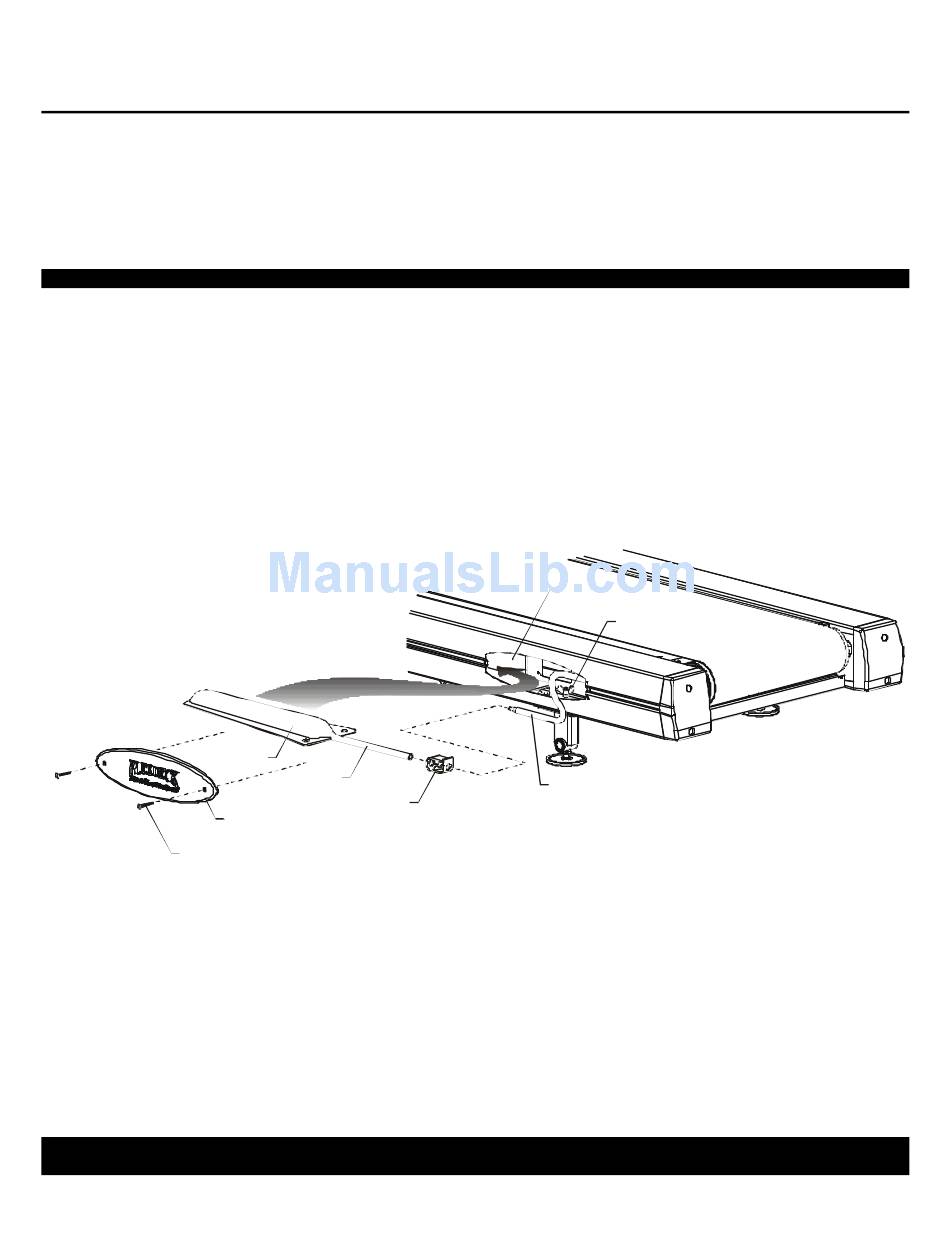

Wax Bag
Hose
Hose
Clamp
Wax Bag
Access Panel
Wax Bag
Protective Liner
Wingnut &
Stud
Wax Pump
Inlet Hose
Continued
