Life Fitness Recumbent Series Exercise Bikes

How To:... INSTALL THE ACCESSORY TRAY

Tools Required: Phillips screwdriver, 5/32" Hex Key wrench

9500HR

9100, 5500HR, 4500

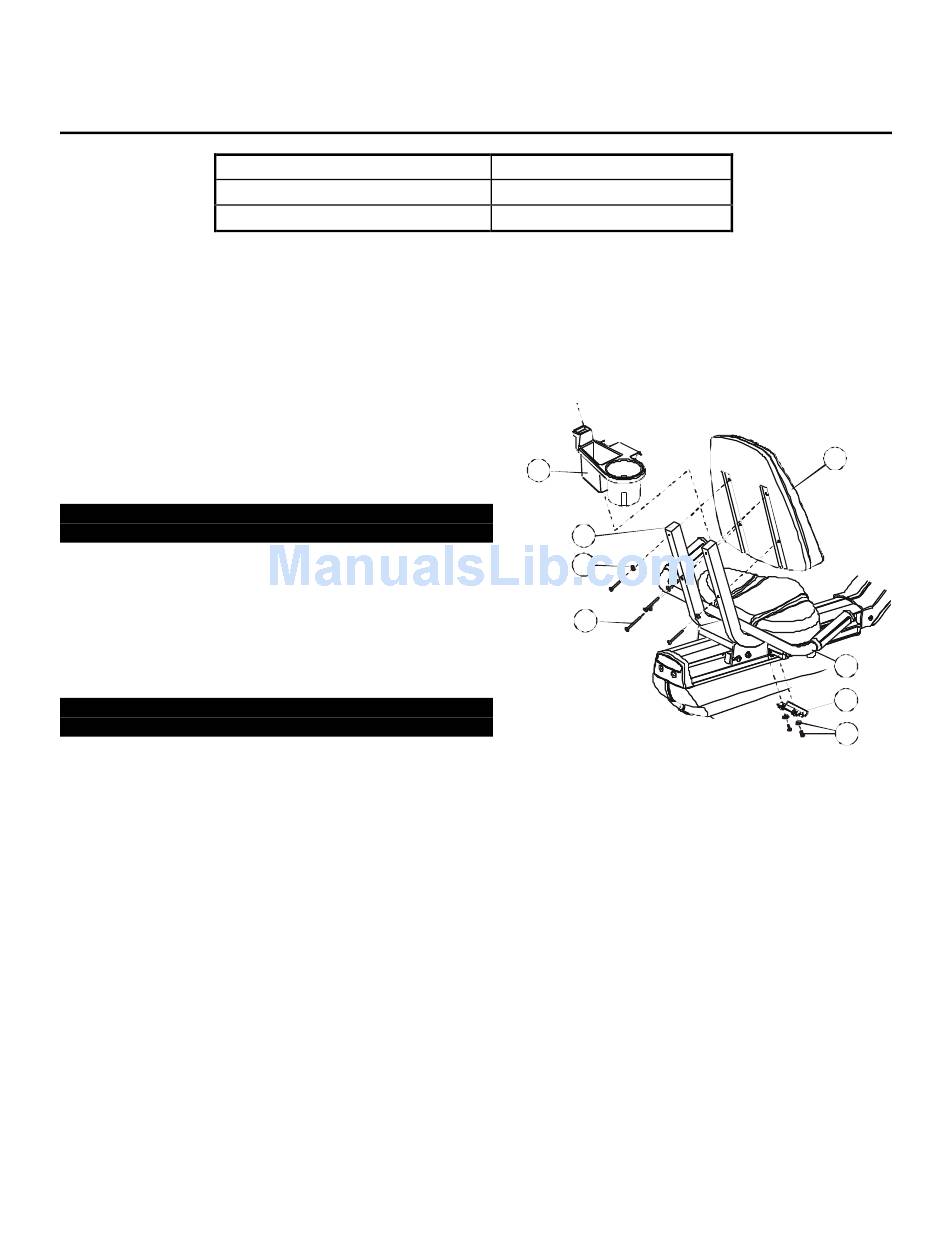

Step 1

Using a Hex Key wrench remove the four SCREWS (A) and WASHERS (B) securing the SEAT BACK (C). Remove

the SEAT BACK and set it aside.

Step 2

Slide the ACCESSORY TRAY (D) over the user right SEAT BACK POST (E) and down to make contact with the

SEAT HANDLEBAR (F).

Step 3

Position the UNDERSIDE CLAMP BRACKET (G) around the

SEAT HANDLEBAR (F) and tighten the two CLAMP

SCREWS and WASHERS (H).

NOTE: BE CAREFUL NOT TO OVER-TIGHTEN

THE SCREWS (H).

Step 4

Align the four holes in the SEAT BACK (B) with those in the

SEAT BACK POSTS. Insert the four SCREWS (A) and

WASHERS (B) through the backside of the SEAT BACK

POSTS (E) and into the SEAT BACK. Tighten the four

SCREWS securely.

NOTE: BE CAREFUL NOT TO OVER-TIGHTEN THE

SCREWS (A).

Recumbent Models

Kit Required

AK51-00072-0000

AK51-00074-0000

MO51-00K51-A015
