Life Fitness 5500 HR Replacement Manual

Life Fitness Model 5500HR Cross-Trainer Service Kit Instruction (GK61-00002-0006)
How To... Replace the Pedal Lever Assembly
Tools required: Phillip screwdriver, Allen wrench set, 3/8" Socket set, and Standard wrench set
Step 1
Unplug the unit at the electrical outlet.
Step 2
Remove the six(6) screws from the
OUTER LINK COVER and remove.
Step 3
Remove the TIE ROD.
Step 4
Remove the ANTI-LIFT BRACKET
and lower the PEDAL LEVER
ASSEMBLY.
Step 5
Remove the nut and bolt securing the
pedal lever to the ROCKER ARM, and
remove the pedal lever.
Step 6
Remove the inner link cover screws(4)
and remove the inner link cover.
Step 7
Install new pedal lever in reverse
order making sure that each pedal
lever roller guide is centered over the
roller before tightening the mounting
bolt. Loosen the pedal lever so that it
is centered on the roller, then tighten
the mounting bolt from 30-35 ft lbs.

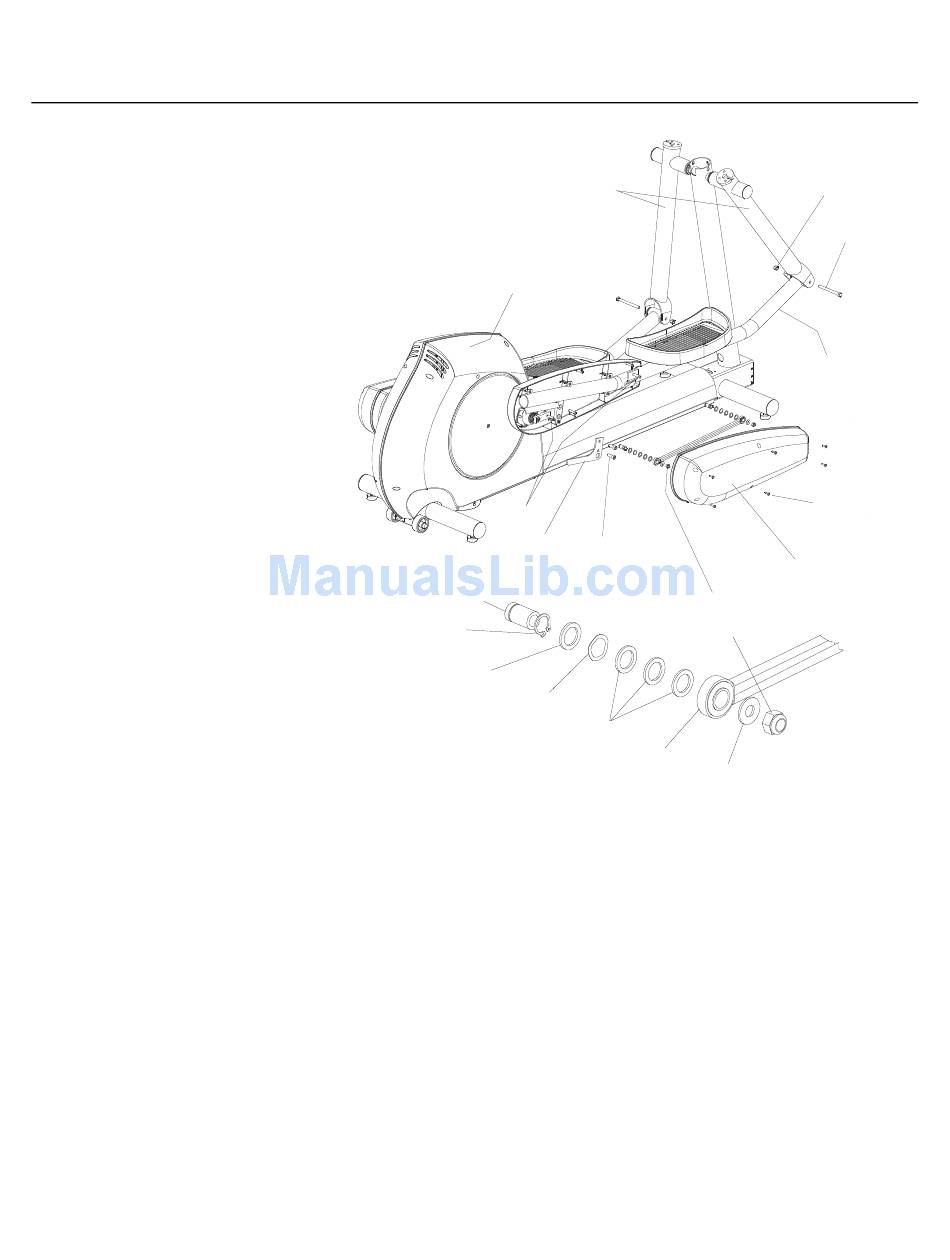

Rocker Arms
Rear Cover RH
Bolts(2)
Anti-Lift
Anti-Lift Bolts(2)
Bracket
Torque
30-35 FT. LBS.
Spacer
Snap
Ring
Thrust
Washers
Wave
Washer
Thrust
Washers
Pedal Lever Nuts(2)
Torque
30-35 FT. LBS.
Pedal Lever RH
Cover Screws(6)
Torque
6-10 IN. LBS.
Outer Link
Cover
Linkage Nuts(2)
Torque
18-20 FT. LBS.
Tie Rod
Flat Washer
M051-00K61-A020
Bolts(2)
