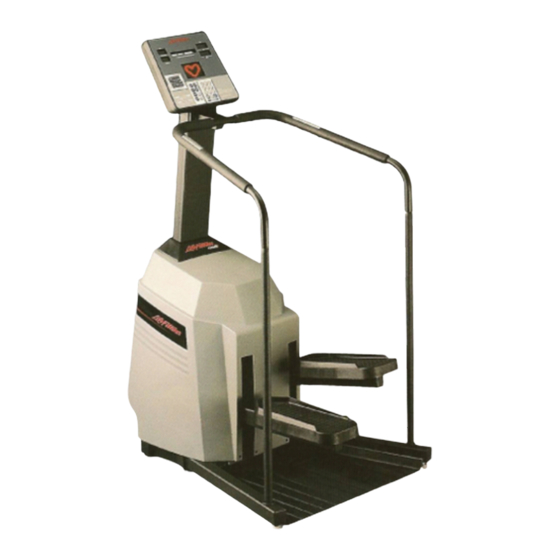

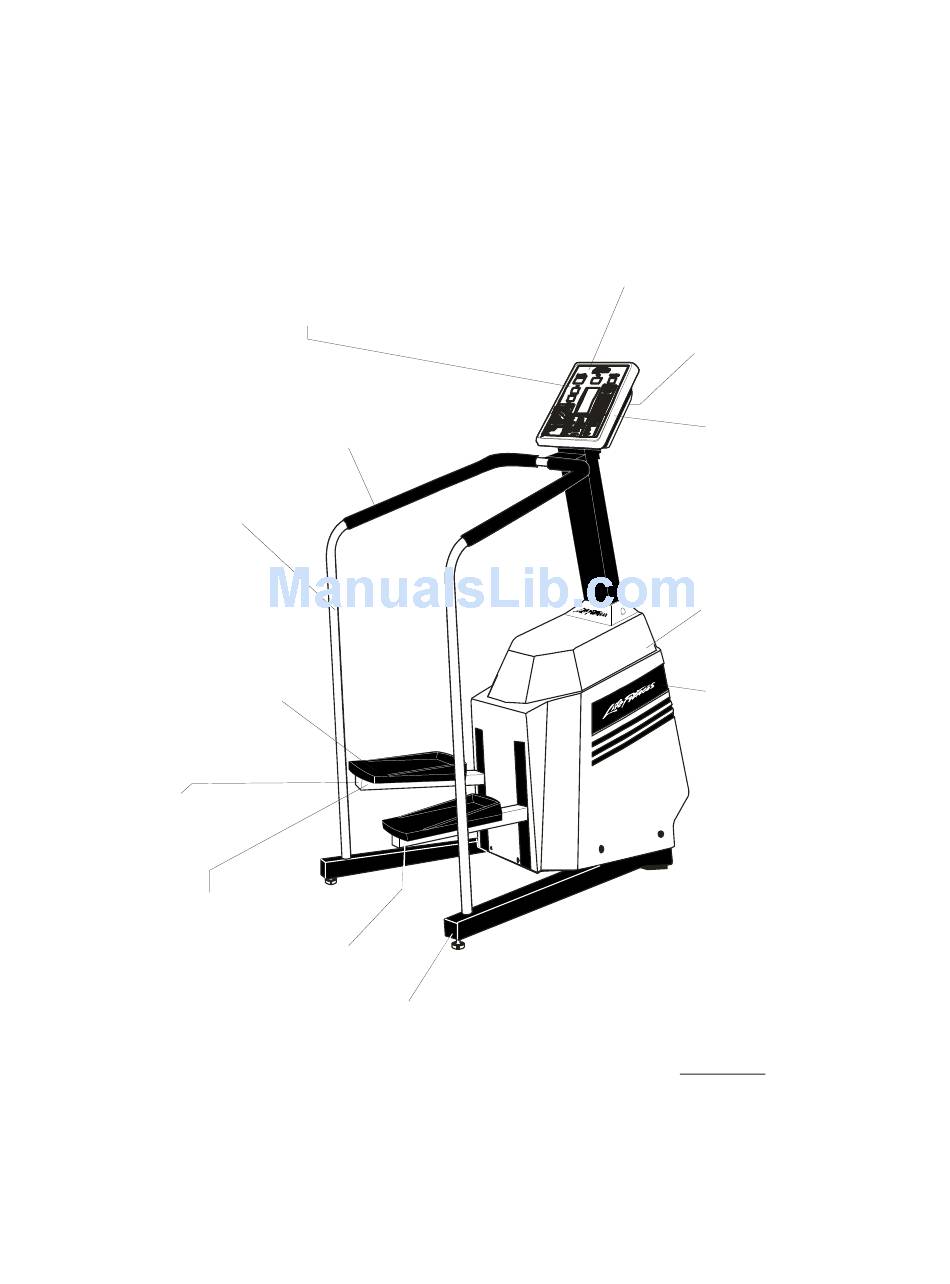

LS-9100C
STAIRCLIMBERS
Vertical Handle, Right/Left (NLA)
0K24-01379-0000
Foot Pedal (2)
0K24-01001-0001
Tube End Cap
0K24-01015-0000
Pedal Lever Assembly, Left (NLA)
AK24-00049-0004
Pedal Lever Assembly, Right
AK24-00049-0003
Console Assembly
SK24-00211-0001 Eng/Eng - R&R only
SK24-00206-0013 Eng/Met - R&R only
AK24-00206-0015 Spn/Met - R&R only
AK24-00206-0012 Ger/Met
AK24-00206-0016 Itl/Met - R&R only
AK24-00206-0017 Jap/Met - R&R only
Molded Handle (NLA)
0K24-01424-0000
Endcap
0K14-01305-0000
Overlay Bezel
AK24-00437-0001 Eng/Eng
AK24-00437-0013 Eng/Met (NLA)
AK24-00437-0015 Spn/Met (NLA)
AK24-00437-0002 Ger/Met
AK24-00437-0016 Itl/Met
AK24-00437-0017 Jap/Met (NLA)
1 of 3
GK24-00014-XXXX
SN: 210000-213767
Console Support Bracket
0K24-01282-0000
Console Case
0K18-01243-0001
Battery Door
0E09-00903-0001
Shroud w/Decal (NLA)
AK24-00212-0000
Decal Sets (NLA)
0K24-01451-0000
Not Shown:
Main Cable
AK24-00202-0000
rev. 09/08/05
Advertisement
Related Manuals for Life Fitness LS-9100C
Summary of Contents for Life Fitness LS-9100C
- Page 1 LS-9100C STAIRCLIMBERS Console Assembly SK24-00211-0001 Eng/Eng - R&R only SK24-00206-0013 Eng/Met - R&R only AK24-00206-0015 Spn/Met - R&R only AK24-00206-0012 Ger/Met AK24-00206-0016 Itl/Met - R&R only AK24-00206-0017 Jap/Met - R&R only Molded Handle (NLA) 0K24-01424-0000 Vertical Handle, Right/Left (NLA) 0K24-01379-0000...
- Page 2 LS-9100C STAIRCLIMBERS Alternator w/Flywheel SK24-00201-0000 Alternator Belt 0K24-01499-0000 Alternator Brushes 0017-00009-0895 Upper Spring (2) 0K24-01127-0002 Spring Mounting Hardware Screw 0017-00101-1096 Washer (2) 0017-00104-0189 0017-00103-0019 Power Module SK24-00152-0001(120v/60Hz) AK24-00152-0002(100v/50Hz, NLA) AK24-00152-0007(220v/50Hz) AK24-00152-0008(240v+, NLA) AK24-00152-0009(230v/50Hz, NLA) AK24-00152-0010(110v/50Hz, NLA) AK24-00152-0011(200v/50Hz, NLA) AK24-00152-0012(220v/60Hz, NLA)
- Page 3 LS-9100C STAIRCLIMBERS Bearing Bracket Assembly, Left SK24-00124-0002 Clutch Bearing, Left SK24-00036-0006 Resistor Assembly AK24-00112-0000 Bearing Bracket Assembly, Right SK24-00124-0001 Idler Sprocket/Bearings SK24-00045-0005 3 of 3 GK24-00014-XXXX SN: 210000-213767 Clutch Bearing, Right SK24-00036-0005 rev. 09/08/05...
