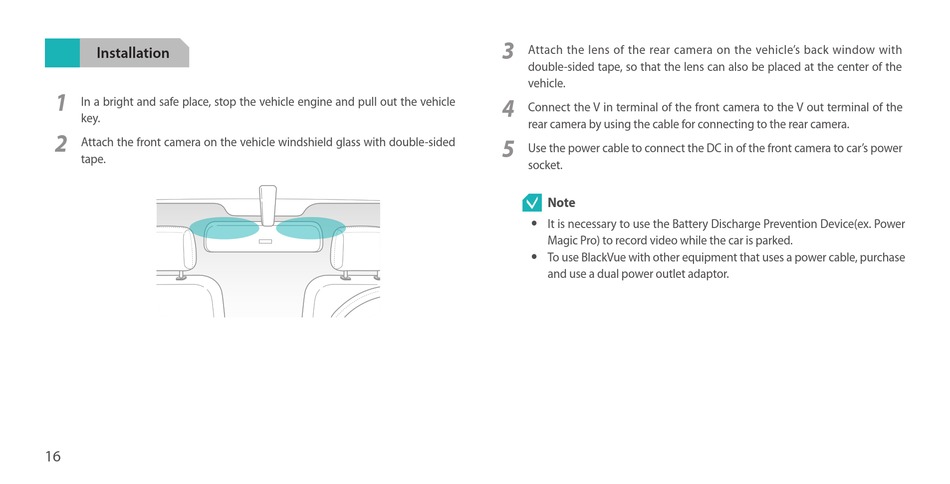

Installation

1
In a bright and safe place, stop the vehicle engine and pull out the vehicle
key.
2
Attach the front camera on the vehicle windshield glass with double-sided
tape.
16
3
Attach the lens of the rear camera on the vehicle's back window with
double-sided tape, so that the lens can also be placed at the center of the
vehicle.
4
Connect the V in terminal of the front camera to the V out terminal of the
rear camera by using the cable for connecting to the rear camera.
5
Use the power cable to connect the DC in of the front camera to car's power
socket.
Note
y It is necessary to use the Battery Discharge Prevention Device(ex. Power
Magic Pro) to record video while the car is parked.
y To use BlackVue with other equipment that uses a power cable, purchase
and use a dual power outlet adaptor.
