Harbor Breeze ® es una marca registrada de LF,
LLC. Todos los derechos reservados.
ADJUNTE SU RECIBO AQUÍ
Número de serie
Fecha de compra
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 1-800-643-0067, de lunes a jueves de 8 a.m. a 6 p.m.,
hora estándar del Este, o los viernes de 8 a.m. a 5 p.m., hora estándar del Este.
ARTÍCULO #0036261
VENTILADOR DE TECHO
CALERA
MODELO #00829
MODELO UL #CLRO52-II
Lowes.com/harborbreeze
15
Harbor Breeze ® is a registered trademark of LF,
LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
EB 14201
ITEM #0036261

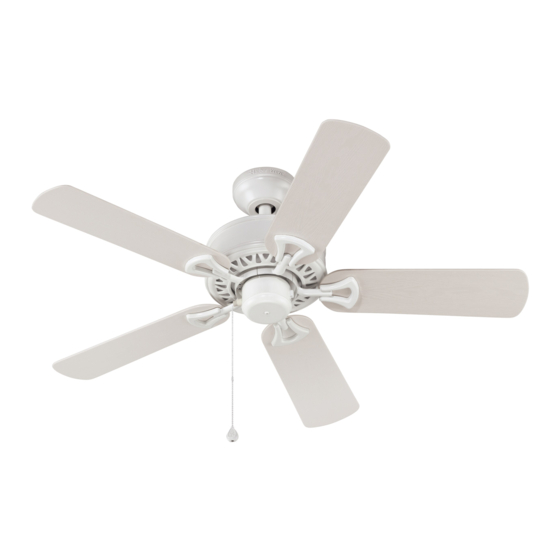

CALERA CEILING FAN
MODEL #00829
UL MODEL #CLRO52-II
Español p. 15
Lowes.com/harborbreeze
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harbor Breeze CLRO52-II
Summary of Contents for Harbor Breeze CLRO52-II
-
Page 1: Ventilador De Techo
MODEL #00829 MODELO #00829 UL MODEL #CLRO52-II MODELO UL #CLRO52-II Harbor Breeze ® es una marca registrada de LF, Harbor Breeze ® is a registered trademark of LF, Español p. 15 LLC. Todos los derechos reservados. LLC. All Rights Reserved. -
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS Safety Information....................... 3 Please read and understand this entire manual before attempting to assemble, operate or install the product. Package Contents....................... 4 • When using an existing outlet box, be sure the box is securely attached to the building structure and Hardware Contents...................... -
Page 3: Package Contents
PACKAGE CONTENTS HARDWARE CONTENTS (shown actual size) Rubber Gasket Qty. 1 Wire Connector (NOT TO SCALE) Qty. 4 Fan Pull Chain Extension Qty. 1 (NOT TO SCALE) PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. -
Page 4: Initial Installation
INITIAL INSTALLATION INITIAL INSTALLATION 4. Install the mounting bracket (A) to the outlet 1. Determine mounting method to use. outlet box box (not included), sliding the mounting bracket (A) over A - Downrod Mount (normal or angled ceiling) the two outlet box screws (not included). Securely tighten B - Closemount (normal ceiling only) the two outlet box screws. -
Page 5: Closemount Style Fan Mounting
DOWNROD STYLE FAN MOUNTING CLOSEMOUNT STYLE FAN MOUNTING 3. Loosen the two set screws from the yoke. Slip 2. Remove every other screw from the top of motor downrod (E) into yoke, aligning holes in downrod (E) housing assembly (H) and save. and yoke. -
Page 6: Wiring
WIRING FINAL INSTALLATION 1. Connect the BLACK and BLUE wires from fan to the 2. Install the two screws that were removed in previous step house BLACK wire. Connect the WHITE wire from screw outlet box and tighten securely. fan to the house WHITE wire. Connect all GROUNDED (GREEN) wires together from fan to the house GREEN/GROUNDED wire. -
Page 7: Operating Instructions
FINAL INSTALLATION OPERATING INSTRUCTIONS PULL CHAIN: The fan pull chain is for motor speed control: High, Medium, Low and Off. Pull the 5. Mount the blade (G) to the blade bracket (F) by chain once for each position. aligning the three key-slot holes in the blade (G) with three posts on the top of the blade bracket (F) and REVERSE SWITCH: press the blade (G) down firmly. -
Page 8: Warranty
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. PART DESCRIPTION PART# Blade bracket 104000-0294 Blade 108003-3032 Printed in China Harbor Breeze ® is a registered trademark of LF, LLC. All rights reserved. Lowes.com/harborbreeze Lowes.com/harborbreeze...
