USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cutout Dimensions

PREPARE SITE
Your U-Line product has been designed exclusively for a
built-in installation. When built-in, your unit does not
require additional air space for top, sides, or rear.
However, the front grille must NOT be obstructed.
The Modular 3000 Series units are engineered with a
variety of adjustment features to help ensure a seamless
installation. Adjustable doors, leveling legs and grille will
assist in fine tuning the installation.
All 3000 Series models fully integrate into overlay/face
frame, inset or European/frameless cabinet styles and
install seamlessly into standard 24" (610 mm) depth
cabinet base.
NOTICE
Unit can NOT be installed behind a closed cabinet
door.
U-Line products are designed and manufactured
to be seamlessly installed in the specified cut-
out openings shown, and variance to the floors
or cabinetry must be accounted for in your
installation.

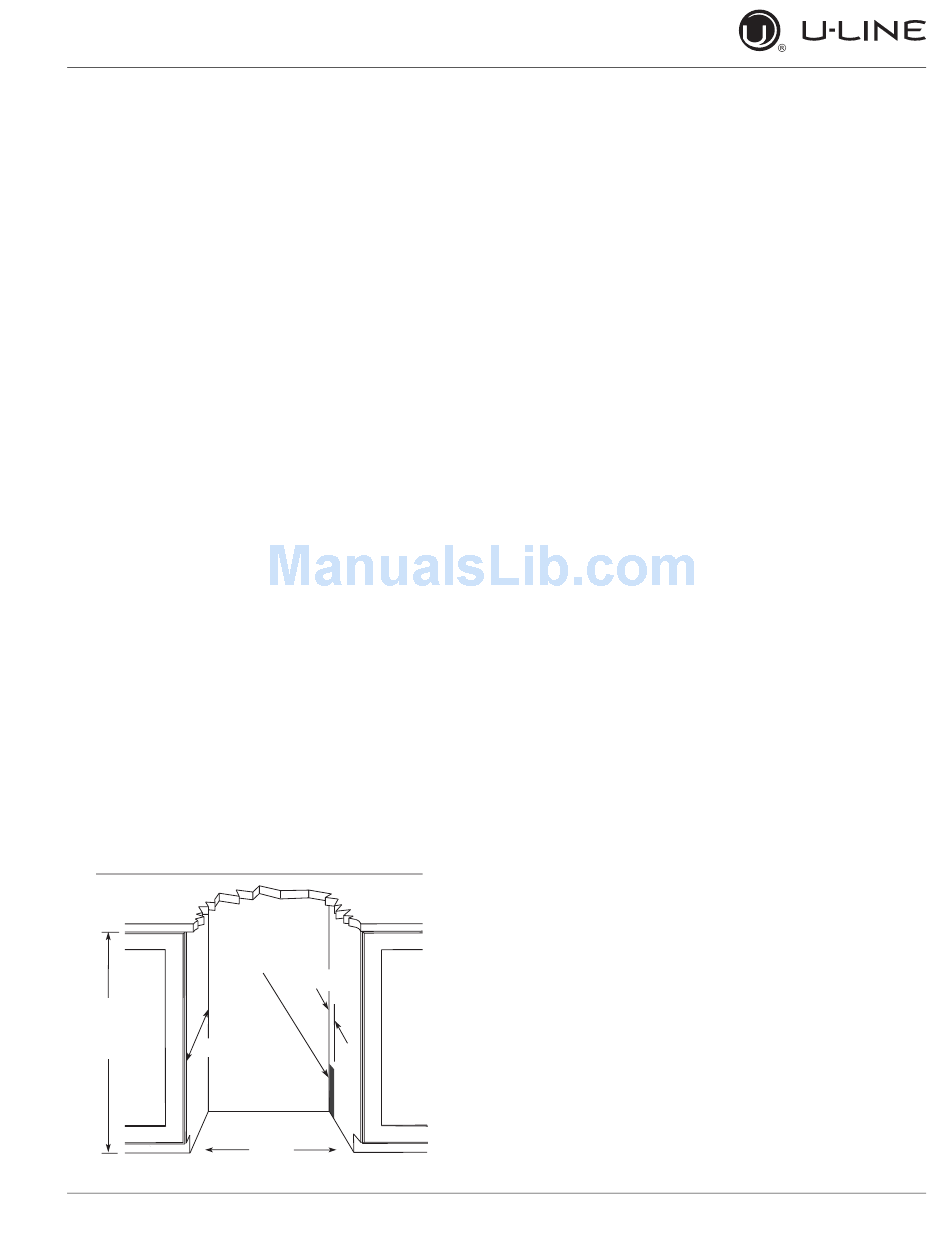

CUT-OUT DIMENSIONS
Preferred location
for drain, water
line and receptacle
is in adjacent
cabinet.
33-7/8"
(860 mm)
to
24"
34-7/8"
(610 mm)
(886 mm)
(450 mm)
5/8"
(16 mm)
17-3/4"
u-line.com
Cutout Dimensions 1
