QUICK START GUIDE
Modular 3000 Series

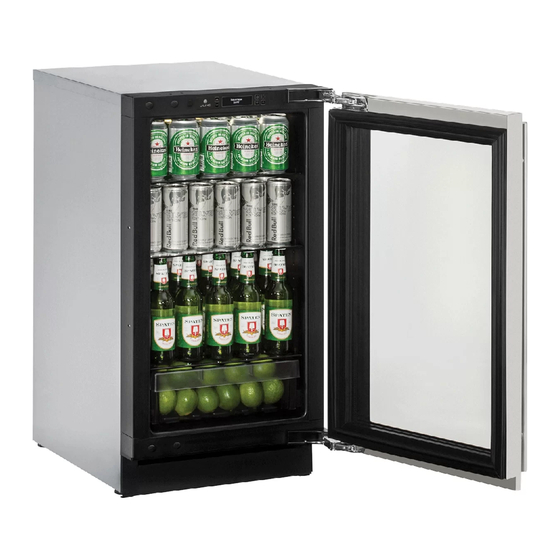

3018 CLR
115 V / 60 Hz
•
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for U-Line 3000 Series

Summary of Contents for U-Line 3000 Series

  • Page 1 QUICK START GUIDE Modular 3000 Series 3018 CLR 115 V / 60 Hz • •...
  • Page 2 Product Warranty information are all available for reference and download at u-line.com. PROPERTY DAMAGE / INJURY CONCERNS In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following steps: U-Line Customer Care must be contacted immediately at +1.414.354.0300.

  • Page 3: Table Of Contents

    QUICK START GUIDE u-line.com This Quick Start Guide covers the basics of installation and general use of your product. For more details, see the complete User Guide & Service Manual on u-line.com. Contents Safety and Warning Environmental Requirements Electrical Water Hookup...

  • Page 4: Safety And Warning

    QUICK START GUIDE u-line.com Safety and Warning Environmental Requirements This model is intended for indoor/interior applications only NOTICE and is not to be used in installations that are open/ Please read all instructions before installing, exposed to natural elements. operating, or servicing the appliance.

  • Page 5: Electrical

    PREPARE PLUMBING WARNING The water valve uses a standard 1/4" (6.35 mm) compression fitting. U-Line recommends using accessory SHOCK HAZARD — Electrical Grounding water hook up kit – part # WATERHOOKUP. The kit Required. Never attempt to repair or perform...
  • Page 6 QUICK START GUIDE u-line.com 3. Locate water CAUTION valve in the front of the unit and Do not use any plastic water supply line. The line thread water is under pressure at all times. Plastic may crack supply line or rupture with age and cause damage to your through.

  • Page 7: Drain

    DRAIN CONNECTION CAUTION With Trap and Vent Proper Drain If your U-Line unit did not come with a factory installed drain pump you must use a gravity A gravity drain may be used if: style drain connection. For assistance in Drain line has at least a 1"...
  • Page 8 (Optional Hook-Up) requirements for a gravity drain, you may have ordered a pre-installed U-Line P60 drain pump. Waste If you need to install a P60 drain pump into your unit, see Valve DRAIN PUMP section in the User Manual.

  • Page 9: Door Swing

    QUICK START GUIDE u-line.com Door Swing Wall For Integrated models that are installed adjacent to a wall, 1/2" (13 mm) 1/4" (6 mm) clearance is recommended from wall on hinge side to allow the door to open 90°. Allow for additional space for any knobs or pulls installed on the integrated panel/frame.

  • Page 10: Door Adjustments

    QUICK START GUIDE u-line.com Door Adjustments DOOR ALIGNMENT AND ADJUSTMENT Align and adjust the door if it is not level or is not sealing properly. If the door is not sealed, the unit may not cool T-25 Torx Screw properly, or excessive frost or condensation may form in the interior.

  • Page 11: General Installation

    QUICK START GUIDE u-line.com 4. Remove caps from screw heads on opposite side (2 on INSTALLATION TIP top and 2 on bottom). Using #2 Phillips bit remove the If the room floor is higher than the floor in the cutout 4 underlying screws.
  • Page 12 Integrated Panel Integrated Panel panel to door using Clamp clamps. A robust tape may also be 11.Remove clamps from door. used. U-Line recommends the NOTICE use of bar clamps Door/Drawer If panel requires additional adjustment after to secure the panel removing clamps, slightly loosen each screw and to the door.

  • Page 13: Control Quick Guide

    Service menu Press and hold for 5 seconds Press to scroll through menu. First Use All U-Line controls are preset at the factory. Initial startup ICE CUBE THICKNESS ADJUSTMENT requires no adjustments. NOTICE Ice thickness adjustment should only be made NOTICE one increment at a time.
  • Page 14 QUICK START GUIDE u-line.com The ice cube thickness is factory set for best overall performance. The factory setting “0” is designed to THINNER BRIDGE THICKER BRIDGE maintain an ice bridge of approximately 1/16" to 1/8" DEEPER DIMPLE SHALLOWER DIMPLE (1.6 mm to 3.2 mm) under normal conditions, resulting in a dimple of approximately 1/4"...

  • Page 15: Sabbath Mode

    Sabbath Mode Select Down U-Line Clear Ice Machine models are Star-K certified and can be used during the Sabbath. View a full list of Star-K certified U-Line units at www.star-k.org. To prepare the unit for the Sabbath: 1. Press and hold the until the unit turns off.
  • Page 16 For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line.
