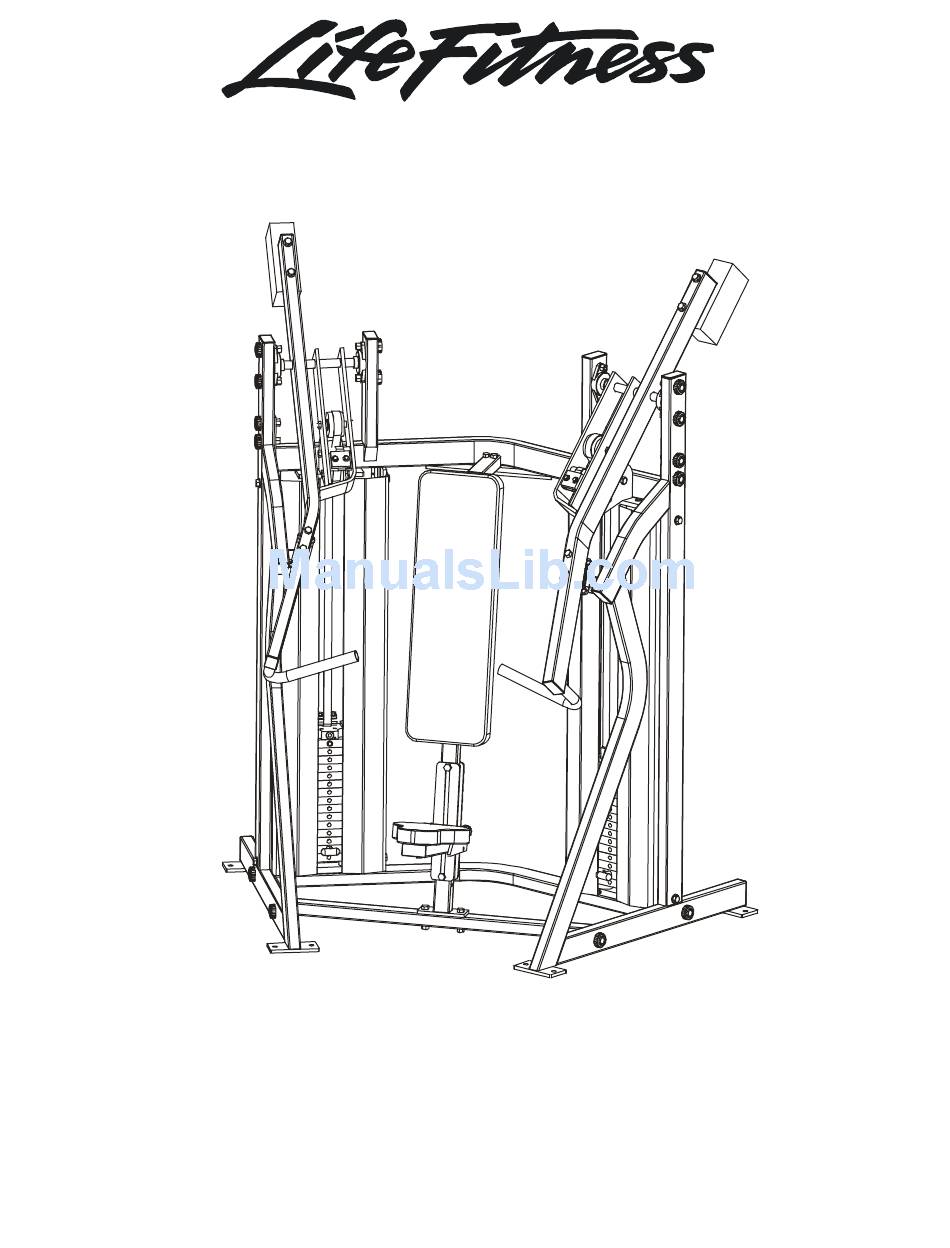

- Page 1 MTS - MOTION TECHNOLOGY SELECTORIZED MTIP INCLINE PRESS S/N TIP030000 & BELOW Customer Support Services PARTS MANUAL 1Page 1 of 16...
- Page 2 MTIP INCLINE PRESS S/N TIP030000 & BELOW Notes: 2Page 2 of 16...
-
Page 3: Table Of Contents
MTIP INCLINE PRESS S/N TIP030000 & BELOW Contents PAGE LEFT MOVEMENT ARM...4 RIGHT MOVEMENT ARM...5 TOP FRAME ASSEMBLY...6 BASE FRAME ASSEMBLY ...7 LEFT SIDE FRAME ...8 RIGHT SIDE FRAME ...9 PADS...10 SEAT FRAME WELDMENT...11 SEAT FRAME ASSEMBLY...12 SEAT ROLLER ASSEMBLY...13 INCREMENT WEIGHT ...14... -
Page 4: Left Movement Arm
MTIP INCLINE PRESS S/N TIP030000 & BELOW LEFT MOVEMENT ARM Hex Bolt-2 (3/8x2) 0017-00101-1412 Lock Washer-2 0017-00104-0377 Lock Washer-5 0017-00104-0379 End Cap 0K50-P0315-1000 Handle Grip H-GRIP End Cap-2 0017-00042-1038 Hex Bolt-2 (1/2x4-1/2) Spacer-2 0017-00101-1579 0K50-P1128 Pulley Left Arm 0017-00009-1039 MTIP-S0005... -
Page 5: Right Movement Arm
MTIP INCLINE PRESS S/N TIP030000 & BELOW RIGHT MOVEMENT ARM Bolt-3 (1/2x4) 0017-00101-1580 Lock Washer-5 0017-00104-0379 Small Bumper 0017-00042-1040 H-GRIP Handle Grip Hex Bolt-2 (1/2x4-1/2) 0017-00101-1579 Right Arm MTIP-S0006 Hex Bolt-2 (3/8x2) 0017-00101-1412 Strap Clamp 0k50-P1021 Jam Lock Nut-3 0017-00103-0224... -
Page 6: Top Frame Assembly
MTIP INCLINE PRESS S/N TIP030000 & BELOW TOP FRAME ASSEMBLY Hammer Head Washer-4 0017-00042-1041 Bearing-2 0017-00009-1034 Lock Nut-8 0017-00103-0223 Bolt-4 (1/2x3-1/4) 0017-00101-1574 Top Frame Assy MTIP-S0007 Bolt-4 (1/2x2-3/4 Bolt) 0017-00101-1573 3” Pulley-4 0017-00009-1039 6Page 6 of 16 End Cap-2 0017-00042-1038... -
Page 7: Base Frame Assembly
MTIP INCLINE PRESS S/N TIP030000 & BELOW BASE FRAME ASSEMBLY Bolt-8 0017-00101-1412 Belt Attach Plate-RH AK50-S0025 Strap Clamp-2 0K50-P1121 Lock Washer-8 0017-00104-0377 Weight Stack Donut-4 0017-00042-0993 Base Assembly MTIP-S001 Guide Rod-4 MTIP-P0018 NYLOC Nut-4 0017-00103-0217 Nut-4 0017-00103-0226 7Page 7 of 16... -
Page 8: Left Side Frame
MTIP INCLINE PRESS S/N TIP030000 & BELOW LEFT SIDE FRAME Lock Nut-2 0017-00103-0223 Bearing 0017-00009-1034 End Cap 0017-00042-0945 End Cap-3 0017-00042-1038 8Page 8 of 16 Bolt-2 (1/2x2-3/4) 0017-00101-1573 Hammer Head Washer-2 0017-00042-1041 Left Side Frame MTIP-S0003... -
Page 9: Right Side Frame
MTIP INCLINE PRESS S/N TIP030000 & BELOW RIGHT SIDE FRAME Bolt-2 (1/2x2-3/4) 0017-00101-1573 Hammer Head Washer-2 0017-00042-1041 End Cap-3 0017-00042-1038 Bearing 0017-00009-1034 Lock Nut-2 0017-00103-0223 End Cap 0017-00042-0945 Right Side Frame MTIP-S0002 9Page 9 of 16... -
Page 10: Pads
MTIP INCLINE PRESS S/N TIP030000 & BELOW PADS Back Pad 0K50-US063-0000 Seat Pad 0K50-US065-0000 10Page 10 of 16... -
Page 11: Seat Frame Weldment
MTIP INCLINE PRESS S/N TIP030000 & BELOW SEAT FRAME WELDMENT Seat Frame MTIP-S0004 Hex Locknut-2 0017-00103-0223 Seatrack Back 0K50-P1018 Seatrack Back 0K50-P1017 Lock Collar-2 0017-00009-1019 Hex Bolt 0017-00101-1567 Bolt-2 0017-00101-1573 11Page 11 of 16 End Cap 0017-00042-1038 NYLOC Nut 0017-00103-0229... -
Page 12: Seat Frame Assembly
MTIP INCLINE PRESS S/N TIP030000 & BELOW SEAT FRAME ASSEMBLY ITEM NO. QTY. MTDP-S0002 7359401 7359501 AK50-A1007 0017-00101-1662 0017-00104-0377 0017-00103-0289 73763 0017-00103-0217 0017-00101-1408 0017-00101-1664 M051-00296-A000 0017-00042-0945 M051-00602-A000 7442601 PART NO. DESCRIPTION Seat Frame Weldment Seatrack, Roller Serrated Seatrack, Roller Flat MTS SEAT#2 ASSM. -
Page 13: Seat Roller Assembly
MTIP INCLINE PRESS S/N TIP030000 & BELOW SEAT ROLLER ASSEMBLY ITEM NO. QTY. 0K50-S1006 AK50-S0040-0000 0017-00009-1110 73763 0017-00101-1662 0017-00103-0223 0017-00104-0377 0017-00042-1038 PART NO. MTS SEAT #1 (ROLLER) WELDMENT, PS- ROLLER SEAT HANDLE TORSION SPRING, S.S. ROLLER ASSM. M10 X 64 HXS SOC CS ST ZN 1/2"... -
Page 14: Increment Weight
MTIP INCLINE PRESS S/N TIP030000 & BELOW INCREMENT WEIGHT Body 5 lbs 0K50-P1107 Lever 0K50-P1108 C-Clip 0017-00100-0189 Knob 0K50-P1125 Retaining Pin 0K50-P1148 Slotted Pin 0017-00007-0249 14Page 14 of 16 Compression Spring 0017-00009-1090 Bearing Sleeve Guide-3 0017-00006-0240 Bumper-2 0K50-P1127... -
Page 15: Weight Stack
MTIP INCLINE PRESS S/N TIP030000 & BELOW WEIGHT STACK Head Plate 0K50-P1012-0000 Bearing 0017-00006-0220 E-Ring 0017-00100-0180 10lbs Weight Plate 0K50-P0483-0000 Lock Washer-2 0017-00104-0377 Bayonet-14 Holes 0K50-P1011-1001 15Page 15 of 16 Weight Stack Guide-2 MTFP-P0028 150lbs Belt Attachment AK50-S0023 Bolt-2 (3/8x1) -
Page 16: Decals
MTIP INCLINE PRESS S/N TIP030000 & BELOW DECALS Increment Weight Decal (Arrow Right) M051-00297-A000 Patent Decal M051-00299-A000 Weight Stack Number Strip-2 M051-00294-A000 Seat Adjustment Number Strip M051-00296-A000 Increment Weight Decal (Arrow Left) M051-00298-A000 Instructional Decal M051-00291-A000 Name Plate-2 M51-00289-A000 Large ASTM Warning...
