Summary of Contents for Life Fitness MTRW

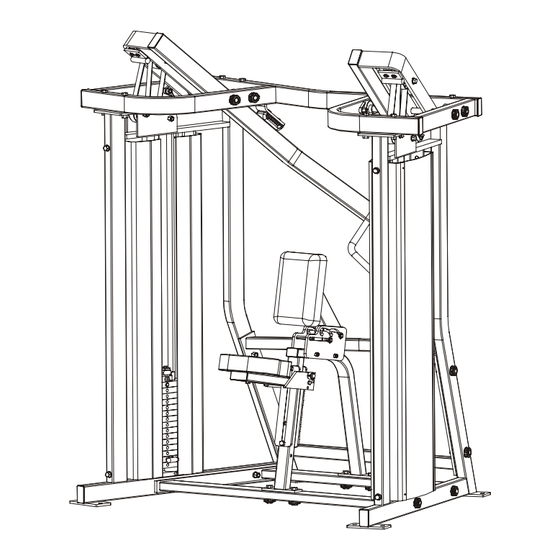

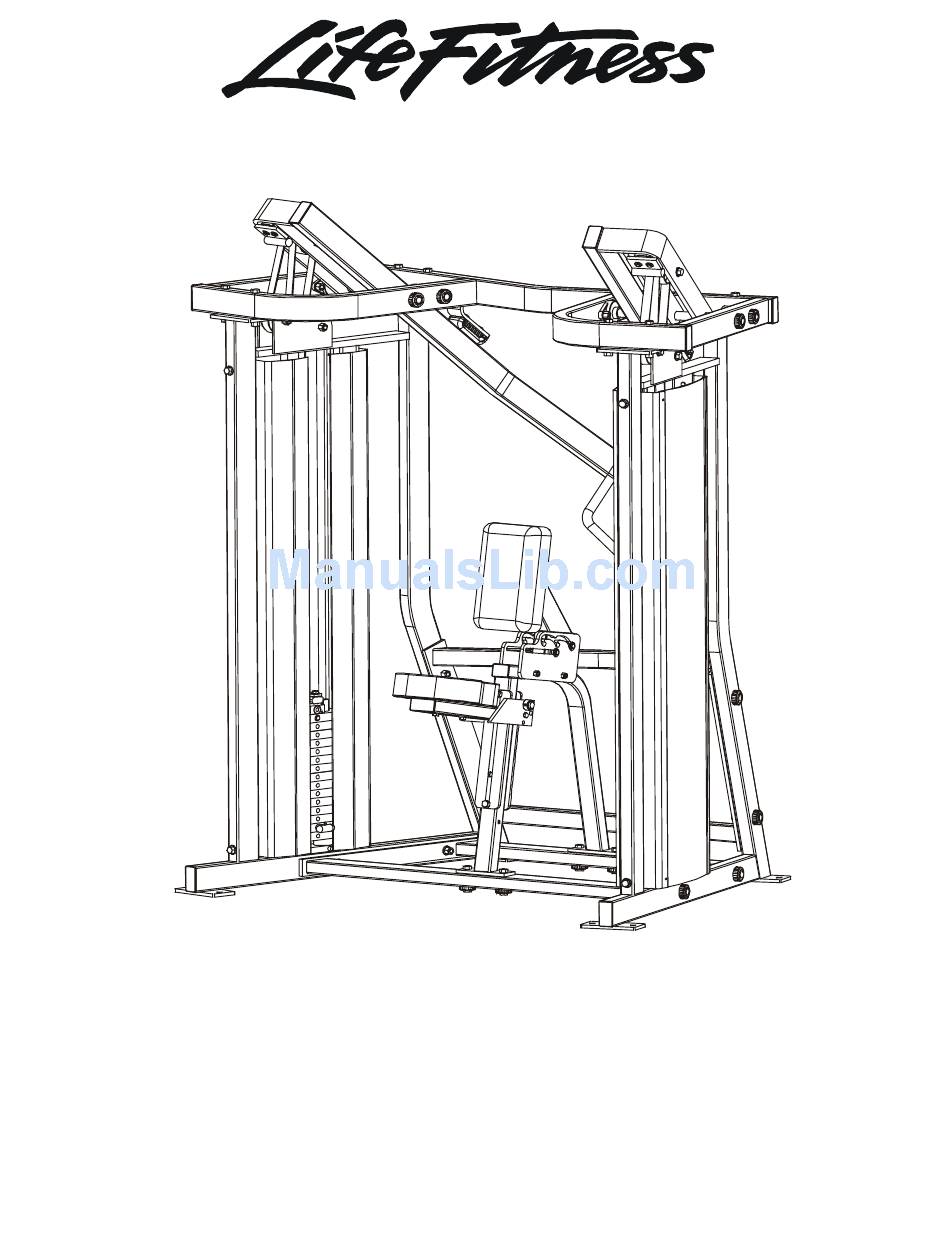

- Page 1 MTS - MOTION TECHNOLOGY SELECTORIZED MTRW ROW PRESS Customer Support Services PARTS MANUAL 1Page 1 of 16...
- Page 2 MTRW ROW PRESS Notes: 2Page 2 of 16...
-
Page 3: Table Of Contents
MTRW ROW PRESS Contents PAGE COMPONENT ASSEMBLY ...4 LEFT MOVEMENT ARM...5 RIGHT MOVEMENT ARM...6 TOP FRAME ASSEMBLY...7 LEFT SIDE FRAME ...8 RIGHT SIDE FRAME ...9 PADS...10 SEAT FRAME WELDMENT...11 SEAT FRAME ASSEMBLY ...12 SEAT ROLLER ASSEMBLY ...13 INCREMENT WEIGHT ...14 WEIGHT STACK ...15... -
Page 4: Component Assembly
MTRW ROW PRESS COMPONENT ASSEMBLY Hammer Head Washer-20 0017-00042-1041 Bolt-4 (1/2x3/4) 0017-00101-1586 Bolt-2 (1/2x2-1/2) 0017-00101-1572 Bolt-14 (1/2x3/4) 0017-00101-1573 Front Frame MTRW-S0007 Bottom Frame MTRW-S0001 4Page 4 of 16 Accordian Shaft Cover-4 0017-00042-1042 Hex Bolt-8 (1/2x4-1/4) 0017-00101-1576 Shield Rivet-4 0017-00101-1587 Washer-36... -
Page 5: Left Movement Arm
MTRW ROW PRESS LEFT MOVEMENT ARM Lock Washer 0017-00104-0379 End Cap 0K50-P0315-1000 Grip 0017-00042-0995 3” Pulley 0017-00009-1039 Pulley Spacer-2 0K50-P1128 Hammer Head Washer 0017-00042-1041 Left Arm MTRW-S0005 5Page 5 of 16 End Cap-2 0017-00042-1038 Strap Clamp 0K50-P1010 Lock Washer-2 0017-00104-0377 Bolt-2 (3/8x2.0) -
Page 6: Right Movement Arm
MTRW ROW PRESS RIGHT MOVEMENT ARM Strap Clamp 3” Pulley 0K50-P1010 0017-00009-1039 Lock Washer-2 0017-00104-0377 Bolt-2 (3/8x2.0) 0017-00101-1412 Bolt (1/2x4-1/2) 0017-00101-1579 Hammer Head Washer 0017-00042-1041 Pulley Spacer-2 0K50-P1128 Lock Washer 0017-00104-0379 Right Arm MTRW-S0006 Grip 0017-00042-0995 6Page 6 of 16... -
Page 7: Top Frame Assembly
MTRW ROW PRESS TOP FRAME ASSEMBLY Bolt-4 0017-00101-1584 Washer-4 0017-00104-0379 Hammer Head Small Bumper-2 0017-00042-1040 Top Frame MTRW-S004 Jam Lock Nut-4 0017-00103-0224 7Page 7 of 16 End Cap-4 0017-00042-1038... -
Page 8: Left Side Frame
MTRW ROW PRESS LEFT SIDE FRAME 3” Pulley Assy-2 0017-00009-1039 Lock Washer-4 0017-00104-0379 Lock Nut-2 0017-00103-0223 Left Side Frame MTRW-S0002 Bolt-2 (1/2x3-1/4) 0017-00101-1574 Weight Stack Donut-2 0017-00042-0993 NYLOC Nut-2 0017-00103-0226 8Page 8 of 16 Black Plastic Rod Cap-2 0017-00042-0967 Guide Rod Collar... -
Page 9: Right Side Frame
MTRW ROW PRESS RIGHT SIDE FRAME Black Plastic Rod Cap-2 0017-00042-0967 Guide Rod Collar 0K50-P1110 Guide Rod-2 0017-00009-0933 Weight Stack Donut-2 0017-00042-0993 Bolt-2 (1/2x3-1/4) 0017-00101-1574 9Page 9 of 16 3” Pulley Assy-2 0017-00009-1039 Lock Washer-4 0017-00104-0379 Lock Nut-2 0017-00103-0223 Right Side Frame... -
Page 10: Pads
MTRW ROW PRESS PADS Chest Pad 0K50-US064-0000 Bolt-4 0017-00101-1411 Seat Pad 0K50-US062-0000 Washer-6 0017-00104-0313 10Page 10 of 16 Bolt-2 0017-00101-1417... -
Page 11: Seat Frame Weldment
MTRW ROW PRESS SEAT FRAME WELDMENT Plastic Cap-2 0017-00042-0947 Teflon Washer-4 0017-00101-1574 Chest Pad Stop-2 0K50-P1030 Washer-2 0017-00104-0379 Bolts-2 (1/2x3-1/4) Seatrack Back 0K50-P1018 Lock Collar-2 0017-0009-1019 NYLOC Nut 0017-00103-0229 Seat Frame MTRW-S0008 Chest Pad Support MTRW-S0009 End Cap-2 0017-00042-0945 Lock Nut-4... -
Page 12: Seat Frame Assembly
MTRW ROW PRESS SEAT FRAME ASSEMBLY ITEM NO. QTY. MTDP-S0002 7359401 7359501 AK50-A1007 0017-00101-1662 0017-00104-0377 0017-00103-0289 73763 0017-00103-0217 0017-00101-1408 0017-00101-1664 M051-00296-A000 0017-00042-0945 M051-00602-A000 7442601 PART NO. DESCRIPTION Seat Frame Weldment Seatrack, Roller Serrated Seatrack, Roller Flat MTS SEAT#2 ASSM. (ROLLER) M10 X 64 HXS SOC CS ST ZN 3/8"... -
Page 13: Seat Roller Assembly
MTRW ROW PRESS SEAT ROLLER ASSEMBLY ITEM NO. QTY. 0K50-S1006 AK50-S0040-0000 0017-00009-1110 73763 0017-00101-1662 0017-00103-0223 0017-00104-0377 0017-00042-1038 PART NO. MTS SEAT #1 (ROLLER) WELDMENT, PS- ROLLER SEAT HANDLE TORSION SPRING, S.S. ROLLER ASSM. M10 X 64 HXS SOC CS ST ZN 1/2"... -
Page 14: Increment Weight
MTRW ROW PRESS INCREMENT WEIGHT Body 5 lbs 0K50-P1107 Lever 0K50-P1108 C-Clip 0017-00100-0189 Knob 0K50-P1125 Retaining Pin 0K50-P1148 Slotted Pin 0017-00007-0249 14Page 14 of 16 Compression Spring 0017-00009-1090 Bearing Sleeve Guide-3 0017-00006-0240 Bumper-2 0K50-P1127... -
Page 15: Weight Stack
MTRW ROW PRESS WEIGHT STACK Head Plate 0K50-P1012-0000 Bearing 0017-00006-0220 E-Ring 0017-00100-0180 10lbs Weight Plate 0K50-P0483-0000 Lock Washer-2 0017-00104-0377 Bayonet-14 Holes 0K50-P1011-1001 15Page 15 of 16 Weight Stack Guide-2 MTFP-P0028 150lbs Belt Attachment AK50-S0023 Bolt-2 (3/8x1) 0017-00101-1464 Weight Stack Pin... -
Page 16: Decals
MTRW ROW PRESS DECALS Patent Decal Increment Weight Decal M051-00299-A000 (Right Arrow) M051-00297-A000 Hand Placement Decal LT M051-00333-A000 Frame Guard (2) (1.875x9.25) 0017-00042-1045 Seat Adjustment Number Strip M051-00296-A000 Weight Stack Number Strip (2) M051-00294-A000 Increment Weight Decal (Left Arrow) M051-00298-A000...
