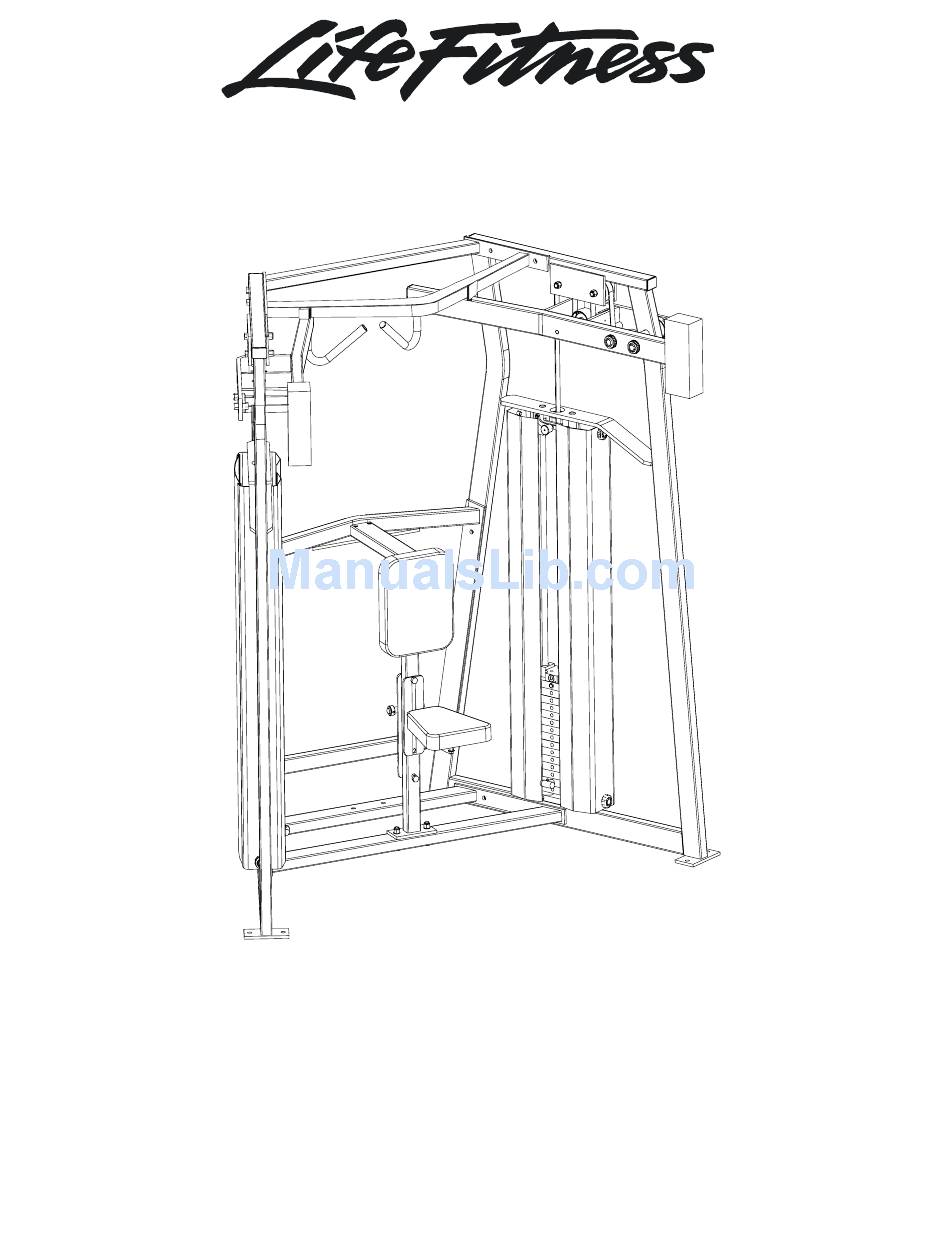

- Page 1 MTS - MOTION TECHNOLOGY SELECTORIZED MTHR HIGH ROW Customer Support Services PARTS MANUAL 1Page 1 of 21...
- Page 2 MTHR HIGH ROW Notes: 2Page 2 of 21...
-
Page 3: Table Of Contents
MTHR HIGH ROW Contents PAGE COMPONENT ASSEMBLY...4 LEFT MOVEMENT ARM W/PULLEY ...5 LEFT MOVEMENT ARM W/COUNTERWEIGHT...6 RIGHT MOVEMENT ARM W/PULLEY ...7 RIGHT MOVEMENT ARM W/COUNTERWEIGHT ...8 TOP FRAME ASSEMBLY...9 BOTTOM FRAME ASSEMBLY...10 LEFT SIDE FRAME ...11 LEFT SIDE FRAME W/WEIGHTS...12 RIGHT SIDE FRAME ...11... -
Page 4: Component Assembly
MTHR HIGH ROW COMPONENT ASSEMBLY Lock Nut-14 0017-00103-0223 Lock Washer-20 0017-00104-0379 Bolt-4 0017-00101-1574 Bolt-10 0017-00101-1573 Hammer Head Washer-16 0017-00042-1041 Hex Head Bolt-8 Front Frame 0017-00101-1586 Weldment MTHR-S0008 4Page 4 of 21 Shield Rivot-4 0017-00101-1587 Back Panel-2 MTHR-P0041 Side Shield-4 MTHR-P0040... -
Page 5: Left Movement Arm W/Pulley
MTHR HIGH ROW LEFT MOVEMENT ARM W/PULLEY End Cap 0017-00042-1038 End Cap 0K50-P0315-2000 H-GRIP Handle Grip Hex Lock Nut 0017-00103-0223 Internal Lock Washer-2 0017-00104-0379 Left Movement Arm Weldment MTHR-S0005 Internal Lock Washer-2 0017-00104-0377 5Page 5 of 21 3” Pulley Assembly... -
Page 6: Left Movement Arm W/Counterweight
MTHR HIGH ROW LEFT MOVEMENT ARM W/COUNTERWEIGHT Bolt-2 (1/2x2-3/4) 0017-00101-1595 Hammer Head Washer-4 0017-00042-1041 Thick Lock Nut-2 0017-00103-0223 Left Movement Arm Assembly MTHR-S0005 Bolt-2 (1/2x1-3/4) 0017-00101-1595 Internal Lock Nut-4 0017-00104-0379 Thin Lock Nut-2 0017-00103-0224 6Page 6 of 21 Counter Weight... -
Page 7: Right Movement Arm W/Pulley
MTHR HIGH ROW RIGHT MOVEMENT ARM W/PULLEY 3” Pulley Assembly 0017-00009-1039 Hex Bolt 0017-001010-1577 Lock Washer-2 0017-00104-0379 Strap Clamp 0K50-P1021 Bolt-2 (3/8x1-1/4) 0017-00101-1412 End Cap 0017-00042-1038 Hex Lock Nut 0017-00103-0223 Internal Lock Washer-2 0017-00104-0379 Internal Lock Washer-2 0017-00104-0377 7Page 7 of 21... -
Page 8: Right Movement Arm W/Counterweight
MTHR HIGH ROW RIGHT MOVEMENT ARM W/COUNTERWEIGHT Bolt-2 (1/2x1-1/2) 0017-00101-1584 Internal Lock Nut-4 0017-00104-0379 Thick Lock Nut-2 0017-00103-0223 Right Movement Arm Assembly MTHR-S0006 Bolt-2 (1/2x1-3/4) 0017-00101-1595 Thin Lock Nut-2 0017-00103-0224 Small Bearing-2 0017-00009-1034 8Page 8 of 21 Internal Lock Washer-4... -
Page 9: Top Frame Assembly
MTHR HIGH ROW TOP FRAME ASSEMBLY Top Frame Weldment MTHR-S0006 Lock Nut-4 0017-00103-0223 Small Bumper-2 0017-00042-1040 9Page 9 of 21 Internal Lock Washer-4 0017-00104-0379 Bolt-4 (1/2x1-3/4) 0017-00101-1595... -
Page 10: Bottom Frame Assembly
MTHR HIGH ROW BOTTOM FRAME SUPPORT Bottom Frame Weldment MTHR-S0001 Seat Frame Weldment MTHR-S0002 10Page 10 of 21 Bolt-2 (1/2x2-3/4) 0017-00101-1573 Internal Lock Washer-4 0017-00104-0379 Lock Nut-2 0017-00103-0223... -
Page 11: Left Side Frame
MTHR HIGH ROW LEFT SIDE FRAME Bolt-2 (1/2x3-1/4) 0017-00101-1574 End Cap-2 0017-00042-0945 3” Pulley Assembly-2 0017-00009-1039 Bolt-2 (1/2x4-1/4) 0017-00101-1580 Lock Nut-2 0017-00103-0223 11Page 11 of 21 Lock Nut-2 0017-00103-0224 Lock Washer-6 0017-00104-0379 Small Bumper 0017-00042-1040 Right Side Frame Weldment MTHR-S0003... -
Page 12: Left Side Frame W/Weights
MTHR HIGH ROW LEFT SIDE FRAME W/WEIGHTS Hammer Accordian Shaft Cover 0017-00042-1042 Flat Belt 0017-00033-0855 Lock Collar 0017-00009-1019 Bolt-2 (1/4x2-1/2) 0017-00101-1585 Weight Stack Donut-2 0017-00042-0993 Left Side Frame MTHR-S0007 ¼ “ Lock Nut-2 0017-00103-0226 12Page 12 of 21 Black Plastic... -
Page 13: Right Side Frame
MTHR HIGH ROW RIGHT SIDE FRAME Lock Nut-2 0017-00103-0223 End Cap-2 0017-00042-0945 3” Pulley Assembly-2 0017-00009-1039 Bolt-2 (1/2x4) 0017-00101-1580 Lock Washer-6 0017-00104-0379 13Page 13 of 21 Lock Nut-2 0017-00103-0224 Bolt-2 (1/2x3-1/4) 0017-00101-1574 Small Bumper 0017-00042-1040 Left Side Frame Weldment MTHR-S0007... -
Page 14: Right Side Frame W/Weights
MTHR HIGH ROW RIGHT SIDE FRAME W/WEIGHTS Flat Belt 0017-00033-0855 Guide Rod Collar 0K50-P1110 ¼ “ Lock Nut-2 0017-00103-0226 Weight Stack Donut-2 0017-00042-0993 Bolt-2 (1/4x2-1/2) 0017-00101-1585 14Page 14 of 21 Hammer Accordian Shaft Cover 0017-00042-1042 Right Side Frame MTHR-S0003 Black Plastic... -
Page 15: Pads
MTHR HIGH ROW PADS Chest Pad 0K50-US064-0000 Seat Pad 0K50-US064-0000 Flat Washer-6 0017-00104-0313 Bolt-6 (3/8x2-1/4) 0017-00101-1410 15Page 15 of 21... -
Page 16: Seat Frame Weldment
MTHR HIGH ROW SEAT FRAME WELDMENT Black Plastic Rod Cap-2 0017-00042-0967 Lock Collar-2 0017-00009-1019 Seat Shaft 0K50-P1007 Seatrack (Groved) 0K50-P1018 Lock Nut-2 0017-00103-0224 Seat Support 0K50-S1001 Bolt-2 (1/2x2-1/2) 0017-00101-1572 Seat Frame Weldment MTHR-S0002 16Page 16 of 21 End Cap 0017-00042-1038... -
Page 17: Seat Frame Assembly
MTHR HIGH ROW SEAT FRAME ASSEMBLY ITEM NO. QTY. MTDP-S0002 7359401 7359501 AK50-A1007 0017-00101-1662 0017-00104-0377 0017-00103-0289 73763 0017-00103-0217 0017-00101-1408 0017-00101-1664 M051-00296-A000 0017-00042-0945 M051-00602-A000 7442601 PART NO. DESCRIPTION Seat Frame Weldment Seatrack, Roller Serrated Seatrack, Roller Flat MTS SEAT#2 ASSM. (ROLLER) M10 X 64 HXS SOC CS ST ZN 3/8"... -
Page 18: Seat Roller Assembly
MTHR HIGH ROW SEAT ROLLER ASSEMBLY ITEM NO. QTY. 0K50-S1006 AK50-S0040-0000 0017-00009-1110 73763 0017-00101-1662 0017-00103-0223 0017-00104-0377 0017-00042-1038 PART NO. MTS SEAT #1 (ROLLER) WELDMENT, PS- ROLLER SEAT HANDLE TORSION SPRING, S.S. ROLLER ASSM. M10 X 64 HXS SOC CS ST ZN 1/2"... -
Page 19: Increment Weight
MTHR HIGH ROW INCREMENT WEIGHT Body 5 lbs 0K50-P1107 Lever 0K50-P1108 C-Clip 0017-00100-0189 Knob 0K50-P1125 Retaining Pin 0K50-P1148 Slotted Pin 0017-00007-0249 19Page 19 of 21 Compression Spring 0017-00009-1090 Bearing Sleeve Guide-3 0017-00006-0240 Bumper-2 0K50-P1127... -
Page 20: Weight Stack
MTHR HIGH ROW WEIGHT STACK Head Plate 0K50-P1012-0000 Bearing 0017-00006-0220 E-Ring 0017-00100-0180 10lbs Weight Plate 0K50-P0483-0000 Lock Washer-2 0017-00104-0377 Bayonet-14 Holes 0K50-P1011-1001 20Page 20 of 21 Weight Stack Guide-2 MTFP-P0028 150lbs Belt Attachment AK50-S0023 Bolt-2 (3/8x1) 0017-00101-1464 Weight Stack Pin... -
Page 21: Decals
MTHR HIGH ROW DECALS Increment Weight Decal (Arrow Left) M051-00298-A000 Hammer Strength Name Plate-2 M051-00289-A000 Hammer Patent Decal M051-00299-A000 Seat Adjustment Number Strip M051-00296-A000 Wight Stack Number Strip-2 M051-00294-A000 Frame Guard-2 0017-00042-1045 Frame Guard-4 0017-00042-1046 Increment Weight Decal (Arrow Right)
