Summary of Contents for Life Fitness MTSFP
-

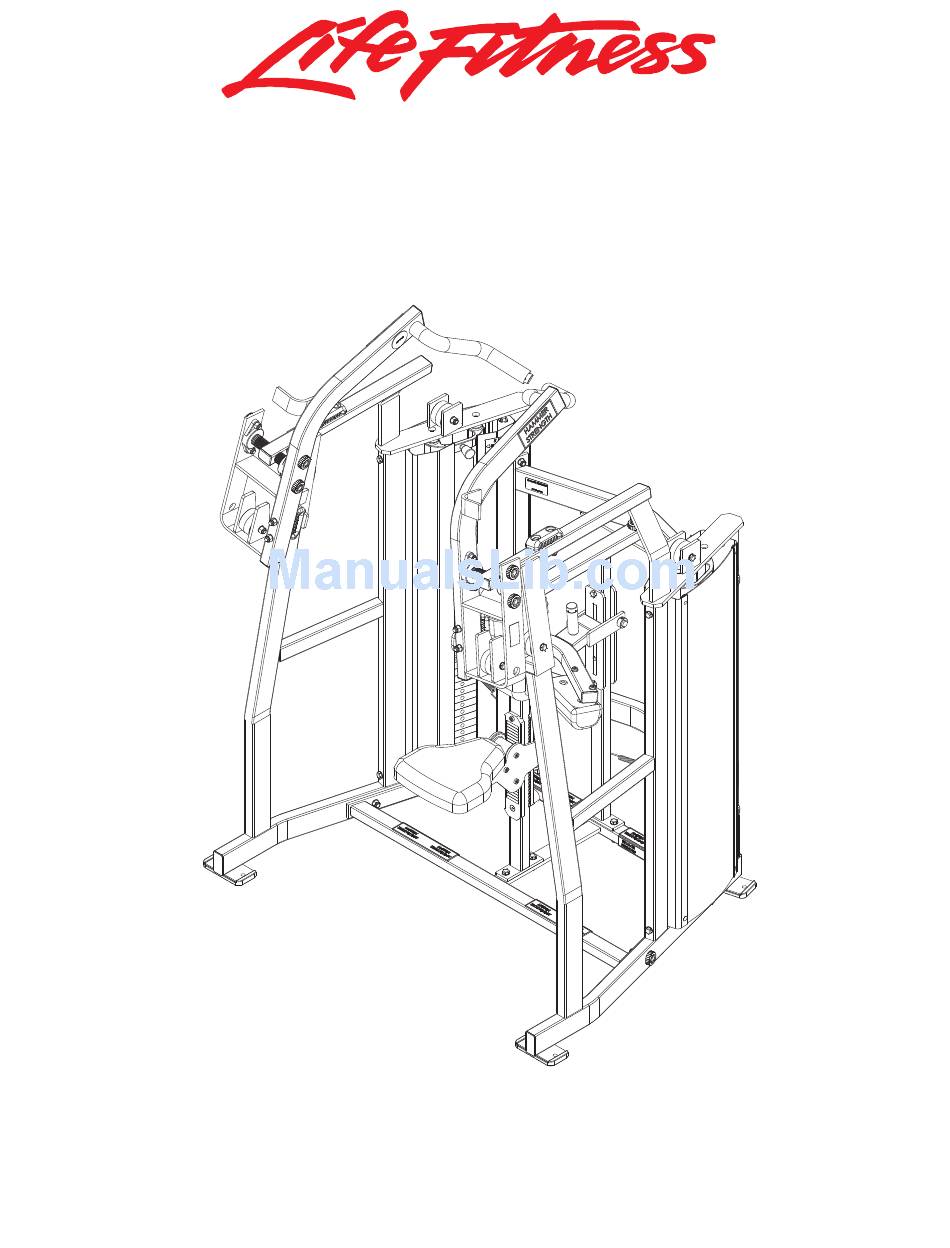

Page 1: Parts List
HAMMER STRENGTH MTSFP FRONT PULL DOWN Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
MTSFP FRONT PULL DOWN Contents ________________________________________ COMPONANT ASSEMBLY COMPONANT ASSEMBLY LEGEND RIGHT SIDE FRAME ASSEMBLY RIGHT SIDE FRAME ASSEMBLY II RIGHT SIDE FRAME ASSEMBLY LEGEND RIGHT WORK ARM ASSEMBLY SEAT AND THIGH ASSEMBLY SEAT AND THIGH ASSEMBLY LEGEND 83 SEAT ASSEMBLY... -
Page 3: Mtsfp Front Pull Down
MTSFP FRONT PULL DOWN COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Componant Assembly Legend
MTSFP FRONT PULL DOWN COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7471101 ASSY, MTFP, SEAT AND THIGH 7462801 WLDMT, MTFP, BOTTOM FRAME 3102801 NUT, NYLOCK 1/2-13 ST ZN 3239505 WSH, .500 IN-D ST ZN 3239307 1/2-13 X 1.75 UNS HEX FHB G5 ZN 3239311 1/2-13 X 2.75 UNS HEX FHB G5 ZN... -
Page 5: Right Side Frame Assembly
MTSFP FRONT PULL DOWN RIGHT SIDE FRAME ASSEMBLY - 7464601 ________________________________________ SEE PAGE 7 FOR LEGEND Page 5... -
Page 6: Right Side Frame Assembly
MTSFP FRONT PULL DOWN RIGHT SIDE FRAME ASSEMBLY II - 7464601 ________________________________________ SEE PAGE 7 FOR LEGEND Page 6... -
Page 7: Right Side Frame Assembly Legend
MTSFP FRONT PULL DOWN RIGHT SIDE FRAME ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7461001 WLDMT, MTFP, RIGHT FRAME 7594601 PULLEY, MTS, 3" BELT 7352001 BUMPER, 2-1/8 X 4-5/8 7352201 CAP, END 1-1/2 X 2 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY... -
Page 8: Right Work Arm Assembly
MTSFP FRONT PULL DOWN RIGHT WORK ARM ASSEMBLY- 7471501 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7460301 WLDMT, MTFP, R MOVEMENT ARM 7594601 PULLEY, MTS, 3" BELT 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY 7352001 BUMPER, 2-1/8 X 4-5/8 3239318 1/2-13 X 4.50 UNS HEX FHB G5 ZN... -
Page 9: Seat And Thigh Assembly
MTSFP FRONT PULL DOWN SEAT AND THIGH ASSEMBLY - 7471101 ________________________________________ SEE PAGE 10 FOR LEGEND Page 9... -
Page 10: Seat And Thigh Assembly Legend
MTSFP FRONT PULL DOWN SEAT AND THIGH ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7459701 WLDMT, MTFP, SEAT FRAME 7359701 SEATRACK FRONT 3102801 NUT, NYLOCK 1/2-13 ST ZN 3239311 1/2-13 X 2.75 UNS HEX FHB G5 ZN 7463701 WLDMT, MTS, THIGH HOLD DOWN 7352201 CAP, END 1-1/2 X 2 7359301 .75"... -
Page 11: Seat Assembly
MTSFP FRONT PULL DOWN 83° SEAT ASSEMBLY - 7464301 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7464401 WLDMT, MTS, 83 SEAT 7387595 WELDMNT, PS-ROLLER SEAT HANDLE 7442701 SPRNG, PRO2 HANDLE TORSION 7564201 ASSY, SEAT ROLLER 3236217 SCREW, M10 X1.5 100MM... -
Page 12: Left Side Frame Assembly
MTSFP FRONT PULL DOWN LEFT SIDE FRAME ASSEMBLY - 7464901 ________________________________________ SEE PAGE 13 FOR LEGEND Page 12... -
Page 13: Left Side Frame Assembly Legend
MTSFP FRONT PULL DOWN LEFT SIDE FRAME LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7462701 WLDMT, MTFP, LEFT FRAME 7594601 PULLEY, MTS, 3" BELT 7352001 BUMPER, 2-1/8 X 4-5/8 7352201 CAP, END 1-1/2 X 2 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY... -
Page 14: Left Work Arm Assembly
MTSFP FRONT PULL DOWN LEFT WORK ARM ASSEMBLY - 7471401 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7461101 WLDMT, MTFP, L MOVEMENT ARM 7594601 PULLEY, MTS, 3" BELT 7352001 BUMPER, 2-1/8 X 4-5/8 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY 7662902 CAP, GRIP 1.50 OD... -
Page 15: 150 Lb. Weight Stack Assembly
MTSFP FRONT PULL DOWN 150 LBS. WEIGHT STACK ASSEMBLY - 7464701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7353701 ASSY, 10 LB PLATE 7464801 BAYONET, MTS, 15 HOLE 3236001 BUSHING, SPRING PIN 7356501 PLUG, LANYARD ATTACHMENT 7353001 ASSY, SELECTOR PIN... -
Page 16: Increment Weight Assembly
MTSFP FRONT PULL DOWN INCREMENT WEIGHT ASSEMBLY - 7459901 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7459801 BLOCK, MTS, INCREMENT WEIGHT 7351401 KNOB, TULIP STYLE 7560001 BUSHING, MTS, INC WEIGHT 7447001 SPRING, COMPRESSION 7446901 PIN, RETAINING Page 16... -
Page 17: Image
MTSFP FRONT PULL DOWN IMAGE ________________________________________ Page 17...
