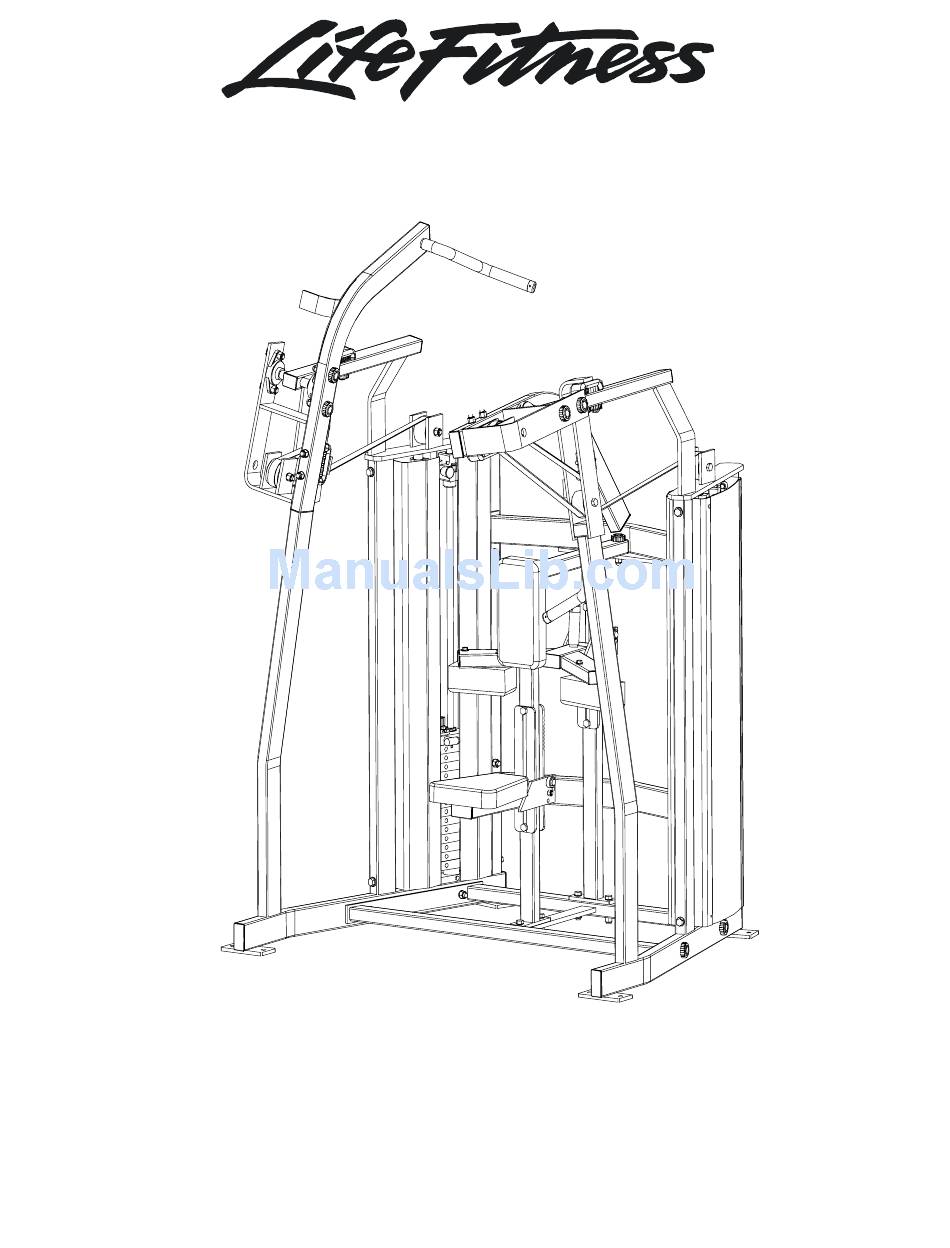

- Page 1 MTS - MOTION TECHNOLOGY SELECTORIZED MTFP FRONT PULLDOWN Customer Support Services PARTS MANUAL 1Page 1 of 19...
- Page 2 MTFP FRONT PULLDOWN Notes: 2Page 2 of 19...
-
Page 3: Table Of Contents
MTFP FRONT PULLDOWN Contents PAGE COMPONENT ASSEMBLY...4 LEFT MOVEMENT ARM...5 RIGHT MOVEMENT ARM...6 RIGHT & CENTER FRAME ASSEMBLY...7 CENTER FRAME ASSEMBLY ...8 LEFT SIDE FRAME ...9 LEFT SIDE ASSEMBLY ...10 RIGHT SIDE FRAME ...11 RIGHT SIDE ASSEMBLY ...12 PADS...13 SEAT & THIGH ASSEMBLY...14 SEAT FRAME ASSEMBLY...15... -
Page 4: Component Assembly
MTFP FRONT PULLDOWN COMPONENT ASSEMBLY Internal Lock Washer-12 0017-00104-0379 Bolt-4 (1/2x3-3/4) 0017-00101-1575 Hammer Head Washer-4 0017-00042-1041 Right/Center Frame Assy MTFP-A0009 Lock Nut-8 0017-00103-0223 Bolt-4 (1/2x2-3/4) 0017-00101-1573 4Page 4 of 19 Left Side Assy MTFP-A00012 MTS Decline Press Side Shield MTDP-P0025... -
Page 5: Left Movement Arm
MTFP FRONT PULLDOWN LEFT MOVEMENT ARM Movement Aluminum Arm Grip End Cap 0K50-P0315-2000 Hammer Head Small Bumper End Cap-2 0017-00042-1040 0017-00042-1038 Bolt-2 (1/2x4-1/4) 0017-00101-1576 3” Pulley Assy 0017-00009-1039 H-GRIP 5Page 5 of 19 Left Movement Arm Weldment MTFP-S004 Locknut-3 0017-00103-0223... -
Page 6: Right Movement Arm
MTFP FRONT PULLDOWN RIGHT MOVEMENT ARM End Cap-2 0017-00042-1038 Bolt-2 (1/2x3-1/2) 0017-00101-1577 Movement Arm Grip H-GRIP Aluminum End Cap 0K50-P0315-2000 Lock Washer-4 0017-00104-0379 3” Pulley Assy 0017-00009-1039 Bolt-2 (1/2x4-1/4) 0017-00101-1576 Hammer Head Small Bumper 0017-00042-1040 6Page 6 of 19 Right Movement... -
Page 7: Right & Center Frame Assembly
MTFP FRONT PULLDOWN RIGHT & CENTER FRAME ASSY Bolt-4 1/2x3-3/4) 0017-00101-1575 Lock Washer-9 0017-00104-0379 Lock Nut-9 0017-00103-0223 Bolt-5 (1/2x2-3/4) 0017-00101-1573 Hammer Head Washer-5 0017-00042-1041 Right Frame Assembly MTFP-A0008 Front Frame MTFP-S0006 7Page 7 of 19 Bolt-2 (1/2x2-3/4) 0017-00101-1573 Center Frame Assembly... -
Page 8: Center Frame Assembly
MTFP FRONT PULLDOWN CENTER FRAME ASSEMBLY Bolt-2 (1/2x2-3/4) 0017-00101-1573 Lock Washer-8 0017-00104-0379 Lock Nut-4 0017-00103-0223 8Page 8 of 19 Seat/Thigh Assembly MTFP-A0007 Bolt-2 (1/2x1-3/4) 0017-00101-1595 Bottom Frame MTFP-S0005... -
Page 9: Left Side Frame
MTFP FRONT PULLDOWN LEFT SIDE FRAME Internal Lock Washers-2 0017-00104-0377 Bolt-2 (3/8x1-1/2) 0017-00101-1411 3” Pulley Assembly-2 0017-00009-1039 Lock Nut-4 0017-00103-0223 Internal Lock Washers-6 0017-00104-0379 Bolt-2 (1/2x2-3/4) 0017-00101-1573 Strap Clamp OK50-P1021 9Page 9 of 19 End Cap-2 (1-1/2x2) 0017-00042-0945 Hammer Head... -
Page 10: Left Side Assembly
MTFP FRONT PULLDOWN LEFT SIDE ASSEMBLY Bolt-2 (1/2x2-3/4) 0017-00101-1573 Bearing-2 0017-00009-1034 Left Side Frame Assy MTFP-A0002 Black Plastic Rod Cap-2 0017-00042-0967 150 lbs Weight Attachment AK50-S0025 Bolts-2 (1/4x2-1/2) 0017-00101-1585 Lock Nut-2 0017-00103-0226 Left Arm MTFP-A0004 1/2” Lock Nut-4 0017-00103-0223 Weight Stack Guide-2... -
Page 11: Right Side Frame
MTFP FRONT PULLDOWN RIGHT SIDE FRAME Bolt-2 (3/8x1-1/2) 0017-00101-1411 3” Pulley Assembly-2 0017-00009-1039 Bolt-2 (1/2x3-1/2) 0017-00101-1577 Internal Lock Washers-12 0017-00104-0379 Bolt-2 (1/2x2-3/4) Internal Lock 0017-00101-1573 Washers-2 0017-00104-0377 11Page 11 of 19 End Cap-2 (1-1/2x2) 0017-00042-1045 Hammer Head Small Bumper 0017-00042-1040... -
Page 12: Right Side Assembly
MTFP FRONT PULLDOWN RIGHT SIDE ASSEMBLY Bolt-2 0017-00101-1595 Bearing-2 0017-00009-1034 Right Side Frame Assy MTFP-A0001 Black Plastic Rod Cap-2 0017-00042-0967 Guide Rod Collar 0K50-P1110 Bolts-2 0017-00101-1585 Lock Nut-2 0017-00103-0226 1/2” Lock Nut-4 0017-00103-0223 Hammer Head Washer-4 0017-00042-1041 Right Arm MTFP-A0003 3/4”... -
Page 13: Pads
MTFP FRONT PULLDOWN PADS Thigh Restraint Pad 0K-US066-0000 Bolt-4 0017-00101-1411 Bolt-6 0017-00101-1410 13Page 13 of 19 Chest Pad 0K50-US064-0000 Seat Pad 0K50-US065-0000 Flat Washer-10 0017-00104-0313... -
Page 14: Seat And Thigh Assembly
MTFP FRONT PULLDOWN SEAT AND THIGH ASSEMBLY Aluminum End Cap 0K50-P0315-2000 End Cap 0017-00042-0945 Thigh Hold Down Grip 0017-00042-0996 Lock Collar 0017-00009-1019 Black Plastic Rod Cap-4 0017-00042-0967 Thigh Hold Down Pad 0K50-S1005 Seat Frame Bolt-4 Weldment (1/2x2-3/4) MTFP-S0007 0017-00101-1573 Bolt... -
Page 15: Seat Frame Assembly
MTFP FRONT PULLDOWN SEAT FRAME ASSEMBLY ITEM NO. QTY. MTDP-S0002 7359401 7359501 AK50-A1007 0017-00101-1662 0017-00104-0377 0017-00103-0289 73763 0017-00103-0217 0017-00101-1408 0017-00101-1664 M051-00296-A000 0017-00042-0945 M051-00602-A000 7442601 PART NO. DESCRIPTION Seat Frame Weldment Seatrack, Roller Serrated Seatrack, Roller Flat MTS SEAT#2 ASSM. (ROLLER) M10 X 64 HXS SOC CS ST ZN 3/8"... -
Page 16: Seat Roller Assembly
MTFP FRONT PULLDOWN SEAT ROLLER ASSEMBLY ITEM NO. QTY. 0K50-S1006 AK50-S0040-0000 0017-00009-1110 73763 0017-00101-1662 0017-00103-0223 0017-00104-0377 0017-00042-1038 PART NO. DESCRIPTION MTS SEAT #1 (ROLLER) WELDMENT, PS- ROLLER SEAT HANDLE TORSION SPRING, S.S. ROLLER ASSM. M10 X 64 HXS SOC CS ST ZN 1/2"... -
Page 17: Increment Weight
MTFP FRONT PULLDOWN INCREMENT WEIGHT Body 5 lbs 0K50-P1107 Lever 0K50-P1108 C-Clip 0017-00100-0189 Knob 0K50-P1125 Retaining Pin 0K50-P1148 Slotted Pin 0017-00007-0249 17Page 17 of 19 Compression Spring 0017-00009-1090 Bearing Sleeve Guide-3 0017-00006-0240 Bumper-2 0K50-P1127... -
Page 18: Weight Stack
MTFP FRONT PULLDOWN WEIGHT STACK Head Plate 0K50-P1012-0000 Bearing 0017-00006-0220 E-Ring 0017-00100-0180 10lbs Weight Plate 0K50-P0483-0000 Weight Stack Guide-2 MTFP-P0028 Lock Washer-2 0017-00104-0377 Bayonet-14 Holes 0K50-P1011-1001 18Page 18 of 19 150lbs Belt Attachment AK50-S0023 Bolt-2 (3/8x1) 0017-00101-1464 Weight Stack Pin... -
Page 19: Decals
MTFP FRONT PULLDOWN DECALS Name Plate-2 M051-00289-A000 Warning Decal-2 M051-00293-A000 Patent Decal M051-00299-A000 Shield Decal-2 M051-00292-A000 Frame Guard-4 (1.875x9.25) 0017-00042-1045 Hand Placement Decal Left M051-00333-A000 Frame Guard-4 (1.375x9.25) 0017-00042-1044 19Page 19 of 19 Hand Placement Decal Right M051-00334-A000 Increment Weight Decal...
