Summary of Contents for Life Fitness MTSKC
-
Page 1: Parts List

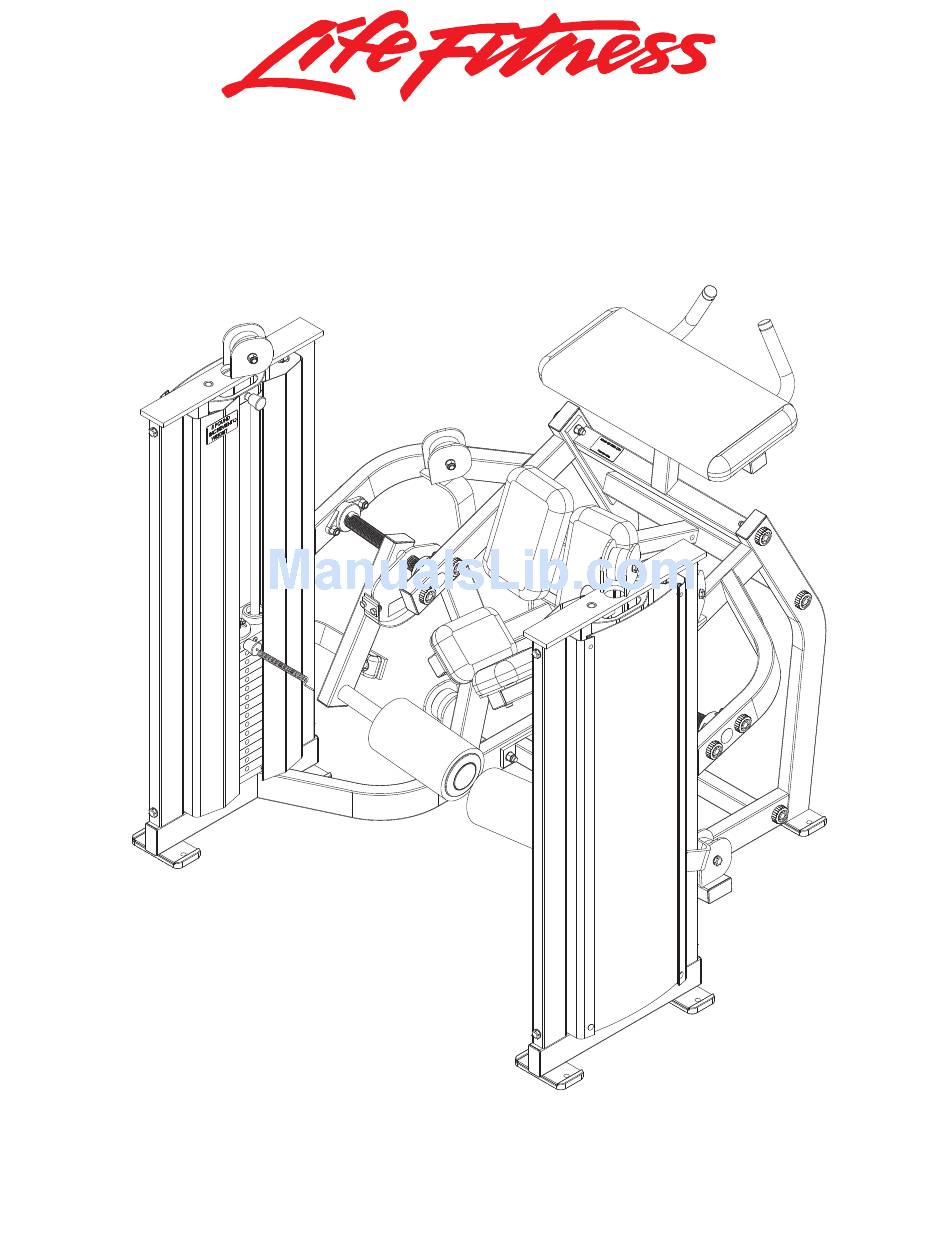

HAMMER STRENGTH MTSKC KNEELING LEG CURL Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
MTSKC KNEELING LEG PRESS Contents ________________________________________ COMPONANT ASSEMBLY COMPONANT ASSEMBLY CONTINUED COMPONANT ASSEMBLY LEGEND RIGHT SIDE FRAME ASSEMBLY RIGHT SIDE FRAME ASSEMBLY LEGEND RIGHT WORK ARM ASSEMBLY BACK FRAME ASSEMBLY KNEE FRAME ASSEMBLY LEFT SIDE FRAME ASSEMBLY LEFT SIDE FRAME ASSEMBLY LEGEND LEFT WORK ARM ASSEMBLY 150 LB. - Page 3 MTSKC KNEELING LEG PRESS COMPONENT ASSEMBLY ________________________________________ SEE PAGE 5 FOR LEGEND Page 3...
-
Page 4: Mtskc Kneeling Leg Press
MTSKC KNEELING LEG PRESS COMPONENT ASSEMBLY (Continued) ________________________________________ SEE PAGE 5 FOR LEGEND Page 4... -
Page 5: Componant Assembly Legend
MTSKC KNEELING LEG PRESS COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7528701 WLDMT, MTKC, BOTTOM FRAME 7529801 ASSY, MTKC, LEFT SIDE 7529701 ASSY, MTKC, RIGHT SIDE 7529601 ASSY, MTKC, BACK FRAME 7434001 WASHER, MTS, HAMMER HEAD 3239311 1/2-13 X 2.75 UNS HEX FHB G5 ZN... -
Page 6: Right Side Frame Assembly
MTSKC KNEELING LEG PRESS RIGHT SIDE FRAME ASSEMBLY - 7529701 ________________________________________ SEE PAGE 7 FOR LEGEND Page 6... -
Page 7: Right Side Frame Assembly Legend
MTSKC KNEELING LEG PRESS RIGHT SIDE FRAME ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7528801 WLDMT, MTKC, RIGHT FRAME 7352101 CUSHION, WEIGHT STACK 7594601 PULLEY, MTS, 3" BELT 3239901 BEARING, 2 HOLE FLANGE, 1" ID 7530001 ASSY, MTKC, RIGHT ARM 7477401 CAP. -
Page 8: Right Work Arm Assembly
MTSKC KNEELING LEG PRESS RIGHT WORK ARM ASSEMBLY - 7530001 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7529201 WLDMT, MTKC, RIGHT ARM 7436695 PLATE, MTS, BELT CAM ATTACH 3239803 3/8-16 X 16 HEX HEAD BOLT 3102807 NUT, NYLOCK 3/8-16 LOW HT 7477401 CAP. -
Page 9: Back Frame Assembly
MTSKC KNEELING LEG PRESS BACK FRAME ASSEMBLY - 7529601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7529001 WLDMT, MTKC, BACK FRAME 7352001 BUMPER, 2-1/8 X 4-5/8 3235801 MTKC GRIP, SHADOW GRAY, 13.88" 7662901 CAP, GRIP 1.25 OD 7352201 CAP, END 1-1/2 X 2... -
Page 10: Knee Frame Assembly
MTSKC KNEELING LEG PRESS KNEE FRAME ASSEMBLY - 7540101 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7529101 WLDMT, MTKC, KNEE FRAME 7352201 CAP, END 1-1/2 X 2 3239901 BEARING, 2 HOLE FLANGE, 1" ID 6912807 SLEEVE, ACCRDN 1.0 ID X 1... -
Page 11: Left Side Frame Assembly
MTSKC KNEELING LEG PRESS LEFT FRAME ASSEMBLY - 7529801 ________________________________________ SEE PAGE 12 FOR LEGEND 11 10 Page 11... -
Page 12: Left Side Frame Assembly Legend
MTSKC KNEELING LEG PRESS LEFT SIDE FRAME LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7528901 WLDMT, MTKC, LEFT FRAME 7352101 CUSHION, WEIGHT STACK 7594601 PULLEY, MTS, 3" BELT 3239901 BEARING, 2 HOLE FLANGE, 1" ID 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY... -
Page 13: Left Work Arm Assembly
MTSKC KNEELING LEG PRESS LEFT WORK ARM ASSEMBLY - 7529901 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7529301 WLDMT, MTKC, LEFT ARM 7436695 PLATE, MTS, BELT CAM ATTACH 3239803 3/8-16 X 16 HEX HEAD BOLT 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY... -
Page 14: 150 Lb. Weight Stack Assembly
MTSKC KNEELING LEG PRESS 150 LBS. WEIGHT STACK ASSEMBLY - 7464701 ________________________________________ Weight Stack Labels PART NO. DESCRIPTION 8072201 LABEL, MTS, WGHT STK, 150 LBS 8072101 LABEL, MTS, WGHT STK, 80 KG ITEM NO. QTY. PART NO. DESCRIPTION 7353701 ASSY, 10 LB PLATE... -
Page 15: Increment Weight Assembly
MTSKC KNEELING LEG PRESS INCREMENT WEIGHT ASSEMBLY - 7459901 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7459801 BLOCK, MTS, INCREMENT WEIGHT 7351401 KNOB, TULIP STYLE 7560001 BUSHING, MTS, INC WEIGHT 7447001 SPRING, COMPRESSION 7446901 PIN, RETAINING Page 15... -
Page 16: Image
MTSKC KNEELING LEG PRESS IMAGE ________________________________________ Page 16...
