HydraMaster driMASTER Owner's Manual

Hiflo upholstery tool
Hide thumbs Also See for driMASTER:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
11015 47th Avenue W, Mukilteo, WA 98275
Machine Serial Number________________________
Copyright© 2008
HYDRAMASTER© Corporation
Mukilteo, Washington
MAN-33123 Rev. 0
No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying, or electronic
retrieval systems) without express written premission of the HYDRAMASTER© Corporation. All rights reserved.
Revised December 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the driMASTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HydraMaster driMASTER

Summary of Contents for HydraMaster driMASTER

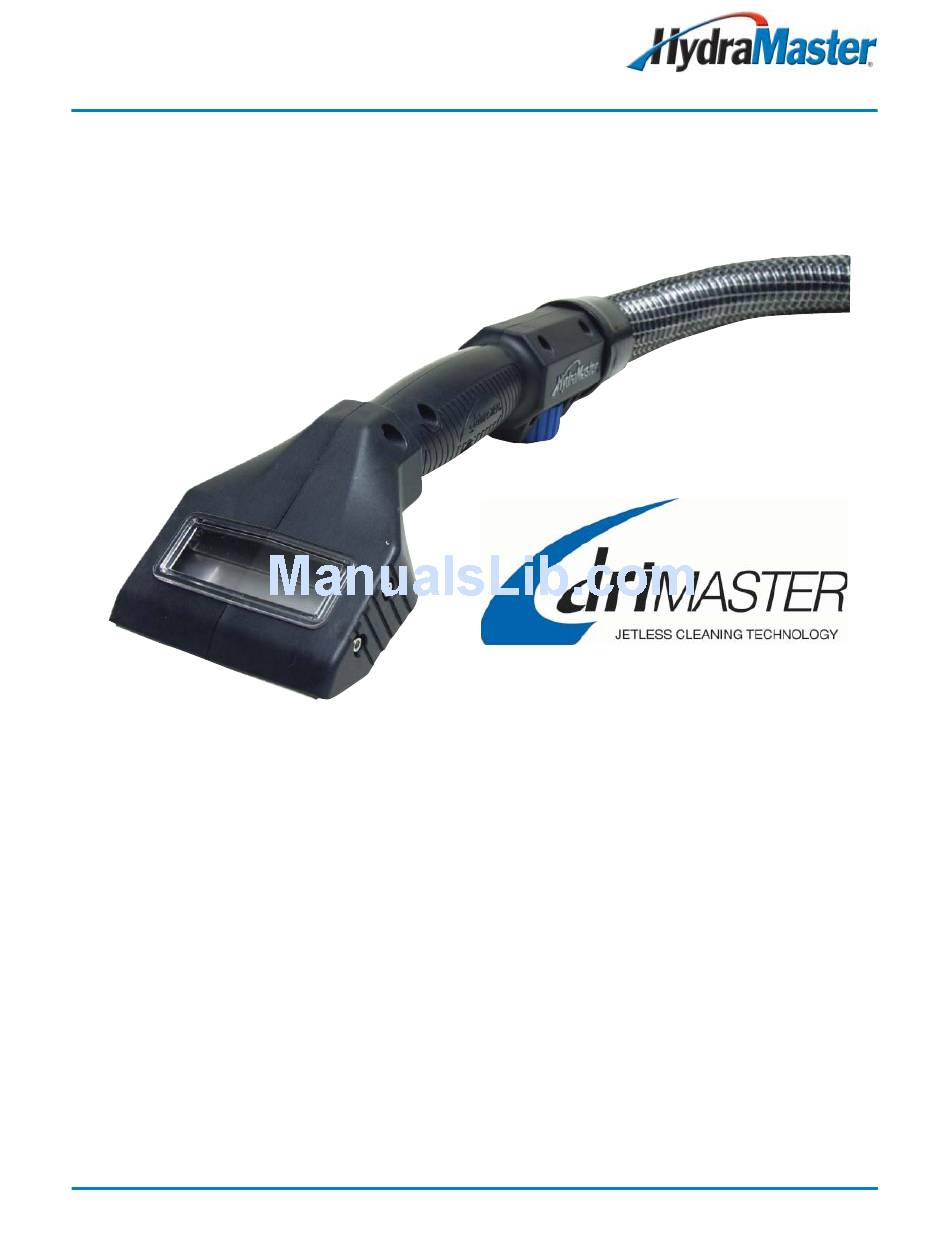

  • Page 1 MAN-33123 Rev. 0 No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying, or electronic retrieval systems) without express written premission of the HYDRAMASTER© Corporation. All rights reserved. Revised December 2008...

  • Page 2: Table Of Contents

    Cleaning the Solution Bar Jet ............3-3 TOOL ASSEMBLIES AND PARTS LIST ............Section 4 HOW TO ORDER PARTS ................Section 5 WARRANTY INFORMATION ............... Section 6 Warranty Coverage and Procedure ........... 6-1 ii- DriMaster HiFlo Upholstery Tool Owner’s Manual HydraMaster Corporation...
  • Page 3 Fig. 3-6 Clean the Solution Bar Jet ............ 3-3 TOOL ASSEMBLIES AND PARTS LISTS ............ Section 4 Fig. 4-1 Tool, DriMaster HiFlo Handpiece Assembly ......4-2 Fig. 4-2 Handle, Accessory Assembly ..........4-4 iii - DriMaster HiFlo Upholstery Tool Owner’s Manual...

  • Page 4: General Information

    Congratulations on purchasing the very latest in upholstery cleaning technology. The patented HydraMaster DriMaster™ HiFlo Upholstery Tool, shown in Figure 1-1, takes the performance and technology of the original DriMaster Upholstery Tool to a whole new level.* Figure 1-1. DriMaster™ HiFLo Upholstery Tool The new tool is designed of lightweight, extremely durable modern materials, giving it new levels of both strength and comfort.
  • Page 5 Keep in mind that although the solution flow rate has greatly increased for the DriMaster HiFlo, this tool will still leave the upholstery drier than any other tool on the market by turning down the flow rate to equal that of the original DriMaster Upholstery Tool.

  • Page 6: Contact Information

    Contact Information Hours Monday - Friday 7:00 am to 5:00 pm PACIFIC STANDARD TIME Telephone Numbers (425) 775-7276 Parts (425) 775-7275 Service (800) 426-4225 Parts / Service FAX FILL IN FOR YOUR REFERENCE: Model: Date of Purchase: Purchased From (Distributor): 1-3: General Information...

  • Page 7: Warnings, Cautions, And Notices

    Warnings, Cautions, and Notices This symbol indicates a situation which, if not avoided, could result in death or serious injury. This symbol indicates a hazardous situation which, if not avoided, could result in damage to the cleaning tool. This symbol indicates that federal or state regulatory laws may apply, and also emphasizes supplemental information.

  • Page 8: Operating Instructions

    2 - Operating Instructions Your DriMaster HiFlo Upholstery Tool has been engineered using the latest and most sophisticated technology available to produce the finest upholstery cleaning results possible. Despite this, it remains only a tool of the upholstery cleaning trade and can only produce results that are equal to the skills and care used by the person operating it.

  • Page 9: Begin Cleaning

    Begin Cleaning Do not use the DriMaster HiFlo Upholstery Tool on a machine set above 14” Hg vacuum and 500 psi solution pressure. Vac Hose Manifold Solution Quick Connect Solution Control Knob Solution Bar Jet Figure 2-3. Attach Solution Hose and Adjust Water Volume Attach the solution hose to the Solution Quick Connect.
  • Page 10 Note: The amount of vacuum and pressure produced by your machine will determine the amount of overspray from the Solution Bar Jet. The patented Solution Bar Jet makes a trigger valve unnecessary. When the Solution Control Knob is turned toward the “HiFlo” position, the water will form a sheet across the Solution Bar Jet.

  • Page 11: Tool Maintenance

    3 - Tool Maintenance Removing and Reinstalling the Clear Window Cover Remove vacuum hose cuff from tool and disconnect the solution hose quick connect as shown in Figure 3-1. Note: Lightly heating the “cuff” with a hair dryer will make it easier to remove and install. Figure 3-1.
  • Page 12 Slide the clear window cover off of the tool Window Cover body. To reinstall the clear window, slide it into one half of the tool body (Figure 3-5). Then slide the other half of the body onto the window. Note: The clear window has grooves on either side that slide onto the edges of the cutouts in the tool bodies.

  • Page 13: Cleaning The Solution Bar Jet

    Use only a feeler gauge to clean the slot in the Bar Jet. Use of any other implement (paper clip, knife blade) may damage the opening and seriously reduce the cleaning effectiveness of the DriMaster Figure 3-6. Clean the Solution Bar Jet tool. 3-3 - Tool Maintenance...

  • Page 14: Tool Assemblies And Parts List

    4 - Tool Assemblies and Parts Lists This section contains all the assemblies and parts lists associated with the DriMaster HiFlo Upholstery Tool: HiFlo Handpiece Assembly  Accessory Handle Assembly  4-1 - Tool Assemblies and Parts Lists...
  • Page 15 Figure 4-1. Tool, DriMaster HiFlo Handpiece Assembly D-6960 Rev. C 4-2 - Tool Assemblies and Parts Lists...
  • Page 16 Tool, DriMaster HiFlo Handpiece Assembly Parts List Item Part Number Description 000-076-084 Jet, DriMaster HiFlo Bar Assembly 000-105-533 Plate, Wear DriMaster HiFlo 000-061-138 Handle, Handpiece, Left, DriMaster HiFlo 000-169-014 Valve, Ball 000-052-762 1/8” NPT x 1.5 000-052-433 Quick Disconnect, Male 1/8” NPT 000-061-139 Handle, Handpiece, Right, DriMaster HiFlo 000-174-768 Washer, Flat, .875 O.D.
  • Page 17 Figure 4-2. Handle, Accessory Assembly C-6958 Rev. B Handle, Accessory Assembly Parts List Item Part Number Description 000-061-142 Handle, Accessory, Right 000-061-141 Handle, Accessory, Left 000-174-167 Washer, Flat, 0.248” O.D. x 0.128” I.D. x 0.029” Thk 000-094-063 Nut, #6-32 Nylock 000-143-579 Screw, #6-32UNC x 2”...

  • Page 18: How To Order Parts

    WARRANTY PARTS ORDERS Call the local distributor where you purchased your DriMaster Upholstery Tool and ask for the Service Department. Have the following information ready: A.
  • Page 19 We shall always endeavor to be fair in our evaluation of your warranty claim, and shall provide you with a complete analysis of our findings. HydraMaster warranty covers only defective materials and/or workmanship for the periods listed. Diagnostic reimbursement is specifically excluded.

  • Page 20: Warranty Information

    6 - Warranty Information Warranty Coverage and Procedure All parts of the DriMaster HiFlo upholstery tool are warranted against defects for one year. Freezing, hard water, the use of solvents and/or abuse will void the warranty. Warranty coverage is available to you through your local Distributor.
