HydraMaster Chem-Dry PowerHead Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
®

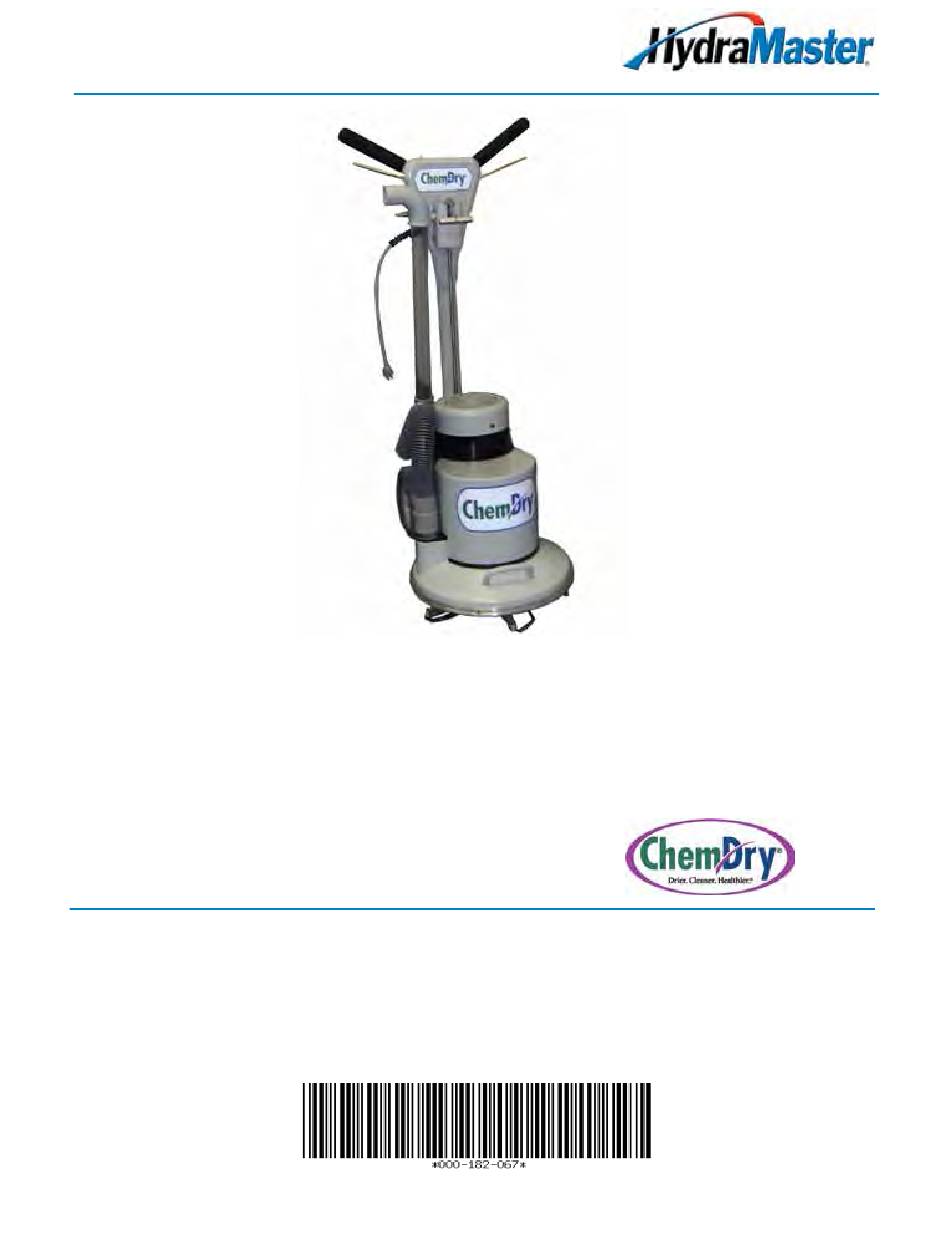

Chem-Dry
PowerHead
Owner's Manual
Manufactured Exclusively for
Model 700-041-012
MAN-33169 Rev. D, October 9, 2014
(P/N 000-182-067)
No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying or electronic
retrieval systems) without the express written permission of Harris Research Inc. Specifications and information in this document
are subject to change without prior notice. All rights reserved. © 2014 Harris Research Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chem-Dry PowerHead and is the answer not in the manual?

Questions and answers

Related Manuals for HydraMaster Chem-Dry PowerHead

Summary of Contents for HydraMaster Chem-Dry PowerHead

  • Page 1 ® ® Chem-Dry PowerHead Owner’s Manual Manufactured Exclusively for Model 700-041-012 MAN-33169 Rev. D, October 9, 2014 (P/N 000-182-067) No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying or electronic retrieval systems) without the express written permission of Harris Research Inc.
  • Page 2 This page intentionally left blank.

  • Page 3: Table Of Contents

    Handle Locking Linkage Assembly Parts List ......... 8-13 Valve Stem Assembly Parts List .............. 8-14 Solution Valve Assembly Parts List ............8-15 Vacuum Shoe and Skid Assembly Parts List .......... 8-16 Harris Research, Inc. i - Chem-Dry PowerHead Owner’s Manual...
  • Page 4 Chem-Dry PowerHead ® ® REPAIR ....................SECTION 9 Felt Vacuum Seal ................... 9-1 High Pressure Valve Assembly ............... 9-2 TROUBLESHOOTING ................. SECTION 10 LIMITED WARRANTY PLAN ............... SECTION 11 Chem-Dry PowerHead Owner’s Manual - ii Harris Research, Inc.
  • Page 5 Figure 8-11. Vacuum Shoe and Skid Assembly ............8-16 Figure 9-1. Carefully Pry Seal Up and Lift Out ............9-1 Figure 9-2. Use Can to Hold Oil for Seal ..............9-1 Figure 9-3. Valve Assembly Parts ................9-2 Harris Research, Inc. iii - Chem-Dry PowerHead Owner’s Manual...
  • Page 6 Chem-Dry PowerHead ® ® This page intentionally left blank. Chem-Dry PowerHead Owner’s Manual - iv Harris Research, Inc.

  • Page 7: General Information

    You now own a piece of equipment that incorporates the latest in carpet cleaning technology. The Chem-Dry PowerHead®’s features will almost certainly increase the productivity of you and your business, while decreasing the fatigue factor that may have prevented you from going after some of the large cleaning jobs that are available to carpet cleaners and maintenance professionals today.

  • Page 8: Contact Information

    Chem-Dry PowerHead ® ® CONTACT INFORMATION If you have any questions regarding the operation, maintenance or repair of this machine, please contact your local distributor. When calling your distributor, be sure to reference the serial number and date of purchase. FOR YOUR REFERENCE: Serial No.____________________________________________________ Date of Purchase:_____________________________________________...

  • Page 9: Warnings, Cautions And Notices

    Chem-Dry PowerHead ® ® WARNINGS, CAUTIONS AND NOTICES The manufacturer uses this WARNING symbol throughout the manual to warn of possible injury or death. This CAUTION symbol is used to warn of possible equipment damage. This NOTICE symbol indicates that federal or state regulatory laws may apply, and also emphasizes supplemental information.
  • Page 10 Chem-Dry PowerHead ® ® This page intentionally left blank. Harris Research, Inc. General Information: 1-4...
  • Page 11 Chem-Dry PowerHead ® ® 2- Machine Specifications Chem-Dry PowerHead Length 23” Base Width 16” Height 43” Weight 70 lbs 1/2Hp, 120 V, 60 Hz 1,725 rpm Input 130 rpm Output Motor Totally Enclosed Fan-Cooled (TEFC) Permanently Lubricated Helical Gear Drive...

  • Page 12: Machine Specifications

    Chem-Dry PowerHead ® ® This page intentionally left blank. Machine Specifications: 2-2 Harris Research, Inc.

  • Page 13: Assembly Instructions

    Chem-Dry PowerHead ® ® 3 - Assembly Instructions To prepare your machine for use, follow these instructions: Remove the machine from the packaging. Inspect the machine carefully for any damage that may have occurred during shipping. Check the gear box lubricant level (see page 6-3 of this Owner’s Manual). Attach the cleaning head to the base.
  • Page 14 Chem-Dry PowerHead ® ® This page intentionally left blank. Assembly Instructions 3-2 Harris Research, Inc.

  • Page 15: Operating Instructions

    Chem-Dry PowerHead ® ® 4 - Operating Instructions PREPARATION Handle Adjustment Push the clamp forward to loosen the linkage. Adjust the handle to a comfortable height. Pull clamp back to lock in place. Solution Hose Quick Connect Most technicians have found better control and less fatigue 1 1/2”...

  • Page 16: Control Functions

    Chem-Dry PowerHead ® ® CONTROL FUNCTIONS There are control triggers located on each side of the handle under the rubber hand grips. As you operate the PowerHead, the trigger on your right-hand side controls the electric motor that drives the cleaning heads. The Safety switch located on the top of the handle must be depressed while the trigger is pulled.

  • Page 17: Edging Tool

    Chem-Dry PowerHead ® ® Once you have become familiar with the speed and movement of the machine, practice making it hover in one spot. (The hovering maneuver is useful for removing stubborn stains, as well as removing furniture indentations.) Do not tilt machine sideways while moving forward and backward (see Figure 4-3).
  • Page 18 Chem-Dry PowerHead ® ® This page intentionally left blank. Harris Research, Inc. Operating Instructions: 4-4...

  • Page 19: Cleaning Information

    Chem-Dry PowerHead ® ® 5 - Cleaning Information CLEANING PATTERNS For regular carpet cleaning, use an overlapping arc pattern, two times over the same area (one pass with solution and one pass for drying). When cleaning carpets, first clean in circular pattern, then use the overlapping arc pattern to dry the area (see Figure 5-1). Figure 5-1.

  • Page 20: Special Information

    Chem-Dry PowerHead ® ® DO NOT operate your PowerHead over loose or unraveled carpet seams. The cleaning head may catch and cause further damage. DO NOT operate your PowerHead on concrete floors. Sharp edges will develop on the extraction heads which will damage carpet fibers. DO NOT clean over the edge of a loose carpet.

  • Page 21: Cleaning Hints

    Chem-Dry PowerHead ® ® CLEANING HINTS Most cleaners customarily clean their way out of an area or room. With the PowerHead, it is possible to clean into an area or room, as shown in Figure 5-2, so that the hoses are dragged behind you during the cleaning process rather than kicked out of the way as you back out of an area.
  • Page 22 Chem-Dry PowerHead ® ® This page intentionally left blank. Harris Research, Inc. Cleaning Information: 5-4...

  • Page 23: Machine Maintenance

    Chem-Dry PowerHead ® ® 6 - Machine Maintenance Good care and regular maintenance of your PowerHead will result in a long, dependable life for the unit. Keep in mind that your PowerHead will be in full view of your customer. A PowerHead that is dirty and unkempt in appearance can cause your business or professional image to suffer.

  • Page 24: Figure 6-3. Remove Debris

    30 weight SAE motor oil (see Figure 6-4). Also, put a few drops into the hub threads. Coat the shaft with TKX® All-Purpose lubricant (HydraMaster P/N 000-087-006 – see Figure 6-5). Re-install the vacuum head assembly onto the shaft by rotating it counterclockwise.

  • Page 25: Periodic Maintenance

    Chem-Dry PowerHead ® ® While rotating the vacuum head assembly in the counterclockwise position, make sure that it spins freely all the way down. If it begins to require the slightest finger tip pressure, unscrew it and brush off the threads. All it takes is the slightest grain of dirt or sand to obstruct the threads.

  • Page 26: Transport And/Or Storage

    Chem-Dry PowerHead ® ® Locking Mechanism If the locking mechanism becomes loose and fails to hold the handle in position, tighten it by following these simple steps: Remove the retaining clip from one wheel, using a flat-bladed screwdriver (see Figure 6-6). Remove the wheel from one side of the unit.

  • Page 27: Figure 7-1. Wiring Diagram - 120 V, 60 Hz

    Chem-Dry PowerHead ® ® 7- Electrical Diagrams Figure 7-1. Wiring Diagram - 120 V, 60 Hz 6037 7-1: Electrical Diagrams...

  • Page 28: Electrical Diagrams

    Chem-Dry PowerHead ® ® This page intentionally left blank. Electrical Diagrams: 7-2...

  • Page 29: Assemblies And Parts Lists

    ® ® 8 - Assemblies and Parts Lists The following Chem-Dry PowerHead major assemblies are detailed in this section: „ PowerHead Final Assembly Parts List „ Base and Drive Train Assembly Parts List „ Upper and Lower Handle Assembly Parts List „...

  • Page 30: Figure 8-1. Powerhead Final Assembly

    Chem-Dry PowerHead ® ® Figure 8-1. PowerHead Final Assembly 604-999-012 Rev. B Harris Research, Inc. Assemblies and Parts Lists: 8-2...

  • Page 31: Powerhead Final Assembly Parts List

    Chem-Dry PowerHead ® ® PowerHead Final Assembly Parts List Item Part Number Description Item Part Number Description 604-054-101 Assembly, Base and Drive Train 000-052-522 Rotary Union, S/S 000-163-103 Assembly, Edging Tool 000-143-107 Screw, #10-24UNC X 3/8” Lg. Button HS 604-051-101 Assembly, Upper and Lower Handle 000-143-096 Screw, 3/8”-16UNC X 1.00”...

  • Page 32: Figure 8-2. Base And Drive Train Assembly - View 1 Of 2

    Chem-Dry PowerHead ® ® This is part of motor This is part of motor P/N 000-091-015. P/N 000-091-015. Figure 8-2. Base and Drive Train Assembly - View 1 of 2 604-054-101 Rev. D Prior to operating the machine, replace the shipping plug (P/N 000-106-001) with the vented plug (P/N 000-106-014).

  • Page 33: Figure 8-3. Base And Drive Train Assembly - View 2 Of 2

    Chem-Dry PowerHead ® ® Figure 8-3. Base and Drive Train Assembly - View 2 of 2 604-054-101 Rev. D Harris Research, Inc. 8-5: Assemblies and Parts Lists...

  • Page 34: Base And Drive Train Assembly Parts List

    Chem-Dry PowerHead ® ® Base and Drive Train Assembly Parts List Item Part Number Description Item Part Number Description 000-006-009 Base w/ Handle - Coated 000-106-001 Plug, 1/8” NPT * 000-052-059 Bushing, 1/4” MPT X 1/8” FPT 000-140-003 Rivet, 1/8” X 5/16” Lg 000-131-014 Gasket, Roto Shroud 000-143-166...

  • Page 35: Figure 8-4. Upper And Lower Handle Assembly - View 1 Of 3

    Chem-Dry PowerHead ® ® Figure 8-4. Upper and Lower Handle Assembly - View 1 of 3 604-051-101 Rev. H Harris Research, Inc. 8-7: Assemblies and Parts Lists...

  • Page 36: Figure 8-5. Upper And Lower Handle Assembly - View 2 Of 3

    Chem-Dry PowerHead ® ® Figure 8-5. Upper and Lower Handle Assembly - View 2 of 3 604-051-101 Rev. H Harris Research, Inc. Assemblies and Parts Lists: 8-8...

  • Page 37: Figure 8-6. Upper And Lower Handle Assembly - View 3 Of 3

    Chem-Dry PowerHead ® ® Figure 8-6. Upper and Lower Handle Assembly - View 3 of 3 604-051-101 Rev. H Harris Research, Inc. 8-9: Assemblies and Parts Lists...

  • Page 38: Upper And Lower Handle Assembly Parts List

    Chem-Dry PowerHead ® ® Upper and Lower Handle Assembly Parts List Item Part Number Description Item Part Number Description 000-141-007 Assembly, Adjusting Rod 000-108-012 Protector, Power Cord Relief 000-052-516 Quick Connect, 440 Male w/ Viton 604-051-002 Assembly, Handle Locking Linkage 000-169-047 Assembly, Valve, Solution - S/S 000-157-149...

  • Page 39: Figure 8-7. Vacuum Head Assembly

    Chem-Dry PowerHead ® ® Figure 8-7. Vacuum Head Assembly 604-053-004 Rev. B Order P/N 000-107-0401 when replacing items 5 and/or 10. Harris Research, Inc. 8-11: Assemblies and Parts Lists...

  • Page 40: Vacuum Head Assembly Parts List

    Chem-Dry PowerHead ® ® Vacuum Head Assembly Parts List Item Part Number Description Item Part Number Description 000-064-022 Assembly, Vacuum Shoe w/ Skid - Vented 000-139-001 Ring, Plastic * 000-143-045 Screw, 1/2” Modified Star Removal Bolt 000-052-513 Elbow, 1/8” F X F 000-143-162 Screw, 5/16”...

  • Page 41: Handle Locking Linkage Assembly Parts List

    Chem-Dry PowerHead ® ® Figure 8-8. Handle Locking Linkage 604-051-002 Rev. B Handle Locking Linkage Assembly Parts List Item Part Number Description 000-107-097 Link 000-094-030-07 Nut, Adjusting,Linkage - Handle Locking 000-103-012 Pin, 1/4” X 7/8” - Clevis 000-103-013 Pin, Cotter 000-107-256 Plunger, Handle Latching 000-139-006...

  • Page 42: Valve Stem Assembly Parts List

    Chem-Dry PowerHead ® ® Figure 8-9. Valve Stem Assembly 600-012-003 Rev. A Valve Stem Assembly Parts List Item Part Number Description 000-097-022 O-Ring, 3/32”X 1/16” 000-097-010 O-Ring, Valve Plunger- Large 000-107-129 Plunger, Solution Valve 000-139-024 Ring, Solution Valve Keeper - S/S 000-139-004 Ring, Solution Valve Stem - Snap Ring- S/S Harris Research, Inc.

  • Page 43: Solution Valve Assembly Parts List

    Chem-Dry PowerHead ® ® Figure 8-10. Solution Valve Assembly 000-169-047 Rev. C Solution Valve Assembly Parts List Item Part Number Description 000-027-026 Cap, Solution Valve - S/S 000-097-011 O-Ring, 5/8”X1/16” W 600-012-003 Assembly, Valve Stem - S/S 000-155-003 Spring, Solution Valve 600-012-001 Valve, Body - Welded Harris Research, Inc.

  • Page 44: Vacuum Shoe And Skid Assembly Parts List

    Chem-Dry PowerHead ® ® Figure 8-11. Vacuum Shoe and Skid Assembly 000-064-022 Rev. C Vacuum Shoe and Skid Assembly Parts List Item Part Number Description 000-057-048 Gasket, Vacuum Head 000-064-030 Head, Shoe, 4” Cast, One Piece 000-094-058 Nut, #10-32 Nylock 000-107-049-07 Skid, Vented Harris Research, Inc.

  • Page 45: Repair

    FELT VACUUM SEAL The felt vacuum seal plays an important part in the optimum performance of your Chem-Dry PowerHead. If the part is worn or unlubricated, it will not form a proper seal. Lack of a proper seal will impair the vacuuming...

  • Page 46: High Pressure Valve Assembly

    Chem-Dry PowerHead ® ® HIGH PRESSURE VALVE ASSEMBLY In the event that the valve assembly needs to be replaced, follow this procedure (see Figure 9-3). Remove the 440 male quick connect (A) with a wrench. Remove the five hex head screws (B) in the back plate on the handle and lift the back panel off.

  • Page 47: Troubleshooting

    Chem-Dry PowerHead ® ® 10 - Troubleshooting 1.0 LOW VACUUM FLOW AT THE CLEANING HEADS Possible Cause Solution 1.1 Hub not sealing properly. Replace felt seal with a lubricated one. 1.2 Restricted air flow. Remove cleaning head and clear all vacuum lines and heads of debris.
  • Page 48 Chem-Dry PowerHead ® ® 6.0 NO POWER Possible Cause Solution 6.1 PowerHead wiring or Have an electrician inspect unit for possible wiring or power source. motor problems. 6.2 Overloaded power Locate an unused power source. source 6.3 Gear box Repair or replace gear box 7.0 HEAD WOBBLES DURING OPERATION Possible Cause Solution...

  • Page 49: Limited Warranty Plan

    Chem-Dry PowerHead ® ® 11 - Limited Warranty Plan Harris Research, Inc (HRI) warrants PowerHead machines of its manufacture to be free from defects in material and workmanship if properly installed, maintained, and operated under normal conditions with competent supervision. No person, agent, representative or dealer is authorized to give any warranties on behalf of HRI, nor to assume for HRI any other liability in connection with any HRI products.
  • Page 50 Chem-Dry PowerHead ® ® Deposits and buildup in the water or chemical systems due to hardness in the water used or chemicals which results in deposits, will VOID all warranties on affected components. All recommended maintenance must be performed by authorized service personnel. Records of periodic maintenance must be kept and copies may be required to be furnished to HRI before this warranty is honored.
