Summary of Contents for Life Fitness 8110
-
Page 1: Assembly Instructions

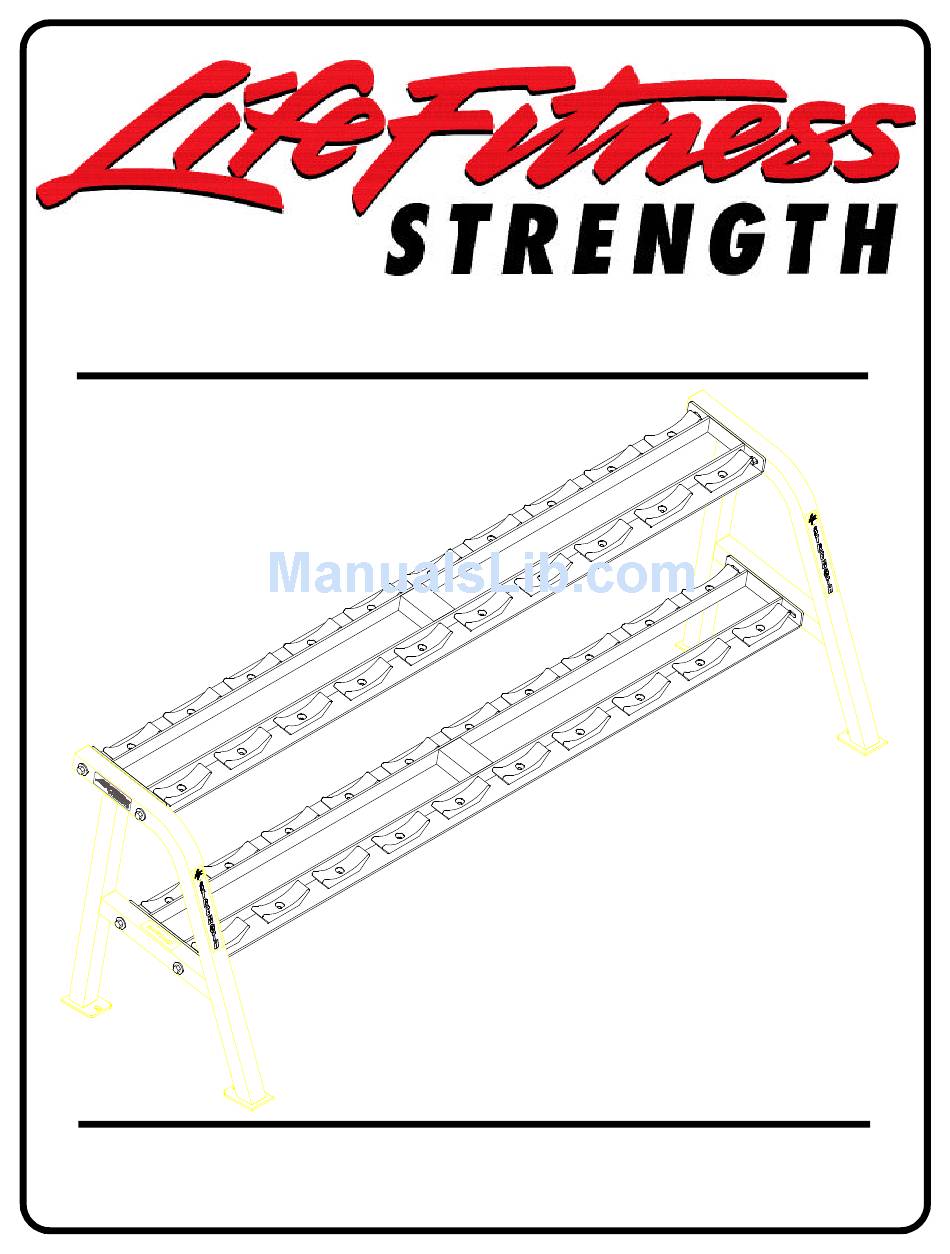

8110 DUMBBELL RACK ASSEMBLY INSTRUCTIONS Part # 6793101 Revision:9/1/98... -
Page 2: Tools Required For Assembly
2. Do not allow minors or children to play on or around this equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local LIFE FITNESS STRENGTH distributor or call the LIFE FITNESS STRENGTH customer service department at (800) 328-9714. -
Page 3: Parts List
FIGURE 1 STEP 1: • SECURELY assemble the DUMBBELL TIERS (2) between the UPRIGHT FRAMES (1) using eight 1/2 X 3-1/4” BOLTS (3), eight 1/2” WASHERS (4), and eight 1/2” LOCKNUTS (5) as shown in FIGURE 1. PARTS LIST DESCRIPTION PART # UPRIGHT FRAME 6790803... - Page 4 SCREWS (7) and forty 3/8” LOCK NUTS (6) as shown in FIGURE 2. Thank you for purchasing the LifeFitness 8110 DUMBBELL RACK. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at (800) 328-9714.
