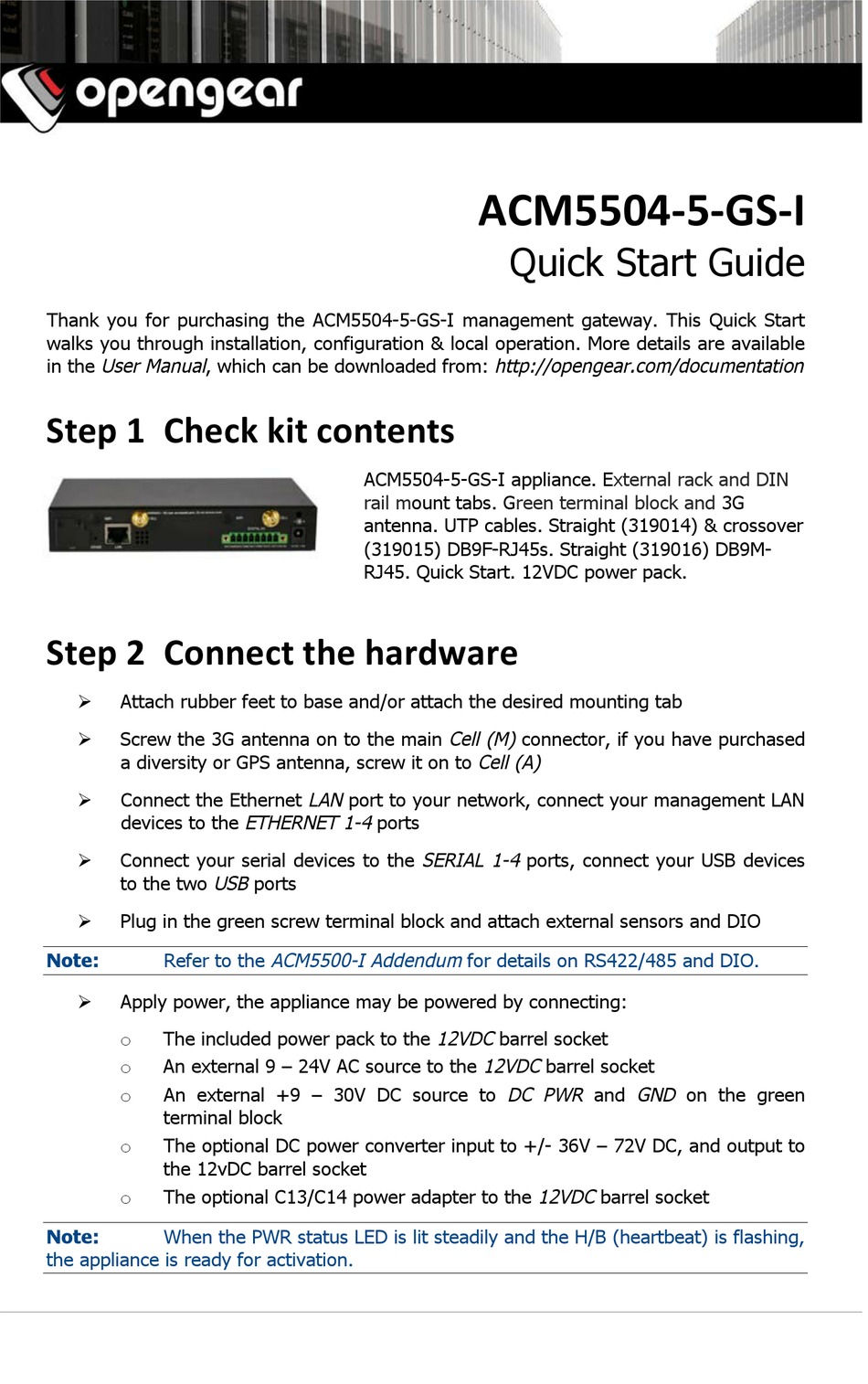

Thank you for purchasing the ACM5504-5-GS-I management gateway. This Quick Start
walks you through installation, configuration & local operation. More details are available
in the User Manual , which can be downloaded from: http://opengear.com/documentation
Step
1
Check
k it
c ontents
Step
2
Connect
t he
h ardware
Attach rubber feet to base and/or attach the desired mounting tab
Ø
Screw the 3G antenna on to the main Cell (M) connector, if you have purchased
Ø
a diversity or GPS antenna, screw it on to Cell (A)
Connect the Ethernet LAN port to your network, connect your management LAN
Ø
devices to the ETHERNET 1-4 ports
Connect your serial devices to the SERIAL 1-4 ports, connect your USB devices
Ø
to the two USB ports
Plug in the green screw terminal block and attach external sensors and DIO
Ø
Note:
Apply power, the appliance may be powered by connecting:
Ø
o
o
o
o
o
Note:
the appliance is ready for activation.
ACM5504-‐5-‐GS-‐I
Q uick
S tart
( 520071-‐Rev
1 .0)
Refer to the ACM5500-I Addendum for details on RS422/485 and DIO.
The included power pack to the 12VDC barrel socket
An external 9 – 24V AC source to the 12VDC barrel socket
An external +9 – 30V DC source to DC PWR and GND on the green
terminal block
The optional DC power converter input to +/- 36V – 72V DC, and output to
the 12vDC barrel socket
The optional C13/C14 power adapter to the 12VDC barrel socket
When the PWR status LED is lit steadily and the H/B (heartbeat) is flashing,
ACM5504-‐5-‐GS-‐I
Quick Start Guide
ACM5504-5-GS-I appliance.
rail
mount tabs.
Green terminal block and
antenna. UTP cables. Straight (319014) & crossover
(319015) DB9F-RJ45s. Straight (319016) DB9M-
RJ45. Quick Start. 12VDC power pack.
External rack and DIN
3G
Page
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Opengear ACM5504-5-GS-I
Summary of Contents for Opengear ACM5504-5-GS-I
-
Page 1: Quick Start Guide
ACM5504-‐5-‐GS-‐I Quick Start Guide Thank you for purchasing the ACM5504-5-GS-I management gateway. This Quick Start walks you through installation, configuration & local operation. More details are available in the User Manual , which can be downloaded from: http://opengear.com/documentation Step ... - Page 2 Step 3 Set u p a ppliance n etworking The appliance’s default IP address is 192.168.0.1 (subnet mask 255.255.255.0 ). With a web browser on any computer that is connected to the appliance via LAN: Enter https://192.168.0.1 into the address bar Ø...
- Page 3 Step 4 Activate t he c ellular m odem Contact Sprint and give them the ESN (Electronic Serial Number) for your appliance. The ESN is located on underside of the appliance and also shown on Status: Statistics: Cellular under Hardware Information).
- Page 4 If you have been allocated a private IP address (i.e. in the 10.x.x.x, 172.16-31.x.x or 192.168.x.x range), direct remote access is not possible. Instead, use Call Home or VPN to establish an outbound tunnel to an Opengear Lighthouse or VPN server, to enable remote access over the tunnel.
