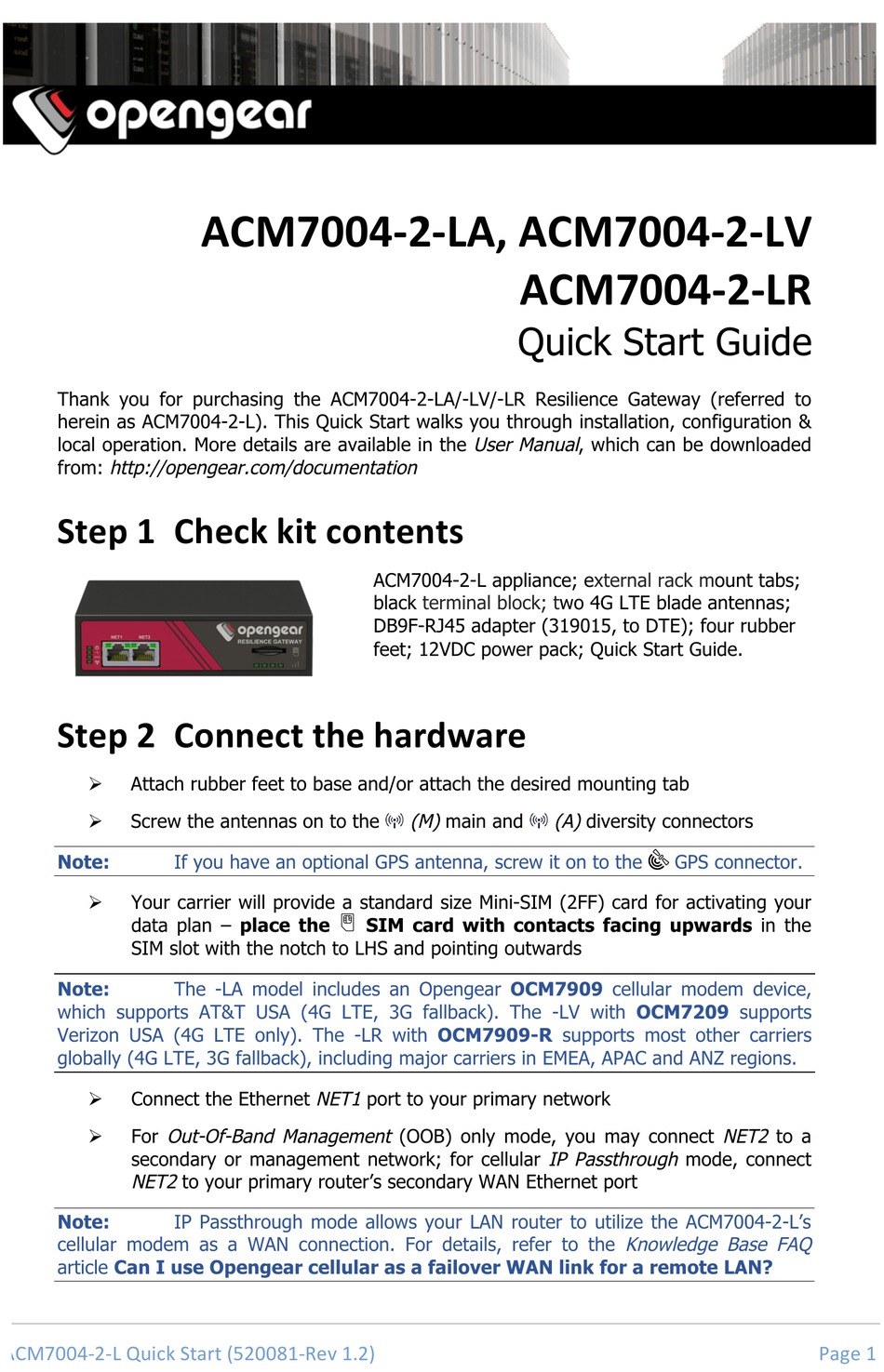

Opengear ACM7004-2-LA Quick Start Manual

Thank you for purchasing the ACM7004-2-LA/-LV/-LR Resilience Gateway (referred to
herein as ACM7004-2-L). This Quick Start walks you through installation, configuration &
local operation. More details are available in the User Manual , which can be downloaded
from: http://opengear.com/documentation
Step 1 Check kit contents
Step 2 Connect the hardware
Attach rubber feet to base and/or attach the desired mounting tab
Ø
Screw the antennas on to the
Ø
Note:
Your carrier will provide a standard size Mini-SIM (2FF) card for activating your
Ø
data plan – place the
SIM slot with the notch to LHS and pointing outwards
Note:
which supports AT&T USA (4G LTE, 3G fallback). The -LV with OCM7209 supports
Verizon USA (4G LTE only). The -LR with OCM7909-R supports most other carriers
globally (4G LTE, 3G fallback), including major carriers in EMEA, APAC and ANZ regions.
Connect the Ethernet NET1 port to your primary network
Ø
For Out-Of-Band Management (OOB) only mode, you may connect NET2 to a
Ø
secondary or management network; for cellular IP Passthrough mode, connect
NET2 to your primary router's secondary WAN Ethernet port
Note:
cellular modem as a WAN connection. For details, refer to the Knowledge Base FAQ
article Can I use Opengear cellular as a failover WAN link for a remote LAN?
ACM7004-2-L Quick Start (520081-Rev 1.2)
ACM7004-2-LA, ACM7004-2-LV
If you have an optional GPS antenna, screw it on to the
The -LA model includes an Opengear OCM7909 cellular modem device,
IP Passthrough mode allows your LAN router to utilize the ACM7004-2-L's
ACM7004-2-LR

Quick Start Guide

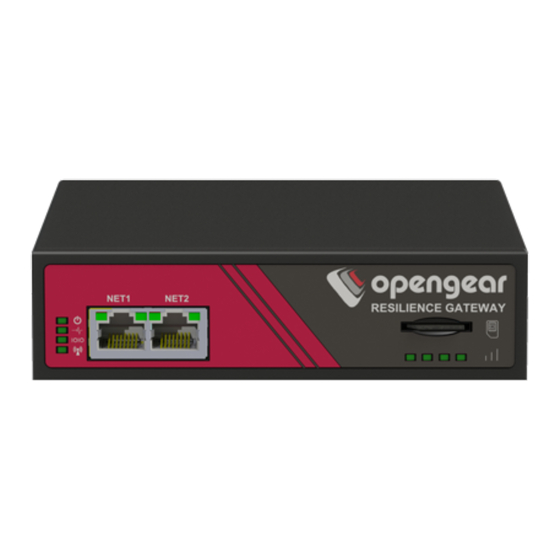

ACM7004-2-L appliance;
black terminal block;
DB9F-RJ45 adapter (319015, to DTE); four rubber
feet; 12VDC power pack; Quick Start Guide.
(M) main and
SIM card with contacts facing upwards in the
external rack mount tabs;
two 4G LTE blade antennas;
(A) diversity connectors
GPS connector.
Page 1
