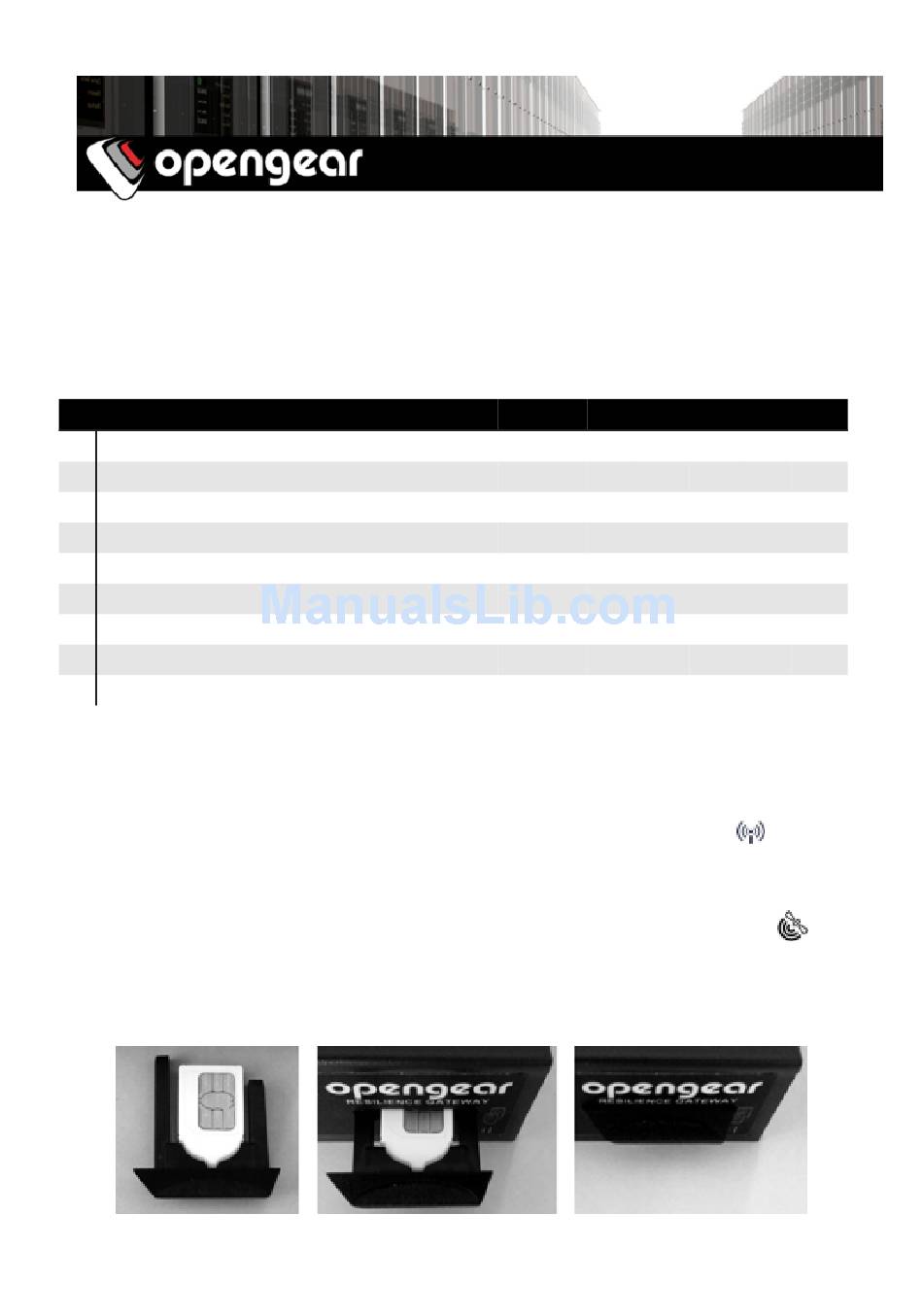

ACM700x-2-LMx Quick Start Guide
The ACM700x-2-LMx Quick Start Guide documents installation, configuration and local operation of the
ACM7008-2-LMx and ACM7004-2-LMx series.
01. Check the kit's contents are complete
#
item
1
ACM7008-2-LMx or ACM7004-2-LMx
2
4G LTE blade antennas
1
12V switching DC power supply
4
Country-specific power socket adapters
1
Rack kit (1 tab, 2 rack screws, 2 nuts, 3 screws)
4
Adhesive-backed rubber feet
1
Dual-SIM cradle
1
DB9F-to-RJ45 crossover serial adapter
1
Digital I/O converter (terminal block)
02. Assemble the hardware
01. If free-standing: attach the adhesive-backed rubber feet to the ACM700x-2-LMx's base.
02. If rack-mounted: attach the rack kit to the side of the ACM700x-2-LMx to be fixed to the rack.
03. Screw the 4G LTE blade antennas in to the main (M) and diversity (A) connectors
Note: do not screw 4G LTE antennas in any more than finger tight. The SMA connectors used to con-
nect 4G LTE antennas can be damaged if overtightened.
04. Screw any passive (569008) or active (569018) GPS antennas into the GPS connector
05. If you have a data plan: slide the mini-SIM in to the SIM cradle, contacts upward, with the notch
inward and adjacent the longer cradle arm. If you have only one SIM, use the bottom slot.
06. Slide the cradle into the ACM700x-2-LMx.
ACM700x-x-LMx Quick Start Guide (520084 — revision 1.3.1)
part #
links to Opengear stores
varies
569028
US
UK
450031
US
UK
n/a
Part of the power supply.
590003
Not available separately.
n/a
Not available separately.
n/a
Not available separately.
319015
US
UK
n/a
Not available separately.
EU
AU
INT
EU
AU
INT
EU
AU
INT
.
.
page 1 of 4
Advertisement
Table of Contents
Related Manuals for Opengear ACM7008-2-LMx series
Summary of Contents for Opengear ACM7008-2-LMx series
- Page 1 The ACM700x-2-LMx Quick Start Guide documents installation, configuration and local operation of the ACM7008-2-LMx and ACM7004-2-LMx series. 01. Check the kit’s contents are complete item part # links to Opengear stores ACM7008-2-LMx or ACM7004-2-LMx varies 4G LTE blade antennas 569028...
- Page 2 AT&T USA, Verizon USA, Sprint, Rogers Cana- da or Telus Canada. The -LMR with OCM73R4 supports most other carriers globally, including major carriers in EMEA, APAC and ANZ regions. For more details, refer to the Opengear help desk FAQ article, ‘List of Opengear Appliances and the related Integrated Cellular...
- Page 3 05. Set NET1’s network configuration method 01. Click System > IP. 02. Click Network Interface if it is not the front-most tab. 03. For Configuration Method click either the DHCP or Static radio button. 04. If Static, enter an IP Address and Subnet Mask for the NET1 interface. 06.
- Page 4 05. Click Apply. Note: configure user access policies for connecting to such ports in Serial & Network > Users & Groups. An AAA server can configure them remotely. The Opengear User Manual has details. 12. Configure IP passthrough (optional) To transparently bridge the cellular IP settings and data traffic to a downstream ethernet router: 01.
