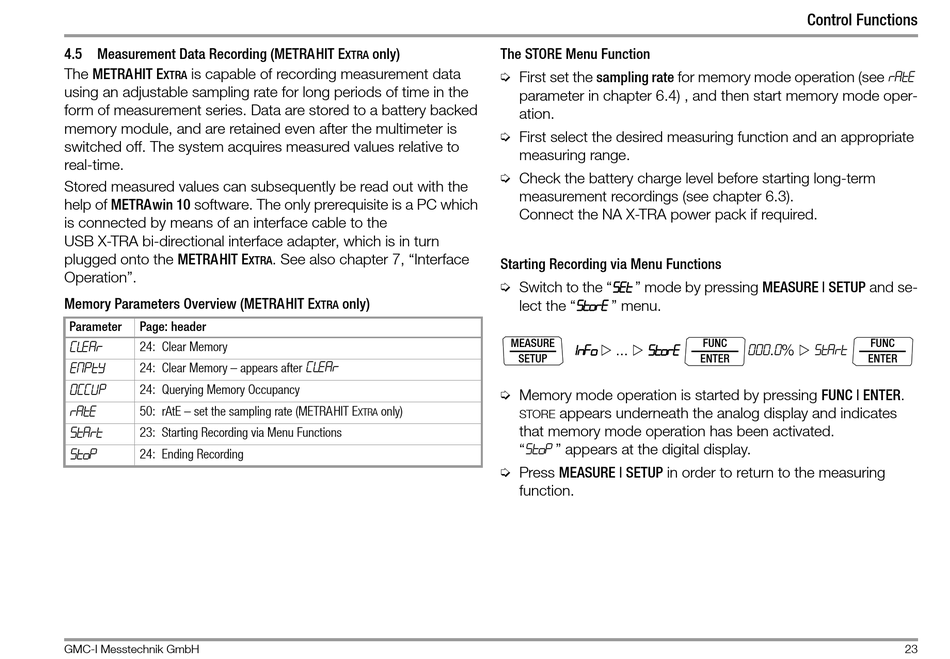

4.5 Measurement Data Recording (METRAHIT E
The METRAHIT E is capable of recording measurement data
XTRA
using an adjustable sampling rate for long periods of time in the
form of measurement series. Data are stored to a battery backed
memory module, and are retained even after the multimeter is
switched off. The system acquires measured values relative to
real-time.
Stored measured values can subsequently be read out with the
help of METRAwin 10 software. The only prerequisite is a PC which
is connected by means of an interface cable to the
USB X-TRA bi-directional interface adapter, which is in turn
plugged onto the METRAHIT E
Operation".
Memory Parameters Overview (METRAHIT E
Parameter Page: header
CLEAr
24: Clear Memory
EMpty
24: Clear Memory – appears after
0CCvP
24: Querying Memory Occupancy
rAtE
50: rAtE – set the sampling rate (METRAHIT E
StArt
23: Starting Recording via Menu Functions
StoP
24: Ending Recording
GMC-I Messtechnik GmbH
only)
XTRA
. See also chapter 7, "Interface
XTRA
only)
XTRA
CLEAr
only)
XTRA
The STORE Menu Function
Ð First set the sampling rate for memory mode operation (see rAtE
parameter in chapter 6.4) , and then start memory mode oper-
ation.
Ð First select the desired measuring function and an appropriate
measuring range.
Ð Check the battery charge level before starting long-term
measurement recordings (see chapter 6.3).
Connect the NA X-TRA power pack if required.
Starting Recording via Menu Functions
Ð Switch to the "SET " mode by pressing MEASURE | SETUP and se-
lect the "StorE " menu.
MEASURE
1nFo   StorE
...
SETUP
Ð Memory mode operation is started by pressing FUNC | ENTER.
appears underneath the analog display and indicates
STORE
that memory mode operation has been activated.
"StoP " appears at the digital display.
Ð Press MEASURE | SETUP in order to return to the measuring
function.
Control Functions
FUNC FUNC
000.0%  StArt
ENTER ENTER
23
