MTX Thunder Sports Owner's Manual

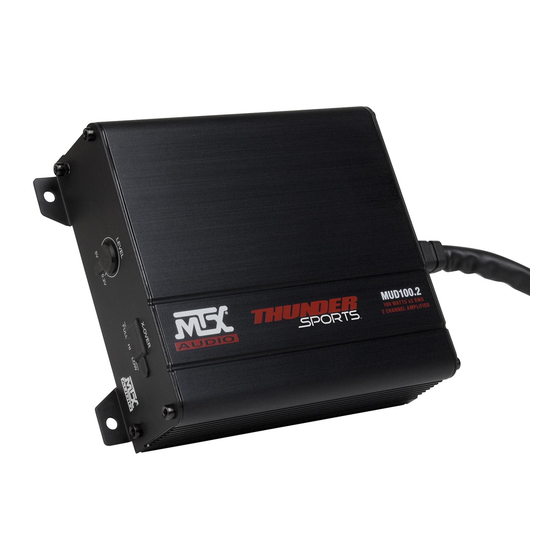

Mud100.2 100 watts x2 rms 2 channel amplifier
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

MUD100.2
10 0 WAT TS x 2 RMS
2 CHANNEL AMPLIFIER
OWNER'S MANUAL
MUD100.2 AMPLIFIER
Use your smartphone to scan or visit
youtube.com/user/MTXAudioUSA
to learn how to properly install this
amplifier.
M T X . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thunder Sports and is the answer not in the manual?

Questions and answers

Related Manuals for MTX Thunder Sports

Summary of Contents for MTX Thunder Sports

  • Page 1 MUD100.2 10 0 WAT TS x 2 RMS 2 CHANNEL AMPLIFIER OWNER’S MANUAL MUD100.2 AMPLIFIER Use your smartphone to scan or visit youtube.com/user/MTXAudioUSA to learn how to properly install this amplifier. M T X . C O M...

  • Page 2: Product Information

    Thank you for purchasing this MTX Audio Hi-Performance amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of enjoyment whether you are waking the neighbors or just out enjoying your tunes. Congratulations...

  • Page 3: Panel Layout

    PANEL LAYOUT WHITE: L+ BRIDGE+ RED: 12V+ WHT/ BLK: L– BLUE: REMOTE GREY: R+ BL ACK: GND GREY/ BLK: R– BRIDGE– LE VEL X-OVER FULL HI LOW MA X M T X . C O M...

  • Page 4: Wiring Diagram

    Attach the amplifier’s ground wire to that contact point. 6. Connect a Remote Turn-On wire from the source unit to the MTX amplifier’s (REM) wire. If the source unit does not have a dedicated Remote Turn-On lead, you may connect to the source unit’s Power Antenna lead.

  • Page 5: Installation

    INSTALLATION For proper perfomance and safety, MTX recommends installing an inline fuse per the owner’s manual instructions according to the following. MUD100.2 15A Fuse TROUBLESHOOTING Problem Cause Solution Head Unit Volume Set Too High Lower Head Unit Volume Output Distorted Amplifier Gain Set Too High...

  • Page 6: Specifications

    SPECIFICATIONS Model MUD100.2 Description 50 W RMS/CH Stereo RMS Power at 14.4V 4 Bridged Load 200 W RMS 2 Load 100 W RMS 4 Load 50 W RMS Features Input Level 0.2 - 5V Frequency Response 20Hz - 20 kHz Low Pass Filter (LPF) 80Hz Fixed High Pass Filter (HPF)

  • Page 7: Información Del Producto

    MTX, produce un sonido y un rendimiento de calidad superior durante incontables horas de placer, sea que esté despertando a los vecinos o simplemente disfrutando de su música. Felicitaciones, y disfrute de lo máximo en experiencias de audio con MTX. CARACTERÍSTICAS •...
  • Page 8 DISPOSICIÓN DEL PANEL WHITE: L+ BRIDGE+ RED: 12V+ WHT/ BLK: L– BLUE: REMOTE GREY: R+ BL ACK: GND GREY/ BLK: R– BRIDGE– LE VEL X-OVER FULL HI LOW MA X M T X . C O M...

  • Page 9: Diagrama De Cableado

    6. Conecte un cable de encendido a distancia de la fuente a del alambre (REM) del amplificador MTX. Si la fuente no tiene cable dedicado al encendido a distancia, puede conectar el cable de la antena eléctrica de la fuente a la alambre (REM) del amplificador MTX.

  • Page 10: Instalación

    INSTALACIÓN Para un correcto funcionamiento y seguridad MTX recomienda instalar un fusible en línea según las instrucciones del Manual del Propietario de acuerdo a lo siguiente. MUD100.2 15A Fusible DETECCIÓN Y REPARACIÓN DE AVERÍAS Problem Cause Solution El volumen de la unidad principal es Bájele el volumen a la unidad...

  • Page 11: Especificaciones

    ESPECIFICACIONES Modelo MUD100.2 Descripción 50 W RMS/CH Stereo Potencia RMS a 14.4 V 4 con puente de carga 200 W RMS de carga 100 W RMS de carga 50 W RMS Características Nivel de entrada 0.2 a 5 V Respuesta de frecuencias 20 Hz a 20 kHz Filtro de pasabajas (LPF) 80Hz fijo...

  • Page 12: Informações Sobre O Produto

    Data de compra INTRODUÇÃO Agradecemos pela sua compra de um amplificador de ·áudio de alto desempenho MTX. Uma instalação bem feita com alto-falantes e subwoofers MTX oferece reprodução sonora e desempenho superiores para horas infindáveis de prazer, quer para acordar os vizinhos ou simplesmente para curtir suas músicas preferidas.
  • Page 13 LAYOUT DO PAINEL WHITE: L+ BRIDGE+ RED: 12V+ WHT/ BLK: L– BLUE: REMOTE GREY: R+ BL ACK: GND GREY/ BLK: R– BRIDGE– LE VEL X-OVER FULL HI LOW MA X M T X . C O M...

  • Page 14: Diagrama De Conexão

    Consulte a página 22 para os diagramas de conexão do amplificador. INSTALAÇÃO E MONTAGEM A MTX recomenda que o amplificador da Thunder Sports™ seja instalado por um revendedor MTX autorizado. Qualquer procedimento que não siga as instruções de instalação fornecidas pode causar graves danos ao amplificador, alto-falantes e/ou sistema elétrico do veículo.

  • Page 15: Solução De Problemas

    INSTALAÇÃO Para um desempenho adequado e Segurança MTX recomenda a instalação de um fusível em linha por Manual de Instruções do Proprietário de acordo com o seguinte. MUD100.2 Fusível 15A SOLUÇÃO DE PROBLEMAS Problema Causa Solução Volume da unidade principal alto...
  • Page 16 ESPECIFICAÇÕES Modelo MUD100.2 Descrição 50 W RMS/CH Stereo Potência RMS a 14,4 V Ponte de carga de 4 200 W RMS Carga de 2 100 W RMS Carga de 4 50 W RMS Características Nível de entrada 0,2 a 5 V Resposta de frequência 20 Hz a 20 kHz Filtro passa-baixa (LPF)

  • Page 17: Informations Sur Le Produit

    Merci de votre achat de l’amplificateur audio MTX hautes performance. Son installation correcte associée à des haut-parleurs et des caissons de graves MTX vous apportera un son et des performances de qualité supérieure que vous apprécierez pendant des heures en diffusant de la musique pour le plaisir de vos voisins ou simplement de vous-même.
  • Page 18 DISPOSITION DU PANNEAU WHITE: L+ BRIDGE+ RED: 12V+ WHT/ BLK: L– BLUE: REMOTE GREY: R+ BL ACK: GND GREY/ BLK: R– BRIDGE– LE VEL X-OVER FULL HI LOW MA X M T X . C O M...

  • Page 19: Schema De Cablage

    à ce point de contact. 6. Raccordez un fil sous tension à distance de l’unité de source (REM) le fil de l’amplificateur MTX. Si l’appareil source n’est pas doté d’un fil de mise en marche à distance dédié, vous pouvez brancher la borne REM de l’amplificateur MTX au fil d’antenne électrique de l’appareil source.

  • Page 20: En Cas De Difficulte

    INSTALLATION Pour la bonne exécution et de la sécurité MTX recommande d’installer un fusible en ligne par les instructions du mode d’emploi selon la formule suivante. MUD100.2 15A Fusible EN CAS DE DIFFICULTE Problème Cause Solution Le volume de l’appareil source est Réduire le volume de l’appareil...

  • Page 21: Caracteristiques Techniques

    CARACTERISTIQUES TECHNIQUES Modèle MUD100.2 Description 50 W eff. CH Stereo Puissance eff. à 14,4 V Charge 4 ponté 200 W eff. Charge 2 100 W eff. Charge 4 50 W eff. Caractéristiques Niveau d’entrée 0,2 à 5 V Réponse en fréquence 20 Hz à...

  • Page 22: Wiring Diagram

    WIRING DIAGRAM 4 Stereo WHITE: L+ BRIDGE+ RED: 12 V+ W H T/ BL K : L – BLUE: REMOTE GRE Y: R+ BL ACK : GND GRE Y/ BL K : R – BRIDGE – RCA Signal RCA Signal Remote Signal FUSE 4-Ohm...
  • Page 23 WIRING DIAGRAM 2 Stereo WHITE: L+ BRIDGE+ RED: 12 V+ W H T/ BL K : L – BLUE: REMOTE GRE Y: R+ BL ACK : GND GRE Y/ BL K : R – BRIDGE – RCA Signal RCA Signal Remote Signal FUSE 4-Ohm...
  • Page 24 WIRING DIAGRAM 4 Bridged WHITE: L+ BRIDGE+ RED: 12 V+ W H T/ BL K : L – BLUE: REMOTE GRE Y: R+ BL ACK : GND GRE Y/ BL K : R – BRIDGE – RCA Signal RCA Signal Remote Signal FUSE Source Unit...
  • Page 25 © 2014 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice. MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A.
