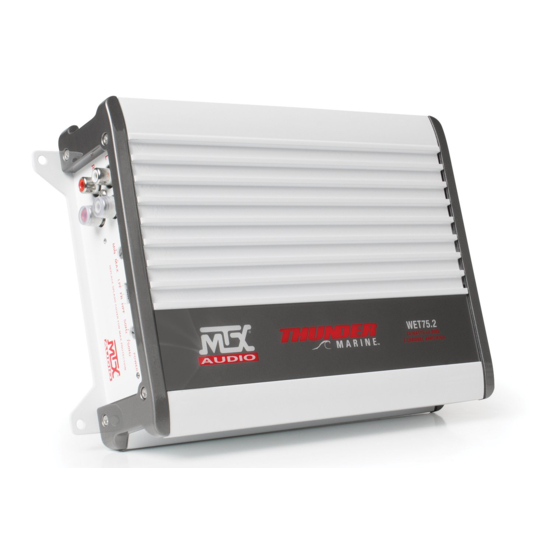

Audio hi-performance marine grade amplifier
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

OWNER'S MANUAL
WET SERIES AMPLIFIERS
Use your smartphone to scan or visit
youtube.com/user/MTXAudioUSA
to learn how to properly install this
amplifier.
M T X . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WET Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MTX WET Series

Summary of Contents for MTX WET Series

  • Page 1 OWNER’S MANUAL WET SERIES AMPLIFIERS Use your smartphone to scan or visit youtube.com/user/MTXAudioUSA to learn how to properly install this amplifier. M T X . C O M...

  • Page 2: Product Information

    4. GND - Run an equal gauge wire from the Ground (GND) terminal on the MTX amplifier to the negative terminal on the battery. Use the shortest distance possible. It is always a good idea to replace the factory ground at this time with a cable equal or larger than the new amplifier power...

  • Page 3: Panel Layout

    7. Low Pass Filter Control (Mono Block) - This control is used to select the desired low pass x-over frequency. The frequency can be adjusted from 40Hz to 220Hz for all bass mono models. 8. Subsonic Filter Control (Mono Block) - This control can filter out unwanted low frequency from 20Hz (OFF) to 50Hz.
  • Page 4 PANEL LAYOUT 2 Channel Amplifier Panel Layout WET75.2 WET75.2 PANEL LAYOUT Mono Block Amplifier Panel Layout WET500.1 WET500.1 M T X . C O M...

  • Page 5: Wiring Diagram

    Now connect your positive power cable to the positive battery terminal of the battery. 5. Grounding - Run an equal gauge wire from the Ground (GND) terminal on the MTX amplifier to the battery compartment. Once installation is complete you will attach this cable to the negative battery terminal on the battery in step 9.

  • Page 6: Installation

    INSTALLATION For proper perfomance and safety, MTX recommends installing an inline fuse per the owner’s manual instructions according to the following. WET500.1 60A Fuse WET75.2 30A Fuse WET75.4 60A Fuse TROUBLESHOOTING Problem Cause Solution No +12V at Remote Connection Supply +12V to Terminal...

  • Page 7: Specifications

    SPECIFICATIONS Model WET500.1 WET75.2 WET75.4 Description 500 W RMS Mono 2x 75 W RMS 4 x 75 W RMS RMS Power at 14.4V 1 Load 2 Load 500 W RMS 2x 100W RMS 4 x 100 W RMS 4 Load 300 W RMS 2 x 75 W RMS 4 x 75 W RMS...

  • Page 8: Información Del Producto

    Fecha de compra INTRODUCCIÓN Gracias por comprar este MTX Audio Hi-Performance amplificador de grado marino ti. La instalación correcta emparejado con altavoces y subwoofers MTX ofrecen un sonido superior y un rendimiento de interminables horas de disfrute en la embarcación donde la corriente te lleva. Felicitaciones y disfrutar de la última experiencia de audio con MTX!
  • Page 9 7. Control de filtro de pasabajas (monobloque). Este control es para seleccionar la frecuencia de crossover de pasabajas deseada. La frecuencia se puede ajustar de 40 Hz a 220 Hz en todos los modelos de bajos tipo monobloque. 8. Control de filtro subsónico (monobloque). Este control puede eliminar las frecuencias bajas no deseadas desde 20 Hz (OFF) hasta 50 Hz.
  • Page 10 DISPOSICIÓN DEL PANEL Disposición del panel del amplificador de dos canales WET75.2 WET75.2 DISPOSICIÓN DEL PANEL Disposición del panel del amplificador de monobloque WET500.1 WET500.1 M T X . C O M...

  • Page 11: Diagrama De Cableado

    6. Conecte un cable de encendido a distancia de la fuente a la terminal (REM) del amplificador MTX. Si la fuente no tiene cable dedicado al encendido a distancia, puede conectar el cable de la antena eléctrica de la fuente a la terminal (REM) del amplificador MTX.

  • Page 12: Instalación

    INSTALACIÓN Para un correcto funcionamiento y seguridad MTX recomienda instalar un fusible en línea según las instrucciones del Manual del Propietario de acuerdo a lo siguiente. THUNDER1000.1 - 100A Fusible WET500.1 - 60A Fusible WET75.4 - 60A Fusible DETECCIÓN Y REPARACIÓN DE AVERÍAS...

  • Page 13: Especificaciones

    ESPECIFICACIONES Modelo WET500.1 WET75.2 WET75.4 Descripción 500 W RMS Mono 2x 75 W RMS 4 x 75 W RMS Potencia RMS a 14.4 V de carga de carga 500 W RMS 2x 100W RMS 4 x 100 W RMS de carga 300 W RMS 2 x 75 W RMS 4 x 75 W RMS...

  • Page 14: Informações Sobre O Produto

    Data de compra INTRODUÇÃO Obrigado por adquirir este MTX Áudio Hi-Performance amplificador classe marinha. A instalação adequada combinada com alto-falantes e subwoofers MTX proporcionam um som superior e desempenho para infinitas horas de diversão no seu barco onde a atual leva. Parabéns e desfrutar da experiência de áudio final com MTX!
  • Page 15 7. Controle do filtro passa-baixa (monobloco) - Este controle é usado para selecionar a frequência de crossover passa-baixa desejada. A frequência pode ser ajustada de 40 Hz a 220 Hz para todos os modelos monobloco. 8. Controle de filtro subsônico (monobloco) - Este controle consegue eliminar sinais de baixa frequência indesejáveis de 20 Hz (desligado) a 50 Hz.
  • Page 16 LAYOUT DO PAINEL Layout do painel do amplificador de 2 canais WET75.2 WET75.2 LAYOUT DO PAINEL Layout do painel do amplificador monobloco WET500.1 WET500.1 M T X . C O M...

  • Page 17: Diagrama De Conexão

    1. Desconecte o cabo do terminal negativo da bateria do veículo. 2. Determinar o local de montagem para o seu amplificador MTX. Tenha em mente que deve ser suficiente o fluxo de ar para a refrigeração adequada. Marque os furos de montagem do amplificador a ser perfurado.

  • Page 18: Solução De Problemas

    INSTALAÇÃO Para um desempenho adequado e Segurança MTX recomenda a instalação de um fusível em linha por Manual de Instruções do Proprietário de acordo com o seguinte. THUNDER1000.1 - Fusível 100A WET500.1 - Fusível 60A WET75.4 - Fusível 60A SOLUÇÃO DE PROBLEMAS...
  • Page 19 ESPECIFICAÇÕES Modelo WET500.1 WET75.2 WET75.4 Descrição 500 W RMS Mono 2x 75 W RMS 4 x 75 W RMS Potência RMS a 14,4 V Carga de 1 Carga de 2 500 W RMS 2x 100W RMS 4 x 100 W RMS Carga de 4 300 W RMS 2 x 75 W RMS...

  • Page 20: Informations Sur Le Produit

    Merci d’avoir acheté cet audio Salut-Performance amplificateur de qualité marine MTX. L’installation adéquate assortie avec haut-parleurs et des subwoofers MTX fournit son et des performances supérieures pour de longues heures de plaisir sur votre bateau où le courant vous emmène.
  • Page 21 7. Commande du filtre passe-bas (modèle monobloc) – Cette commande est utilisée pour sélectionner la fréquence désirée du filtre répartiteur passe-bas. La fréquence peut être ajustée de 40 Hz à 220 Hz pour tous les modèles des graves, type monobloc. 8.
  • Page 22 PANEL LAYOUT Disposition du panneau de l’amplificateur 2 canaux WET75.2 WET75.2 PRESENTATION DU PANNEAU Présentation du panneau de l’amplificateur monobloc WET500.1 WET500.1 M T X . C O M...

  • Page 23: Schema De Cablage

    1. Débranchez le câble négatif de la batterie du véhicule. 2. Déterminer le lieu de montage de votre amplificateur MTX. Gardez à l’esprit qu’il devrait y avoir débit d’air suffisant pour un bon refroidissement. Marquez les trous de montage de l’amplificateur d’être foré.

  • Page 24: En Cas De Difficulte

    INSTALLATION Pour la bonne exécution et de la sécurité MTX recommande d’installer un fusible en ligne par les instructions du mode d’emploi selon la formule suivante. THUNDER1000.1 - 100A Fusible WET500.1 - 60A Fusible WET75.4 - 60A Fusible EN CAS DE DIFFICULTE Problème...

  • Page 25: Caracteristiques Techniques

    CARACTERISTIQUES TECHNIQUES Modèle WET500.1 WET75.2 WET75.4 Description 500 W eff. mono 2 x 75 W eff. 4 x 75 W eff. Puissance eff. à 14,4 V Charge 1 Charge 2 500 W eff. 2 x 100 W eff. 4 x 100 W eff. Charge 4 300 W eff.

  • Page 26: Wiring Diagram

    WIRING DIAGRAM Mono Block Amplifier Wiring (Single Subwoofer Load) FUSE Remote Signal 2 Ohm Minimum Source Unit RCA Signal M T X . C O M...
  • Page 27 WIRING DIAGRAM Mono Block Amplifier Wiring (Multi-Subwoofer Load) Remote Signal FUSE Source Unit RCA Signal NOTE: Equivalent parallel woofer load cannot be less than the minimum load rating. The two negative terminals are paralleled inside the amplifiers, as are the two positive terminals. These are monoblock amplifiers, not multi-channel amplifiers.
  • Page 28 WIRING DIAGRAM WET75.4 Amplifier Wiring (4-Channel Mode) Crossover Crossover FUSE Crossover Remote Signal Source Unit Crossover RCA Signal RCA Signal M T X . C O M...
  • Page 29 WIRING DIAGRAM WET75.4 Amplifier Wiring (3-Channel Mode) Crossover Crossover FUSE Remote Signal Source Unit 4-Ohm to 8-Ohm RCA Signal RCA Signal M T X . C O M...
  • Page 30 WIRING DIAGRAM WET75.2 Amplifier Wiring (2-Channel Mode) Crossover Crossover FUSE Remote Signal Source Unit RCA Signal RCA Signal M T X . C O M...
  • Page 31 NOTES: M T X . C O M...
  • Page 32 N535 ©2014 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice. MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A.
