NEC MultiSync 75F-3 Service Manual page 51

RESET/3V3
LATCH
Watchdog Timer Reset
CPU
R
Low VDD Reset
VDD
Peripheral
Circuits
Address
2.048ms
Illegal Address Reset
6MHz
Timer

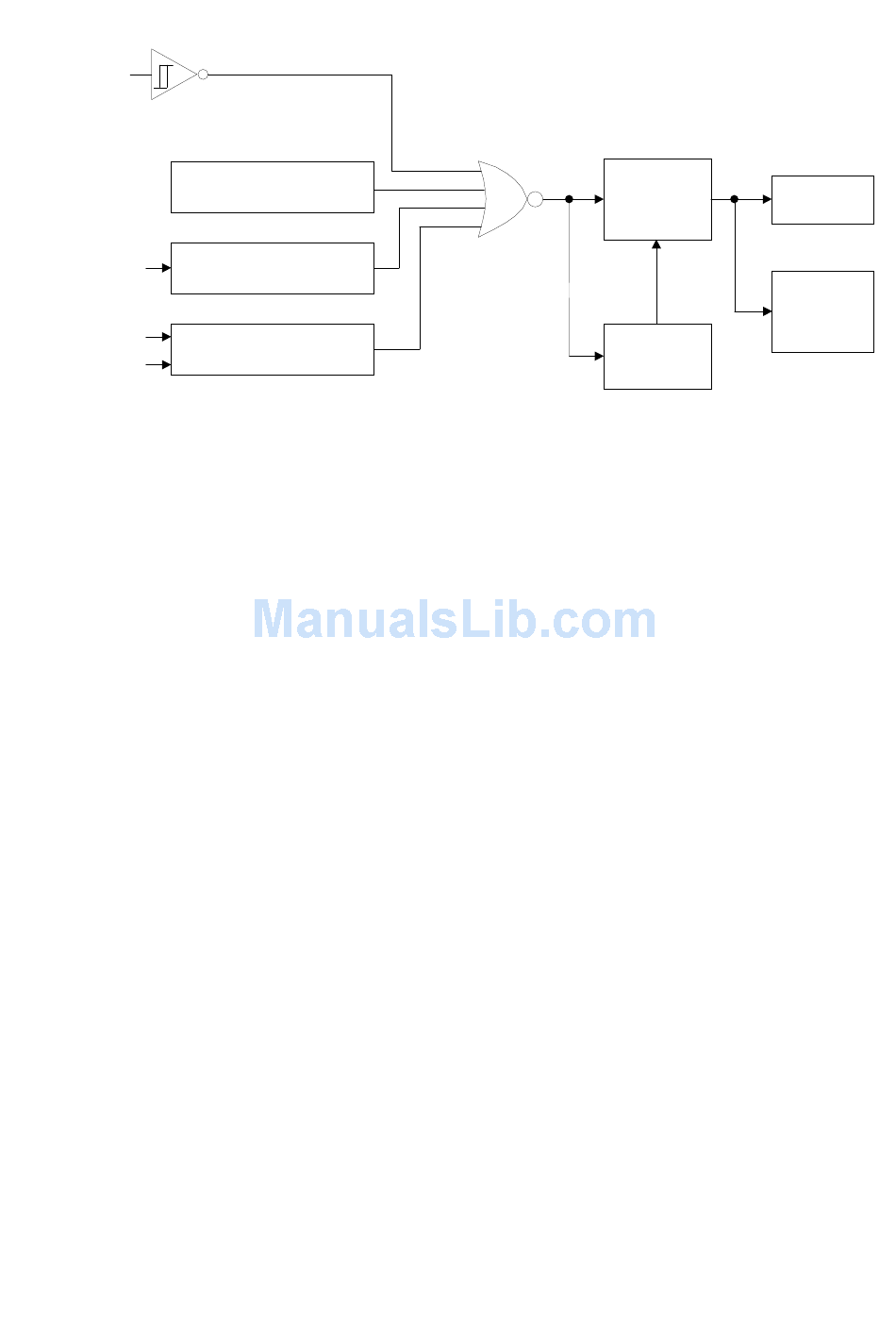

Fig. 1 Reset Signals
External Reset
A low level on the RESET/3.3V pin will generate reset.
Illegal address Reset
When the address bus of CPU goes to illegal address, a reset pulse will be generated.
The illegal address is defined as $0040h~$007Fh, $0300h~$0FFEh and $1000h~$7FFFh.
Low VDD Voltage Reset
When VDD is below 3.9V, an internal reset signal is generated. The reset signal will last 2.048 ms after
the voltage is higher than 3.9V.
Watchdog Timer Reset
If a time-out happens when watchdog timer is enabled, a reset pulse is generated. Please refer watchdog
timer section for more information.
48
