Detergent
Bottle
Fig. 1
Fig. 2
Fig. 3
Pump
High Pressure Hose
Fig. 4
Fig. 5
Trigger
Fig. 6

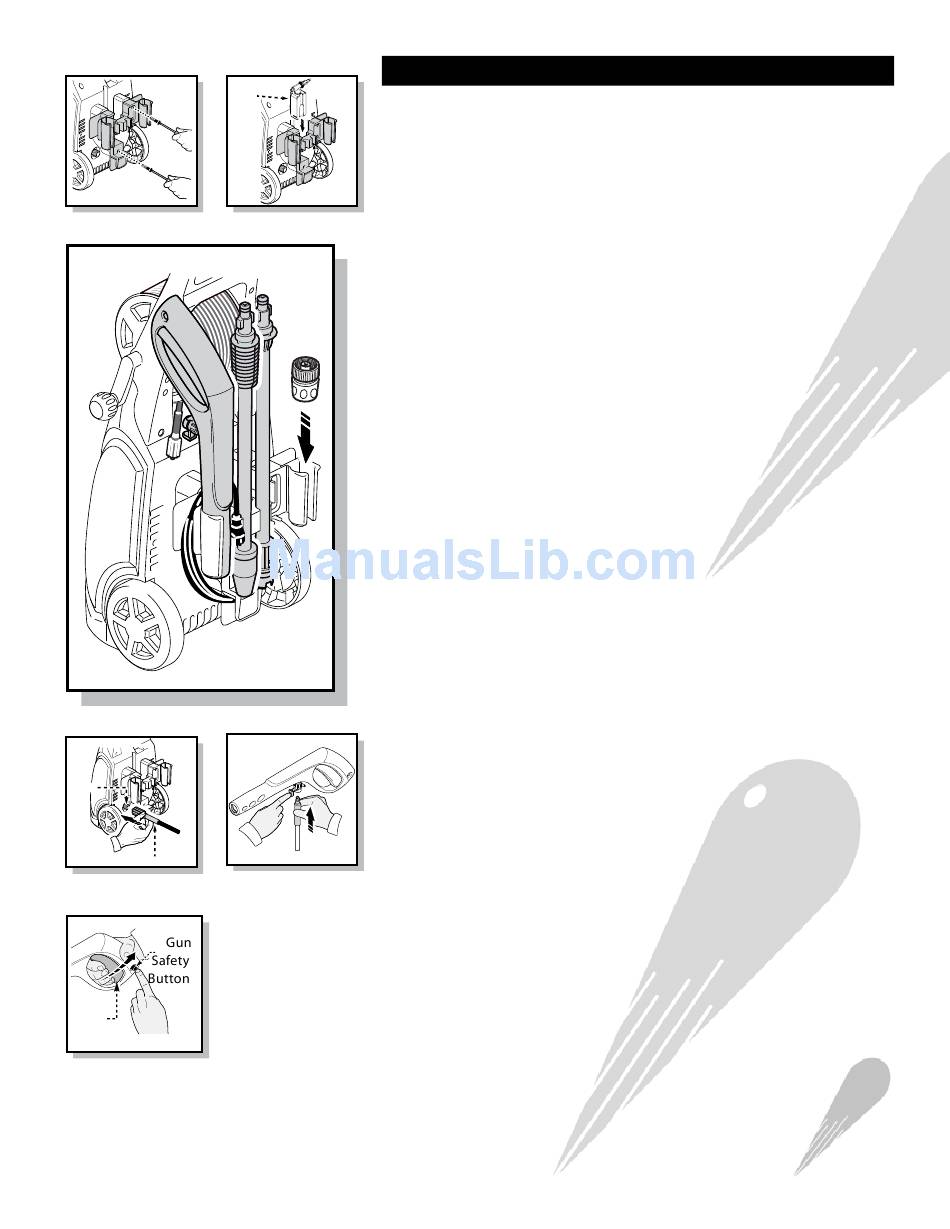

UNPACKING & ASSEMBLY
•
After unpacking the BLUE CLEAN POWER WASHER, lay out parts
and accessories. Familiarize yourself with the parts in the package
by comparing them to those listed on the "PACKAGE CONTENTS"
page.
•
The BLUE CLEAN POWER WASHER requires some minor
assembly. You'll need a Phillips screwdriver to install the accessory
holders .
•
Install the accessory holder on the back of your BLUE CLEAN
POWER WASHER (Fig. 1). You'll notice where the accessory
holder meets the back of the unit. You will see several male index
posts which fit into female holes. The posts and holes enable easy
placement of the accessory holder and easy tightening of the
screws. Place the screws in the holes provided on the accessory
GHA
holder and screw them in. Do not use a power screwdriver. When
the screw is completely tight, give a small final clockwise twist of
the screwdriver. Do not over tighten. After the accessory holder is
installed you will notice a square area in the center of the holder
where the square detergent bottle may be stored and easily retrieved
(Fig. 2).
•
Using one of the supplied screws, install the small electric power
cord holder below the accessory holder so that the "L" - shaped
holder faces downward. The electric power cord can now be wrapped
around the accessory holder and the bottom "L" - shaped holder
while your power washer is not in use (Fig. 1).
•
Please refer to (Fig. 3) for accessory storage locations on the
accessory holder.
High Pressure Hose
•
Screw the high pressure hose (clockwise) on the back of the unit
at the bottom (Fig. 4). The end of the hose must be inserted into
the water outlet far enough so the collar can thread onto the outlet
threads until hand tight. Do not use pliers or vice grips to tighten. If it
takes fewer than six or so turns you have not properly tightened the
high pressure hose fitting. It is easier to position the power washer in
front of you so to ensure that the threads are started correctly. Failure
to properly tighten the high pressure hose will result in the hose
slipping or popping off immediately upon turning the unit on. Do not
worry about damage if this occurs - just reinstall and take extra care
at screwing on the high pressure hose fitting.
•
Connect the other end of the high pressure hose to the spray gun by
inserting the brass metal tip of the high pressure hose into the fitting
just ahead of the trigger guard. It will lock into the spray gun with
a "click" (Fig. 5). Confirm the hose is locked into the spray gun by
pulling slightly on the hose. The hose is now securely attached to the
spray gun.
•
To release the hose from the spray gun, press the blue button on the
underside of the gun toward the trigger guard. The hose will slide out
from the connection.
Spray Gun
•
To lock the trigger of the spray gun aim the gun away from you and
push the lock button from right to left, (Fig. 6), after doing so, squeeze
or pull the trigger to make sure it is locked and will not move. Get in
the habit of leaving the lock button in the "locked" position when the
power washer is not in use. This ensures the gun is in "safe" mode
until it is ready for use.
7
