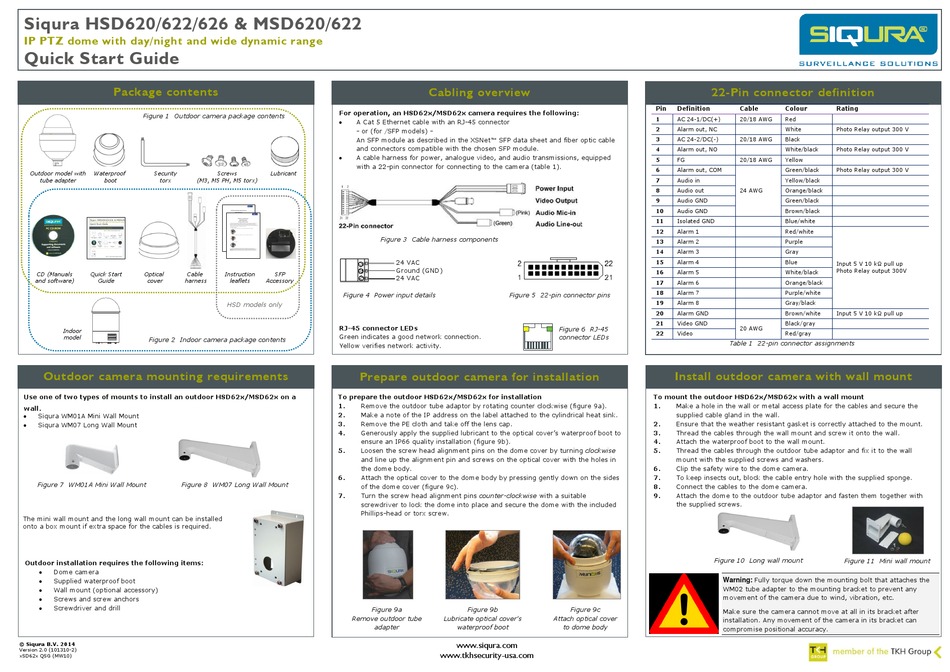

Siqura HSD620/622/626 & MSD620/622
IP PTZ dome with day/night and wide dynamic range
Quick Start Guide
Package contents
Figure 1 Outdoor camera package contents
Outdoor model with
Waterproof
Security
tube adapter
boot
torx
(M3, M5 PH, M5 torx)
CD (Manuals
Quick Start
Optical
Cable
and software)
Guide
cover
harness
Indoor
model
Figure 2 Indoor camera package contents
Outdoor camera mounting requirements
Use one of two types of mounts to install an outdoor HSD62x/MSD62x on a
wall.
Siqura WM01A Mini Wall Mount
Siqura WM07 Long Wall Mount
Figure 7 WM01A Mini Wall Mount
Figure 8 WM07 Long Wall Mount
The mini wall mount and the long wall mount can be installed
onto a box mount if extra space for the cables is required.
Outdoor installation requires the following items:
Dome camera
Supplied waterproof boot
Wall mount (optional accessory)
Screws and screw anchors
Screwdriver and drill
© Siqura B.V. 2014
Version 2.0 (101310-2)
xSD62x QSG (MW10)
For operation, an HSD62x/MSD62x camera requires the following:
A Cat 5 Ethernet cable with an RJ-45 connector
- or (for /SFP models) -
An SFP module as described in the XSNet™ SFP data sheet and fiber optic cable
and connectors compatible with the chosen SFP module.
A cable harness for power, analogue video, and audio transmissions, equipped
with a 22-pin connector for connecting to the camera (table 1).
Screws
Lubricant
Figure 3 Cable harness components
24 VAC
Ground (GND)
Instruction
SFP
24 VAC
leaflets
Accessory
Figure 4 Power input details
HSD models only
RJ-45 connector LEDs
Green indicates a good network connection.
Yellow verifies network activity.
Prepare outdoor camera for installation
To prepare the outdoor HSD62x/MSD62x for installation
1.
Remove the outdoor tube adaptor by rotating counter clockwise (figure 9a).
2.
Make a note of the IP address on the label attached to the cylindrical heat sink.
3.
Remove the PE cloth and take off the lens cap.
4.
Generously apply the supplied lubricant to the optical cover's waterproof boot to
ensure an IP66 quality installation (figure 9b).
5.
Loosen the screw head alignment pins on the dome cover by turning clockwise
and line up the alignment pin and screws on the optical cover with the holes in
the dome body.
6.
Attach the optical cover to the dome body by pressing gently down on the sides
of the dome cover (figure 9c).
7.
Turn the screw head alignment pins counter-clockwise with a suitable
screwdriver to lock the dome into place and secure the dome with the included
Phillips-head or torx screw.
Figure 9a
Remove outdoor tube
adapter
Cabling overview
Figure 5 22-pin connector pins
Figure 6 RJ-45
connector LEDs
Figure 9b
Figure 9c
Lubricate optical cover's
Attach optical cover
waterproof boot
to dome body
www.siqura.com
www.tkhsecurity-usa.com
22-Pin connector definition
Pin
Definition
Cable
Colour
1
AC 24-1/DC(+)
20/18 AWG
Red
2
Alarm out, NC
White
3
AC 24-2/DC(-)
20/18 AWG
Black
4
Alarm out, NO
White/black
5
FG
20/18 AWG
Yellow
6
Alarm out, COM
Green/black
7
Audio in
Yellow/black
8
Audio out
24 AWG
Orange/black
9
Audio GND
Green/black
10
Audio GND
Brown/black
11
Isolated GND
Blue/white
12
Alarm 1
Red/white
13
Alarm 2
Purple
14
Alarm 3
Gray
15
Alarm 4
Blue
16
Alarm 5
White/black
17
Alarm 6
Orange/black
18
Alarm 7
Purple/white
19
Alarm 8
Gray/black
20
Alarm GND
Brown/white
21
Video GND
Black/gray
20 AWG
22
Video
Red/gray
Table 1 22-pin connector assignments
Install outdoor camera with wall mount
To mount the outdoor HSD62x/MSD62x with a wall mount
1.
Make a hole in the wall or metal access plate for the cables and secure the
supplied cable gland in the wall.
2.
Ensure that the weather resistant gasket is correctly attached to the mount.
3.
Thread the cables through the wall mount and screw it onto the wall.
4.
Attach the waterproof boot to the wall mount.
5.
Thread the cables through the outdoor tube adaptor and fix it to the wall
mount with the supplied screws and washers.
6.
Clip the safety wire to the dome camera.
7.
To keep insects out, block the cable entry hole with the supplied sponge.
8.
Connect the cables to the dome camera.
9.
Attach the dome to the outdoor tube adaptor and fasten them together with
the supplied screws.
Figure 10 Long wall mount
Fully torque down the mounting bolt that attaches the
Warning:
WM02 tube adapter to the mounting bracket to prevent any
movement of the camera due to wind, vibration, etc.
Make sure the camera cannot move at all in its bracket after
installation. Any movement of the camera in its bracket can
compromise positional accuracy.
Rating
Photo Relay output 300 V
Photo Relay output 300 V
Photo Relay output 300 V
Input 5 V 10 kΩ pull up
Photo Relay output 300V
Input 5 V 10 kΩ pull up
Figure 11 Mini wall mount
