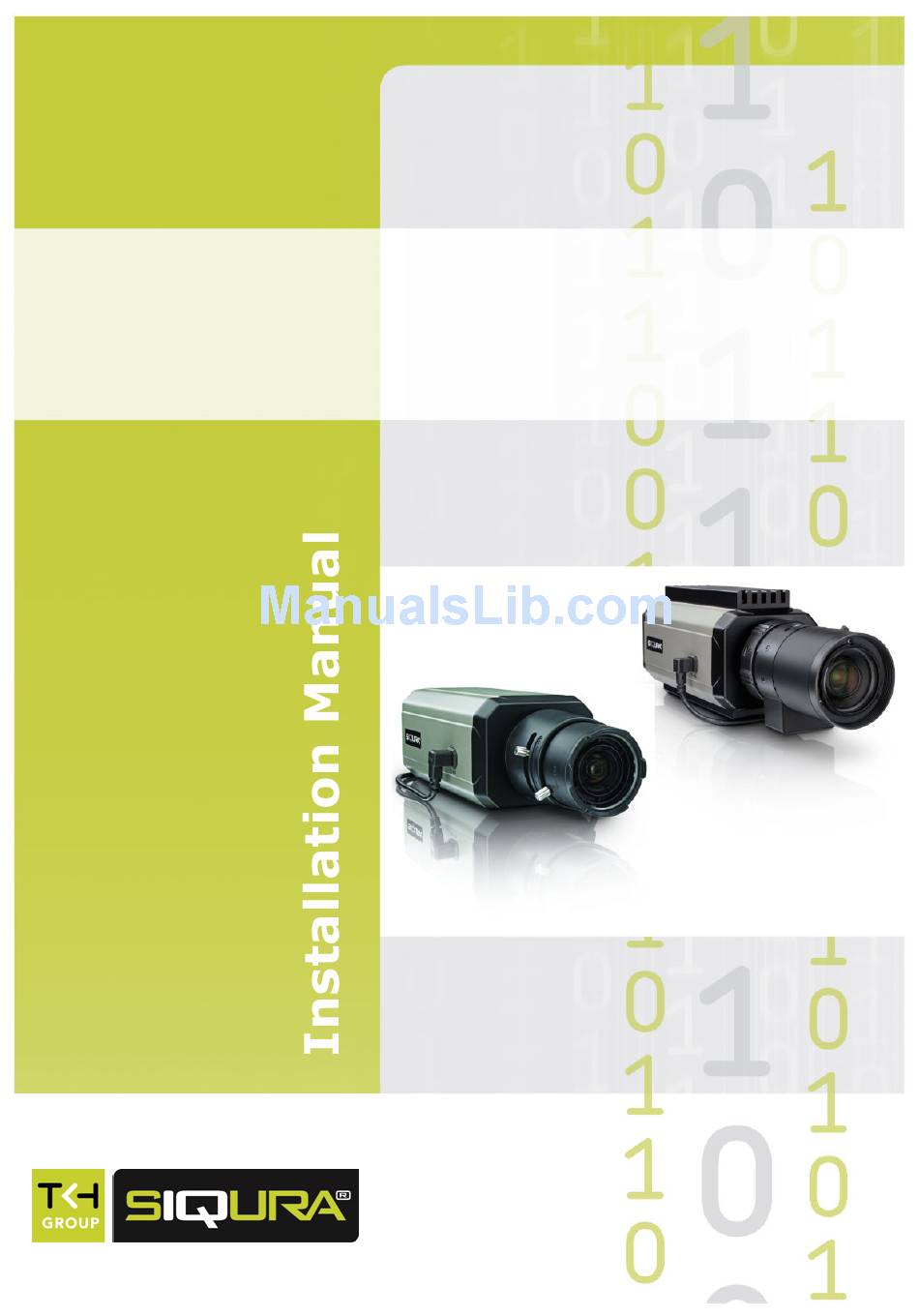

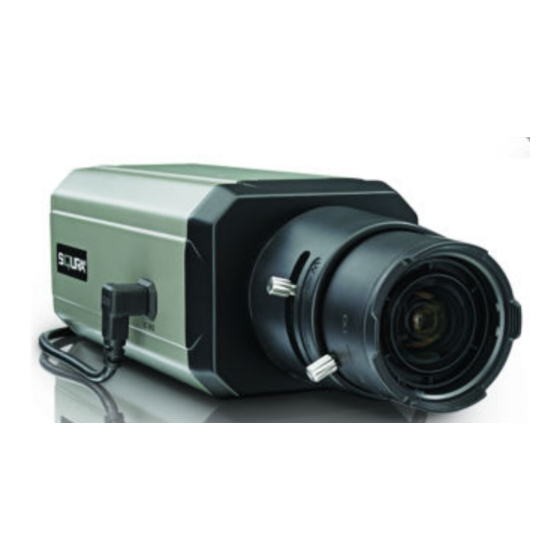

- Page 1 BC840 Series Full HD IP box camera with embedded analytics...
- Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 3: Table Of Contents
Contents About this manual ..................Safety and compliance ................Safety ....................Cautions ..................... Compliance ..................Product overview ..................Models ....................Features ..................... Package contents ................. Dimensions ..................Back panel ....................Features and indications ............... Cable connection ..................Connect audio ..................Connect data RS-485 ................ -
Page 4: About This Manual
About this manual What this manual covers This manual describes how to install the BC840, Siqura's full HD IP box camera with embedded analytics. For configuration and operation instructions, refer to the User Manual. Who should read this manual This manual is intended for technicians involved in the installation of BC840 cameras. -
Page 5: Safety And Compliance
Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the module. Siqura assumes no liability for the customer's failure to comply with any of these safety requirements. - Page 6 Safety and compliance Power source and temperature ratings Verify that the power source is appropriate before you plug in and operate the unit. Use the unit under conditions where the temperature remains within the range given in the Technical Specifications of this product. Optical safety The following optical safety information applies to BC840 models with SFP interface.
-
Page 7: Cautions
European Union (EU) to enact the Directive on the Restriction of the use of certain Hazardous Substances (RoHS) (2002/95/EC). Siqura offers products that comply with the EU’s RoHS Directive. The full version of the Siqura RoHS statement can be viewed at www.siqura.com. -
Page 8: Compliance
Safety and compliance Compliance... -
Page 9: Product Overview
This chapter introduces the BC840 and its features. In This Chapter 3.1 Models........................9 3.2 Features......................10 3.3 Package contents....................11 3.4 Dimensions......................12 Models The BC840 series includes the following models. Model Description BC840-AID Network box camera, 1080p, CMOS, dual H.264, Automatic Incident Detection BC840-AID/SFP Network box camera, 1080p, CMOS, dual H.264, Automatic... -
Page 10: Features
Product overview Features BC840 Series Common features ● 1/2.8” Progressive scan CMOS imager ● Full HD 1080p resolution ● ONVIF Profile S ● Day/Night with IR-cut filter ● Wide dynamic range ● Backlight compensation ● Alarm: two inputs / two outputs ●... -
Page 11: Package Contents
Product overview BC840-PID-XT Features ● Common features (see above) ● Built-in analytics for perimeter intrusion detection (PID) ● Hardened: -40 °C to +75 °C (-40 °F to +167 °F) Package contents ç lens not included è BC840-AID / BC840-PID BC840-PID-XT C mount lens adapter 2-Pin terminal block 5-Pin terminal block (2x) -
Page 12: Dimensions
Product overview Dimensions BC840-AID and BC840-PID dimensions BC840-PID-XT dimensions... -
Page 13: Back Panel
Back panel This chapter describes the connectors and other features on the back panel of the BC840. In This Chapter 4.1 Features and indications..................13 Features and indications BC840 back panel No. Item Description CC IN/OUT Connector for digital I/O : GND ┴... - Page 14 Network connector RJ-45 with 802.3af PoE SFP connector (on SFP model) Used for direct connection to fiber optic cabling or coax (via Siqura ECO-plug) Reset button Press and hold for 10 sec. to reset to factory defaults (incl. network settings).
-
Page 15: Cable Connection
Cable connection This chapter explains how to connect power and signal cables. In This Chapter 5.1 Connect audio...................... 15 5.2 Connect data RS-485.....................15 5.3 Connect digital I/O....................16 5.4 Power the camera....................17 5.5 Connect to network....................17 5.6 Use the analogue video output................18 Connect audio The BC840 camera supports two-way audio. -
Page 16: Connect Digital I/O
Cable connection CC/DATA connector Data pin definitions Data specifications DATA IN + ● 1x RS-422/485 (2- or 4-wire) ● 300 b/s to 230.4 kbps DATA IN – DATA OUT + DATA OUT – RS-485 definitions Note: For 2-wire RS-485 use pins 6 and 7. Connect digital I/O The BC840 is equipped with two digital inputs and two digital outputs for alarm applications. -
Page 17: Power The Camera
Cable connection Power the camera BC840 series cameras support 12 Vdc and 24 Vac via terminal block, and Power over Ethernet (802.3af PoE). To power the camera via terminal block Connect the leads from a 12 Vdc or 24 Vac power supply (not included) to the supplied terminal block in accordance with the connection assignments on the back panel of the camera. -
Page 18: Use The Analogue Video Output
Cable connection Ethernet socket LEDs green/yellow Green on/off : 100/10 Mbit Yellow on/blink : link OK, active Yellow off/flash : link down, TX attempt Use the analogue video output With its analogue output, the hybrid BC840 solution can provide local video for a public view monitor. -
Page 19: Mount The Lens And The Camera
Mount the lens and the camera This chapter provides instructions for mounting a lens onto the camera. It also explains how to mount the camera on a wall or ceiling. In This Chapter 6.1 Mount the lens......................19 6.2 Mount the camera....................20 6.3 BC840-PID-XT Installation guidelines...............20 6.4 PID Camera installation.................. -
Page 20: Mount The Camera
BC840 with mounting block BC840-PID-XT Installation guidelines The Siqura BC840-PID-XT is a temperature-hardened HD box camera with Perimeter Intrusion Detection. The camera has been designed to function properly within a temperature range of -40 °C to 75 °C. We strongly advise you to observe the following guidelines when you install the camera. -
Page 21: Pid Camera Installation
Control (AGC) of the camera to adjust, leaving a darker image in which objects are to be detected. Warning: For optimal PID performance and a stable and reliable detection system, it is essential that installers meticulously follow the detailed installation instructions and lighting guidelines provided in Siqura's PID Camera Installation application note. -
Page 22: System
Internet Explorer 8 or later, Firefox, Chrome, Safari Network card 10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation Viewer ActiveX control plug-in for Microsoft IE System compatibility To ensure system compatibility, download the latest firmware from Support > Software at www.siqura.com. -
Page 23: Appendix: Use Focus Assist
Appendix: Use focus assist BC840 includes Focus Assist functionality to achieve optimal image quality. Focus Assist can be used from the Video page but also from the back of the camera body. The latter may prove useful when setting the focus without a monitor. To use Focus Assist from the webpage On the Video page, select the Image tab. -
Page 24: Appendix: Adjust Back Focus
Appendix: Adjust back focus Back focus refers to the distance from the rear lens element to the camera focal plane. It is only necessary to adjust the back focus if the lens of the camera cannot hold focus throughout its zoom range. Required tools ●... -
Page 25: Index
Index About this manual........4 Appendix: Adjust back focus....24 Appendix: Use focus assist.......23 Back panel..........13 BC840-PID-XT Installation guidelines..20 Cable connection........15 Cautions..........7 Compliance..........8 Connect audio........15 Connect data RS-485......15 Connect digital I/O........16 Connect to network.........17 Dimensions..........12 Features..........10 Features and indications......
