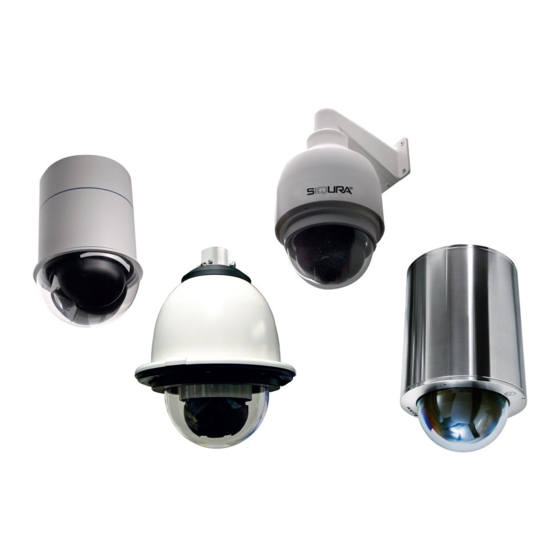

Siqura HSD62x User Manual

Ip ptz camera with dual h.264
Hide thumbs
Table of Contents

Advertisement

Quick Links

HSD62x
Firmware Version 4.14
IP PTZ Camera with dual H.264

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSD62x and is the answer not in the manual?

Questions and answers

Related Manuals for Siqura HSD62x

Summary of Contents for Siqura HSD62x

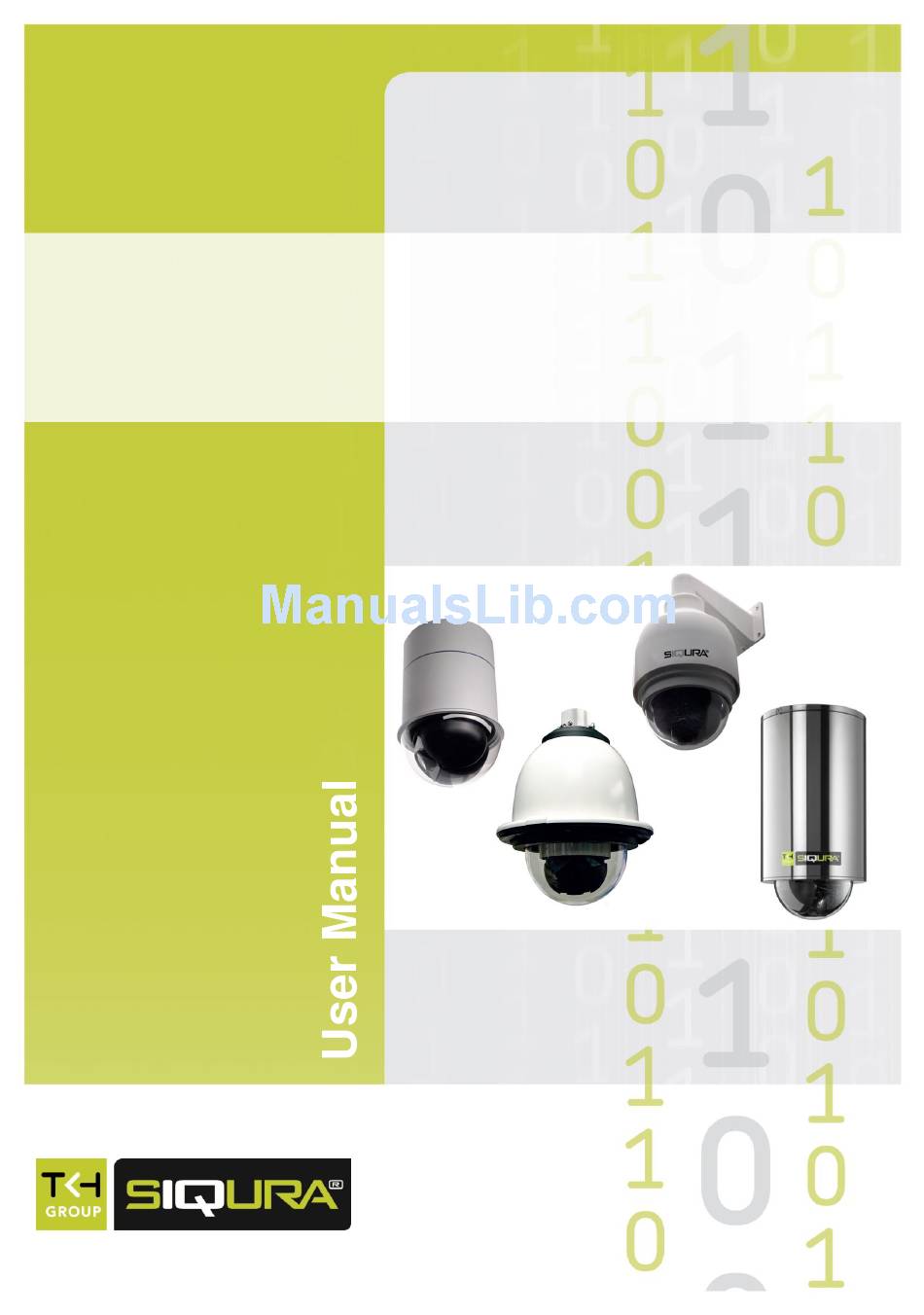

  • Page 1 HSD62x Firmware Version 4.14 IP PTZ Camera with dual H.264...
  • Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.

  • Page 3: Table Of Contents

    Contents ABOUT THIS MANUAL ..........................9 SAFETY AND COMPLIANCE ........................11 ..............................11 AFETY ............................14 OMPLIANCE PRODUCT DESCRIPTION ......................... 15 ..............................15 ODELS ..........................17 RODUCT OVERVIEW ..........................19 EATURES UMMARY INTERFACES ............................21 ONVIF ..............................21 OSA ............................... 21 UI ..............................
  • Page 4 Contents 10.1 ........................... 41 ETWORK SETTINGS 10.2 ............................... 42 DVANCED 10.2.1 Services ............................42 10.2.2 Network ............................42 VIDEO ..............................43 11.1 ........................44 IDEO ENCODING OVERVIEW 11.2 ..............................45 ENERAL 11.2.1 Video Settings ..........................45 11.2.2 Camera module configuration ..................... 47 11.2.3 Encoder Priorities .........................
  • Page 5 Contents 11.9.2 General............................85 11.9.3 FTP server ............................. 86 11.9.4 Event management ........................87 11.9.5 Monitor and troubleshoot FTP Push .................... 87 11.10 ..........................88 MAGE ONITOR 11.10.1 Image quality check ........................88 11.10.2 Enable the Image Monitor ......................89 11.10.3 Dial legend ...........................
  • Page 6 18.4 MX ..............................134 18.4.1 MX/IP ............................134 18.4.2 MX Notifications ........................134 18.5 ............................ 135 ISCOVERY 18.5.1 Advertise the HSD62x ......................... 135 18.5.1.1 Note ............................... 135 18.6 ONVIF ..............................136 18.6.1 Note ............................136 18.7 ............................. 137 IRMWARE 18.7.1 Firmware images ........................
  • Page 7 CAMERA CONFIGURATION VIA THE ON-SCREEN MENU ............... 157 23.1 ..................... 158 ISPLAYING AMERA ARAMETERS ON CREEN 23.2 .......................... 159 CREEN 23.2.1 Siqura HSD620/620PRH/622...................... 159 23.2.2 Siqura HSD621PRH/626/626EXP....................163 23.3 ....................... 167 CREEN ESCRIPTION 23.3.1 Main Page 1 ..........................167 23.3.1.1 Language ............................... 167 23.3.1.2...
  • Page 8 Contents 23.3.4.4 Preset ..............................177 23.3.4.5 Sequence ............................... 178 23.3.4.6 Autopan ..............................179 23.3.4.7 Cruise ..............................180 23.3.4.8 Home Setting ............................181 23.3.5 Main Page 3 ..........................182 23.3.5.1 IR Function ............................. 182 23.3.5.2 Alarm Setting ............................183 23.3.5.3 Alarm Detect ............................184 23.3.5.4 WDR Function ............................

  • Page 9: About This Manual

    This manual is intended for technicians and operators involved in the configuration and operation of HSD62x cameras. What you should already know To work with a HSD62x a technician or operator should have adequate knowledge and skills in the following fields: Basic understanding of camera technologies ...
  • Page 10 HSD62x Acknowledgement Siqura units use the open-source Free Type font-rendering library. Page 10...

  • Page 11: Safety And Compliance

    Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the module. Siqura assumes no liability for the customer's failure to comply with any of these safety requirements.
  • Page 12 Specifications of this product. Optical safety The following optical safety information applies to HSD62x models with SFP interface only. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. This optical equipment contains Class 1M lasers or LEDs and...
  • Page 13 European Union (EU) to enact the Directive on the Restriction of the use of certain Hazardous Substances (RoHS) (2002/95/EC). Siqura offers products that comply with the EU’s RoHS Directive. The full version of the Siqura RoHS statement can be viewed at www.siqura.com.

  • Page 14: Compliance

    HSD62x Compliance Page 14...

  • Page 15: Product Description

    Product Description The HSD62x cameras are networked high-speed PTZ dome cameras designed to deliver superb performance and durability with an intelligent and stylish housing suitable in any security and surveillance installation. This chapter introduces the individual camera models and their features.
  • Page 16 HSD62x Siqura HSD621PRH  Quad stream support: dual H.264, MPEG-2, MPEG-4, and MJPEG  35x Optical zoom/12x digital zoom  Day/Night with IR-cut filter  Backlight compensation  400°/second preset targeting  256 presets/8 programmable cruises  Compass, azimuth and elevation OSD ...

  • Page 17: Product Overview

    Multicodec and multistreaming The HSD62x is capable of streaming 2x H.264 at full frame rate. It can also stream 2x MPEG-2, MPEG-4, or MJPEG simultaneously. Each stream is optimised for its purpose: high-quality H.264 or MPEG-2 for live viewing, low-bandwidth MPEG-4 for storage, or easy-to-decode MJPEG for web applications and remote devices.

  • Page 18: Web Interface

    FTP push Upon an event, the HSD62x can push a JPG image to one or two FTP servers. The event can be triggered externally by VMD, the Image Monitor, or Tamper Detect. The HSD62x can also periodically upload images to the remote server(s).

  • Page 19: Features Summary

    Product Description Analogue output With its analogue output, the hybrid HSD62x solution can provide local video for a public view monitor or local DVR. Fiber interface accessory A fiber option is available for direct connection of fiber to the dome via a flexible SFP interface.

  • Page 21: Interfaces

    Web UI Using the HSD62x's web server is the most straightforward way to access the unit. The webpages enable you to configure the settings of the HSD62x and view live video images from a standard web browser. Page 21...

  • Page 22: Mx/Ip

    For more information, refer to appropriate literature on SNMP. The HSD62x supports in-band SNMP. Via SNMP, several status variables can be read and traps can be generated on events. You can configure HSD62x SNMP settings on the SNMP tab of the Device Management page.
  • Page 23 Interfaces The HSD62x supports the standard NTCIP SNMP MIB. This MIB database is used to store information, which in turn will be used to control cameras and other devices in the transportation management system. An electronic version of the MIB is available from a NEMA FTP site. To get access to the FTP site, send your name, organisation name, and email address to ntcip@nema.org, and request access.

  • Page 25: Media Streaming Via Rtsp

    Media streaming via RTSP The easiest way to extract a video or audio stream from the HSD62x is to use the Real-Time Streaming Protocol (RTSP). This chapter explains the role of the HSD62x in RTSP media sessions and describes how to open a media stream from the unit in a video player plug-in.

  • Page 26: Transfer Via Udp Or Tcp

    TCP/IP (RTP, RTP over RTSP, RTP over RTSP over HTTP)  The HSD62x reports to the client that it supports transfer over UDP and TCP. The choice is made on the client side. In VLC, for example, using a TCP connection can be forced (Preferences >...

  • Page 27: Access The Webpages

    Type the IP address of the HSD62x in the address bar of the browser Find the unit with Siqura Device Manager With Siqura Device Manager - a tool included on the supplied Siqura Product CD - you can locate, manage, and configure Siqura IP cameras and video encoders.
  • Page 28 Use the tabs in the Tree View pane to define the scope of your search. Click the column headings in the List View pane to sort devices by type, IP address, or name. To connect to the webpages of the HSD62x, double-click its entry in the device list, - or -...

  • Page 29: Connect Via Upnp

    Access the webpages Connect via UPnP Universal Plug and Play (UPnP) support is enabled by default on the HSD62x. With the UPnP service enabled in Windows (see Appendix: Enable UPnP in Windows 7), you can access the unit from Windows Explorer.
  • Page 30 HSD62x Access possible with default Admin account only (default Admin password unchanged) Access possible with the user account created for you (default Admin password has been changed) Connect dialogue box Page 30...

  • Page 31: Navigate The Webpages

    HSD62x.  Live Video Click to log out the current user and display the Login box.  Logout HSD62x menus available to (from left to right) Admin, Operator, and Viewer accounts Page 31...

  • Page 32: Access Control

    HSD62x Access control Whether a specific HSD62x webpage is available to you on the navigation menu depends on the user account you logged in with. The unit supports three account types with associated access levels. Account User rights Admin Full access to all pages. Create, edit, and delete user accounts on User Management page.

  • Page 33: View Live Video Via Browser

    View live video via browser On the Live Video page, you can view live video from the HSD62x. You can also use this page for PTZ operation of the HSD62x. In This Chapter Activate Live View .............. 33 View live video ..............34 Use your browser for PTZ control .........

  • Page 34: View Live Video

    HSD62x View live video Live View activated With Live View enabled, the Live Video page has the following items. Item Description <<Stop Live View Closes the preview. Encoder Encoder 1 The video encoder used to encode the images seen in the preview.

  • Page 35: Use Your Browser For Ptz Control

    Audio Disabled warning Use your browser for PTZ control The PTZ Control panel on the right of the preview can be used for PTZ operation of the HSD62x. The panel is divided into three sections: PTZ Control, Preset, and On Screen Menu.
  • Page 36 HSD62x Preset Use the Preset section to define and recall preset camera positions.  To enter and save a preset camera position Click the appropriate number button(s) to enter the preset number. Adjust the position of the camera for the desired view.

  • Page 37: Status

    Status The status information and measurements on the Status page may provide helpful clues to identify and troubleshoot technical issues. In This Chapter View status information ............37 View measurements data ............ 39 View status information Status page: a snapshot with automatic page updating Page 37...

  • Page 38: Stream States

    HSD62x 9.1.1 Stream states The Status tab provides information on the stream states of video and audio streams. A stream state is reported as Idle, Waiting, or OK. Stream state Description There is nothing wrong with the stream. Note that if the video signal is removed from the video input on the encoder side, the Decoder rx state is still reported as OK, since the video transmitter is sending a stream, that is - a No Video image - to the decoder.

  • Page 39: View Measurements Data

    Status View measurements data Status > Measurements 9.2.1 General, network, and stream measurements The Measurements tab shows general measurements, such as the module temperatures (current and peak) and the module uptime. You also find network specifics here, such as the MAC address, the actual IP address, the network load from this module, the load information per processor, and signal stream-specific details.

  • Page 41: Network

    Network On the Network page, you can change the network settings of the HSD62x. In this chapter, you learn how to set a valid, fixed IP address and, alternatively, how to have an IP address automatically assigned by a DHCP server.

  • Page 42: Advanced

    Item Description RTSP server enable Select this check box to enable the HSD62x to act as a server in RTSP media sessions. RTSP server port This is the port number used to contact the RTSP server. The default transport layer port number for the RTSP protocol is 554 for both UDP and TCP transports.

  • Page 43: Video

    Video On the Video page, you can configure settings for video encoding, on-screen display, video motion detection, FTP push, image quality, tamper detect, and privacy masks. In This Chapter Video encoding overview ............. 44 General ................45 Encoder # ................. 48 H.264 - 1 ................

  • Page 44: Video Encoding Overview

    Video encoder tabs on the Video page Multicodec The HSD62x has a built-in, multicodec video server. Four separate video encoders (Encoder 1, Encoder 2, H.264 - 1, H.264 - 2) can convert the camera's analogue video signal into independent digital video streams with different resolutions and frame rates. Encoders 1 and 2 can both handle MPEG-2/4 and MJPEG encoding.

  • Page 45: General

    Video 11.2 General Video > General Settings on the General tab apply to all encoders. 11.2.1 Video Settings Item Description Video source Interlaced Interlaced scan, originating from traditional television systems, uses two fields to create a frame, one holding the odd lines in the image, the other holding the even ones.
  • Page 46 HSD62x Item Description Edge adaptive (E.A.D.) Pixels are interpolated along edges to remove the appearance of jagged edges. This is the recommended setting for making snapshots for face recognition purposes, for example. The best option is to experiment with the two deinterlacing methods Note: to achieve the highest quality image possible for your application.

  • Page 47: Camera Module Configuration

    Video 11.2.2 Camera module configuration Camera module configuration settings Item Description Day/night control Auto Ensures that even in minimal light, the camera still produces clear images. Under poor lighting conditions, the camera automatically becomes infrared sensitive by removing the IR-cut filter. Night Manual day/night control.

  • Page 48: Encoder

    Encoding mode MPEG-4, MPEG-2, or The method used to compress the analogue video input MJPEG signal. The HSD62x can stream (M)JPEG over UDP and HTTP.  To enable and configure UDP/MJPEG streaming, select MJPEG from the Encoding mode list and configure settings.
  • Page 49 Video Item Description Variable bit rate Keeps the image quality constant, with varying network load (from a few kb/s to 10 Mb/s or higher). The image quality is determined by the values set for the “Q min I” and “Q min P” parameters in the Advanced Settings section.

  • Page 50: Combinations Of Settings

    HSD62x Item Description The HSD62x will simultaneously handle dual H.264 encoding and Note: dual MPEG-2/4 encoding at full frame rate, and Live View encoding at 5 frames per second. Setting Encoders 1 and 2 to perform MPEG-2/4 encoding in D1 resolution at the same time may overtax the hardware. The total output bandwidth, including streams controlled by RTSP, and those enabled through SAP, should not exceed 25 Mb/s.

  • Page 51: Make A Video Connection

    Video 11.3.1.2 Notes 2CIF, CIF, QCIF use only one of the two frame fields. When Note on CIF resolutions: CIF-encoded pictures are displayed on a monitor, the decoder simulates the second field (by extrapolation from the first field) in order to present two frame fields. CIF is mostly used for recording purposes, as a compromise between good video quality and storage capacity needed.
  • Page 52 HSD62x  To configure the decoder settings Open the webpages of the decoder, go to the Video page, and select the Decoder tab. In the MX Receiver Settings section, specify the source IP address. This is the address of the video encoder which will transmit the video stream.

  • Page 53: Advanced

    Video 11.3.3 Advanced If in doubt about these settings, do not change the default values. Important: 11.3.3.1 Encoder Depending on the selected encoding mode, specific parameter values in this section are dimmed - that is, not available for configuration. MPEG-2 mode Video >...
  • Page 54 HSD62x MPEG-4 mode Video > Encoder # > Advanced > Encoder (MPEG-4 mode) Item Description VBR maximum bit rate Range: [0...15000]. Sets a limit for variable bit rate. Q min I Used to achieve consistent picture quality within a single GOP or across consecutive GOPs.
  • Page 55 Video MJPEG mode Video > Encoder # > Advanced > Encoder (MJPEG mode) Item Description VBR maximum bit rate Range: [0...15000]. Sets a limit for variable bit rate. Frame rate divider Relates to the frame rate configured in the Encoder Settings section. X-resolution Variables that enable you to freely set picture resolution instead of using the resolution presets in the Encoder Settings section.

  • Page 56: Stream Manager

    HSD62x 11.3.3.2 Stream Manager Video > Encoder # > Advanced > Stream Manager Balancing network load Peaks in the network load vary with encoder output. Use the Stream Manager to balance network load. It can limit the output rate per stream sent to the transmitters. Be warned that setting the Stream bandwidth limit to a lower value may introduce latency because peaks in the encoder output will be buffered.

  • Page 57: Transmitter

    UDP + RTP Default setting. Plain RTP stream over UDP. UDP + RTP + NKF Adds an extended RTP header for Siqura applications requiring extra information. RTP type Default value: [0]. This parameter determines the RTP payload format (e.g. H.264, MPEG-2/4, or audio).

  • Page 58: Rtsp Transmitter

    HSD62x 11.3.3.4 RTSP Transmitter Video > Encoder # > Advanced > RTSP Transmitter Item Description DSCP field Range: [0...63]. DSCP (Differentiated Services Code Point) uses the first 6 bits of the ToS (Type of Service) field in the header of IP packets for packet classification purposes.

  • Page 59: Sap Settings

    SAP announcer The HSD62x includes a SAP announcer. The Session Announcement Protocol is used to advertise that a media stream generated by the HSD62x is available at a specific multicast address and port. The HSD62x can send SAP multicast streams for its H.264, MPEG-2/4, and audio encoders. The video streams include audio if audio is enabled on the Audio webpage and if the multicast IP range is the same as for video.
  • Page 60 Enter/modify the values for Stream DSCP field, Multicast TTL, and Announcement Interval, if desired. Click Save The video stream can now be viewed in a media player, such as QuickTime or VLC. SAP example settings HSD62x SAP network stream opened via VLC Playlist Page 60...

  • Page 61: Meta Data Insertion

    This section provides a general explanation of meta data insertion as implemented in Note: Siqura products. The unit described in this manual, may or may not feature all of the media (e.g. audio, contact closure) and encoding formats included below.
  • Page 62 HSD62x Status 1 Video status Bit 0 (lsb) Video loss on input Bit 1 Black/white video Bit 2 VMD alarm Bit 3 Tampering alarm Bit 4 Image quality alarm (for future use, will be ‘0’) Bit 5 (for future use, will be ‘0’) Bit 6 Fixed ‘0’...

  • Page 63: Notes

    Video User defined text message This message can be defined and enabled by the user, using the Siqura Programming Interface API, for example. There is no maximum limit on the amount of characters. Considering that this data is part of a video stream, the maximum should be reasonable.
  • Page 64 HSD62x FloodGuard is a Siqura™ proprietary stream control mechanism that can Note on FloodGuard: be enabled/disabled independently for each video and sampled data transmitter. FloodGuard throttles the transmitter when it no longer receives control messages from the receiver, thereby preventing the transmitter from flooding the network.

  • Page 65: Encoder Settings

    Constant quality Keeps the image quality constant, with varying network load. See Constant Quality Mode (CQM) configuration (below) for Siqura's recommended strategy for controlling image quality. Constant bit rate Keeps network load constant at the cost of varying image quality. Frames may be skipped.
  • Page 66 176x120 VGA (640x480) and QVGA (320x240) are also supported. For more information on CIF resolutions, see below. The HSD62x will simultaneously handle dual H.264 encoding and Note: dual MPEG-2/4 encoding at full frame rate, and Live View encoding at 5 frames per second.

  • Page 67: Constant Quality Mode Configuration

    Constant Quality mode (CQM) can be used in situations with intermittent increases of movement in camera images. This mode provides better pictures when quickly panning a PTZ camera, for example. Siqura recommends the following strategy for Constant Quality mode configuration. ...

  • Page 68: Mx Transmitter Settings And Making Video Connections

    HSD62x Profile Settings H.264 - High quality - Storage (250K CBR) Max bit rate: n/a Bit rate: 250 kbit/s Mode: Constant bit rate Quality: n/a Resolution: 2 CIF GOP: 25 Frame rate divider: 2 Stream bandwidth limit: 20000 kbit/s H.264 - High quality - PTZ (VBR 6.0M max)

  • Page 69: Advanced

    Video SDP download Use the SDP Download button to download a Session Description Protocol (SDP) file from the encoder. SDP files contain streaming media initialisation parameters and properties. An SDP file does not deliver media itself but through file association the media stream can be opened in media players such as QuickTime and VLC.

  • Page 70: Stream Manager, Transmitter #, Rtsp Transmitter, And Sap

    HSD62x Item Description Force frame mode If Force frame mode is enabled, the H.264 video stream is compressed and sent using entire frames (Frame mode). If disabled, the stream is compressed and sent using entire frames or the separate fields (Field mode).

  • Page 71: Edge Recording

    Video 11.5 H.264 - 2 Video > H.264 - 2 11.5.1 Edge recording Configuring H.264 - 2 encoder settings is done in the same way as for encoder H.264 -1. It is important to bear in mind, however, that edge recording uses video generated by the H.264 - 2 encoder and that this requires specific Video bit rate, GOP length, and Bit rate settings.
  • Page 72 HSD62x Custom settings If you need to apply custom settings, you can do so with the following restrictions. Video bit rate mode: always set to Constant bit rate.  GOP length: ≥ 25  Bit rate: ≤ 1000 kbit/s ...

  • Page 73: Live View

    Resolution Set sensible combinations of mode, resolution, frame rate and (maximum) bit rate. It is advised to limit MJPEG encoding to 5 fps when the HSD62x is also handling Frame rate MPEG-2/4 encoding with 1xD1 and 1xCIF or 2CIF at full frame rate.

  • Page 74: Advanced

    HSD62x Item Description Quality Constant Quality Reflects the amount of compression. Generally speaking: the Mode (CQM) only higher the quality setting, the lower the compression ratio and the more bits are consumed. This means a trade-off has to be found between the desired quality level and available bandwidth.

  • Page 75: Osd

    Video > OSD 11.7.1 IP video server board OSD versus camera zoom block OSD The HSD62x camera features the following two on-screen displays. Programmable on-screen display facilities, as shown in the above figure, that are generated  by the IP server board. These facilities are described in this section.

  • Page 76: Text Settings

    HSD62x 11.7.3 Text Settings Item Description Enable All OSD objects can be enabled and configured separately. To (temporarily) remove a bar or graphic from the screen, clear the Enable check box. OSD text The text to be displayed. Maximum: 255 characters. Text is displayed in a single line.

  • Page 77: Advanced

    Video Item Description <<Hide Preview Closes the preview. This may improve webpage responsiveness. Encoder The encoder handling the images seen in the preview. 11.7.4.1 Advanced Video > OSD > Text 1 > Advanced > Advanced OSD Bar 1 Settings Item Description Font name Offers a selection from default and uploaded fonts (see Font Management).

  • Page 78: Graphics

    HSD62x 11.7.5 Graphics Video > OSD > Graphics, with 3 OSD bars and a graphic (bottom right) in the preview The Graphics tab enables you to manage graphics, and scale and position a selected graphic on your screen. Item Description Predefined positions Presets for positioning the OSD object.
  • Page 79 Video > OSD > Graphics > Advanced > Graphic Management You can upload your own graphics with a maximum file size of 100 kB to the HSD62x. If necessary, use a picture resize tool to reduce the file size.

  • Page 80: Vmd

    HSD62x 11.8 Video > VMD (disabled) Video Motion Detection (VMD) enables the user to define a portion or portions of the screen and to detect picture changes there. These changes could be caused by motion or varying lighting, for example. Regions of less interest can be masked.

  • Page 81: Configure Detection Parameters

    Global threshold high to a corresponding VMD alarm. The level of this alarm can be set (A-N) using separate Siqura software. VMD response Fast or Filtered. Filtering is used to suppress a single peak as false triggering.

  • Page 82: Set The Mask

    HSD62x 11.8.3 Set the mask  To set a mask To edit the mask, click on the grid that is put over the image.  One or more mask elements at, and possibly around, that position, are produced. Hold the standard mouse button and drag, to 'brush' (i.e. mask) larger areas, with a ...

  • Page 83: Vmd Detection Window

    Video 11.8.4 VMD detection window The VMD detection window shows up as a small picture within the larger picture. Depending on the thresholds set, the motion detection bar on the right side of the picture shows up green or red (see figures below), the latter indicating a VMD alarm will be generated. In the pictures, the upper and lower thresholds are shown as two white markers.
  • Page 84 HSD62x Motion is detected by comparing the current frame with a Note on Advanced VMD Settings: reference image (e.g. a previous frame) and calculating the difference between the two. The value you enter for the Event window size parameter determines how many frames are evaluated for VMD purposes at a time.

  • Page 85: Ftp Push

    11.9.1 Post JPEG images The HSD62x can be configured to upload images, generated by its Live View encoder, to an FTP server. Posting the files in JPEG format can be set to be continuous or event-triggered. On the Event Management page, one or more events can be associated with FTP Push.

  • Page 86: Ftp Server

    State>.jpg 11.9.3 FTP server A target FTP server must hold a user account associated with the HSD62x. You can assign a primary server and a secondary server. Images are posted simultaneously to both the primary server and secondary server.

  • Page 87: Event Management

    Video 11.9.4 Event management Having selected Event On, Event Off, or Event Changed as a trigger, do not forget to go to the Event Management page to associate one or more events with the FTP push. Event Management > FTP Push 1. Two inputs associated with FTP push. 11.9.5 Monitor and troubleshoot FTP Push You can monitor FTP push on the Measurements tab of the Status page.

  • Page 88: Image Monitor

    HSD62x 11.10 Image Monitor Video > Image Monitor 11.10.1 Image quality check The Image Monitor can detect if images produced by the camera are still usable. It can give an indication of the performance of the camera and show whether or not it needs attention. A quality check is made against what is normally a good picture.

  • Page 89: Enable The Image Monitor

    Video 11.10.2 Enable the Image Monitor The Image Monitor can measure camera focus, exposure, contrast level, and SNR (Signal-to-Noise Ratio). The four measurements are disabled by default. You can enable them simultaneously or separately. Enabling/disabling a measurement also enables/disables the associated alarm. Note: ...

  • Page 90: Dial Legend

    HSD62x 11.10.3 Dial legend The coloured dials in the Measurements section provide a quick and easy glance at the health of the camera. You can fine-tune each measurement's alarm thresholds to your needs in the VCA Settings section. Dial legend Error state.
  • Page 91 Siqura's Open Streaming Architecture (OSA) - that is, the "Siqura Programming Interface" (API). The HSD62x includes SNMP support for its image monitor and tampering detection. A trap is sent when bad image quality or camera tampering has been detected and another one when the situation returns to normal.

  • Page 92: Measurements Configuration

    HSD62x 11.10.4 Measurements configuration Video > Image Monitor > VCA Settings The default Measurements values will mostly work well for you. If you do need to modify them you can do so in the VCA Settings section. Item Description Configure Alarms Min.

  • Page 93: Region Of Interest (Roi)

    Video  To configure a measurement In the VCA Settings section, click the button for the measurement you wish to configure. The measurement's settings display. Select the box, if necessary. Enable Set the alarm threshold to your requirements. Note that you can set two thresholds for Exposure (under- and overexposure) and Contrast (low and high contrast).
  • Page 94 HSD62x Item Description Brush Normal Allows grid elements to be accessed in 4-element groups. Large Allows grid elements to be accessed in 16-element groups. Small Allows grid elements to be accessed one at a time. Invert Mask Enables you, for example, to start creating a mask by marking the (smaller) area(s) you do wish to monitor and then use this button to reverse the selection.

  • Page 95: Tamper Detect

    Video 11.11 Tamper Detect Video > Tamper Detect (disabled) 11.11.1 Camera movement and scene changes As a result of tampering, or more accidentally, after cleaning, a camera may no longer cover the area designated for monitoring. The Tamper Detect function can detect camera position changes and scene changes such as a blocked camera view, for example.

  • Page 96: Reference Images

    HSD62x Tamper Detect enabled: No reference images found 11.11.3 Reference images You can create up to 16 reference images. This enables you to store images captured in different day/night situations and/or from multiple PTZ preset positions. When the camera moves to a different preset Tamper Detect tries to match the new scene to the available reference images.

  • Page 97: Mask The Roi

    Video 11.11.3.2 Mask the ROI You can use the ROI settings section to exclude portions of the image from monitoring, as explained earlier in the Region of Interest section. Region of less interest masked 11.11.3.3 Compare images Tamper Detect compares the current scene with all available reference images. If a match is found a green crosshair is superimposed on the image in the Feedback view.

  • Page 98: Delete A Reference Image

    HSD62x Feedback view list 11.11.3.4 Delete a reference image  To delete a reference image In the VCA Settings section, open the list. Reference image Select the image you wish to delete. Press Clear reference Note that the Clear all button deletes all available references.

  • Page 99: Alarms

    Siqura's Open Streaming Architecture (OSA) - that is, the "Siqura Programming Interface" (API). The HSD62x includes SNMP support for its image monitor and tamper detect functions. A trap is sent when bad image quality or camera tampering has been detected and another one when the situation returns to normal.

  • Page 100: Alarm Examples

    HSD62x 11.11.5.1 Alarm examples Original camera position Camera has moved to the right. Although the current image still matches Reference 1, the changed camera position results in a position alarm. Camera has moved further to the right. Blocked scene alarm Current image no longer matches any reference image, resulting in a changed scene alarm.

  • Page 101: Audio

    Audio This chapter describes the functionality and settings found on the Audio page of the HSD62x. In This Chapter Enable audio ..............101 Make audio connections ............103 Advanced ................104 12.1 Enable audio Audio page Using the Enable check box at the top of the Audio page, you can enable/disable the entire audio functionality (the latter, for example, to prevent unwanted eavesdropping).

  • Page 102: Input Settings

     used for Genetec's Omnicast  Legacy PCM 2 channels (stereo)  high quality, 15.7 kHz  compatible with all Siqura products (including C-20, C-40, S-40) 12.1.2 Output Settings Item Description Output level VU meter to display audio output level.

  • Page 103: Make Audio Connections

    Two-way audio The figure above shows the setup for two-way audio on the side of the HSD62x. The device on the other side of the connection (with the IP address 172.22.250.131) would need similar settings, that is - it must hold the IP address of the HSD62x as the destination and source.

  • Page 104: Mx Receiver Settings

    Select/Clear to enable/disable the stream reception, respectively. Source address IP address of the codec that will transmit the stream. Port The local port number of the HSD62x. 12.3 Advanced If in doubt about these settings, do not change the default values.

  • Page 105: Audio Encoder

    Audio 12.3.3 Audio Encoder Audio > Advanced > Audio Encoder Item Description PCM 16bit, A-law 8bit, μ-law 8bit. Audio format 12.3.4 Audio Decoder Audio - Advanced - Audio Decoder Generally speaking, Audio Decoder settings follow the settings of the source - that is, the encoder on the other side of the connection.

  • Page 106: Transmitter

    UDP + RTP Default setting. Plain RTP stream over UDP. UDP + RTP + NKF Adds an extended RTP header for Siqura applications requiring extra information. RTP type (0 = auto) Default value: [0]. This parameter determines the RTP payload format (e.g. H.264, MPEG-2/4, or audio).

  • Page 107: Receiver 1

    Audio 12.3.6 Receiver 1 Audio > Advanced > Receiver 1 Item Description Filter on source port Can be used to filter incoming signals. With multiple signals sent to the same IP address and destination port number, Filter on source port can be used to filter the input, i.e.

  • Page 108: Rtsp Transmitter

    HSD62x 12.3.7 RTSP Transmitter Audio > Advanced > RTSP Transmitter Item Description DSCP field Range: [0...63]. DSCP (Differentiated Services Code Point) uses the first 6 bits of the ToS (Type of Service) field in the header of IP packets for packet classification purposes.

  • Page 109: Sap Settings

    The HSD62x includes a SAP announcer. The Session Announcement Protocol is used to advertise that a media stream generated by the HSD62x is available at a specific multicast address and port. For more information about SAP, see the note below.

  • Page 111: Cc Streams

    CC Streams This chapter provides information about the HSD62x's contact closure (CC) channels, CC status, and alarms. In This Chapter CC channels, CC status, and alarms ........111 Input # Settings ..............112 Make contact closure connections ........113 Advanced ................113 CC Output .................

  • Page 112: Input # Settings

    If a contact closure signal is to be transmitted to a PC, the software requesting it can open a contact closure stream from the HSD62x, which will carry the CC information. At the opposite end of the link (a PC running the software), the contact closures may be regarded as, and even named alarms, but those ‘alarms’...

  • Page 113: Make Contact Closure Connections

    Link loss alarm timeout Range: [1...1000] s. Default: 10 s. Time in seconds before alarm sent. 13.5 CC Output The HSD62x has a single contact closure output which can be controlled with the following Pelco-D commands: Alarm Output On - Preset 9 6 ...

  • Page 115: Ptz

    PTZ page PTZ camera control is enabled by selecting a driver that is supported by the camera. If the required driver is not included in the PTZ driver list, you can upload it to the HSD62x (see below).  To enable PTZ control In the Camera Settings section, specify the Camera ID/address.

  • Page 116: Upload/Remove Ptz Drivers

    HSD62x 14.2 Upload/Remove PTZ drivers  To upload a PTZ driver In the PTZ Driver Management section, click Browse In the File to Upload dialog box, browse to the folder containing the driver. Select the appropriate file (.txt or .js extension), and then click Open The driver displays in the File text box.

  • Page 117: Advanced

    Stream type The UDP + NKF option will add an extended RTP header for Siqura applications requiring extra information. Link loss alarm timeout Range: [1...1000] s. Default: 10 s. Time in seconds before alarm sent.

  • Page 118: Receiver 1

    Interval at which the receiver sends control messages to the transmitter (see the section on FloodGuard). Stream type The UDP + NKF option will add an extended RTP header for Siqura applications requiring extra information. Link loss alarm timeout Range: [1...1000] s. Default: 10 s. Time in seconds before alarm sent.

  • Page 119: Security

    SSL/TLS to standard HTTP communication. With HTTPS implemented and used on the HSD62x, a safe exchange of data between the unit and a web browser is ensured. Information transported over the network, such as device settings and credentials, is encrypted to protect it against eavesdropping.

  • Page 120: Certificate/Request Information

    HSD62x Certificates To implement HTTPS on the HSD62x, you need to install an HTTPS certificate. You can use a self-signed certificate or one created by a Certificate Authority (CA). CA-issued certificates provide a higher level of security and inspire more trust than self-signed certificates. Self-signed certificates are often installed for test purposes or as a temporary solution until a CA-issued certificate has been obtained.

  • Page 121: Self-Signed Certificate

    (depending on the type of certificate you want to use). At the top of the page, select Enable Click Save Refresh the page. Log on to the HSD62x again. Your browser is now using a secure connection to communicate with the unit. Page 121...

  • Page 123: Edge Recording

    Connection monitor enabled. Edge recorder is recording video (the specified IP address is unpingable). Edge recording makes it possible to record and store video locally - that is, at the HSD62x. To prevent loss of video when the connection to a central network video recorder or VMS sytem is lost, recorded video clips can be stored on the SD card inside the HSD62x.

  • Page 124: Monitoring

    NVR or VMS, for example. To detect these events, the HSD62x monitors the network connection to the device specified by its IP address. This is done by pinging it at regular intervals to test its reachability over the network.

  • Page 125: Sd Card

    When the SD card is full, recording stops and a message is sent to the syslog (for a description of the syslog function, see Device Management). Powering down or rebooting the HSD62x, or insertion into an operational unit erases all Warning: content on the SD card! Clips will be irretrievably lost.

  • Page 127: Event Management

    Associate events with output facilities Event Management page You can use the Event Management page to configure how the HSD62x is to handle incoming events/alarms. The event sources listed under Available inputs can be routed to a CC stream and FTP push.

  • Page 128: Ftp Push

    HSD62x 17.1.2 FTP Push If FTP push is configured to be event-triggered (see the FTP Push tab of the Video page), you need to select one or more sources from the Available inputs list that will activate an image upload to the FTP server(s).

  • Page 129: Device Management

    Device management You can use the Device Management page to configure management settings for the HSD62x, upgrade or downgrade the embedded firmware, and reboot the unit. In This Chapter General ................129 Logging ................131 SNMP ................132 MX ................... 134 Auto Discovery ..............

  • Page 130: Device Name

    Description Disable LEDs For security reasons or energy efficiency you can deactivate all LEDs on the unit here. Range: [0 …1000]. To identify a HSD62x among other units, enter a value and Flash DC LED Save click . The power LED on this particular unit will blink for the number of seconds you set.

  • Page 131: Logging

    Device Management > Logging 18.2.1 Log file Press the Download now button to download a log file from the HSD62x to your computer. The 'system.log' file which opens in Notepad may prove useful when you are troubleshooting issues. 18.2.2 Syslog settings Syslog is a standard which allows devices to send event notification messages over IP networks to event message collectors, also known as syslog servers.

  • Page 132: Snmp

    HSD62x 18.3 SNMP Device Management > SNMP 18.3.1 SNMP System Information The SNMP System Information section shows the network/device data specifically made available to the SNMP manager for making the device, its location and service manager(s) traceable. 18.3.2 SNMP Communities The community strings (names which can be regarded as passwords) in the SNMP Communities section must conform to those configured in the SNMP manager.

  • Page 133: Snmp Traps

    18.3.4 SNMP Traps A HSD62x alarm status change generates a trap which can be caught by any SNMP manager. The HSD62x can, for example, send traps on the occurrence of Image Quality and Camera Tampering events. Variables, which can be read from the HSD62x's MIB through an SNMP manager, indicate why the alarm occurred.

  • Page 134: Mx/Ip

    18.4 Device Management > MX 18.4.1 MX/IP MX/IP is a UDP protocol used to communicate with Siqura equipment over a network connection. The Siqura Software Suite applications use the MX/IP protocol to access, configure, and control Siqura network devices. Item...

  • Page 135: Auto Discovery

    On the Auto Discovery tab, you can enable UPnP (Universal Plug and Play). If enabled, UPnP allows the HSD62x to advertise its presence and services to control points on the network. A control point can be a network device with embedded UPnP, a VMS application or a spy software tool, such as Device Spy.

  • Page 136: Onvif

    HSD62x 18.6 ONVIF Device Management > ONVIF The HSD62x supports the ONVIF standard. On the ONVIF tab, you can enable ONVIF compatibility and ONVIF discovery. Item Description Enable ONVIF Enables the ONVIF interface on the HSD62x. Enable ONVIF Discovery Makes the HSD62x discoverable for ONVIF clients. Clear this check box if you prefer to disable discovery.

  • Page 137: Firmware

    The upgrade image area is usually empty upon factory release. If the existing firmware in the HSD62x is to be replaced, a new version can be written to the upgrade image area. There, the new image resides in erasable (flash) memory.

  • Page 138: Troubleshoot Upgrade Issues

    Select the firmware file (.sqrfw extension), and then click Open Files with an .nkffw extension cannot be used to upgrade the HSD62x via the Note: webpage. You can use them to upgrade the unit through MX Firmware Upgrade Wizard. This software is embedded in Siqura's MX Configuration Tool and is also available as a stand-alone tool.

  • Page 139: Advanced

    Device management 18.7.3.2 Advanced For various reasons you may want to downgrade the HSD62x firmware to the original factory-installed image kept in the fixed image area. This can be done in the Advanced Settings section of the Firmware tab. ...

  • Page 140: Backup/Restore

    Backup Item Description Last backup time Date and time of the most recent backup. Backup Saves the current configuration of the HSD62x to the designated download folder. 18.8.2 Restore Item Description Keep current network Select to preserve the current network settings when you restore a backed-up settings HSD62x configuration.

  • Page 141: Reboot

    This could make the unit unreachable for in-band communications, in which case the internal web pages are accessible only by (temporarily) moving a PC to the same subnet as the HSD62x. Page 141...

  • Page 143: User Management

    The HSD62x has three levels of access to the internal web pages. User groups are: Administrators, Operators, and Viewers. Do not use the name of one of these groups as a user name. Out of the box, the unit has no user accounts configured. The HSD62x supports up to 20 users at a time.

  • Page 144: Manage User Accounts

    HSD62x 19.1.2 Manage user accounts  To add a user On the User Management page, open the tab. Web Access In the User List section, click The Add User section displays. Enter the new user name (alphanumeric and underscore only) and password. Confirm the password to prevent errors.

  • Page 145: Linux

    User Management 19.2 Linux User Management > Linux The root account is a special account that can be used for system administration. The account is always present and should be password protected at all times. The root password, which is required when logging on to Linux with root authority, is "1234"...

  • Page 147: Date And Time

    Date and Time The HSD62x has a battery-supported real-time clock. This chapter explains how to adjust the date and time. In This Chapter Date and time ..............147 SNTP Settings ..............148 Advanced ................149 20.1 Date and time Date and Time You can set the date and time manually in the Date and Time section.

  • Page 148: Sntp Settings

    (SNTP) server. If enabled, the SNTP server is queried automatically by the internal clocks, with a configurable time interval.  To set up the HSD62x for use with an SNTP server In SNTP Settings, clear , and then click Enable time service...
  • Page 149 Date and Time Notes for advanced users Far off (more than a few minutes) or jumping time server values may be rejected by the  unit. You should never test the tracking to the time server by changing the time in the NTP server. ...

  • Page 151: Multicasting, Multi-Unicasting, And Port Numbers

    HSD62x itself, although it is compounded by the density of the UDP streams used. Multicast group A multicast group is used by the source, that is - the HSD62x, and the receivers to send and receive multicast messages. To define a multicast group, the source unit should be assigned a valid multicasting ('destination') TX stream address and the destination units should get this same address as source.

  • Page 152: Multi-Unicast

    21.3 Port numbers A valid UDP port number in a Siqura A-, C-, S-, and V-series system is an unsigned 16-bit integer between 1024 and 65536. Generally, you do not need to select other than the default receiver port numbers as given in the MIB (Management Information Base). If you want to change these receiver port numbers for some reason, use even numbers.

  • Page 153: Accessing And Navigating The On-Screen Menu

    22.2 Using the On-Screen Menu You can operate and set up the HSD62x dome camera through its on-screen menu (OSM). The OSM can be accessed via the Live Video web page or a control keyboard or other control device. Page 153...

  • Page 154: Working With The Osm From The Web Interface

    Working with the OSM from the web interface  To display the on-screen menu In your web browser, open the HSD62x's Live Video page. Go to the On Screen Menu section of the PTZ control panel, and click the button.

  • Page 155: Using The Osm From A Control Keyboard

    Accessing and Navigating the On-Screen Menu The active selection blinks at the same rate as the configured refresh rate. OSD navigation Note: is easier at higher refresh rates.  To select a menu option Use the direction keys in the control panel to move the cursor in the on-screen menu. ...

  • Page 156: Osm Access Summary

    HSD62x Additional commands from a keyboard The single contact closure output can be controlled with the following Pelco-D commands. Alarm Output On - Preset 9 6  Alarm Output Off - Preset 9 6  For further special preset commands, see Appendix: Hot Key Definitions.

  • Page 157: Camera Configuration Via The On-Screen Menu

    Camera Configuration via the On-Screen Menu The HSD62x's On-Screen Menu (OSM) can be used to configure detailed camera functions and parameter settings. This chapter provides a detailed description of OSM structures, settings, and values for the various models of the HSD62x series.

  • Page 158: Displaying Camera Parameters On Screen

    HSD62x 23.1 Displaying Camera Parameters on Screen. Certain camera parameters can be selectively displayed on screen as described below. Position Function OSD Display Description Focus modes Auto focus mode Manual focus mode Backlight Backlight compensation OFF Backlight compensation ON Alarm...

  • Page 159: On-Screen Menu Tree

    23.2 On-Screen Menu Tree The OSM camera setup menu structure is listed in the following tables. For a more detailed description of specific functions, refer to On-Screen Menu Description. 23.2.1 Siqura HSD620/620PRH/622 Item Layer 1 Layer 2 Layer 3 Default...
  • Page 160 HSD62x Item Layer 1 Layer 2 Layer 3 Default BRIGHT VALUE: AUTO SHUTTER SPEED: <1/50> ~ <1/10000> SEC. IRIS VALUE: <F1.6> GAIN VALUE <-3>dB ~ <28>dB EXIT + SAVE: YES EXIT WBC MODE AUTO (Auto White Balance) INDOOR OUTDOOR ATW (Autotracing WBC) MANUAL R GAIN <000>...
  • Page 161 Camera Configuration via the On-Screen Menu Item Layer 1 Layer 2 Layer 3 Default OSD AUTO <OFF>, <10> ~ CLOSE <30> SEC. SYSTEM RESET SYSTEM RESET <YES> DEFAULT SYSTEM <YES> EXIT <YES> ID DISPLAY <ON>, <OFF> TITLE DISPLAY <ON>, <OFF> TITLE SETTING <01>...
  • Page 162 HSD62x Item Layer 1 Layer 2 Layer 3 Default CRUISE PRESET POINT <001> ~ <256> SEQUENCE LINE <001> ~ <008> AUTOPAN LINE <001> ~ <004> CRUISE LINE <001> ~ <008> RETURN TIME <001> ~ <128> MIN. ENTER EXIT IR FUNCTION AUTO THRESHOLD <MID>, <HI>, <LOW>...

  • Page 163: Siqura Hsd621Prh/626/626Exp

    Camera Configuration via the On-Screen Menu 23.2.2 Siqura HSD621PRH/626/626EXP Item Layer 1 Layer 2 Layer 3 Default LANGUAGE ENGLISH, FRENCH, GERMAN, ITALIAN, PORTUGUESE, ENGLISH SPANISH, RUSSIAN, POLISH, SIMPLIFIED CHINESE, TRADITIONAL CHINESE, JAPANESE, TURKISH DEFAULT <ON>, <OFF> CAMERA BACKLIGHT 00 ~ 30...
  • Page 164 HSD62x Item Layer 1 Layer 2 Layer 3 Default MANUAL R GAIN <000> ~ <099> B GAIN <000> ~ <099> EXIT + SAVE: YES SETUP MENU 1 ENTER ZOOM SPEED FAST, SLOW FAST MAX DIGITAL <00> ~ <12>, ZOOM <OFF>...
  • Page 165 Camera Configuration via the On-Screen Menu Item Layer 1 Layer 2 Layer 3 Default PRESET PRESET SET <001> ~ <256> ENTER PRESET RUN <001> ~ <256> ENTER EXIT SEQUENCE ENTER SEQUENCE LINE <1> ~ <8> SEQUENCE <01> ~ <64> POINT PRESET <001>...
  • Page 166 HSD62x Item Layer 1 Layer 2 Layer 3 Default IR FUNCTION <AUTO>, <ON>, THRESHOLD <01> ~ <12> <OFF> IR COLOUR <B/W>, <COLOUR> ALARM SETTING <NONE> ALARM DETECT <NONE> WDR FUNCTION <AUTO> <ON> RATIO LEVEL <001> ~ <128> SHUTTER SPEED <001> ~ <128>...

  • Page 167: Main Page

    The items in each model's OSM are described in the following sections. For external devices, the camera is configured to the Pelco D protocol. The HSD62x's default baud rate is set to 9600. Ensure that your control keyboard uses a compatible baud rate. The factory set ID number is 1 and you must not change this setting.

  • Page 168: Backlight Compensation

    The focus of the dome camera can be operated in two modes: Auto Focus and Manual Focus. Various settings for the different models are described below. AUTO: Siqura HSD620/620PRH/622 The optimum focus is achieved by the internal digital circuit. There are three modes for users to...

  • Page 169: Auto Exposure

    (iris adjustment), by how long you keep the sensor exposed (shutter speed), and by other exposure parameters. Under this menu, users can define how the Auto Exposure (AE) function works. AE MODE: Siqura HSD620/620PRH/622 AUTO ...

  • Page 170: White Balance Control

    HSD62x AE MODE: Siqura HSD621PRH/626/626EXP AUTO  In this mode, the camera's Shutter, IRIS and AGC control function work automatically to compensate the light exposure of the image sensor for consistent video output level. IRIS OFFSET is used to set the level of IRIS variation (00 ~ 15).

  • Page 171: Setup Menu 1

     In this mode, users can change the White Balance value manually; R gain and B gain are adjustable and range from 0 to 127. WBC MODE: Siqura HSD621PRH/626/626EXP AUTO  In this mode, white balance works within its colour temperature range and calculates the most appropriate white balance.

  • Page 172: Max Digital Zoom

    HSD62x 23.3.2.2 Max Digital Zoom With this item, users can enable or disable the 12× Digital Zoom. When enabled, Digital Zoom is activated after the full Optical Zoom level is reached. Siqura HSD620/620PRH/622 The maximum 12× Digital Zoom function may be enabled. The default setting is ON.

  • Page 173: Image Inverse

    23.3.2.7 Aperture Under this setup menu, users can enhance the edges of objects in an image. Siqura HSD620/620PRH/622 There are 16 levels of adjustment; the options are 01 (no enhancement) to 16 (full enhancement). When shooting text, this function sharpens it.

  • Page 174: Setup Menu 2

    HSD62x 23.3.3 Setup Menu 2 SETUP MENU 2 is accessed from the MAIN PAGE 1 menu. 23.3.3.1 Flip Users can track an object continuously as it passes the dome camera by setting FLIP to the IMAGE (digital flip) or M.E. mode (mechanical flip).

  • Page 175: Pt Position

    Camera Configuration via the On-Screen Menu 23.3.3.3 PT Position The camera zoom block OSD can display the camera's direction, azimuth, and elevation, on screen. Align the camera to the north and set this position before you activate PT Display.  To set the NORTH direction In the PT Position menu, set PT Display to Select...

  • Page 176: Main

    Up to 16 zone titles can be set with a maximum of 20 characters for each title. Each view area's title can be named with a privacy mask ID number for future recognition. For the Siqura HSD621PRH/626 models, the available area for setting a privacy mask is Note: restricted within a tilt angle of 45°.

  • Page 177: Preset

    ENTER 23.3.4.4 Preset PRESET SET The HSD62x series cameras support a total of 256 preset points (that is - 256 minus the presets used for the special commands listed in Appendix: Hot Key Definitions (on page 189)).  To set a preset point Go to the Preset Setting menu.

  • Page 178: Sequence

    HSD62x 23.3.4.5 Sequence This function executes prepositioning of the pan, tilt, zoom and focus features in a certain sequence for a camera. Before setting this function, users must define at least two preset points. Parameters SEQUENCE LINE  There are eight sets of sequence lines built in the dome camera. Use the left/right direction keys to select a line first and then set its sequence points.

  • Page 179: Autopan

    Camera Configuration via the On-Screen Menu 23.3.4.6 Autopan Autopan is the motion of scanning an area horizontally so the dome camera captures a horizontal view. The parameters are as follows. AUTOPAN LINE There are four sets of autopan lines built in to a dome camera. Choose a line to execute by using the left/right direction keys.

  • Page 180: Cruise

    HSD62x SPEED Use this item to define the dome camera rotation speed while running autopan. The speed is adjustable from 1 to 4 (10 ~ 45 degree/sec.). RUN AUTOPAN After you configure all autopan settings, select this item to execute the autopan function. Press to run an autopan path.

  • Page 181: Home Setting

    Camera Configuration via the On-Screen Menu EXIT Exit the CRUISE setup menu, and return to MAIN PAGE 2 to configure home settings. Users can execute the cruise function via keyboard. Refer to the control keyboard's quick Note: guide for more information. 23.3.4.8 Home Setting Users are able to set an operation mode to ensure constant monitoring;...

  • Page 182: Main

    In the Siqura HSD621PRH/626 models, users are able to view colour images when the IR function is activated. Refer to the description below to operate the IR function.

  • Page 183: Alarm Setting

    Exit the IR FUNCTION menu and return to MAIN PAGE 3 to configure alarm detection. 23.3.5.2 Alarm Setting The HSD62x provides eight alarm inputs and one alarm output (N.O. or N.C) to connect alarm devices. These can be used as PTZ auxiliaries (they cannot be used as contact closures).

  • Page 184: Alarm Detect

    When an alarm condition (dwell time setting: 1~127 seconds/ ALWAYS) is released, the Note: HSD62x will go back to the previous status before the alarm was triggered. PRESET POINT Select a preset point where the dome camera should go when an alarm pin is triggered. The preset point(s) should be set prior either in the PRESET setup menu or through the keyboard.

  • Page 185: Wdr Function

    As a starting point, so that you will see a mask, a privacy mask has a default size of 10x10 when initially turned on. The Image Flip function (for all models) and the Image Inverse function (for Siqura Note: HSD621PRH/626/626EXP) are disabled automatically when the Privacy Mask function is enabled.
  • Page 186 HSD62x MASK SHADE The colour of a privacy mask can be selected with this item. Available colons are black, grey, and white. SET MASK After pressing to open the sub-menu of SET MASK, the dome memorises the present ENTER position as a privacy mask position. Up to 24 masks can be set. These models restrict the mask zones from being set too close to each other.
  • Page 187 ENTER privacy mask position. Up to 8 masks can be set in the HSD621PRH/626 cameras. For the Siqura HSD621PRH/626 model, the available area for setting a privacy mask is Note: restricted within a tilt angle of 45°, and two mask zones may be set in a view area.

  • Page 188: Time Setting

    HSD62x EXIT Exit the PRIVACY MASK menu and return to MAIN PAGE 3 to configure time-related settings. 23.3.5.6 Time Setting This is not enabled. 23.3.5.7 Schedule This is not enabled. 23.3.5.8 Exit To exit the OSM, users can either select this item at the bottom of MAIN PAGE 3 or press the ESC key on a control keyboard.

  • Page 189: Appendix: Hot Key Definitions

    Appendix: Hot Key Definitions The following table offers a list of preset commands that give you direct control over HSD62x imaging functions using an external PTZ controller or the PTZ control panel in the web interface. Protocol ID=1, 2, 26, 29.
  • Page 190 HSD62x Function Command(Byte 3 ~ 6) Hot key Note Flip - Pan turn 180 ° go preset 33 GoHome go preset 34 Backlight On go preset 246 Backlight Off go preset 247 Unit Information go preset 248 Displays model Screen(10 s)

  • Page 191: Appendix: Enable Javascript

    Appendix: Enable JavaScript To have the HSD62x webpages displayed correctly, JavaScript must be enabled in your web browser.  To enable JavaScript in Internet Explorer On the Tools menu, click Internet Options On the Security tab, click the Internet globe icon, and then click...

  • Page 193: Appendix: Enable Upnp In Windows 7

    Appendix: Enable UPnP in Windows 7 With UPnP enabled in Windows, it is possible to see Siqura devices in Windows Explorer. You can double-click a device to open its webpages.  To enable UPnP in Windows 7 In Control Panel, click...

  • Page 195: Appendix: Install A Video Player

    Appendix: Install a video player Viewing video streams on the webpages of the HSD62x requires a video player installation on the machine running the web browser. This appendix provides instructions for installing QuickTime and VLC, the video plug-ins supported by the HSD62x.

  • Page 196: Install Vlc

    Mozilla plug-in and ActiveX plug-in components in the VLC Setup wizard. Required components: Mozilla and ActiveX plug-ins The support of VLC, an open source community, may differ between releases. The HSD62x Note: has been successfully tested with VLC v2.1.0.

  • Page 197: Appendix: Ntcip Configuration

    SNMP MIB ................. 198 Supported conformance groups The HSD62x firmware supports all the mandatory parts and some of the optional parts (see table below) of the NTCIP CCTV specification as laid down in the NTCIP 1205:2001 v01.08 document. This means that - in terms of section 4 of this document - the following conformance groups are supported.

  • Page 198: Cctv Configuration

     positionFocusLens  positionIrisLens  Camera control through NTCIP on Siqura multichannel products is limited to video Note: channel 1. SNMP MIB NTCIP has its own SNMP MIB. This database is used to store information, which is used to control cameras and other devices in the transportation management system.

Table of Contents
