1. Color-buttons für SELECT-COLOR MODE
2. Sound LED
3. Display
4. Up button
5. Down button
6. Fogger button
7. Indicator LED
8. Microphone
9. AUTO Button
10. SOUND CONTROL Button
11. BLACKOUT- Button

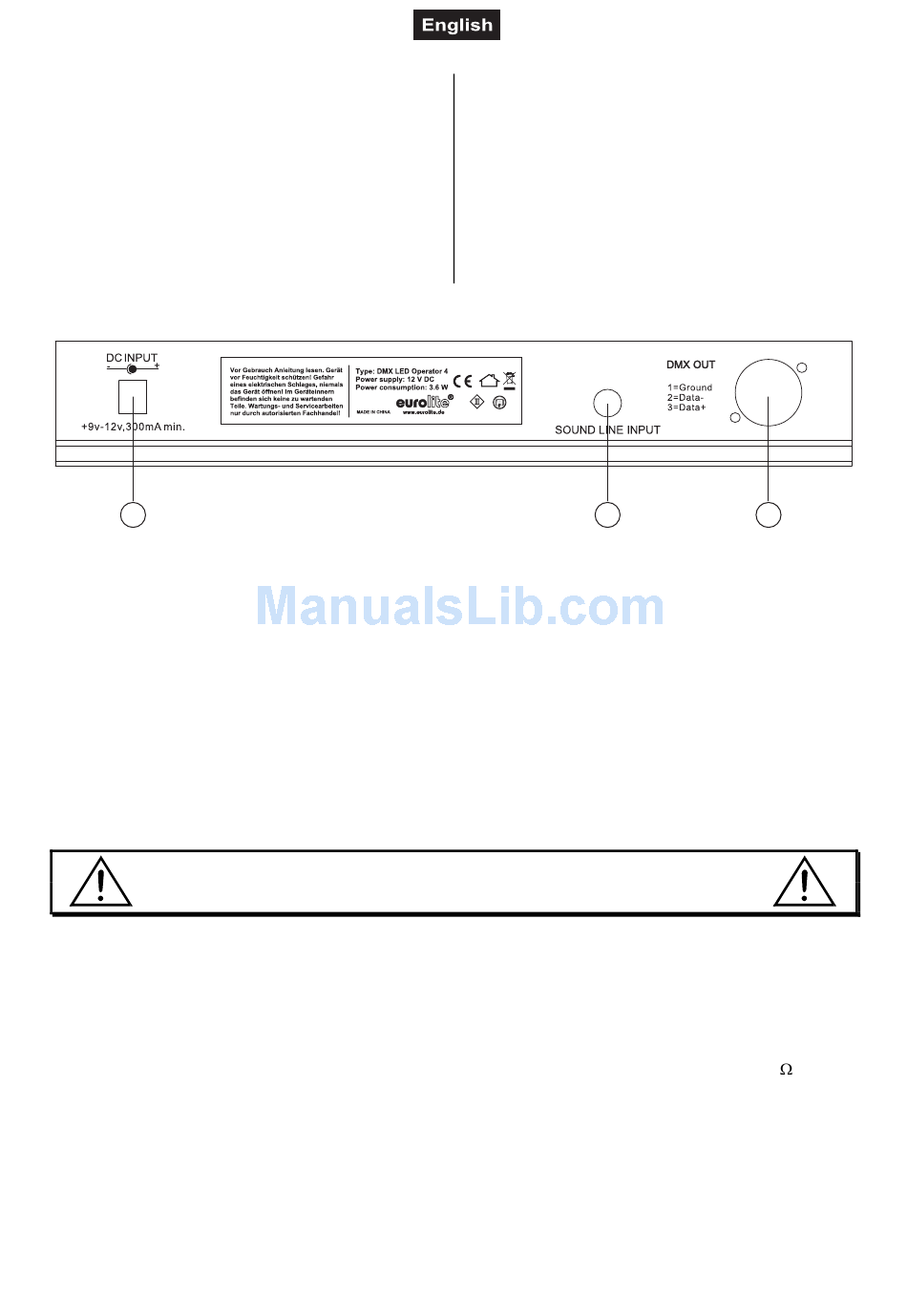

Rear panel:
21
21. DC Input
22. Sound input
23. DMX Out

5. SETUP

5.1 Installation

Install the device on a plane surface.

5.2 Sound-control

The sound-control works via the built-in microphone or RCA-input.

5.3 DMX-Connection between the devices

The wires must not come into contact with each other, otherwise
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with
the fixture or one fixture with another.
Building a serial DMX-chain:
Connect the DMX-output of the DMX LED Operator 4 with the DMX-input of the nearest device. Always
connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.

5.4 Addressing the devices

The devices to be controlled need to be assigned the DMX starting address The starting address is defined
as the first channel from which the devices will respond to the controller.
Please assign the starting address to the devices as follows:
001 - LED PARCAN 1
006 - LED PARCAN 2
011 - LED PARCAN 3
the fixtures will not work at all, or will not work properly.
12. HOLD button
13. SELECT-COLOR MODE Button
14. PROGRAM SELECT MODE Button
15. PROGRAM SELECT channel fader
16. Dimmer fader
17. FLASH FREQUENCY/SENSITIVITY channel
fader
18. SPEED / RED channel fader
19. Green fader
20. Blue fader
22
13/15
23
resistor
