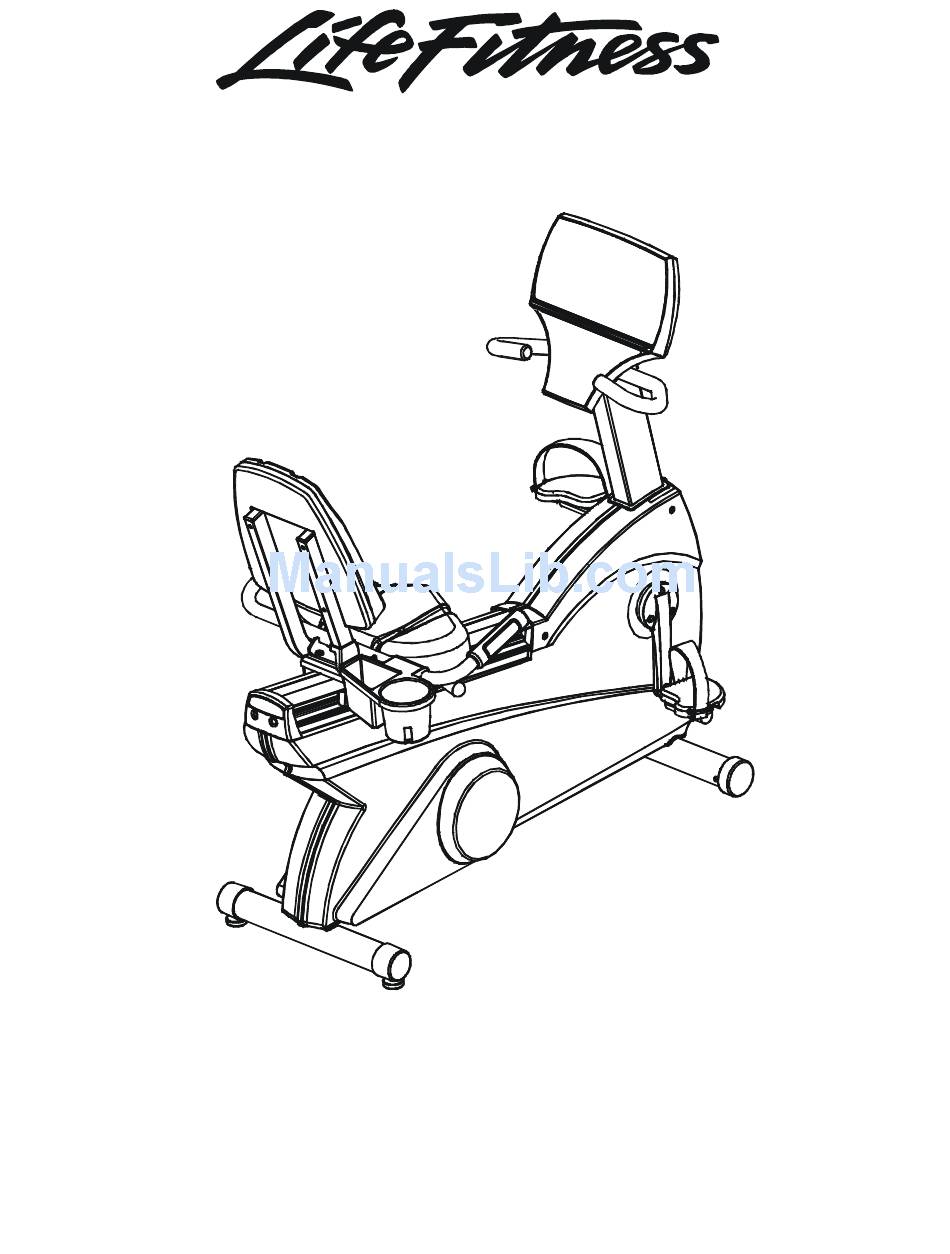

  • Page 1 Arctic Silver 95RW Recumbent Bike Customer Support Services PARTS MANUAL rev 11 Jul 2008...
  • Page 2 ARCTIC SILVER 95RW REFERENCES POWER OPTION KIT 120V POWER OPTION KIT 240/50 UK POWER OPTION KIT 240V AUSTRALIA GK39-00002-0005 POWER OPTION KIT 230/50 CON OPERATION MANUAL ER READY BRACKET ASSEMBLY ASSEMBLY CONSISTS OF: 1) POWER CABLE 2) CABLE INPUT BRACKET 3) F TYPE CONNECTOR 4) COAX CABLE HARDWARE BAG...
  • Page 3: Table Of Contents

    ARCTIC SILVER 95RW 95RW-0XXX-02 CONTENTS S/N CCW100000 and UP Page CONSOLE COMPONENTS ...4 CONSOLE SUPPORT ASSEMBLY...5 SHROUDS, END CAP, CRANKARMS AND PEDALS ...6 BELTS AND 6V BATTERY ...7 RESISTOR ASSEMBLY ...8 POWER CONTROL BOARD ...9 ALTERNATOR W/PULLEY ...10 CRANKSHAFT AND BEARING ASSEMBLY...11 INTERMEDIATE SHAFT AND BEARING ASSEMBLY...12 IDLER BRACKET ASSEMBLY...13 SEAT ASSEMBLY…………….………………………………………………………………….14...
  • Page 4: Console Components

    ARCTIC SILVER 95RW Console Components Overlay Bezel/Switch Assembly Double Sided tape 0K39-01044-0000 Console Assembly AK39-00070-0001 Eng Met AK39-00070-0003 Ger Met AK39-00070-0004 Spn Met AK39-00070-0006 Jap Met AK39-00070-0007 Frn Met AK39-00070-0008 Itl Met AK39-00070-0009 Dut Met AK39-00070-0010 Por Met Polar Receiver AK39-00064-0000 and cable AK39-00063-0000...
  • Page 5: Console Support Assembly

    ARCTIC SILVER 95RW Console Support Assembly Grip(2) 0K39-01005-0001 Console Support AK39-00003-0002 Frame Post Bolt(4) 0017-00101-1756 95RW-0XXX-02 S/N CCW100000 and UP 4-Pin Heart Rate Cable AK19-00081-0002 10-Pin Connector Main Wiring Cable AK39-00005-0001 Console Mounting Screw(4) 0017-00101-1744 Frame Post...
  • Page 6: Shrouds, End Cap, Crankarms And Pedals

    ARCTIC SILVER 95RW Shrouds, End cap and Pedals Shroud Screws(7) 0017-00101-1741 Crank Arm, RT 0K39-01042-0007 Screws(3) 0017-00101-1702 Right Pedal AK63-00263-0003 Pedal Strap (not shown) 0K63-01238-0003 Right Shroud AK39-00031-0007 Decal 0K39-01066-0000 Left Shroud AK39-00031-0008 Crank Arm, LT Decal 0K39-01042-0008 0K39-01066-0000 Screws(3) 0017-00101-1702 95RW-0XXX-02 S/N CCW100000 and UP...
  • Page 7: Belts And 6V Battery

    ARCTIC SILVER 95RW Belts and 6V Battery Screw 0017-00101-1193 Alternator Belt 0017-00009-0735 6V Battery 0017-00003-0685 95RW-0XXX-02 S/N CCW100000 and UP Intermediate Pulley Belt 0K63-01066-0001 Screw 0017-00101-1193 Mounting Screw(2) 0017-00101-0975 Bracket 0K51-01036-0000...
  • Page 8: Resistor Assembly

    ARCTIC SILVER 95RW Resistor Assembly – AK39-00020-0001 Resistor 100E-00002-0092 Pan Screw(2) 0017-00101-1282 Mounting Rod 0K63-01166-0000 Mounting Bracket 0K39-01036-0000 95RW-0XXX-02 S/N CCW100000 and UP Washer(2) 0017-00104-0309 Resistor Retainer 0K39-01043-0000 Hex Nut(3) 0017-00103-0081 Power Cable AK39-00006-0000...
  • Page 9: Power Control Board

    ARCTIC SILVER 95RW Power Control Board Assembly Number - AK39-00022-0001 95RW-0XXX-02 S/N CCW100000 and UP Plastic Grommet(4) 0017-00042-0821 Bracket 0K39-01027-0000 Philip Screw(4) 0017-00101-0823 Power Control Board B084-92218-D000...
  • Page 10: Alternator W/Pulley

    ARCTIC SILVER 95RW Alternator w/pulley Assembly Assembly Number – AK63-00093-0000 Alternator Pulley 0K61-02500-0001 Locking Nut 0017-00103-0117 S/N CCW100000 and UP Alternator 0017-00009-0841 Washer 0017-00104-0044 95RW-0XXX-02 Bolt 0017-00101-0956...
  • Page 11: Crankshaft And Bearing Assembly

    ARCTIC SILVER 95RW Crank Shaft and Bearing Assembly Crank Arm Hub Pulley Assembly 0K63-01095-0001 AK63-00051-0000 Pulley 0K63-01018-0000 *Needle Bearing (2) Washers (3) 0017-00104-0458 Flywheel Screws (3) 0017-00101-1715 *Crankshaft 0K63-01012-0001 *Small Thrust Washer (2) 0K63-01129-0000 0K63-01344-0000 *Small Snap Ring (2) 0017-00100-0241 Crank Arm Hub (2) 0K63-01095-0001 95RW-0XXX-02...
  • Page 12: Intermediate Shaft And Bearing Assembly

    ARCTIC SILVER 95RW Intermediate Shaft and Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 95RW-0XXX-02 S/N CCW100000 and UP Magnet 118E-00001-0124 (not included in kit) Intermediate Spacer (not Bearings (2,...
  • Page 13: Idler Bracket Assembly

    ARCTIC SILVER 95RW Idler Bracket Assembly Idler Bracket Assembly – AK63-00021-0000 Lock Nut 0017-00103-0218 95RW-0XXX-02 S/N CCW100000 and UP Idler Bracket 0K63-01050-0000 Idler Bearing AK63-00008-0000...
  • Page 14: Seat Assembly

    ARCTIC SILVER 95RW Seat Assembly Screw(4) 0017-00101-1745 Washer(8) 0017-00104-0461 Bushing Hole 0017-00042-0866 Screw(2) 0017-00101-1282 Upper Flex Cable Clamp 0K19-01221-0000 Cable Sleeve 0K19-01230-0000 Flat-Flex Cable AK19-00082-0001 Hex Bolt(4) 0017-00101-1749 Double-sided Foam Tape(2) 0K19-01222-0000 Tape(2) 0K19-01222-0000 95RW-0XXX-02 S/N CCW100000 and UP End Cap(4) 0K19-01208-0001 Heart Rate Electrode AK63-00014-0003...
  • Page 15: Seat Bottom Assembly

    ARCTIC SILVER 95RW Seat Assembly - Bottom Spacer(4) 0K51-01044-0000 Washer(4) 0017-00104-0462 Bolt(4) 0017-00101-1743 Roller Assembly AK51-00056-0001 Roller (2), LT 0K51-01034-0002 S/N CCW100000 and UP Washer Roller Shield(4) 0017-00104-0461 0K51-01059-0001 Roller (2), RT 0K51-01034-0001 95RW-0XXX-02 Locking Nut(4) 0017-00103-0326 Washer(4) 0017-00104-0463 Screw(2) 0017-00101-1748 Lock Assembly AK51-00053-0001...
  • Page 16: Seat Frame Assembly

    ARCTIC SILVER 95RW Seat Frame Assembly Screw(4) 0017-00042-1746 Washer(4) 0017-00104-0462 Front Stop Bracket 0K51-01062-0000 Plastic Shield 0K19-01185-0001 Seat Assembly Frame AK39-00036-0002 Split Clamp 0017-00042-0880 Pan Screw 0017-00101-1295 Push Mount Wire Clips(2) 0017-00042-0879 95RW-0XXX-02 S/N CCW100000 and UP...
  • Page 17: Seat Pads And Accessory Tray

    ARCTIC SILVER 95RW Seat Pads and Accessory Tray Washer(4) 0017-00104-0462 Mounting Screw(4) 0017-00101-1743 Accessory Tray AK39-00052-0003 95RW-0XXX-02 S/N CCW100000 and UP Seat Back 0K51-01055-0001 Seat Bottom 0K51-01054-0001...
  • Page 18: Extrusion Assembly

    ARCTIC SILVER 95RW Extrusion Assy. – AK39-00027-0005 Screw 0017-00101-1750 Bolts 0017-00101-1183 Screws 0017-00101-1751 Locking Rack 0K51-01013-0002 Extrusion Seat Assy AK39-00027-0005 95RW-0XXX-02 S/N CCW100000 and UP Stop Bracket 0K51-01061-0001 Decal 0K51-01039-0001 Bumper 0017-00041-0654 Plastic Grommet 0017-00042-1055...
  • Page 19: Seat Locking Assembly

    ARCTIC SILVER 95RW Locking Assy. – AK51-00053-0001 Knob AK51-00029-0001 Retainer Bearing 0K51-01011-0000 E-Ring 0017-00100-0018 95RW-0XXX-02 S/N CCW100000 and UP TORX Screw 0017-00101-1742 Anti-Rattle Washer 0K51-01060-0001 Handle Shaft 0K51-01007-0000 Groove Pin 0017-00007-0245 Compression Spring 0K51-01012-0000 Washer 0017-00104-0421 Housing-Insert Assembly AK51-00030-0001 Locking-Block Assembly AK19-00147-0000...
  • Page 20: Wheel And Leveler

    ARCTIC SILVER 95RW Wheel and Leveler Pan Screw(2) 0017-00101-1747 Wheel Screw 0017-00101-1747 S/N CCW100000 and UP Rear Stabilizer GK39-00002-0012 Flat Washer 0K63-01041-0000 Wheel Insert 0K63-01039-0000 Wheel Assembly AK63-00016-0001 95RW-0XXX-02 End Cap 0K63-01219-0001 Leveler 0017-00009-0795 Lock Nut 0017-00103-0273 Leveler Assembly AK61-00035-0000...
  • Page 21: Cables

    ARCTIC SILVER 95RW Cables Life Pulse Extension AK19-00081-0002 95RW-0XXX-02 S/N CCW100000 and UP AK63-00050-0000 Reed Switch Cable...
