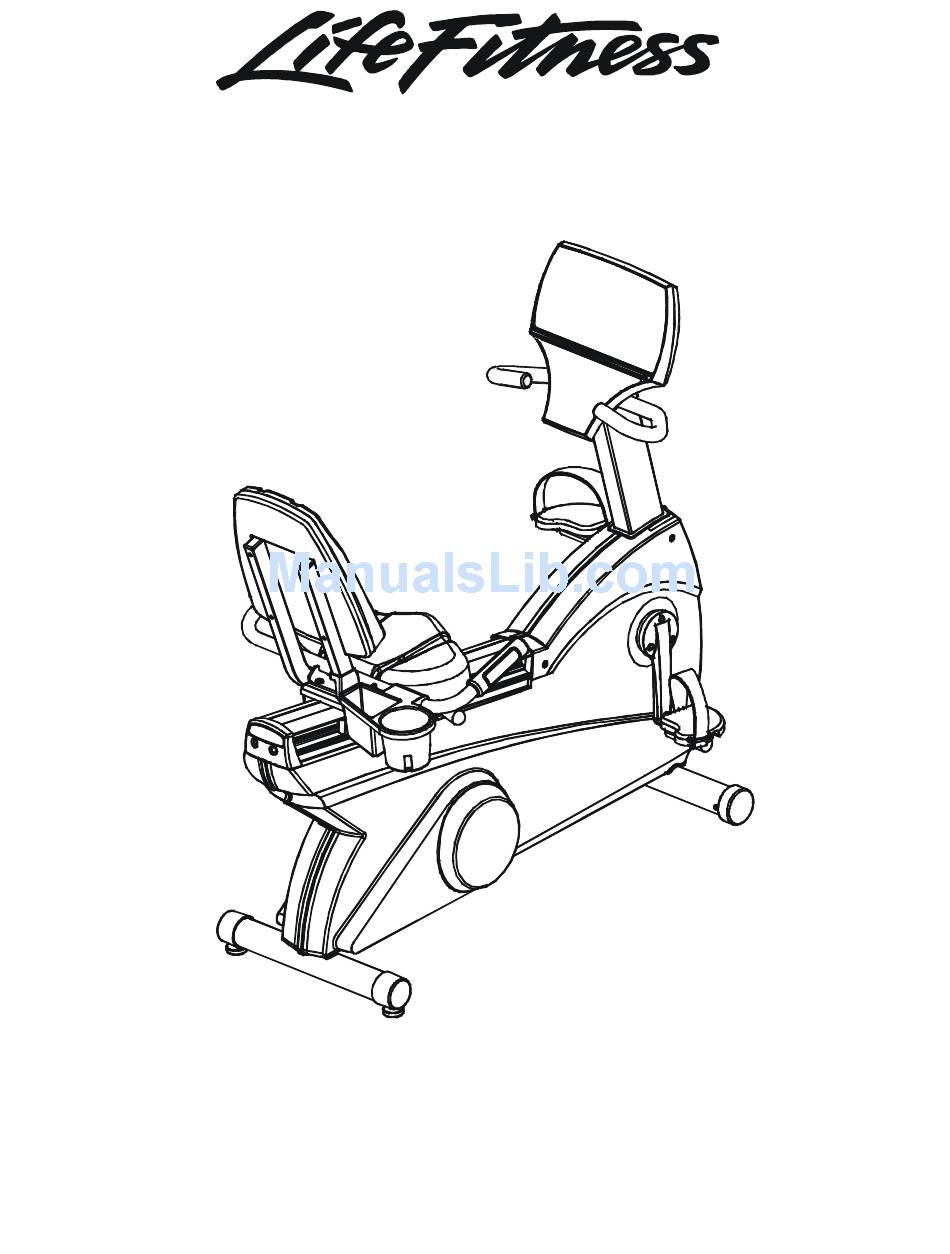

Arctic Silver 95Ri Recumbent Bike
Customer Support Services
PARTS MANUAL
rev 01 May 2008

Advertisement

Table of Contents
loading

Related Manuals for Life Fitness Recumbent Bike 95Ri

Summary of Contents for Life Fitness Recumbent Bike 95Ri

  • Page 1 Arctic Silver 95Ri Recumbent Bike Customer Support Services PARTS MANUAL rev 01 May 2008...

  • Page 2: Table Of Contents

    ARCTIC SILVER 95Ri 95R-0XXX-04 Contents S/N CCU100000 and up Miscellaneous ... 3 Console Components... 4 Console Support Assembly ... 5 Shrouds, End Cap, Crank Arms, and Pedals ... 6 Belts and 6V Battery ... 7 Resistor Assembly ... 8 Power Control Board... 9 Alternator w/Pulley ...10 Crankshaft and Bearing Assembly ...11 Intermediate Shaft and Bearing Assembly ...12...

  • Page 3: Miscellaneous

    ARCTIC SILVER 95Ri Miscellaneous POWER OPTION KIT 120V POWER OPTION KIT 240/50V UK POWER OPTION KIT 240V+AUS POWER OPTION KIT 230/50V CON .5 OZ BOTTLE W/APPLICATOR Description OPERATION MANUAL HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .33 OZ PEN SERVICE MANUAL 95R-0XXX-04 S/N CCU100000 and up Part No.

  • Page 4: Console Components

    ARCTIC SILVER 95Ri Console Components Overlay Bezel/Switch Assembly Double-sided Tape 0K39-01044-0000 Lower PCB B084-92222-B000 Language Eng Met Ger Met Spn Met Jap Met Frn Met Itl Met Dut Met Por Met Tur Met Polar Receiver AK39-00064-0000 Cable AK39-00063-0000 Console Board - Upper A084-92219-A027 Console Case Assembly AK63-00121-0001...

  • Page 5: Console Support Assembly

    ARCTIC SILVER 95Ri Console Support Assembly Grips (2) 0K39-01005-0001 Console Support AK39-00003-0002 Frame Post Bolts (4) 0017-00101-1756 S/N CCU100000 and up Console Mounting Screws (4) 0017-00101-1744 Frame Post 95R-0XXX-04...

  • Page 6: Shrouds, End Cap, Crank Arms, And Pedals

    ARCTIC SILVER 95Ri Shrouds, End Cap, Crank Arms, and Pedals Shroud Screws (7) 0017-00101-1741 Crank Arm, RT 0K39-01042-0007 Screws (3) 0017-00101-1855 Right Pedal AK63-00263-0003 Pedal Strap (not shown) 0K63-01238-0003 Left Shroud AK39-00031-0008 Decal 0K39-01066-0000 Right Shroud AK39-00031-0007 Decal 0K39-01066-0000 End Cap Screws (2) 0017-00101-1614 Left Pedal AK63-00263-0004...

  • Page 7: Belts And 6V Battery

    ARCTIC SILVER 95Ri Belts and 6V Battery Screw 0017-00101-1193 Alternator Belt 0017-00009-0735 S/N CCU100000 and up Intermediate Pulley Belt 0K63-01066-0001 Screw 0017-00101-1193 Mounting Screw(2) 0017-00101-0975 6V Battery 0017-00003-0685 95R-0XXX-04 Bracket 0K51-01036-0000...

  • Page 8: Resistor Assembly

    ARCTIC SILVER 95Ri Resistor Assembly Resistor Assembly AK39-00020-0001 Pan Screws (2) 0017-00101-1282 Mounting Rod 0K63-01166-0000 Washers (2) 0017-00104-0309 Resistor 100E-00002-0092 Mounting Bracket 0K39-01036-0000 95R-0XXX-04 S/N CCU100000 and up Resistor Retainer 0K39-01043-0000 Hex Nuts (3) 0017-00103-0081...

  • Page 9: Power Control Board

    ARCTIC SILVER 95Ri Power Control Board Power Control Board Assembly AK39-00022-0001 S/N CCU100000 and up Plastic Grommets (4) 0017-00042-0821 Bracket 0K39-01027-0000 95R-0XXX-04 Philip Screws (4) 0017-00101-0823 Power Control Board B084-92218-D002...

  • Page 10: Alternator W/Pulley

    ARCTIC SILVER 95Ri Alternator w/Pulley Assembly Alternator w/Pulley Assembly AK63-00093-0000 Locking Nut 0017-00103-0117 Alternator Pulley 0K61-02500-0001 Washer 0017-00104-0044 95R-0XXX-04 S/N CCU100000 and up Alternator 0017-00009-0841 Bolt 0017-00101-0956...

  • Page 11: Crankshaft And Bearing Assembly

    ARCTIC SILVER 95Ri Crank Shaft and Bearing Assembly Crank Arm Hub 0K63-01095-0001 Pulley Assembly AK63-00051-0000 Pulley 0K63-01018-0000 Washers (3) 0017-00104-0458 Flywheel Screws (3) 0017-00101-1715 *Crankshaft 0K63-01012-0001 *Small Thrust Washer (2) 0K63-01129-0000 *Needle Bearing (2) 0K63-01344-0000 *Small Snap Ring (2) 0017-00100-0241 Crank Arm Hub (2) 0K63-01095-0001 95R-0XXX-04...

  • Page 12: Intermediate Shaft And Bearing Assembly

    ARCTIC SILVER 95Ri Intermediate Shaft and Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 S/N CCU100000 and up Magnet 118E-00001-0124 (not included in kit) Intermediate Spacer (not Bearings (2, available...

  • Page 13: Idler Bracket Assembly

    ARCTIC SILVER 95Ri Idler Bracket Assembly Idler Bracket Assembly AK63-00021-0000 Idler Bracket 0K63-01050-0000 Idler Bearing AK63-00008-0000 Lock Nut 0017-00103-0218 95R-0XXX-04 S/N CCU100000 and up...

  • Page 14: Seat Assembly

    ARCTIC SILVER 95Ri Seat Assembly Washers (8) 0017-00104-0461 Double-sided Foam Tape (2) 0K19-01222-0000 Bushing Hole 0017-00042-0866 Screws (2) 0017-00101-1282 Flat-Flex Cable AK19-00082-0001 Screws (4) 0017-00101-1745 Tape (2) 0K19-01222-0000 Cable Sleeve 0K19-01230-0000 Hex Bolts (4) 0017-00101-1749 95R-0XXX-04 S/N CCU100000 and up End Caps (4) 0K19-01208-0001 Heart Rate Electrode...

  • Page 15: Seat Bottom Assembly

    ARCTIC SILVER 95Ri Seat Assembly - Bottom Spacers (4) 0K51-01044-0000 Washers (4) 0017-00104-0462 Bolts (4) 0017-00101-1743 Roller Assembly AK51-00056-0001 Rollers, RT Rollers, LT 0K51-01034-0001 0K51-01034-0002 95R-0XXX-04 S/N CCU100000 and up Roller Shields (4) 0K51-01059-0001 Washer 0017-00104-0461 Locking Nuts (4) 0017-00103-0326 Washers (4) 0017-00104-0463 Screws (2)

  • Page 16: Seat Frame Assembly

    ARCTIC SILVER 95Ri Seat Frame Assembly Screws (4) 0017-00101-1746 Washers (4) 0017-00104-0462 Front Stop Bracket 0K51-01062-0000 Plastic Shield 0K19-01185-0001 Push Mount Wire Clips (2) 0017-00042-0879 95R-0XXX-04 S/N CCU100000 and up Seat Assembly Frame AK39-00036-0002 Split Clamp 0017-00042-0880 Pan Screw 0017-00101-1295...

  • Page 17: Seat Pads And Accessory Tray

    ARCTIC SILVER 95Ri Seat Pads and Accessory Tray Accessory Tray AK39-00052-0003 Washers (4) 0017-00104-0462 Mounting Screws (4) 0017-00101-1743 S/N CCU100000 and up Seat Back 0K51-01055-0001 95R-0XXX-04 Seat Bottom 0K51-01054-0001...

  • Page 18: Extrusion Assembly

    ARCTIC SILVER 95Ri Extrusion Assembly Extrusion Assembly AK39-00027-0005 Locking Rack 0K51-01013-0002 Screws (2) 0017-00101-1750 Bolts (2) 0017-00101-1183 S/N CCU100000 and up Stop Bracket 0K51-01061-0001 Screws (2) 0017-00101-1751 Plastic Grommet2 (2) 0017-00042-1055 Extrusion Seat Assy AK39-00027-0005 95R-0XXX-04 Bumper 0017-00041-0654 Decal 0K51-01039-0001...

  • Page 19: Seat Locking Assembly

    ARCTIC SILVER 95Ri Locking Assembly Locking Assembly AK51-00053-0001 Knob AK51-00029-0001 Retainer Bearing 0K51-01011-0000 E-Ring 0017-00100-0018 S/N CCU100000 and up TORX Screw 0017-00101-1742 Anti-Rattle Washer 0K51-01060-0001 Handle Shaft 0K51-01007-0000 Washer 0017-00104-0421 Housing-Insert Assembly AK51-00030-0001 Locking-Block Assembly AK19-00147-0000 95R-0XXX-04 Groove Pin 0017-00007-0245 Compression Spring 0K51-01012-0000...

  • Page 20: Wheel And Leveler

    ARCTIC SILVER 95Ri Wheel and Leveler Pan Screws (2) 0017-00101-1747 Flat Washer 0K63-01041-0000 Wheel Screw 0017-00101-1747 Leveler Assembly AK61-00035-0000 Wheel Assembly AK63-00016-0001 Wheel Insert 0K63-01039-0000 95R-0XXX-04 S/N CCU100000 and up Rear Stabilizer GK39-00002-0012 End Cap 0K63-01219-0001 Lock Nut 0017-00103-0273 Leveler 0017-00009-0795...

  • Page 21: Cables

    ARCTIC SILVER 95Ri Cables Life Pulse Extension AK19-00081-0002 AK63-00050-0000 Reed Switch Cable Cable Coax - AK32-00020-0001 Cable Power Ext - AK32-00078-0001 95R-0XXX-04 S/N CCU100000 and up...
