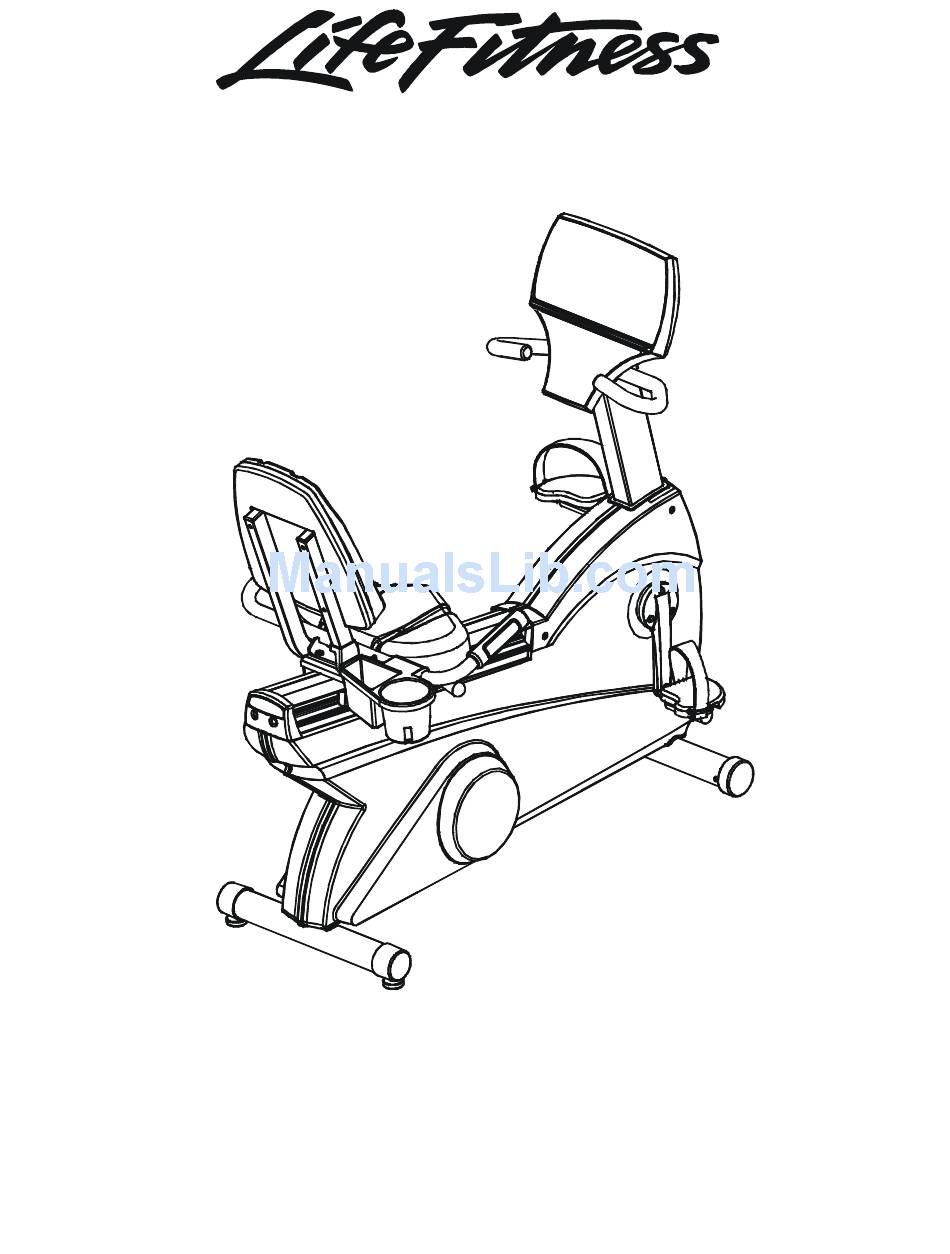

Arctic Silver 95RE Recumbent Bike
Customer Support Services
PARTS MANUAL
rev 01 May 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Recumbent Bike 95RE and is the answer not in the manual?

Questions and answers

Related Manuals for Life Fitness Recumbent Bike 95RE

Summary of Contents for Life Fitness Recumbent Bike 95RE

  • Page 1 Arctic Silver 95RE Recumbent Bike Customer Support Services PARTS MANUAL rev 01 May 2008...
  • Page 2 ARCTIC SILVER 95RE REFERENCES OPERATION MANUAL – (ENG) OPERATION MANUAL – (F/S/P) OPERATION MANUAL – (G/D/I) OPERATION MANUAL – (JAP) OPERATION MANUAL – (CHI) OPERATION MANUAL – (KOR) OPERATION MANUAL – (RUS) POWER SUPPLY: 12V; 4.5A Without Line Cord LINE CORD: DOM. 10A 125V LINE CORD: CON 10A 250V LINE CORD: 10A;...

  • Page 3: Table Of Contents

    ARCTIC SILVER 95RE 95RE-0XXX-04 CONTENTS S/N 100000-UP Page CONSOLE ASSEMBLY ...4 CONSOLE SUPPORT ASSEMBLY...6 SHROUDS, END CAP, CRANKARMS AND PEDALS ...7 BELTS ...8 RESISTOR ASSEMBLY ...9 POWER CONTROL BOARD ...10 ALTERNATOR W/PULLEY ...11 CRANKSHAFT AND BEARING ASSEMBLY...12 INTERMEDIATE SHAFT AND BEARING ASSEMBLY...13 IDLER BRACKET ASSEMBLY...14 SEAT ASSEMBLY…………….………………………………………………………………….15 SEAT BOTTOM ASSEMBLY..………………………………………………………………..…16...

  • Page 4: Console And Related Components

    ARCTIC SILVER 95RE Console and Related Components GK63-00002-0063 GK63-00002-0064 GK63-00002-0065 GK63-00002-0066 GK63-00002-0067 GK63-00002-0068 GK63-00002-0069 GK63-00002-0070 GK63-00002-0071 GK63-00002-0072 GK63-00002-0073 GK63-00002-0074 Part Number AK63-00247-0001 AK63-00247-0003 AK63-00247-0004 AK63-00247-0006 AK63-00247-0007 AK63-00247-0008 AK63-00247-0009 AK63-00247-0010 CONSOLE ASSEMBLY KIT: SERVICE CONSOLE W/FM NTSC ENG KIT: SERVICE CONSOLE W/FM NTSC SPN KIT: SERVICE CONSOLE W/FM NTSC JAP KIT: SERVICE CONSOLE W/FM NTSC FRN KIT: SERVICE CONSOLE W/FM NTSC POR...
  • Page 5 ARCTIC SILVER 95RE Console and Related Components HEADPHONE-JACK ASSY AK32-00035-0000 TOUCHSCREENS; LCD 0K32-01001-0013 Interface Boards A084-92247-A007 NTSC A084-92247-A008 PAL Single Board Computer A084-92251-A012 Screws(7) 0017-00101-1242 Screw 0017-00101-1811 POLAR PCB W/HEADER AK39-00064-0000 Inverter Board 135E-00002-0002 Screws(2) 0017-00101-1813 Screws(8) 0017-00101-1810 Console Back Cover 0K32-01003-0000 95RE-0XXX-04 S/N 100000-UP...

  • Page 6: Console Support Assembly

    ARCTIC SILVER 95RE Console Support Assembly Grip(2) 0K39-01005-0001 Console Support AK39-00003-0002 Frame Post Bolt(4) 0017-00101-1756 Console Mounting Screw(4) 0017-00101-1744 Frame Post 95RE-0XXX-04 S/N 100000-UP...

  • Page 7: Shrouds, End Cap, Crankarms And Pedals

    ARCTIC SILVER 95RE Shrouds, End cap and Pedals Shroud Screws(7) 0017-00101-1741 Crank Arm, RT 0K39-01042-0007 Screws(3) 0017-00101-1855 Right Pedal AK63-00263-0003 Pedal Strap (not shown) 0K63-01238-0003 Right Shroud AK39-00075-0001 Decal 0K39-01076-0000 Left Shroud AK39-00076-0001 Crank Arm, LT Decal 0K39-01042-0008 0K39-01076-0000 Screws(3) 0017-00101-1855 95RE-0XXX-04 S/N 100000-UP...

  • Page 8: Belts

    ARCTIC SILVER 95RE Belts Screw 0017-00101-1193 Alternator Belt 0017-00009-0735 Intermediate Pulley Belt 0K63-01066-0001 Screw 0017-00101-1193 95RE-0XXX-04 S/N 100000-UP...

  • Page 9: Resistor Assembly

    ARCTIC SILVER 95RE Resistor Assembly–AK39-00020-0001 Resistor 100E-00002-0092 Pan Screw(2) 0017-00101-1282 Mounting Rod 0K63-01166-0000 Mounting Bracket 0K39-01036-0000 Washer(2) 0017-00104-0309 Resistor Retainer 0K39-01043-0000 Hex Nut(3) 0017-00103-0081 95RE-0XXX-04 S/N 100000-UP Power Cable AK39-00006-0000...

  • Page 10: Power Control Board

    ARCTIC SILVER 95RE Power Control Board Assembly Number - AK39-00092-0000 Plastic Grommet(4) 0017-00042-0821 Bracket 0K39-01027-0000 Philip Screw(4) 0017-00101-0823 95RE-0XXX-04 S/N 100000-UP Power Control Board B084-92280-A000...

  • Page 11: Alternator W/Pulley

    ARCTIC SILVER 95RE Alternator w/pulley Assembly Assembly Number – AK63-00093-0000 Alternator Pulley 0K61-02500-0001 Locking Nut 0017-00103-0117 Alternator 0017-00009-0841 Alternator Brushes 0017-00009-0895 Washer 0017-00104-0044 95RE-0XXX-04 S/N 100000-UP Bolt 0017-00101-0956...

  • Page 12: Crankshaft And Bearing Assembly

    ARCTIC SILVER 95RE Crank Shaft and Bearing Assembly Crank Arm Hub 0K63-01095-0001 Pulley Assembly AK63-00051-0000 Pulley 0K63-01018-0000 Washers (3) 0017-00104-0458 Flywheel Screws (3) 0017-00101-1715 *Crankshaft 0K63-01012-0001 *Needle Bearing (2) 0K63-01344-0000 *Small Snap Ring (2) 0017-00100-0241 Crank Arm Hub (2) 0K63-01095-0001 95RE-0XXX-04 S/N 100000-UP *Crankshaft &...

  • Page 13: Intermediate Shaft And Bearing Assembly

    ARCTIC SILVER 95RE Intermediate Shaft and Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 Magnet 118E-00001-0124 (not included in kit) Intermediate Spacer (not Bearings (2, available not available separately)

  • Page 14: Idler Bracket Assembly

    ARCTIC SILVER 95RE Idler Bracket Assembly Idler Bracket Assembly – AK63-00021-0000 Lock Nut 0017-00103-0218 Idler Bracket 0K63-01050-0000 Idler Bearing AK63-00008-0000 95RE-0XXX-04 S/N 100000-UP...

  • Page 15: Seat Assembly

    ARCTIC SILVER 95RE Seat Assembly Screw(4) 0017-00101-1745 Washer(8) 0017-00104-0461 Bushing Hole 0017-00042-0866 Screw(2) 0017-00101-1282 Upper Flex Cable Clamp 0K19-01221-0000 Cable Sleeve 0K19-01230-0000 Flat-Flex Cable AK19-00082-0001 Hex Bolt(4) 0017-00101-1749 Double-sided Foam Tape(2) 0K19-01222-0000 95RE-0XXX-04 S/N 100000-UP End Cap(4) 0K19-01208-0001 Heart Rate Electrode AK63-00014-0003 Handle Bar w/Insert AK39-00024-0002...

  • Page 16: Seat Bottom Assembly

    ARCTIC SILVER 95RE Seat Assembly - Bottom Roller Spacer(4) 0K51-01044-0000 Washer(4) 0017-00104-0462 Bolt(4) 0017-00101-1743 Roller Assembly AK51-00056-0001 Roller (2), LT 0K51-01034-0002 Roller Shield(4) 0K51-01059-0001 Roller (2), RT 0K51-01034-0001 95RE-0XXX-04 S/N 100000-UP Washer 0017-00104-0461 Locking Nut(4) 0017-00103-0326 Washer(4) 0017-00104-0463 Screw(2) 0017-00101-1748 Lock Assembly AK51-00053-0001 Locking Nut(8)

  • Page 17: Seat Frame Assembly

    ARCTIC SILVER 95RE Seat Frame Assembly Screw(4) 0017-00101-1746 Washer(4) 0017-00104-0462 Front Stop Bracket 0K51-01062-0000 Plastic Shield 0K19-01185-0001 Seat Assembly Frame AK39-00036-0002 Split Clamp 0017-00042-0880 Pan Screw 0017-00101-1295 Push Mount Wire Clips(2) 0017-00042-0879 95RE-0XXX-04 S/N 100000-UP...

  • Page 18: Seat Pads And Accessory Tray

    ARCTIC SILVER 95RE Seat Pads and Accessory Tray Washer(4) 0017-00104-0462 Mounting Screw(4) 0017-00101-1743 Accessory Tray AK39-00052-0003 95RE-0XXX-04 S/N 100000-UP Seat Back 0K51-01055-0001 Seat Bottom 0k51-01054-0001...

  • Page 19: Extrusion Assembly

    ARCTIC SILVER 95RE Extrusion Assembly. – AK39-00027-0005 Screw 0017-00101-1750 Bolts 0017-00101-1183 Screws 0017-00101-1751 Locking Rack 0K51-01013-0002 95RE-0XXX-04 S/N 100000-UP Stop Bracket 0K51-01061-0001 Decal 0K51-01039-0001 Bumper 0017-00041-0654 Plastic Grommet 0017-00042-1055...

  • Page 20: Seat Locking Assembly

    ARCTIC SILVER 95RE Locking Assembly. – AK51-00053-0001 Knob AK51-00029-0001 Retainer Bearing 0K51-01011-0000 E-Ring 0017-00100-0018 TORX Screw 0017-00101-1742 Anti-Rattle Washer 0K51-01060-0001 Handle Shaft 0K51-01007-0000 Groove Pin 0017-00007-0245 Compression Spring 0K51-01012-0000 Washer 0017-00104-0421 Housing-Insert Assembly AK51-00030-0001 Locking-Block Assembly AK19-00147-0000 95RE-0XXX-04 S/N 100000-UP...

  • Page 21: Wheel And Leveler

    ARCTIC SILVER 95RE Wheel and Leveler Pan Screw(2) 0017-00101-1747 Wheel Screw 0017-00101-1747 Rear Stabilizer GK39-00002-0012 Flat Washer 0K63-01041-0000 Wheel Insert 0K63-01039-0000 Wheel Assembly AK63-00016-0001 95RE-0XXX-04 S/N 100000-UP End Cap 0K63-01219-0001 Leveler 0017-00009-0795 Lock Nut 0017-00103-0273 Leveler Assembly AK61-00035-0000...

  • Page 22: Cables

    ARCTIC SILVER 95RE Cables Connector Bracket Assy. AK39-00082-000 Coax Cable DC Power Cable AK32-00020-0000 AK32-00075-0000 Reed switch and Cable AK63-00051-0000 HR Cable AK39-00010-0000 Inverter Cable Flat Flex Cable 118E-00001-0178 AK32-00032-0000 Console Power Cable AK32-00006-0004 Console Cable AK32-00026-0004 Polar Cable AK32-00017-0000 POLAR receiver HR Extensions Cable AK39-00064-0000...
