3

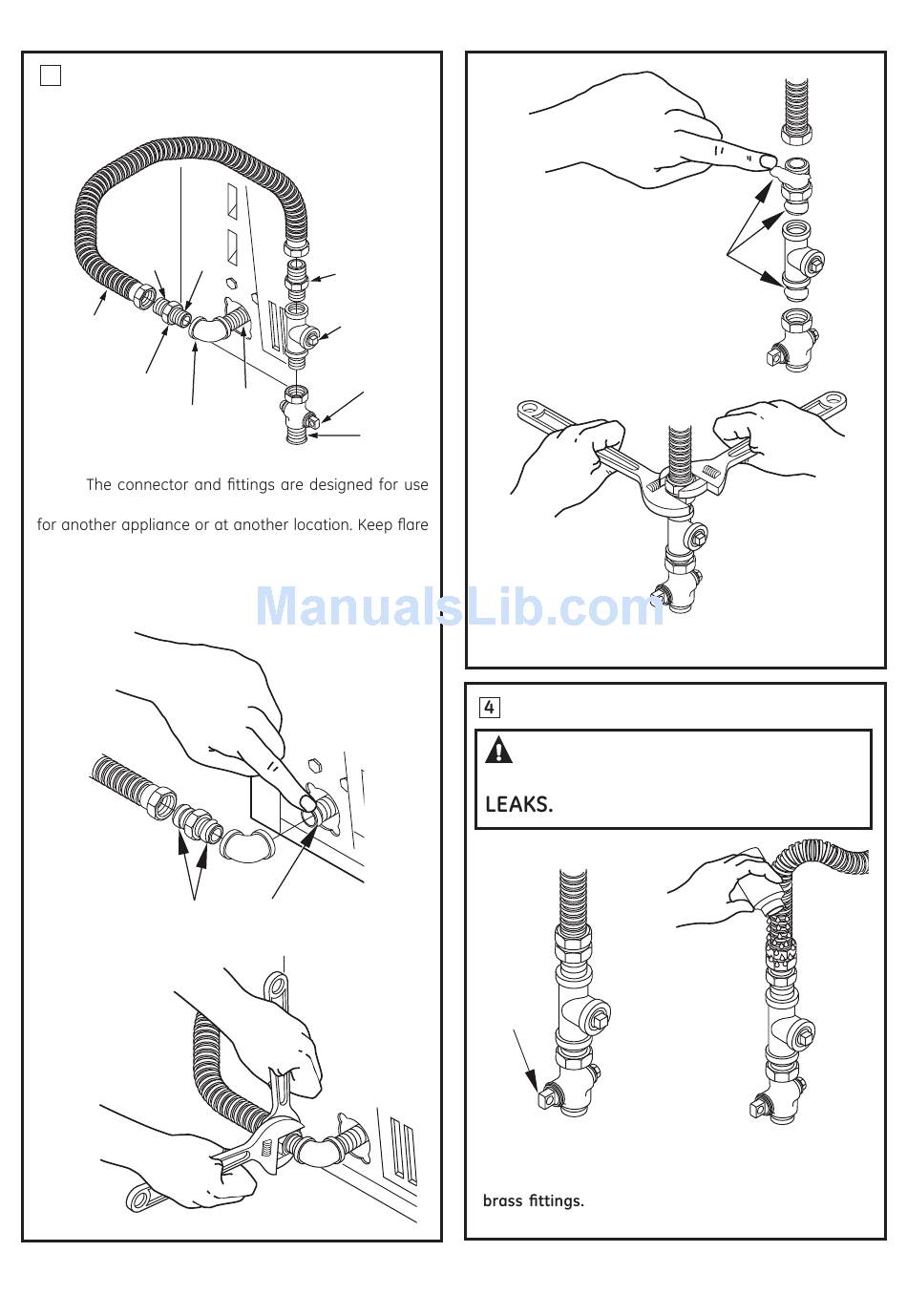

RECONNECTING GAS
Listed connector ANSI Z21.24 / CSA 6.10
FLARE
NPT
NEW METAL
FLEXIBLE GAS
LINE CONNECTOR
ADAPTER
ELBOW
ITEMS NOT SUPPLIED
NOTE:
only on the original installation and are not to be reused
end of adaptor free of grease, oil and thread sealant.
CAUTION
:
Use adaptors as shown. Connector
nuts must not be connected directly to pipe threads.
APPLY PIPE COMPOUND
TO THE ADAPTER AND
DRYER GAS INLET.
Tighten the flexible
gas line using two
adjustable wrenches.
Installation Instructions
ADAPTER
1/8" NPT PIPE
PLUG FOR
CHECKING GAS
INLET PRESSUR
SHUT-OFF
VALVE
3/8" NPT
PIPE SIZE
AT LEAST 1/
APPLY PIPE COMPOUND
TO ALL MALE THREADS.
Tighten all connections using two adjustable
wrenches. Do not overtorque gas connections!
LEAK TEST
WARNING
OPEN FLAME TO TEST FOR GAS
OPEN
GAS VALVE.
Check all connections for leaks with soapy solution or
equivalent. Apply soap solution. Leak test solution must
not contain ammonia which could cause damage to the
If leaks are found, close valve, retighten
the joint, and repeat the soap test.
3
- NEVER USE AN
