EMX-CDT User's Manual
2.3.6

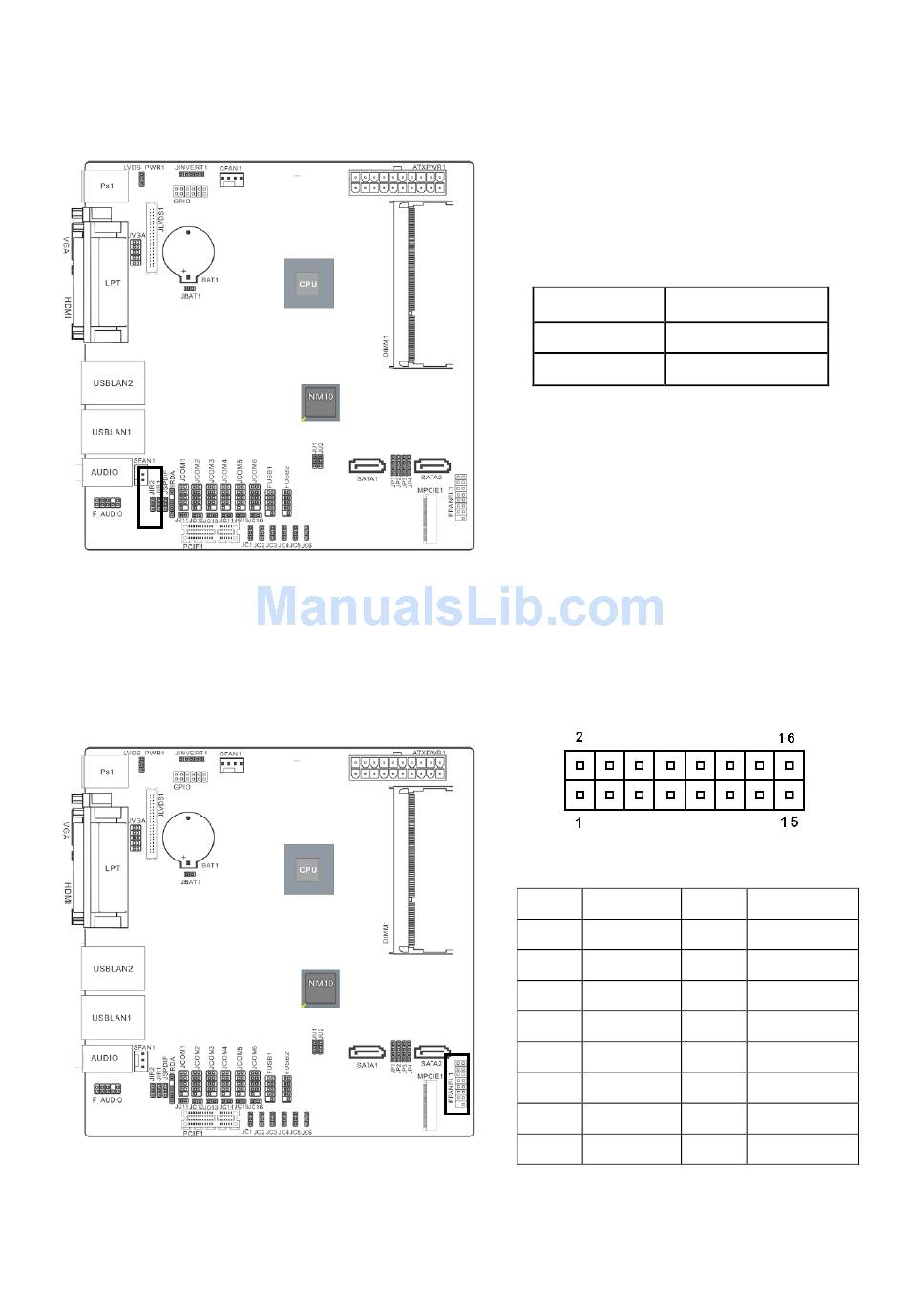

JIR1/ JIR2

2.3.7

FPANEL1

16 EMX-CDT User's Manual
Data Modul AG - www.data-modul.com
Pin No.
1-2
2-3
For COM2, please set up JIR1/ JIR2 as 1-2.
For IR, please set up JIR1/ JIR2 as 2-3.
Pin No. Definition Pin No.
1 5VSB
3 +P_LED
5 -P_LED
7 +SPEAK
9 NC
11 NC
13 -SPEAK
15 KEY
Definition
COM2
IR
Definition
2 +HD_LED
4 -HD_LED
6 PS_ON
8 -PS_ON
10 RESET
12 -RESET
14 +SLEEP_LED
16 -SLEEP_LED
